Volumec JoyTap 3 Tapping Machine

With thousands of machines sold and satisfied customers all over the world, Joytap 3 is a guarantee in performance, quality and low energy consumption. Its unique technical characteristics are a result of many years of research and development and allow to made different operations with the same machine: Tapping, Screwing with couple control, insert pose/helecoil, countersinking and reaming.

Volumec JoyTap 3 Tapping Machine imageVolumec JoyTap 3 Tapping Machine image
Video thumbnail showing the Volumec JoyTap 3 Tapping Machine
Volumec JoyTap 3 Tapping Machine image 3Volumec JoyTap 3 Tapping Machine image 3
Volumec JoyTap 3 Tapping Machine image 4Volumec JoyTap 3 Tapping Machine image 4
Volumec JoyTap 3 Tapping Machine image 5Volumec JoyTap 3 Tapping Machine image 5
Volumec JoyTap 3 Tapping Machine image 6
Workstation (BML001 - Optional)
Volumec JoyTap 3 Tapping Machine image 6
Volumec JoyTap 3 Tapping Machine image 7
Side Plate 90° (BML002A - Optional)
Volumec JoyTap 3 Tapping Machine image 7
Volumec JoyTap 3 Tapping Machine image 8
Trolley with Column (800mm x 800m) (CCF100 - Optional)
Volumec JoyTap 3 Tapping Machine image 8
Volumec JoyTap 3 Tapping Machine image 9
Trolley with Column (800mm x 800m) (CCF100 - Optional)
Volumec JoyTap 3 Tapping Machine image 9
Volumec JoyTap 3 Tapping Machine image 10
Trolley with Lifting Column (CCM001 - Optional)
Volumec JoyTap 3 Tapping Machine image 10
Volumec JoyTap 3 Tapping Machine image 11
Trolley with Structural Aluminium Plan (CPA001 - Optional)
Volumec JoyTap 3 Tapping Machine image 11
Volumec JoyTap 3 Tapping Machine image 12
Electronic Depth Sensor (EDS01 - Optional)
Volumec JoyTap 3 Tapping Machine image 12
Volumec JoyTap 3 Tapping Machine image 13Volumec JoyTap 3 Tapping Machine image 13
Volumec JoyTap 3 Tapping Machine image 14Volumec JoyTap 3 Tapping Machine image 14
Volumec JoyTap 3 Tapping Machine image 15

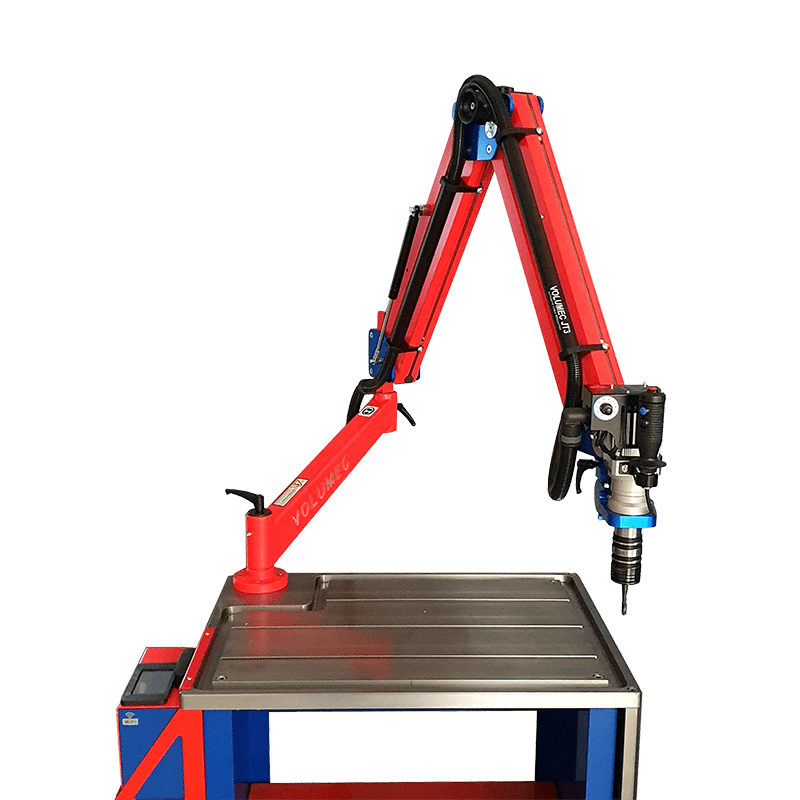

JoyTap 3 with Optional Mobile Trolley
Volumec JoyTap 3 Tapping Machine image 15
Volumec JoyTap 3 Tapping Machine image 16Volumec JoyTap 3 Tapping Machine image 16
Volumec JoyTap 3 Tapping Machine image 17Volumec JoyTap 3 Tapping Machine image 17
Volumec JoyTap 3 Tapping Machine image 18

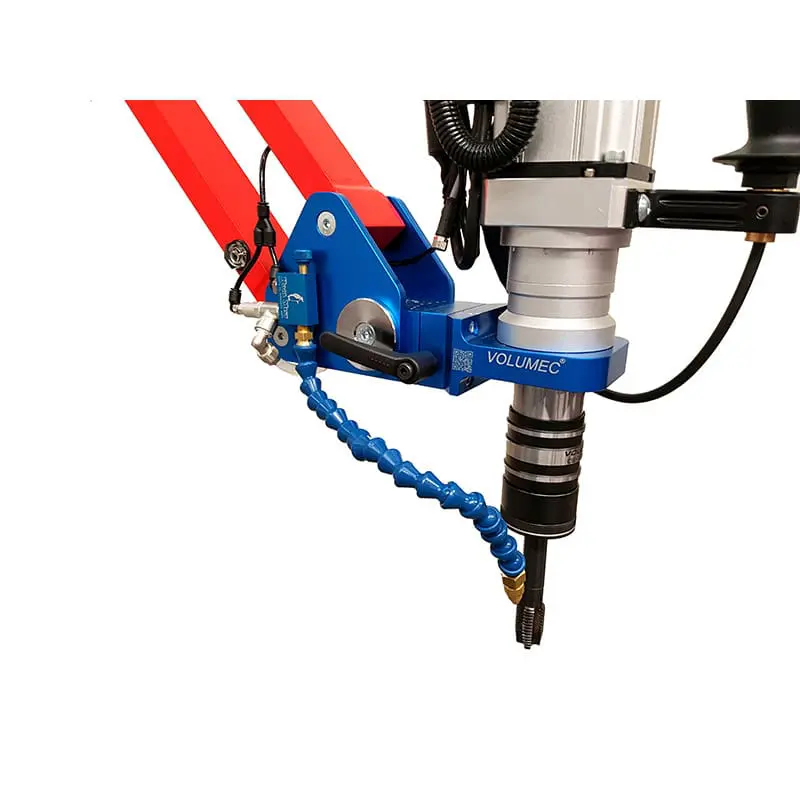

Automatic Lubrication System (LST01 - Optional)
Volumec JoyTap 3 Tapping Machine image 18
Volumec JoyTap 3 Tapping Machine image 19
Fast Positioning Head 0-90° (FRH0-90 - Optional)
Volumec JoyTap 3 Tapping Machine image 19
Volumec JoyTap 3 Tapping Machine image 20
JoyTap 3 With Optional Automatic Lubrication System
Volumec JoyTap 3 Tapping Machine image 20
Volumec JoyTap 3 Tapping Machine image 21
VASTC Control Screen
Volumec JoyTap 3 Tapping Machine image 21
Volumec JoyTap 3 Tapping Machine image 22

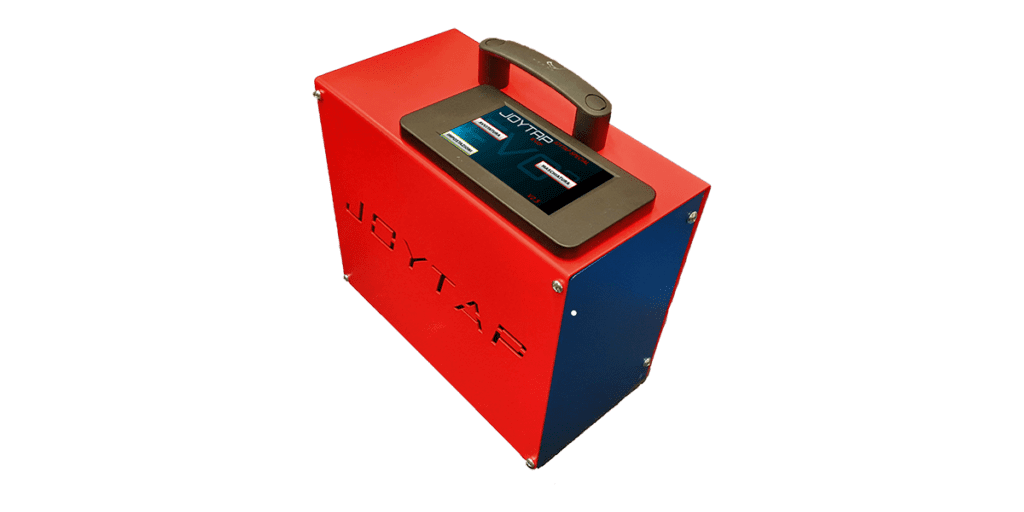

VASTC Control
Volumec JoyTap 3 Tapping Machine image 22
Volumec JoyTap 3 Tapping Machine image 23
VASTC Control 4.0
Volumec JoyTap 3 Tapping Machine image 23
MODEL   JT3000 JT3150 JT3500 JT3750 JT3750M JT3900
Tapping Capacity in steel (Metric) M M2 – M12 M3 – M16 M5 – M24 M8 – M36 M8 – M36 M10 – M48
Tapping Capacity in Steel (Imperial) Inches 0 – 1/2” 1/8” – 5/8” 5/32” – 7/8” 5/16″ – 1 3/8″ 5/16″ – 1 3/8″ 1/2″ – 2″
Speed RPM 100 – 1000 50 – 500 20 – 200 20-145 20-145 10-90

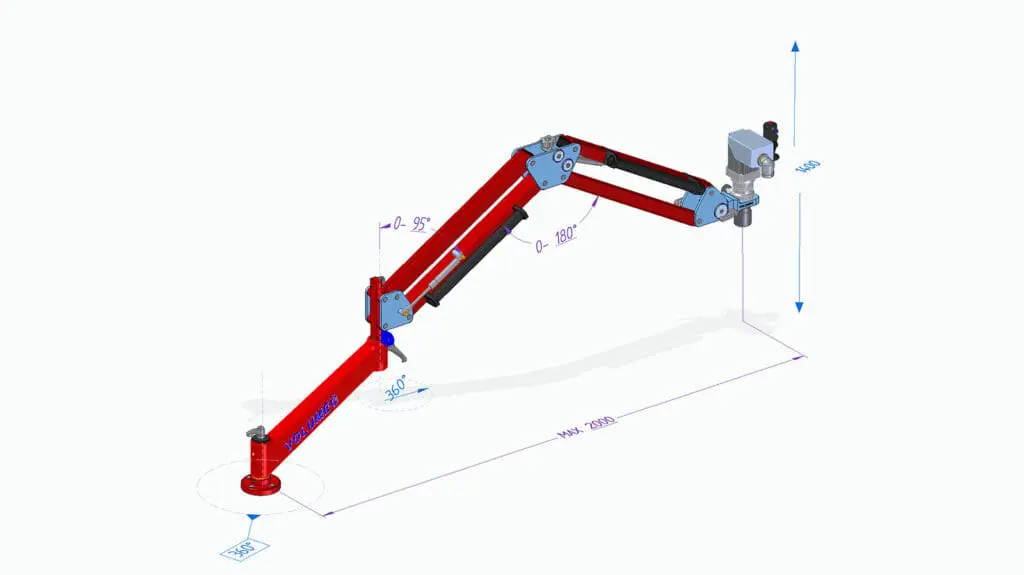

Working Range mm 2000 2000 2000 2000 2000 1500
Spindle GR2 GR2 GR2 GR3 GR3 GR4
Weight kg 19 19 20 25 25 50

Features

  • New generation brushless motor G2 750 Watt (High performance without maintenance)
  • Constant torque tapping speed control
  • Multidirectional head with positioning magnet included
  • Ergonomic rotating handle
  • Triple articulated arm structure in cast aluminium and designated profile
  • integrated wiring (save mobile wiring)
  • Quick-connect spindle

Options

  • Electronic Depth Sensor (EDS01)
  • Automatic Lubrication System (LST01)
  • Fast Positioning Head 0-90° (FRH0-90
  • Trolley Workstation
  • Workstation
  • Trolley with lifting column
  • Side Plate 90°
  • VASTC / VASTC 4.0



With thousands of machines sold and satisfied customers all over the world, Joytap 3 is a guarantee in performance, quality and low energy consumption. Its unique technical characteristics are a result of many years of research and development and allow to made different operations with the same machine: Tapping, Screwing with couple control, insert pose/helecoil, countersinking and reaming.

FEATURES

NEW ALUMINIUM STRUCTURE developed with an EXCLUSIVE Volumec profile that gives greater rigidity and precision than other models

MECHANICS of the articulated arm improved for fluidity and resistance

NEW GENERATION BRUSHLESS MOTOR (G2) with unrivalled performance and reliability

INTEGRATED SHIELDED WIRING that does not require awkward adjustments during movement

VASTC TOUCH PANEL, the most advanced on the market for screwing/tapping, updated with new functions and programmable torque (Nm)

MULTIDIRECTIONAL HEAD also with automatic search for 0-90° workpiece alignment

LOW CONSUMPTION AND MINIMUM NOISE LEVEL

VASTC – Volumec Assisted Screwing Tapping Control (Optional)

Tapping

– AUTOMATIC TAPPING MODE (set the pitch – depth – speed – torque in Nm to save the tools)
– MANUAL TAPPING MODE (set tapping speed – torque in Nm to save the tools)
– COUNTING THREADS MODE.
– SALVABLE PROGRAMS, password protection.
– Easily PROGRAMMABLE trough the INTEGRATED INTERFACE.
– Store data for later re-use.
– Encoder-based control means no loss of speed and torque when tapping.

Screwing

– Screwing with automatic stop at the pre-set torque mode. ( set speed – torque in Nm)
– Green light for screwing end indication.
– Screw centring system before screwing.
– Counter screwing.
– Password-protected salvable programs.
– Easily PROGRAMMABLE trough the INTEGRATED INTERFACE.
– Store data for later re-use.
– ENCODER-BASED CONTROL means NO LOSS OF SPEED AND TORQUE during screwing.

VASTC-4.0 (Industry 4.0) (Optional)

The New Vastc system 4.0 (assisted screwing tapping control), it has been equipped with Wi-fi connection, so that it can be controlled easy from smartphone, computer and/or tablets:

> LAN connection, Wi-fi or sim card.
> Sets remote screwing and tapping programs.
> Direct download of working report to your device.
– Data / Time
– Number of tapping/screwing
– Pitch / Depth
– Torque
– Speed
> USB port for direct uploading/downloading of programs to your Vastc control.
