Sterling SVR Vertical Bandsaws 415v

Sterling SVR Vertical Bandsaws

The Sterling SVR Vertical Bandsaws 415V deliver versatile and precise cutting solutions, ideal for workshops seeking reliability and flexibility. Offered in four models with varying throat capacities, they come equipped with a blade shear, welder, and grinder as standard. Supporting blade sizes from 3mm for intricate curved cuts to 16mm for straight cuts, with optional guards for up to 27mm, these bandsaws can handle materials like iron, steel, plastic, and wood, making them suitable for diverse applications.

Constructed from durable fabricated steel, the SVR range ensures long-lasting precision and reliability. Their vertical design is perfect for intricate cuts, mitres, and curved shapes, while saving space in smaller workshops. With robust construction, excellent flexibility, and a full range of blades available via Selmach’s tooling website, the Sterling SVR Vertical Bandsaws combine practicality with affordability.

Sterling SVR Vertical Bandsaws
Sterling SVR Vertical BandsawsSterling SVR Vertical Bandsaws
Video thumbnail showing the Sterling SVR Vertical Bandsaws 415v
Sterling SVR Vertical Bandsaws on an angleSterling SVR Vertical Bandsaws on an angle
Sterling SVR Vertical Bandsaws Front ViewSterling SVR Vertical Bandsaws Front View

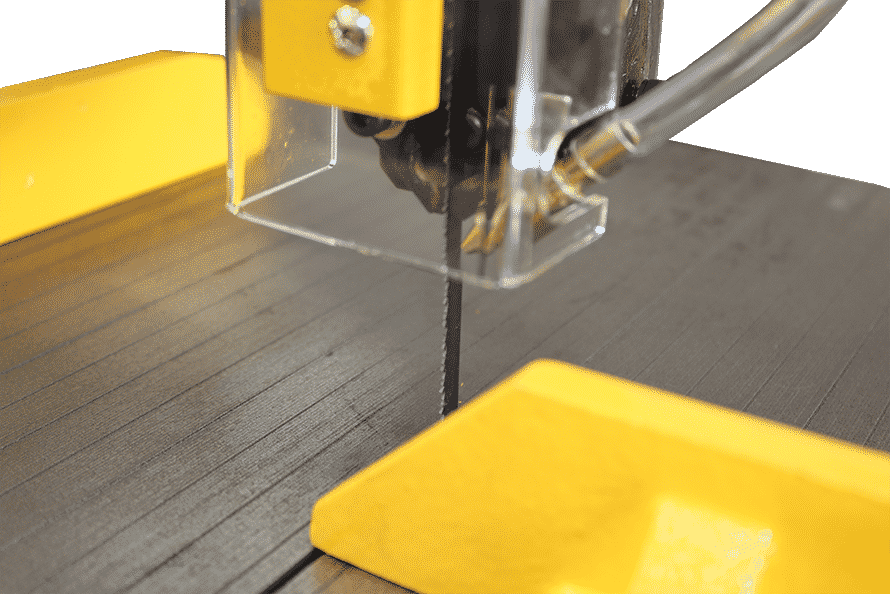

Sterling SVR Blade Close Up
Sterling SVR Blade
Sterling SVR Blade Close Up

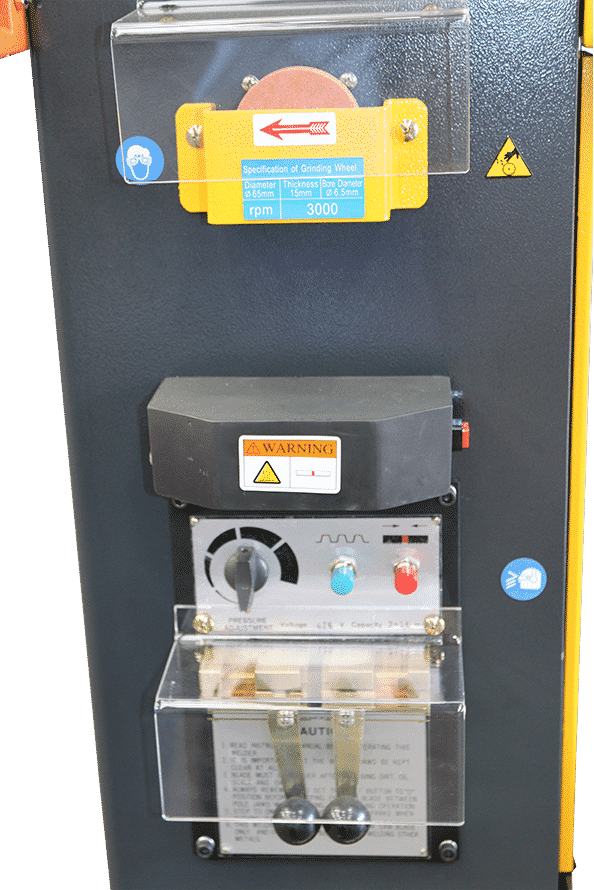

SVR Blade Welding Equipment
Blade Welding Equipment on the SVR Range
SVR Blade Welding Equipment

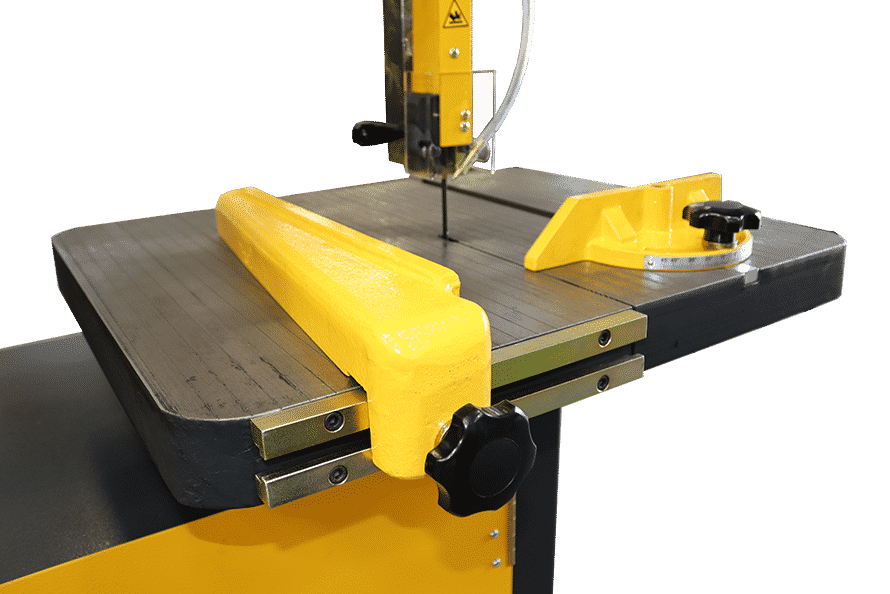

Sterling SVR Cutting Guides
SVR adjustable cutting guides
Sterling SVR Cutting Guides
Sterling SVR Vertical Bandsaws 415v image 8

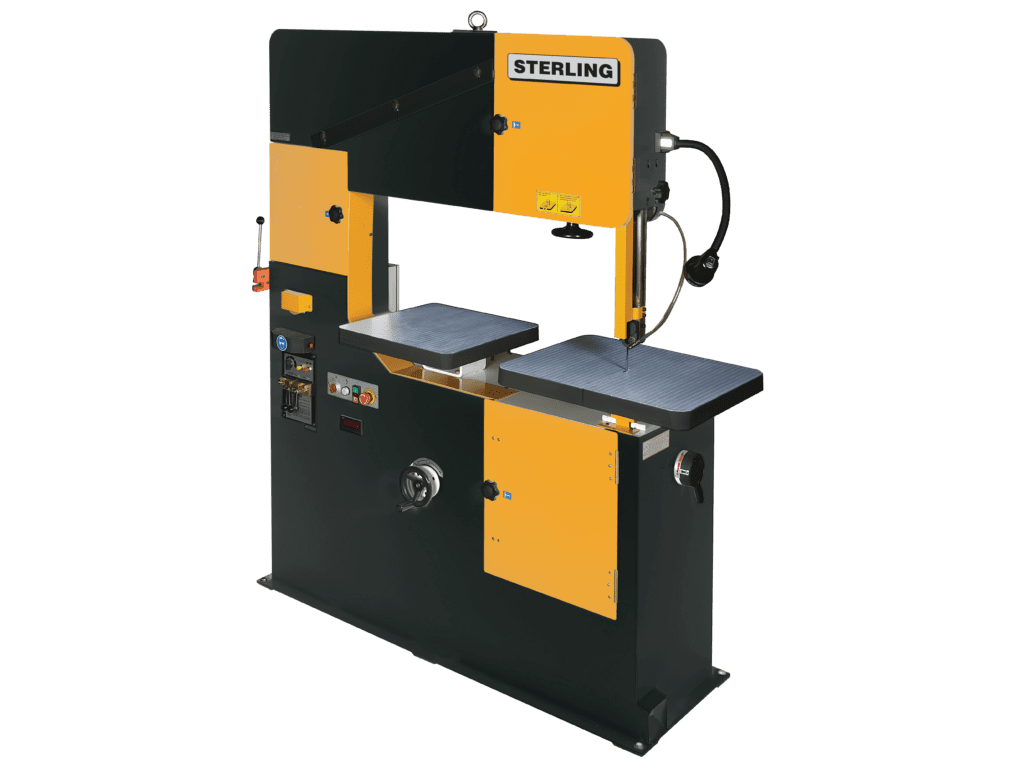

Sterling SVR1000
Sterling SVR Vertical Bandsaws 415v image 8



Cutting height Cutting depth Table size Cutting speed Blade length Blade width Motor Length Width Height Weight
MODEL STOCK CODE mm mm mm m/min mm mm kw mm mm mm kg
SVR400 15456 300 410 600 x 500 20 – 500 3350 3.0 – 16 (Welded)

3.0 – 27 (Unwelded)

1.5 1200 760 2100 440
SVR500 15457 310 520 600 x 500 20 – 500 3880 1.5 1300 760 2140 500
SVR600 15458 340 610 600 x 500 20 – 500 3970 1.5 1420 760 2140 700
SVR1000 15459 340 1010 Front: 600 x 500
Rear: 450 x 500
20 – 500 4540 1.5 1770 760 2140 800

Features

SVR400, SVR500 & SVR600

  • Wide range of blade widths
  • Swarf brush
  • Low voltage work light
  • Adjustable fence for straight cutting
  • Variable protractor fence for angle cutting
  • Inclinable table – 5 degrees left and 15 degrees right
  • Variable 2 speed motor

SVR1000

  • Accepts blade widths from 3 to 16mm
  • Variable cutting speed
  • Swarf removal brush
  • Integrated blade welder and grinder
  • Low voltage working light

Options

SVR1000 only

  • Rip fence
  • Mitre fence

Sterling SVR Vertical Bandsaws 415V: Versatile and Precise Cutting for Any Workshop

The Sterling SVR Vertical Bandsaws 415V are designed to provide workshops with reliable, flexible, and precise cutting solutions. These versatile machines are ideal for fabricators and engineers working with a wide range of materials, from metal and wood to plastics. Built for durability and high performance, the SVR range is a standout option for workshops of all sizes.

Available in four models with varying throat capacities, these vertical bandsaws are equipped with a host of advanced features as standard, including a blade shear, blade welder, and grinder, ensuring operators can handle multiple cutting tasks with ease.

A Range of Blade Options for All Applications

One of the most impressive aspects of the Sterling SVR Vertical Bandsaws is their ability to accommodate a variety of blade sizes. Blade widths range from 3mm, suitable for intricate curved cuts, to 16mm for straight-line cutting, offering exceptional versatility for different projects. Optional guards can increase blade capacity up to 27mm, ensuring the machine is capable of tackling heavy-duty cutting tasks.

This flexibility makes the SVR bandsaws ideal for working with a wide range of materials, including:

  • Iron and Steel: Perfect for industrial and fabrication applications.
  • Plastic: Ensures clean, precise cuts for custom components.
  • Wood: Handles straight, curved, or angled cuts with ease, making it suitable for woodworking and joinery projects.

Built for Durability and Precision

Constructed from robust fabricated steel, the Sterling SVR Vertical Bandsaws are designed to endure the demands of heavy industrial use. The durable frame provides exceptional stability, reducing vibrations during operation to deliver clean and precise cuts every time.

The vertical design of these bandsaws is particularly suited for intricate cuts, such as angled, mitre, or curved shapes, while also being highly space-efficient. This makes them an excellent choice for smaller workshops that require a compact yet capable cutting solution.

Advanced Features for Enhanced Performance

The Sterling SVR Vertical Bandsaws come equipped with several advanced features that make them highly versatile and user-friendly:

  1. Blade Shear, Welder, and Grinder:
    These essential tools come as standard with every machine, allowing operators to perform blade maintenance in-house. This reduces downtime and ensures optimal performance for every job.
  2. Adjustable Blade Speed:
    Operators can fine-tune the blade speed to suit the material being cut, resulting in cleaner cuts and reduced wear on the blades.
  3. Optional Guards for Increased Blade Capacity:
    With optional guards allowing blades up to 27mm wide, the SVR range can handle heavy-duty cutting tasks typically reserved for larger, more specialised machines.
  4. User-Friendly Controls:
    Simple, intuitive controls make the SVR bandsaws easy to operate, ensuring both novice and experienced users can achieve precise results with minimal effort.

Perfect for Workshops of All Sizes

Whether you’re operating in a large fabrication facility or a smaller workshop, the Sterling SVR Vertical Bandsaws are an ideal addition to your cutting toolkit. Their compact design maximises workspace efficiency without sacrificing performance, making them suitable for a variety of environments.

For smaller workshops, the vertical orientation of the bandsaw is a game-changer, allowing operators to work with large materials while minimising the machine’s footprint. For larger facilities, the durability and flexibility of the SVR range ensure consistent performance for high-volume cutting tasks.

Economical and Practical

Sterling bandsaws are known for their cost-effective performance, and the SVR range is no exception. Offering a combination of reliability, precision, and flexibility, these bandsaws represent excellent value for money. Their low maintenance requirements and ability to handle a wide range of materials make them a practical choice for workshops looking to maximise productivity and minimise costs.

In addition, a full range of replacement blades and accessories is available through Selmach’s tooling website, ensuring ongoing support and easy access to the parts you need.

Applications Across Industries

The Sterling SVR Vertical Bandsaws are designed to meet the needs of a wide variety of industries, including:

  • Metal Fabrication: Ideal for cutting steel, iron, and other metals for structural and custom fabrication projects.
  • Woodworking: Perfect for creating intricate designs, curved cuts, and angled components.
  • Plastic Manufacturing: Ensures clean cuts for plastics used in industrial and consumer products.

This versatility makes the SVR range a go-to solution for workshops that handle diverse projects across multiple industries.

Summary: Sterling SVR Vertical Bandsaws

The Sterling SVR Vertical Bandsaws 415V offer a combination of versatility, precision, and durability, making them an ideal choice for workshops of all sizes. With advanced features such as a blade shear, welder, and grinder, these bandsaws are equipped to handle a wide range of materials, including iron, steel, plastic, and wood. Their vertical design is perfect for intricate cuts, while the durable fabricated steel frame ensures long-lasting performance.

Available in four models with varying throat capacities, the SVR range offers blade sizes from 3mm to 16mm, with optional guards for up to 27mm, making them suitable for everything from delicate curved cuts to heavy-duty tasks. With replacement blades and accessories available through Selmach, these bandsaws combine practicality with affordability.

Why Choose the Sterling SVR Vertical Bandsaws?

The Sterling SVR Vertical Bandsaws 415V deliver on all fronts, offering reliability, precision, and versatility. Whether you’re cutting intricate angles or tackling heavy-duty tasks, the SVR range ensures consistent performance and excellent value for money.

Invest in the Sterling SVR Vertical Bandsaws and elevate your workshop’s cutting capabilities with a durable, space-efficient, and cost-effective solution.
