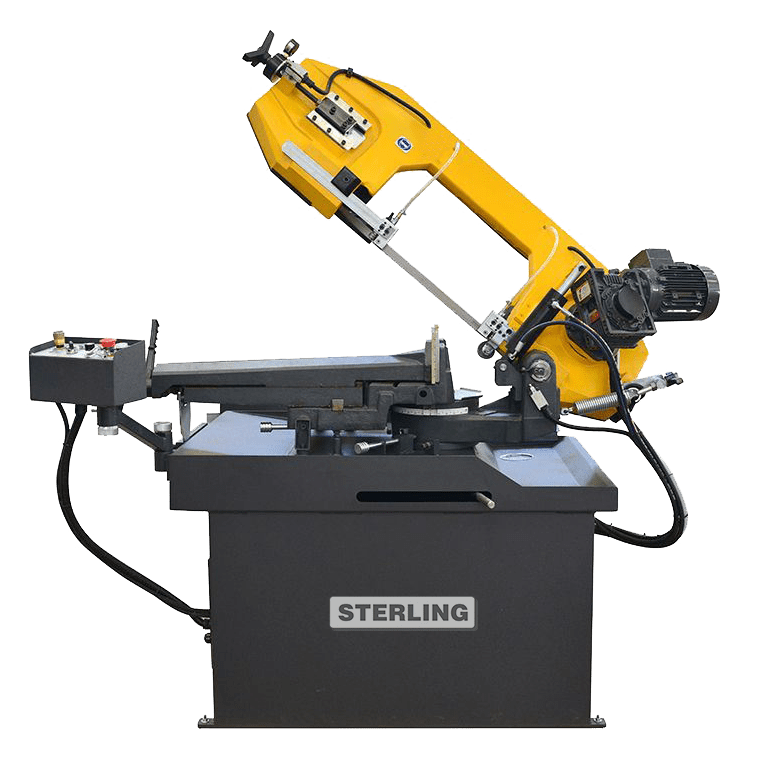

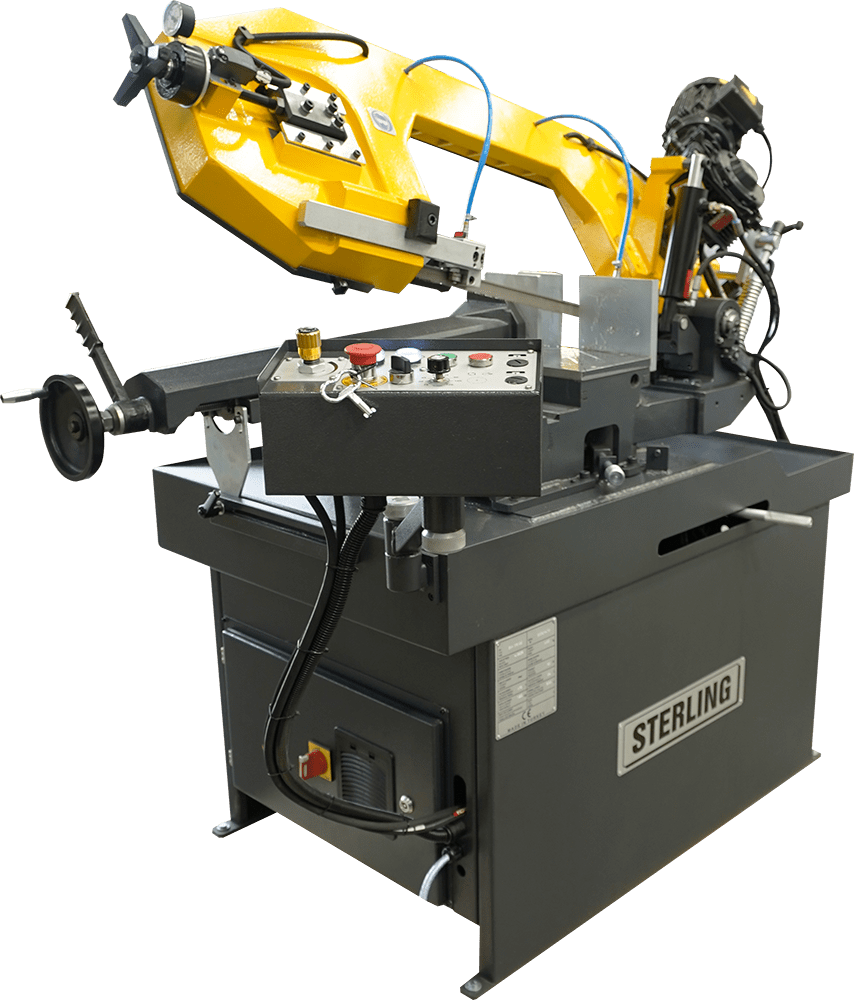

Sterling SRA DG Auto Down Feed Double Mitring Bandsaw 415v
The comprehensive Sterling range continues with the compact but robustly constructed SRA 230 DG and SRA 270 DG models. These machines features auto down feed operation. The double mitring head design allows the cutting of angles to either the left or the right without turning the material over. Two blade speeds are available as standard on the 230, while the 270 features variable speeds between 20 – 100 m/min, suitable for cutting either mild or stainless steel.
The range of Sterling DG Pull Down Bandsaws are fast cutting, quiet running and ideal for sawing mild steel and stainless steel materials. They are double mitring with a quick release vice resulting in a good all round saw for the fabrication and engineering markets.
| MODEL | SRA230 DG | SRA270 DG | ||||||||||
| STOCKCODE | 15140 | 15136 | ||||||||||
| Capacity | 90° | 45° L | 45° R | 60° R | 90° | 45° L | 45° R | 60° R | ||||
| ◯ Tube | mm | 230 | 180 | 210 | 120 | 270 | 210 | 240 | 150 | |||
| ▢ Box Section | mm | 230 | 140 | 180 | 100 | 270 | 210 | 200 | 180 | |||
| ▭ Widest Cut | mm | 320 x 130 | 230 x 100 | 230 x 160 | 120 x 100 | 350 x 220 | 270 x 210 | 270 x 200 | 150 x 100 | |||
| Bed Height | mm | 760 | 910 | |||||||||
| Blade Size | mm | 2730 x 27 x 0.9 | 3160 x 27 x 0.9 | |||||||||
| Cutting Speed | m/min | 35/70 | 20 – 100 | |||||||||

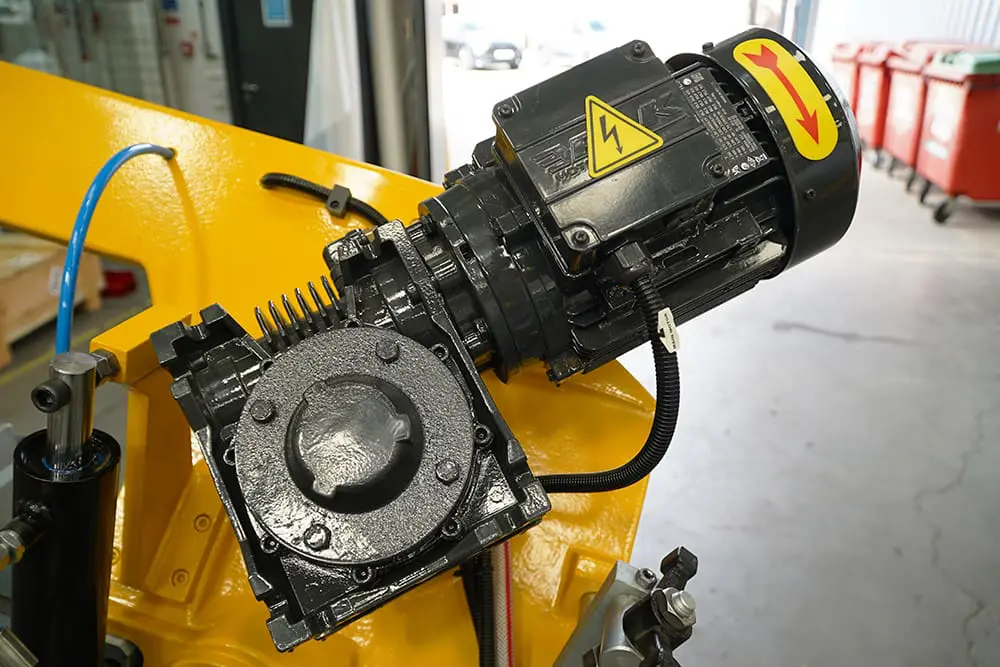

| Motor | Kw | 1.0/1.3 | 1.5 | |||||||||
| Length | mm | 1350 | 1730 | |||||||||
| Width | mm | 700 | 770 | |||||||||
| Height | mm | 1300 | 1460 | |||||||||
| Weight | Kg | 430 | 465 | |||||||||
| Operation | Auto down feed | Auto down feed | ||||||||||
| Vice | Manual | Manual |
Features
- Auto down feed

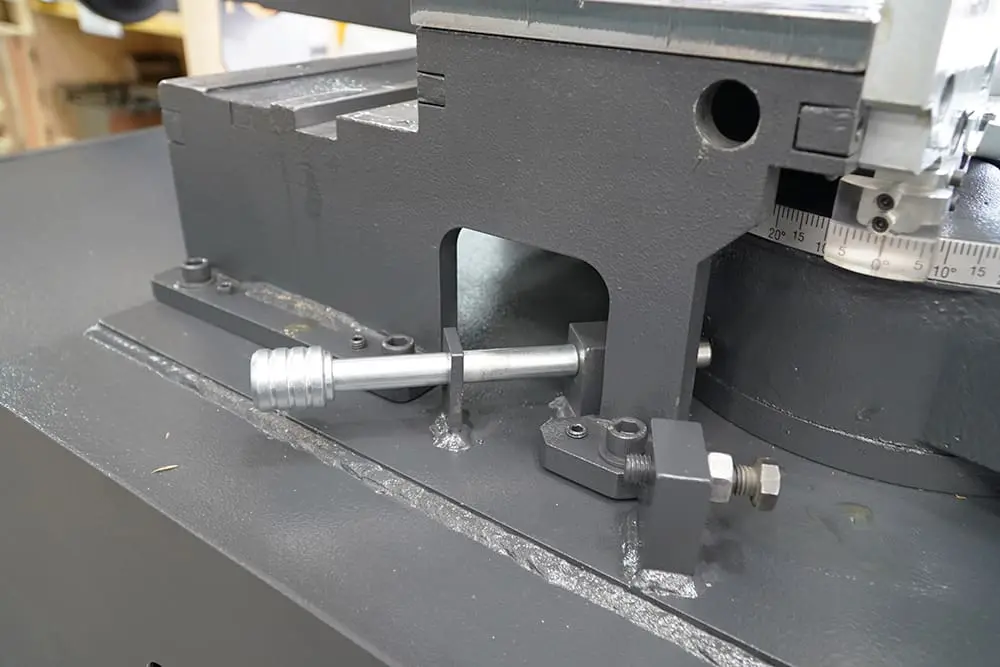

- Double mitring swivel head 45° left and 60° right

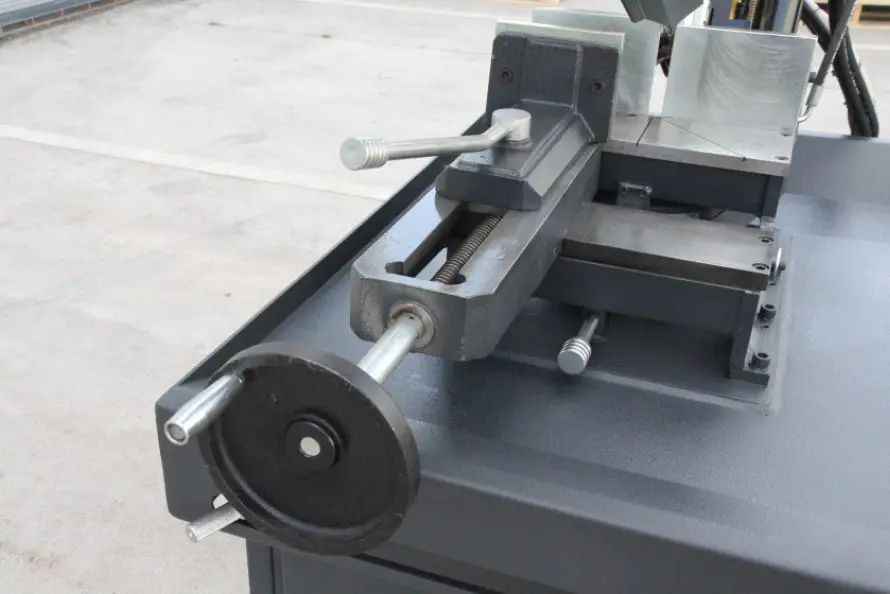

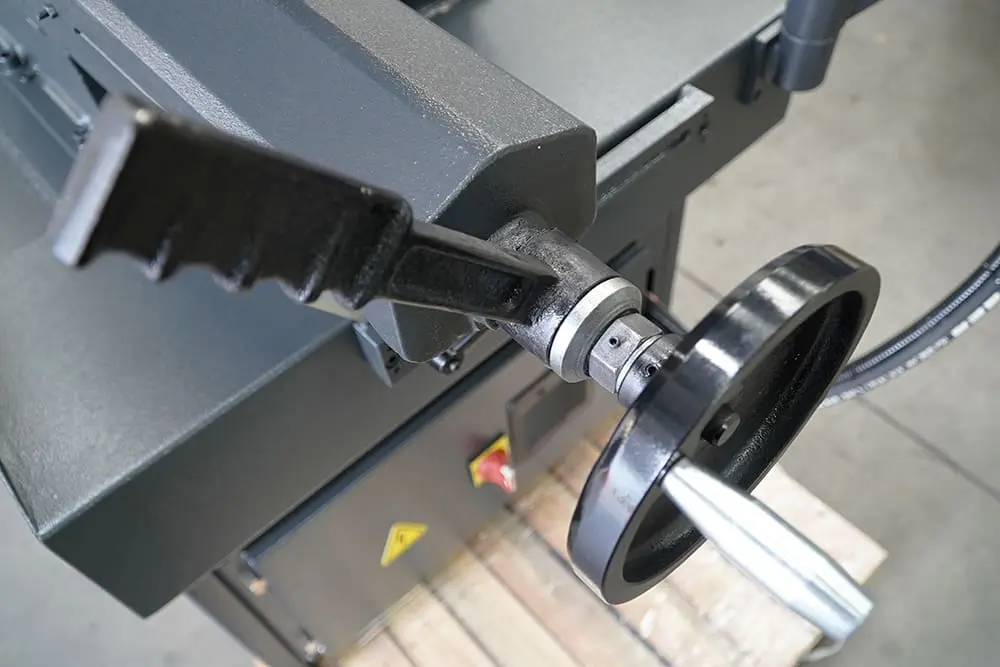

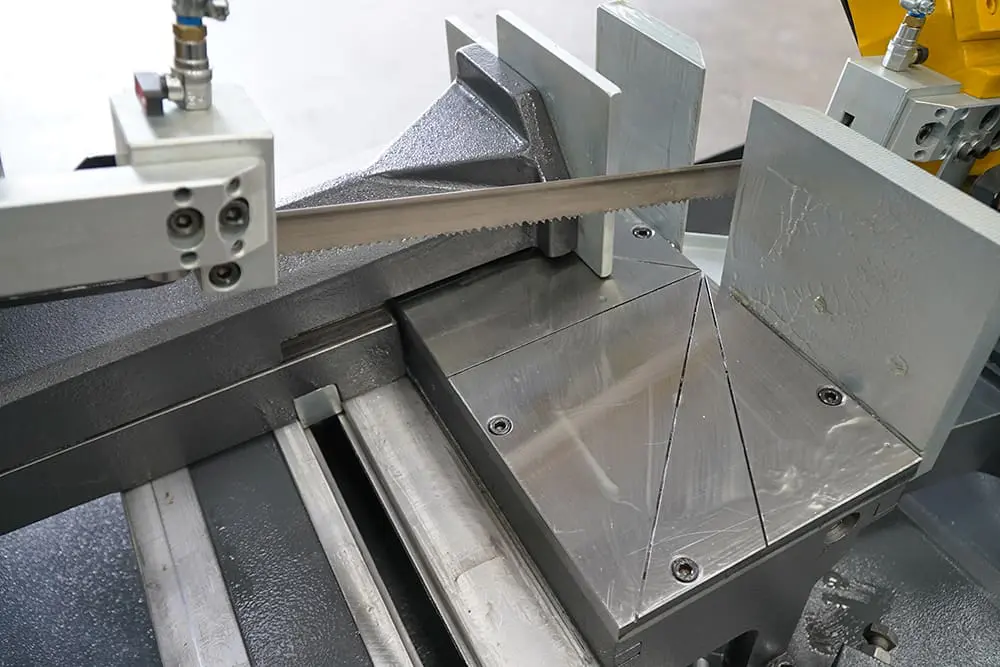

- Quick release manual vice
- Vice slides from left to right
- Carbide blade guides for high accuracy

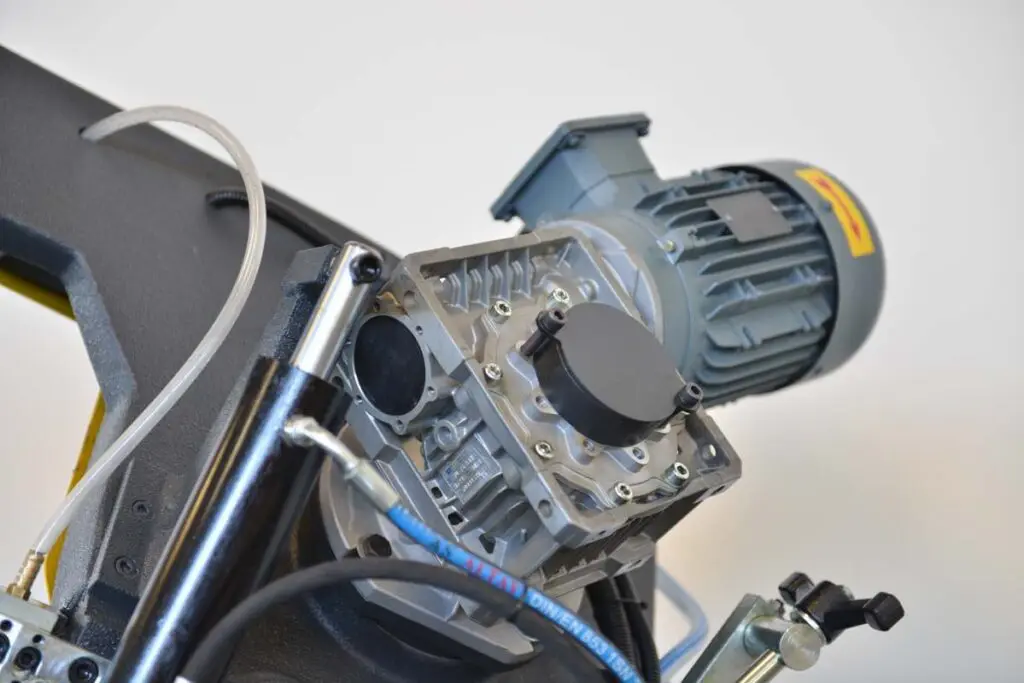

- Two cutting speeds (230DG) or variable cutting speeds on the 270DG
- Coolant system

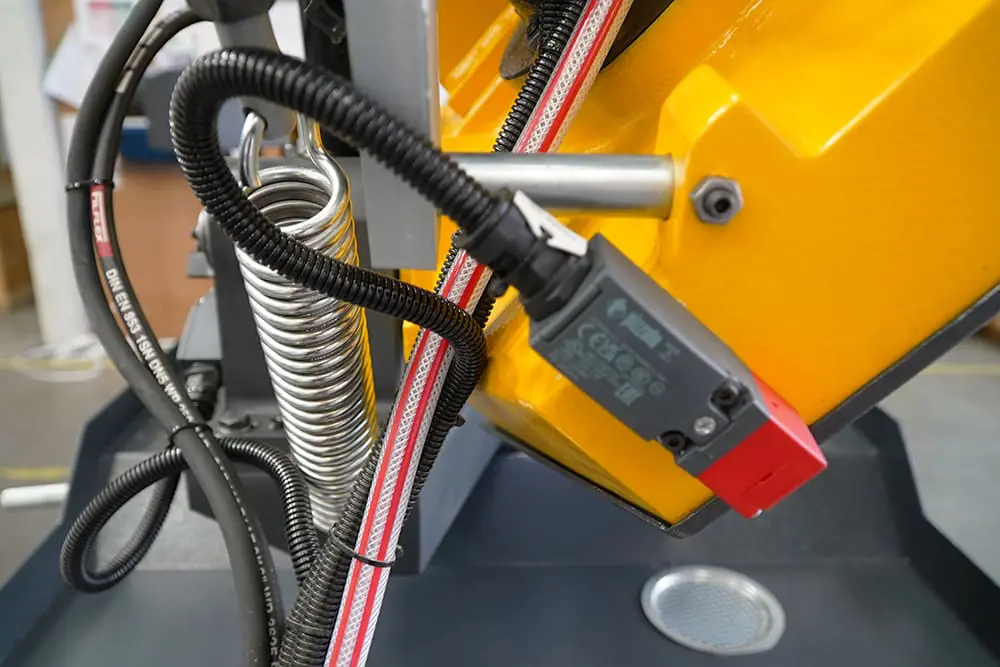

- Safety interlock switches fitted to band cover
Options
- Hydraulic Vice & Hydraulic Bow Lift – (see the Sterling SRA 230 DGSA model)
- Variable Speed (Standard on the 270 DG)
- Roller track and measuring systems
The comprehensive Sterling range continues with the compact but robustly constructed SRA 230 DG model. This machine features auto down feed operation. The double mitring head design allows the cutting of angles to either the left or the right without turning the material over. Two blade speeds are available as standard on this saw, suitable for cutting either mild or stainless steel.
The range of Sterling Pull Down Bandsaws are fast cutting, quiet running and ideal for sawing mild steel and stainless steel materials. They are double mitring with a quick release vice resulting in a good all round saw for the fabrication and engineering markets.
A built-in flood coolant system helps to not only prolong blade life, but assists with a cleaner cut, preventing overheating and warping of blades. The hydraulic gravity down feed allows you complete control of the speed of the cut, ensuring the drop of the blade suits to the material that you are cutting, with the automatic stop, the blade will stop spinning once the cut is complete, allowing for safer worker interaction.
Ideal for cutting round, square or rectangular section, bandsaws like this Sterling SRA 230 DG are the mainstay of virtually any fabrication shop in the UK. We offer a wide range of Sterling and Bianco Bandsaws, to fit with your cutting requirements, look at the rest of the range here.
We can also supply blades and coolant too, these can be purchased directly off our tooling website. All of our Saws are supplied with a starter set of our Goldcut Blades, we will discuss with you the material you will be cutting to ensure they will meet your requirements and a free container of coolant, so your new saw is ready to begin cutting straight away as soon as it’s delivered to you!
