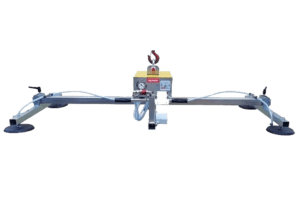

Righetti Pneumatic Smart Vacuum Lifters
Righetti Vacuum Lifters offers a wide range of Vacuum Lifters for lifting and handling metal sheet , stainless steel, aluminium and other non-ferrous materials.
These models with compressed air operating system are the ideal solution for use on jib cranes or other lifting means, where there is a pneumatic connection. Each series is available with different lengths of central cross-beams.
Pneumatic Operating System | ||||
STOCKCODE | FS4A 250 | FS6A 500 | FST6A 1000 | |
Pads | nr. | 4 | 6 | 6 |
Ø | 200 | 200 | 310 | |
Capacity | kg | 250 | 500 | 1,000 |
Lengths | mm | 1,950 | 1,950 | 1,366 – 3,120 |
Arms | nr. | 2 | 3 | 3 |
mm | 750 | 750 | 791 | |
X | min (mm) | 650 | 650 | 1,366 |
max (mm) | 2,060 | 2,060 | 3,120 | |
Y | min (mm) | 610 | 610 | 791 |
max (mm) | 890 | 890 | 985 |
Features
- Lifting Capacities 250kg / 500kg / 1000kg
- 4 Suction Pads (FS4A 250)
- 6 Suction Pads (FS6A 500 / FTS6A 1000)
- Fixed Frame 1950mm long (FS4A 250 / FS6A 500)
- Telescopic Frame 1366mm – 3120mm (FTS6A 1000)
- Integrated safety features features includes vacuum circuit
Options
- Support Stand
- Push-button panel holder for hoist
- Pads for sheet metal at high temperatures
- Suction cups for uneven surfaces (checker plate etc)
Righetti Vacuum Lifters offers a wide range of Vacuum Lifters for lifting and handling metal sheet , stainless steel, aluminium and other non-ferrous materials.
The models with compressed air operating system are the ideal solution for use on jib cranes or other lifting means, where there is a pneumatic connection. Each series is available with different lengths of central cross-beams.
Thanks to their lowered structure it is possible to use the Vacuum Lifter to lift the sheets even in contexts where it is necessary to reduce the height under the hook, due to not particularly high ceilings or various impediments in height.
The FTS6A 1000 model feature a telescopic frame, allowing quick adaption of the frame size to suit larger or smaller parts. In addition to having a telescopic structure with width adjustment, the FTS6 metal sheet lifter also has a comfortable telescopic handlebar to control the lifter and maintain the correct safety distance from the load. The feature that distinguishes the FTS6 model is its sturdy and solid structure, specifically designed for professional and continuous use.
