Righetti Electric Smart Vacuum Lifters

Righetti Vacuum Lifters provide a comprehensive range of vacuum lifters designed for lifting and handling metal sheets, stainless steel, aluminium, and other non-ferrous materials. These lifters offer a reliable solution for various industrial applications, ensuring safe and efficient handling of heavy materials.

Equipped with an electric operating system, they are ideal for use with overhead cranes or similar lifting equipment, simplifying installation compared to pneumatic systems. Each model features a built-in vacuum pump and a choice of 400V three-phase or 220V single-phase power supply, with other voltage options available on request. Adjustable central cross-beams ensure versatile operation across different material sizes.

Righetti Electric Smart Vacuum Lifters image
Righetti FS4EB 250
Righetti Electric Smart Vacuum Lifters image
Video thumbnail showing the Righetti Electric Smart Vacuum Lifters
Righetti Electric Smart Vacuum Lifters image 3
Righetti FS4EB 250
Righetti Electric Smart Vacuum Lifters image 3
Righetti Electric Smart Vacuum Lifters image 4
Righetti FS6EB 500
Righetti Electric Smart Vacuum Lifters image 4
Righetti Electric Smart Vacuum Lifters image 5
Righetti FST6EB 1000
Righetti Electric Smart Vacuum Lifters image 5
Righetti Electric Smart Vacuum Lifters image 6
Righetti FST6EB 1000
Righetti Electric Smart Vacuum Lifters image 6
Righetti Electric Smart Vacuum Lifters image 7
Righetti FS6EB 500
Righetti Electric Smart Vacuum Lifters image 7
Righetti Electric Smart Vacuum Lifters image 8
Righetti FST6EB 1000
Righetti Electric Smart Vacuum Lifters image 8
Electric Operating System
STOCKCODE FS4EB 250 FS6EB 500 FST6EB 1000
Pads nr. 4 6 6
Ø 200 200 310
Capacity kg 250 500 1,000
Lengths mm 1,950 1,950 1,366 – 3,120
Arms nr. 2 3 3
mm 750 750 791
X   min (mm) 650 650 1,366
max (mm) 2,060 2,060 3,120
Y   min (mm) 610 610 791
max (mm) 890 890 985

Features

  • Lifting Capacities 250kg / 500kg / 1000kg
  • 4 Suction Pads (FS4EB 250)
  • 6 Suction Pads (FS6EB 500 / FTS6EB 1000)
  • Fixed Frame 1950mm long (FS4EB 250 / FS6EB 500)
  • Telescopic Frame 1366mm – 3120mm (FTS6EB 1000)
  • Integrated safety features includes vacuum circuit
  • Electrically Powered (3 Phase standard, but 240V possible)

Options

  • Support Stand
  • Push-button panel holder for hoist
  • Pads for sheet metal at high temperatures
  • Suction cups for uneven surfaces (checker plate etc)

Righetti Vacuum Lifters: Innovative Solutions for Material Handling

At Selmach Machinery, we offer the Righetti Vacuum Lifters, a range of lifting equipment designed for efficient and safe handling of metal sheets, stainless steel, aluminium, and other non-ferrous materials. Built for durability and precision, these lifters are ideal for workshops and industrial environments requiring reliable performance.

Electric Operation for Easy Integration

The Righetti Vacuum Lifters use an electric operating system, making them an excellent choice for integration with overhead cranes or other lifting equipment. This electric system simplifies setup by avoiding the complexities of pneumatic connections. Each lifter includes a built-in vacuum pump and power supply, with options for 400V three-phase or 220V single-phase power. Other voltages are available on request, with the standard configuration being three-phase 400V power.

Low-Profile Design for Tight Spaces

The low-profile structure of the Righetti Vacuum Lifters makes them suitable for spaces with height restrictions. This design ensures efficient operation in environments with low ceilings or where overhead equipment creates height limitations. Despite these challenges, the lifters maintain their high level of performance, providing a practical solution for compact working areas.

Versatile Handling Across Materials

Designed for flexibility, the Righetti Vacuum Lifters can handle a wide variety of materials, including:

  • Metal sheets: For handling large and heavy steel sheets.
  • Stainless steel: Ideal for delicate, high-value materials requiring non-marking grip.
  • Aluminium and other non-ferrous metals: Suitable for specialised industries such as aerospace and automotive.

The central cross-beams are available in different lengths, allowing users to customise the lifter to their specific needs. This adaptability reduces downtime and ensures maximum productivity.

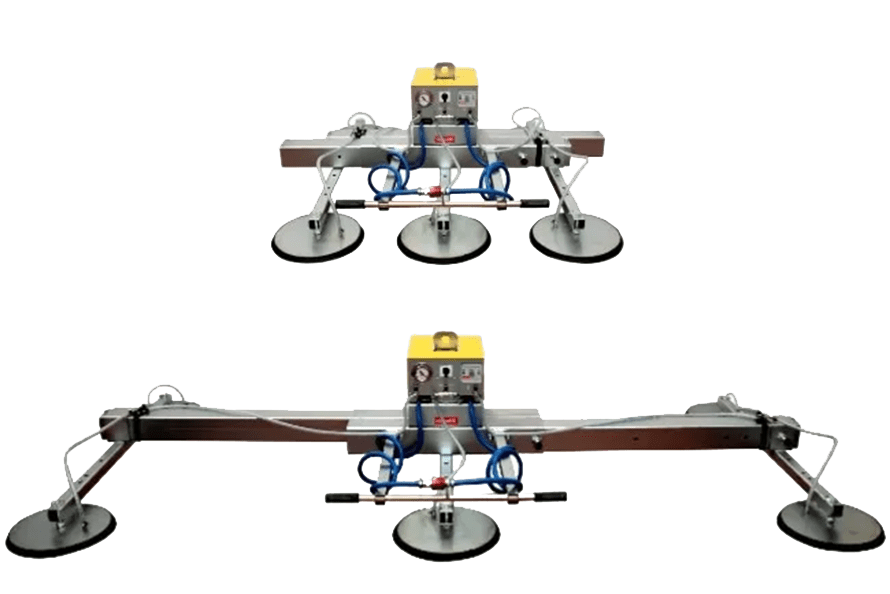

Advanced Features of the FTS6EB 1000 Model

Among the range, the FTS6EB 1000 model is a standout option, offering advanced features tailored for demanding applications. Its telescopic frame allows quick adjustment to accommodate various material sizes, making it an ideal choice for operations requiring flexibility. The addition of a telescopic handlebar enhances control while maintaining a safe distance from the load.

Key Benefits of the FTS6EB 1000 Model:

  1. Telescopic Frame
    The adjustable telescopic structure makes it easy to adapt to different sheet dimensions, ensuring compatibility with a wide range of applications.
  2. Enhanced Safety Features
    The ergonomic handlebar allows operators to maintain a safe distance from the load while ensuring precise control of the lifter.
  3. Robust Construction
    The sturdy frame of the FTS6EB 1000 ensures reliable performance in industrial settings, making it ideal for continuous use.

Efficient and Reliable Material Handling

The Righetti Vacuum Lifters are designed to streamline material handling processes, providing safe and efficient solutions for lifting and transporting metal sheets. Their compact design, combined with robust features, ensures consistent performance even in challenging environments.

Why Choose Righetti Vacuum Lifters?

At Selmach Machinery, we strive to provide equipment that enhances efficiency and meets the demands of modern industry. The Righetti Vacuum Lifters offer a range of benefits, including:

  • Customisation: Central cross-beams in various lengths and power supply options tailored to your needs.
  • Durability: Engineered for long-term use in industrial environments.
  • Ease of Use: Simplified electric operation for seamless integration with existing systems.
  • Versatility: Suitable for handling diverse materials with precision and care.

Tailored Solutions for Your Business

Every business has unique requirements, and the Righetti Vacuum Lifters can be customised to suit specific operational needs. Whether it’s selecting the appropriate power supply, adjusting the frame, or incorporating additional safety features, these lifters offer tailored solutions to enhance your workflow.

Contact Selmach Machinery Today

If you’re looking for innovative lifting solutions, contact Selmach Machinery to learn more about the Righetti Vacuum Lifters. With their advanced features, robust design, and flexibility, these lifters are a reliable choice for material handling in any industrial setting. Let us help you find the perfect equipment to optimise your operations.
