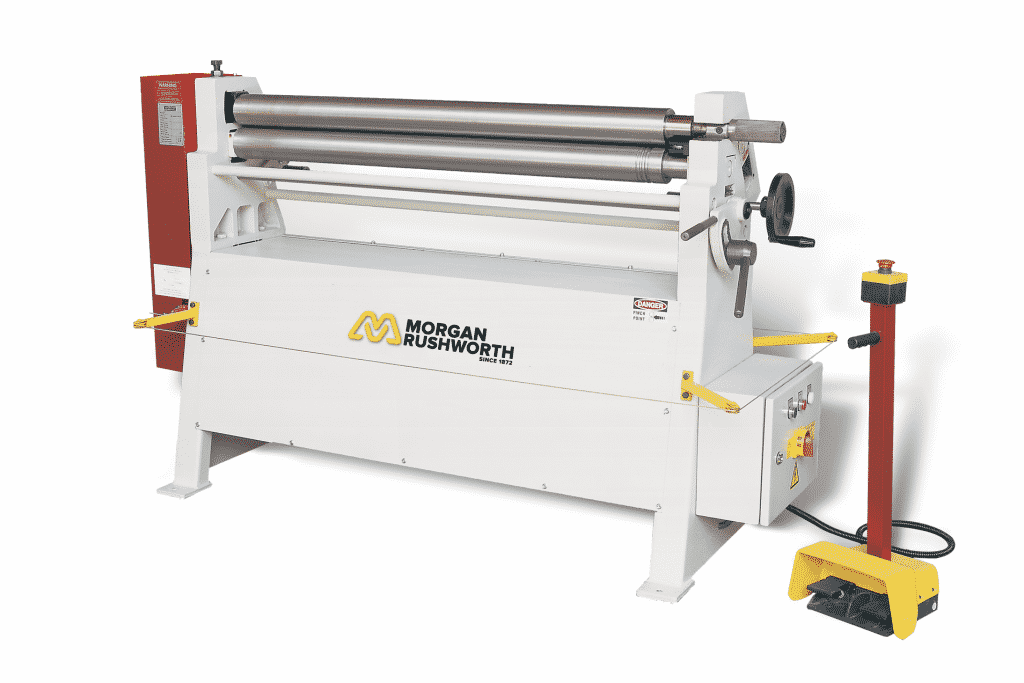

Morgan Rushworth PBR Powered Bending Roll
The Morgan Rushworth PBR Powered Bending Rolls are designed for heavy-duty sheet metal bending, handling materials from 1.0mm to 5.0mm thick. Featuring a cast iron frame, these machines ensure durability and reliability for demanding applications.
With an asymmetric roll configuration and a powered top roll mechanism for easy removal of components, the PBR range delivers precise, consistent results for fabrication.






















| MODEL | STOCK CODE | BENDINGLENGTH | PRE BENDING | MAX THICKNESS | TOP ROLL DIA. | MOTOR | LENGTH | HEIGHT | WIDTH | WEIGHT |
| mm | mm | mm | mm | kW | mm | mm | mm | kg | ||
| PBR 1050/70 | M3010 | 1050 | 1.5 | 1.8 | 70 | 1.1 | 1800 | 1100 | 700 | 350 |
| PBR 1050/90 | M3011 | 1050 | 3 | 3.3 | 90 | 1.1 | 2100 | 1130 | 800 | 520 |
| PBR 1250/75 | M3012 | 1250 | 1.5 | 2 | 75 | 1.1 | 2300 | 1100 | 800 | 490 |
| PBR 1250/90 | M3013 | 1250 | 2.5 | 3 | 90 | 1.1 | 2350 | 1130 | 800 | 540 |
| PBR 1550/70 | M3014 | 1550 | 1 | 1.2 | 70 | 1.1 | 2100 | 1100 | 700 | 550 |
| PBR 1550/90 | M3015 | 1550 | 2.2 | 2.5 | 90 | 1.1 | 2600 | 1130 | 800 | 620 |
| PBR 2050/95 | M3016 | 2050 | 1.5 | 1.8 | 95 | 1.1 | 3030 | 1130 | 800 | 650 |
Capacities are given for 250 N/mm² plate yielding strength
Features
- Top roll to slip
- Powered bending
- Cone bending
- Crowned Rolls
- Powered top and bottom roll with foot operated forward and reverse control
- Brake motor

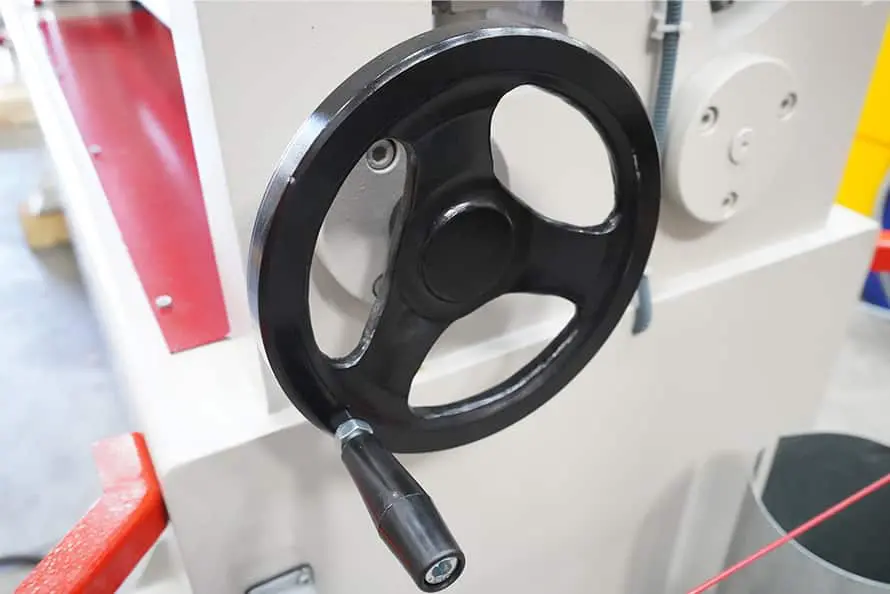

- Manually adjusted side roll for up and down translation
- Manual pinching of bottom roll
Options
- With / Without body cover (PBR)
- Induction hardened rolls
- Parallel Rolls
- Powered side roll up and down translation
- DRO for side roll position
Morgan Rushworth PBR Powered Bending Rolls
The Morgan Rushworth PBR Powered Bending Rolls are high-performance machines designed to meet the demands of medium- to heavy-duty sheet metal bending applications. Built to handle material thicknesses ranging from 1.0mm to 5.0mm, with a maximum bending length of up to 2050mm, the PBR range is ideal for a wide variety of industries. These machines combine durability, precision, and versatility, making them an essential tool for workshops and fabrication facilities that require reliable and efficient bending solutions.
One of the defining features of the PBR range is its rugged cast iron frame. Designed for long-term durability, the frame provides a stable and robust foundation that ensures consistent performance even under heavy workloads. This heavy-duty construction allows the machine to maintain precision and accuracy over extended periods of operation, making it a reliable investment for any metalworking facility.
Advanced Asymmetric Design
The Morgan Rushworth PBR Powered Bending Rolls feature an asymmetric roll configuration, a critical design element that enhances functionality. This configuration enables pre-bending capability, ensuring that flat spots at the edges of the material are minimised. By pre-bending the material before rolling, the machine achieves smoother, more uniform bends, which is essential for applications requiring precision and high-quality finishes.
The asymmetric design also simplifies the bending process, reducing manual adjustments and improving efficiency. Operators can achieve consistent results with minimal effort, making the PBR range suitable for both experienced professionals and less experienced users.
Top Roll Slip Mechanism
Another key feature of the PBR range is the powered top roll slip mechanism. This allows the top roll to move outward, enabling the easy removal of finished cylindrical components. This feature is particularly useful when working on closed or tightly rolled shapes, as it eliminates the need for complex extraction processes. The top roll slip mechanism enhances workflow efficiency by reducing downtime and allowing operators to transition between tasks seamlessly.
Applications Across Industries
The PBR range is versatile enough to cater to a broad spectrum of industries and applications. Its ability to handle thicker materials and longer bending lengths makes it suitable for tasks such as:
- Structural Fabrication: Producing curved beams, frames, and panels for construction projects.
- Automotive Manufacturing: Bending heavy-gauge materials for vehicle components such as chassis parts and brackets.
- Aerospace Engineering: Forming precise, durable metal sections for aircraft and aerospace components.
- Heavy-Duty HVAC Systems: Rolling parts for industrial ducting, piping, and ventilation systems.
- Industrial Equipment Production: Creating cylindrical and conical shapes for machinery and equipment.
The Morgan Rushworth PBR Powered Bending Rolls are particularly well-suited for workshops and fabrication facilities that require reliable, repeatable results across a range of demanding applications.
Ease of Use
Despite its advanced features and heavy-duty capabilities, the PBR range is designed with usability in mind. The controls are intuitive, allowing operators to set up and adjust the machine quickly for different tasks. The powered operation significantly reduces manual effort, enabling users to focus on achieving precision and high-quality results.
The top roll slip mechanism further enhances the user experience by simplifying the removal of finished components, reducing downtime, and improving overall productivity. These features make the PBR range a practical choice for businesses of all sizes, from small workshops to large-scale fabrication facilities.
Durability and Long-Term Reliability
Morgan Rushworth is renowned for manufacturing high-quality machinery, and the PBR Powered Bending Rolls are no exception. Constructed with precision engineering and high-grade materials, these machines are built to withstand the rigours of daily use. The heavy-duty cast iron frame ensures long-term durability and stability, while the powered components and advanced design features maintain consistent performance over time.
The machine’s durability also minimises maintenance requirements, reducing operational costs and ensuring maximum uptime. This makes the PBR range an excellent long-term investment for businesses that rely on dependable metalworking equipment.
Why Choose the PBR Range?
The Morgan Rushworth PBR Powered Bending Rolls stand out for their combination of power, precision, and ease of use. Their ability to handle a wide range of material thicknesses and lengths, coupled with advanced features like the asymmetric roll configuration and powered top roll slip mechanism, ensures exceptional performance in demanding environments.
Compared to lighter-duty machines, the PBR range offers the strength and durability needed for medium- to heavy-duty applications, making it a versatile and valuable addition to any workshop. Whether you’re working on structural fabrication, industrial equipment, or high-precision components, the PBR range provides the tools needed to achieve professional results.
Conclusion
The Morgan Rushworth PBR Powered Bending Rolls are expertly designed to deliver outstanding performance in a wide range of metalworking applications. With their rugged cast iron frame, advanced asymmetric roll configuration, and powered top roll slip mechanism, these machines provide the durability, precision, and efficiency required for demanding tasks.
Ideal for medium- to heavy-duty bending projects, the PBR range is a reliable and versatile choice for workshops and fabrication facilities. Backed by Morgan Rushworth’s reputation for quality and innovation, the PBR Powered Bending Rolls are an investment that ensures consistent, high-quality results for years to come.
Frequently Asked Questions
What is the Morgan Rushworth PBR range designed for?
The Morgan Rushworth PBR Powered Bending Rolls range is intended for powered sheet-metal rolling and pre-bending. Selmach can review your material, component dimensions and expected throughput to confirm whether it is suitable.
What bending capacity and working length are available?
The Selmach product listing describes up to 2050 mm bending length in the published model table; thickness varies by model. Capacity is not a single universal thickness rating: it changes with the exact model, material yield strength, bending length and required finished diameter. Check the model specification before ordering.
Can this machine pre-bend the ends of a sheet?
The range uses an asymmetric three-roll configuration with a slip top roll. Pre-bending performance depends on the chosen model and material; provide a drawing if minimising the straight section at the sheet ends is important.
How is the machine operated and adjusted?
The published configuration includes powered top and bottom rolls with foot-operated forward/reverse control. Confirm the exact controls and any optional adjustments on the quotation, especially if repeat settings are required.
Can it roll stainless steel or aluminium?
Suitability depends on the material grade, yield strength, thickness and required diameter. Published capacities are generally based on specified reference material strengths, so Selmach should check your application before you assume the same thickness rating for stainless steel or aluminium.
What is the minimum diameter the machine can roll?
Minimum achievable diameter depends on roll geometry, material properties, thickness and the model selected. Share the desired inside or outside diameter and material details with Selmach for confirmation; a maximum thickness rating alone does not establish the minimum rolling diameter.
Who is this model best suited to?
This range is particularly relevant to fabricators needing powered handling of medium-gauge sheet. Selmach can compare it with other manual, powered or hydraulic bending rolls where production volume, pre-bending or component handling may justify a different configuration.
Are servicing and maintenance plans available?
Selmach can discuss preventative maintenance and service-plan options for this machine. The scope, eligibility, visits and response arrangements depend on the machine and the plan quoted; ask Selmach to confirm what is available for your installation.
