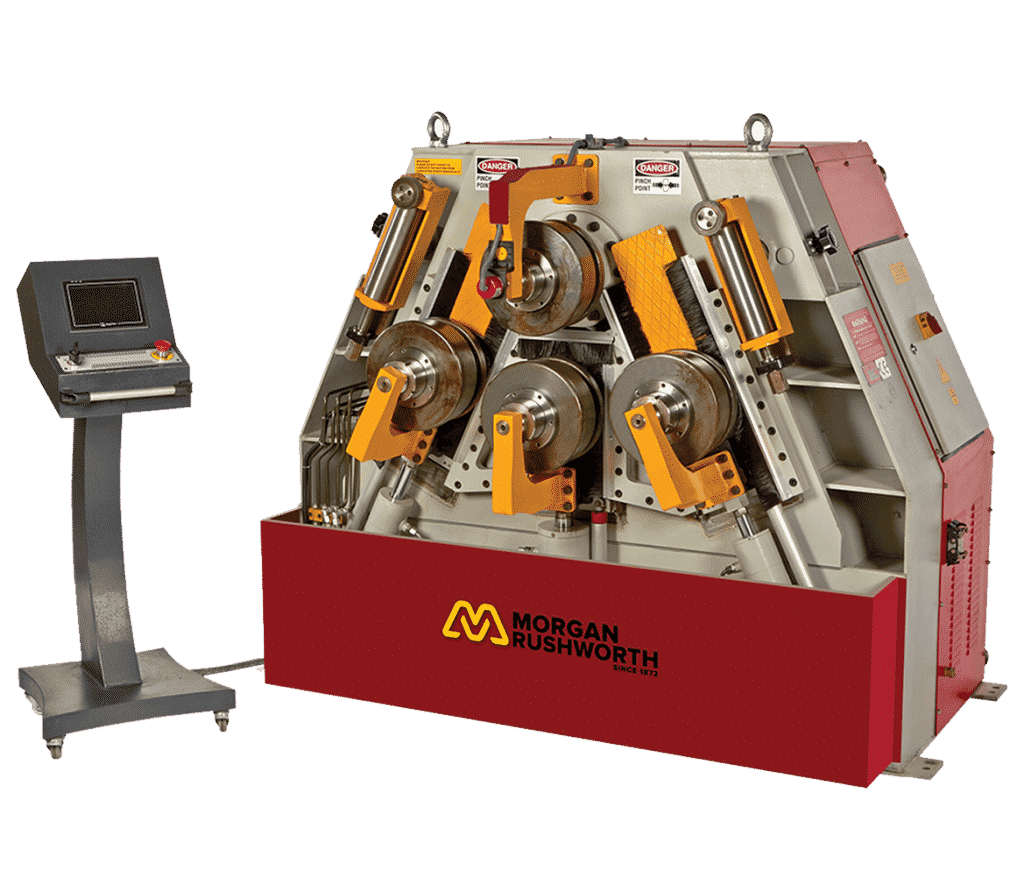

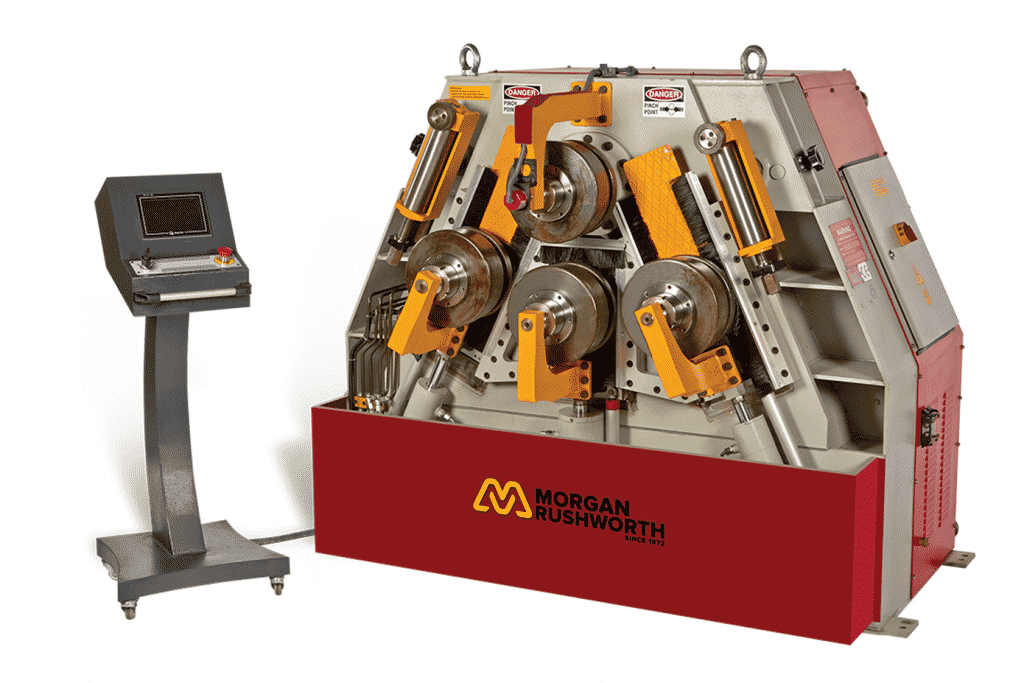

Morgan Rushworth HSR-4 Hydraulic Section Ring Rolling Machine
The Morgan Rushworth HSR-4 sets a new standard in hydraulic section bending with its innovative 4-roll design. This advanced machine minimises flat ends compared to 3-roll models, thanks to its precise double pinching process, delivering smooth and uniform bends.
Optional touchscreen NC controls provide superior accuracy, allowing configurations to be saved for repeatable results. Engineered for efficiency and precision, the HSR-4 is ideal for businesses needing high-quality, reliable section bending solutions. It combines advanced performance with user-friendly features for unmatched productivity.
| MODEL | HSR-4 70/200 | HSR-4 90/260 | HSR-4 110/320 | |
| Shaft Diameter | mm | 70 | 90 | 110 |
| Roll Diameter | mm | 200 | 260 | 320 |
| Bending Speed | rpm | 8 | 6.37 | 4.98 |
| Power | kW | 5 | 5.5 | 7.5 |
| Length | mm | 1200 | 1700 | 2000 |
| Width | mm | 1100 | 1450 | 1700 |
| Height | mm | 800 | 1200 | 1250 |
| Weight | Kg | 1400 | 2800 | 4500 |
*Capacities are given for 260 N/mm² plate yielding strength
For bending capacities, see our capacities chart
Features
- Unique 4 Roll Design
- Ability to double pinch material ensuring minimal flat on end of bend
- 2 rolls driven
- Hydraulic adjustment of lower pinch roll
- Hydraulic adjustment of two bending rolls
- Hardened and ground high tensile roll shafts
- Standard modular rolls suitable to bend a wide range of profiles
- Induction hardened and ground rolls
- Smooth rolls ensure minimum material marking
- Manual lateral guide rolls with adjustment in one axis
- Steel welded frame

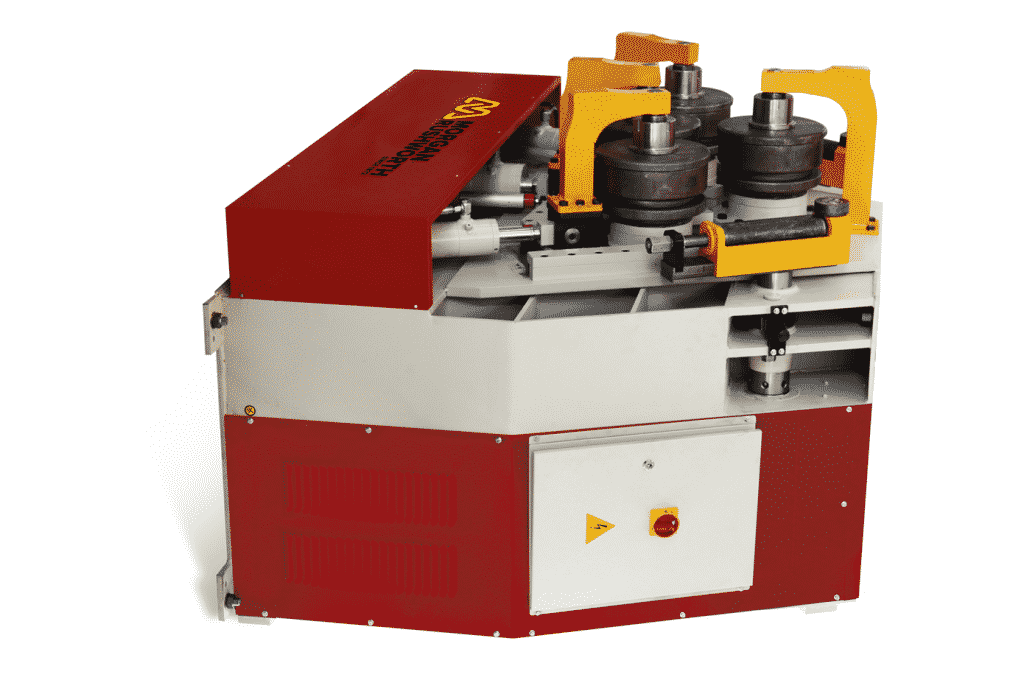

- Horizontal and vertical working positions
- Mobile control panel
Options
- 3 rolls driven
- Manual lateral guide rolls with adjustment in one axis
- 4-axis NC control unit; controls position of lower pinch roll, both bending rolls and the feeding of the material. Includes 100 program memories
