Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v

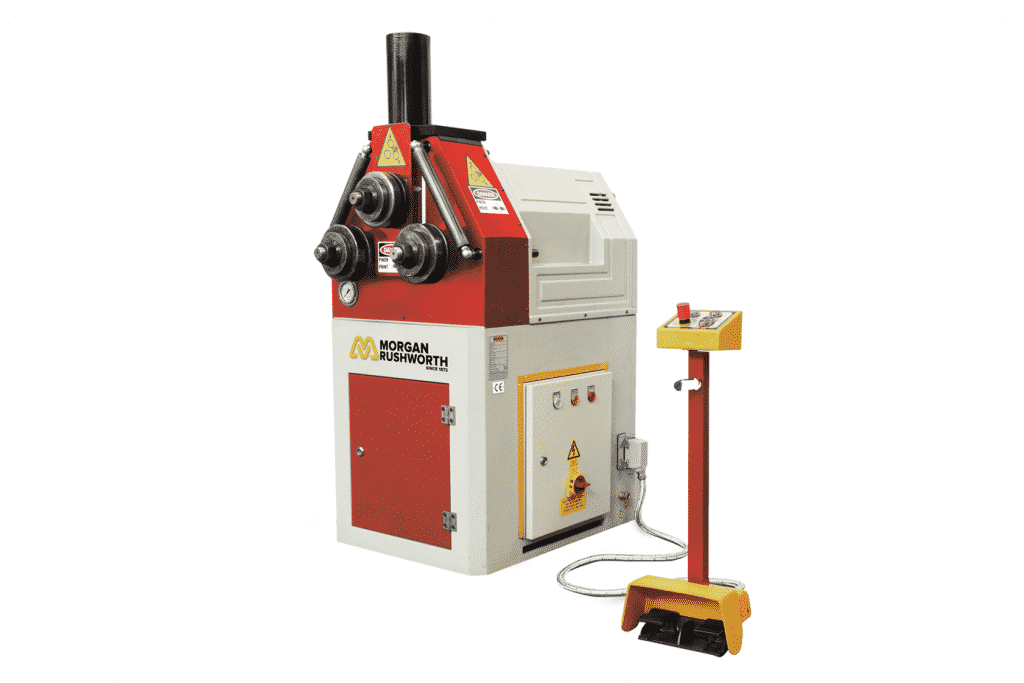

Morgan Rushworth HSR-60 Hydraulic Section Ring Roller

The Morgan Rushworth HSR range of hydraulic section bending machines is designed to roll various material sections, with shaft diameters from 50mm to 120mm. All models include a hydraulic ram to adjust the top roll, with larger machines featuring a digital readout for precise positioning. These machines can operate in both vertical and horizontal planes.

The standard hardened rolls can bend most sections, with optional tools available for round tube bending. Lateral guide rolls ensure accurate bending or can be adjusted to create spirals. This versatility makes the HSR range ideal for a wide range of applications.

Morgan Rushworth HSR-60 Hydraulic Section Ring Roller
Morgan Rushworth HSR-60 Hydraulic Section Ring RollerMorgan Rushworth HSR-60 Hydraulic Section Ring Roller
Video thumbnail showing the Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v
Detail of the Morgan Rushworth HSR Section Ring Roller Control Panel
Section Ring Roller Control Panel
Detail of the Morgan Rushworth HSR Section Ring Roller Control Panel
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 4
DRO Foot Pedal Controller
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 4
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 5
HSR Rollers
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 5
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 6
Hydraulics Gauge
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 6
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 7
Spiral Device
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 7
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 8
Spiral Rollers
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 8
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 9
Nylon Angle Tooling & Angle Lateral Guide Rolls (Shown on HSR60)
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 9
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 10
Nylon Angle Tooling & Angle Lateral Guide Rolls (Side View - Shown on HSR60)
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 10
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 11
Hardened Steel Angle Tooling & Angle Lateral Guide Rolls (Shown on HSR60)
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 11
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 12
Hardened Steel Angle Tooling & Angle Lateral Guide Rolls (Close Up - Shown on HSR60)
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 12
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 13
Hardened Steel Angle Tooling & Angle Lateral Guide Rolls (Shown on HSR60)
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 13
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 14
Nylon Angle Tooling & Angle Lateral Guide Rolls (Shown on HSR60)
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 14
Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 15Morgan Rushworth HSR Hydraulic Ring Rolling Machine 415v image 15
MODEL   HSR 50/160 HSR 60/215 HSR 80/245 HSR 100/315
STOCK CODE M6000 M6001 M6002 M6003
Shaft diameter mm 50 60 80 100
Roll diameter mm 162 215 245 315
Rolling speed m/min 4.5 4 6 7
Power kW 1.1 1.5 4 7.5
Length mm 810 1000 1450 2000
Width mm 950 1400 1000 1450
Height mm 1500 1650 1400 1700
Weight kg 500 950 1700 3650

For bending capacities, see our capacities chart

Features

  • All three rolls driven for excellent traction
  • Smooth rolls ensure minimum material marking
  • Hardened rolls
  • Movable control panel

Options

  • Tube rolls
  • Variable speed of rotation
  • Spiral bending device
  • NC control system
  • CNC control system

Morgan Rushworth HSR Hydraulic Section Bending Machines: Precision and Versatility

The Morgan Rushworth HSR range of hydraulic section bending machines offers a versatile solution for rolling various material sections. With shaft diameters ranging from 50mm to 120mm, the HSR range caters to diverse industrial needs, from smaller precision work to larger, more demanding projects. Each model features a single hydraulic ram for top roll adjustment, allowing operators precise control over the bending process. Larger models include a digital readout to indicate the top roll’s position, ensuring precise and repeatable results for both simple and complex bending tasks.

Dual-Plane Operation for Maximum Flexibility

One of the standout features of the HSR range is its ability to operate in either the vertical or horizontal plane. This dual-plane functionality allows users to adapt the machine to their workspace and the material being bent. Whether bending long, straight sections or intricate spiral shapes, the flexibility of vertical and horizontal operation ensures that the HSR machines can handle a wide variety of applications. This adaptability makes them ideal for industries such as construction, manufacturing, and metal fabrication, where versatility is essential.

Hardened Rolls for Reliable Bending

The HSR machines come equipped with hardened standard rolls designed to withstand rigorous use. These rolls are suitable for bending most material sections, providing a reliable solution for common bending tasks. For more specialised applications, such as bending round tubes, optional tools are available. These tools expand the machine’s capabilities, allowing operators to handle a broader range of materials and profiles. With this combination of standard and optional features, the HSR range can tackle both general-purpose and specialised projects with ease.

Lateral Guide Rolls for Precision and Spiralling

An integral feature of the HSR machines is the lateral guide rolls, which ensure straight and true bends by minimising deviations. For projects requiring spiralling, these guide rolls can be adjusted to produce precise and controlled spirals. This functionality is particularly valuable for decorative and structural applications, where both aesthetic and functional accuracy are critical. By offering capabilities for both straight and spiral bending, the HSR range provides a comprehensive solution for diverse bending challenges.

Durability and User-Friendly Design

The HSR machines are built with a focus on durability and operator convenience. Their robust construction ensures long-lasting performance, even under heavy use. Operators will appreciate the intuitive controls and ergonomic design, which simplify the bending process and reduce the learning curve. The inclusion of a digital readout on larger models further enhances usability by providing real-time feedback on roll positioning, enabling precise adjustments and minimising errors.

Wide Material Compatibility

The versatility of the HSR range extends to its ability to handle a variety of materials, including steel, aluminium, and other metals commonly used in industrial applications. This wide material compatibility makes the HSR range a valuable asset for businesses that need to work with different materials regularly. Whether bending lightweight aluminium sections for decorative purposes or heavy steel profiles for structural applications, the HSR machines deliver consistent, reliable performance.

Customisation and Practical Workspace Integration

For businesses with unique bending needs, the HSR range offers opportunities for customisation. Optional tools and adjustable lateral guide rolls add significant value, enabling operators to confidently tackle a diverse range of projects. Additionally, the ability to operate in both vertical and horizontal planes provides practical solutions for various workspace configurations, ensuring seamless integration into different production environments.

A High-Performance Solution for Modern Industry

The Morgan Rushworth HSR range of hydraulic section bending machines is a versatile and reliable choice for a wide variety of industrial bending needs. With features such as adjustable top rolls, hardened standard rolls, lateral guide rolls, and the option for spiral bending, these machines are well-suited to both general-purpose and specialised applications. Their robust construction and intuitive design make them easy to use and maintain, while the option to add specialised tools ensures they remain adaptable to evolving project requirements.

Conclusion: The Ideal Choice for Precision Bending

The HSR range combines precision, versatility, and durability, making it an excellent investment for businesses seeking to enhance their bending capabilities. From decorative spirals to heavy-duty structural components, the Morgan Rushworth HSR machines deliver high-quality results across a wide range of applications. Whether in construction, metal fabrication, or manufacturing, these machines provide the performance and reliability needed to meet the demands of modern industry.
