Morgan Rushworth PSR Ring Rolling Machine 240v/415v

The Morgan Rushworth powered ring rolling machines are available in shaft diameters of 35mm and 50mm. Both models include a full set of rolls for the bending of flat bar, flat bar on edge, round bar, square bar and box section. Both of the bottom rolls are powered, providing positive traction, while the top adjustable idler roll determines the bending radius according to its position.

Morgan Rushworth PSR Ring Rolling Machine 240v/415v imageMorgan Rushworth PSR Ring Rolling Machine 240v/415v image
Video thumbnail showing the Morgan Rushworth PSR Ring Rolling Machine 240v/415v
Video thumbnail showing the Morgan Rushworth PSR Ring Rolling Machine 240v/415v
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 4Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 4

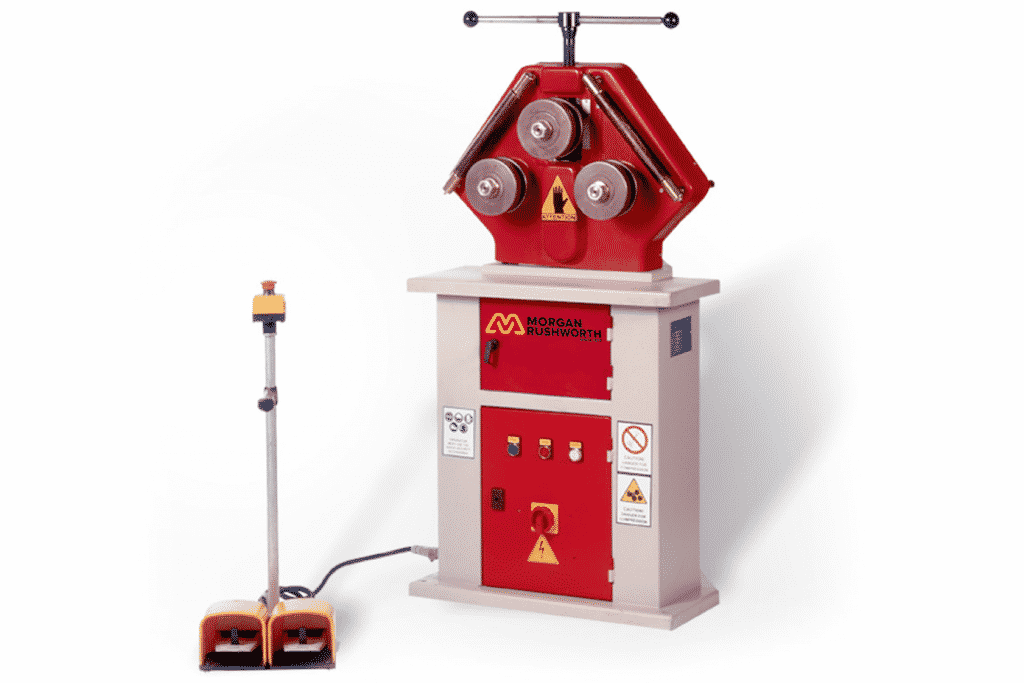

PSR35 Section Roller
PSR35
PSR35 Section Roller
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 6
Measurement Guide
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 6
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 7
PSR35
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 7
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 8
Rollers
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 8
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 9
Nylon Angle Tooling & Angle Lateral Guide Rolls (Shown on HSR60)
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 9
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 10
Hardened Steel Angle Tooling & Angle Lateral Guide Rolls (Shown on HSR60)
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 10
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 11
Hardened Steel Angle Tooling & Angle Lateral Guide Rolls (Close Up - Shown on HSR60)
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 11
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 12
Hardened Steel Angle Tooling & Angle Lateral Guide Rolls (Shown on HSR60)
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 12
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 13
Nylon Angle Tooling & Angle Lateral Guide Rolls (Side View - Shown on HSR60)
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 13
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 14
Nylon Angle Tooling & Angle Lateral Guide Rolls (Shown on HSR60)
Morgan Rushworth PSR Ring Rolling Machine 240v/415v image 14
MODEL PSR 35/140PSR 50/155
STOCK CODEM6012M6014
Shaft diametermm3550
Roll diametermm137155
Rolling speedm/min2.14.3
PowerkW0.751.5
Lengthmm670730
Widthmm530830
Heightmm13501350
Weightkg195400

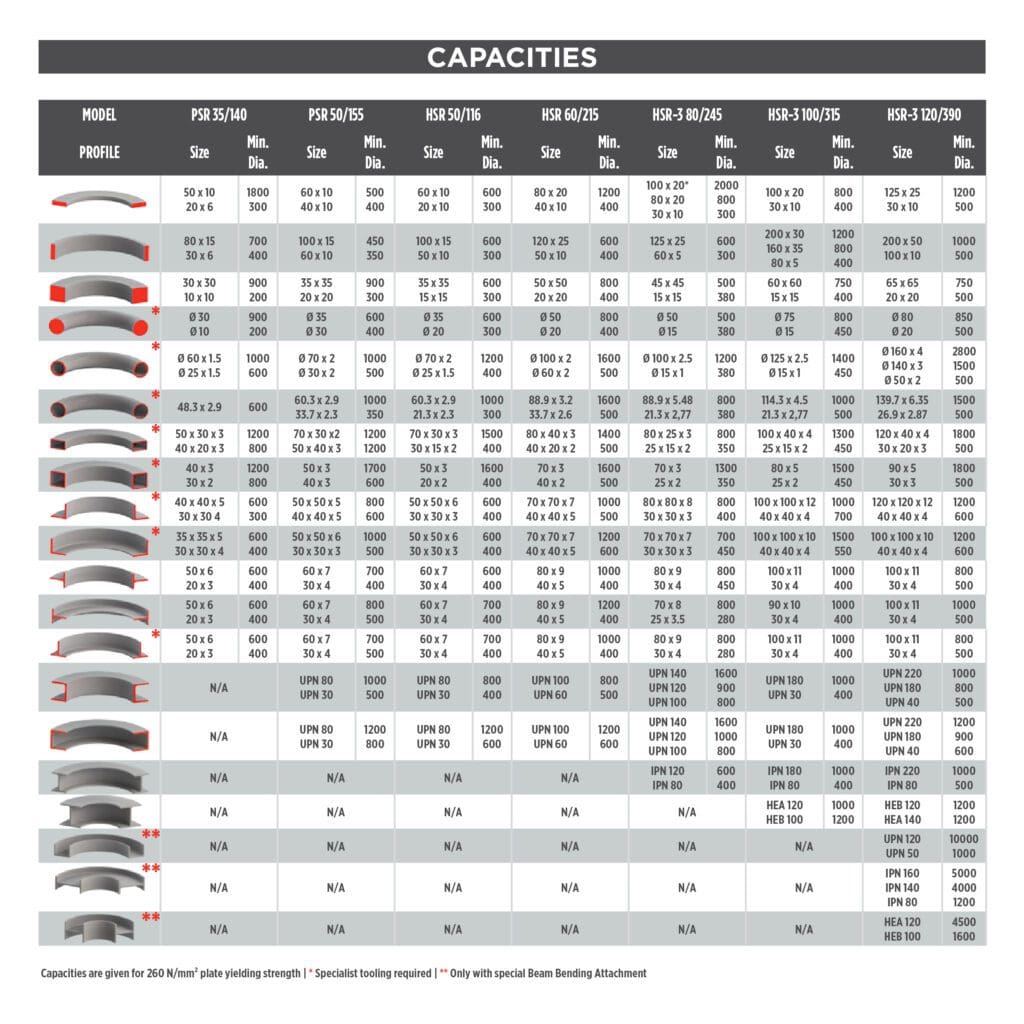

For bending capacities, see our capacities chart

Features

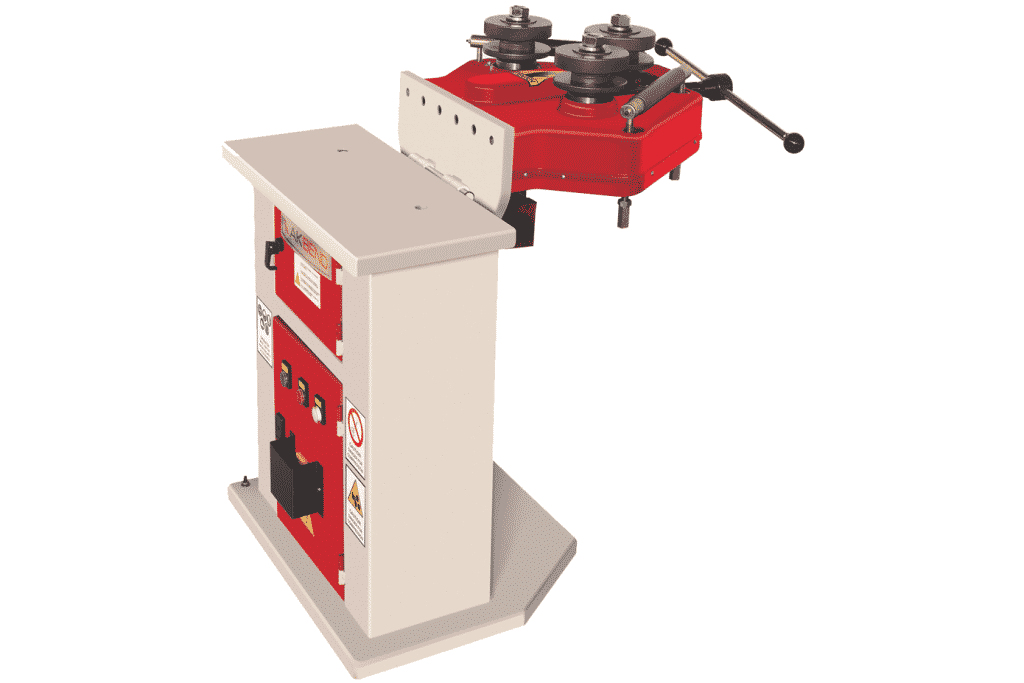

  • Operates horizontally or vertically.
  • Forward and reverse Foot Pedal.
  • Manual roll adjustment with pointer and scale roll position indicator.
  • Optional tube rolls available on request.
  • A cost effective solution to out sourcing of sectional roller.
  • Variable speed

Options
