Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v

Bianco 420 MR

Bianco have been manufacturing bandsaws in Italy for over thirty years and have built a reputation for producing precise, reliable, and accurate machines. All machines have modern cast bows from special alloys to ensure one of the highest precision bandsaw ranges available.

All MR models are fitted with a sliding vice, and have double quick mitring head capability allowing fixed roller track systems to be installed with the ability to cut at any angle up to 60 degrees right and 45 degrees left. Two speed motors allow for both the cutting of mild steel and stainless steel.

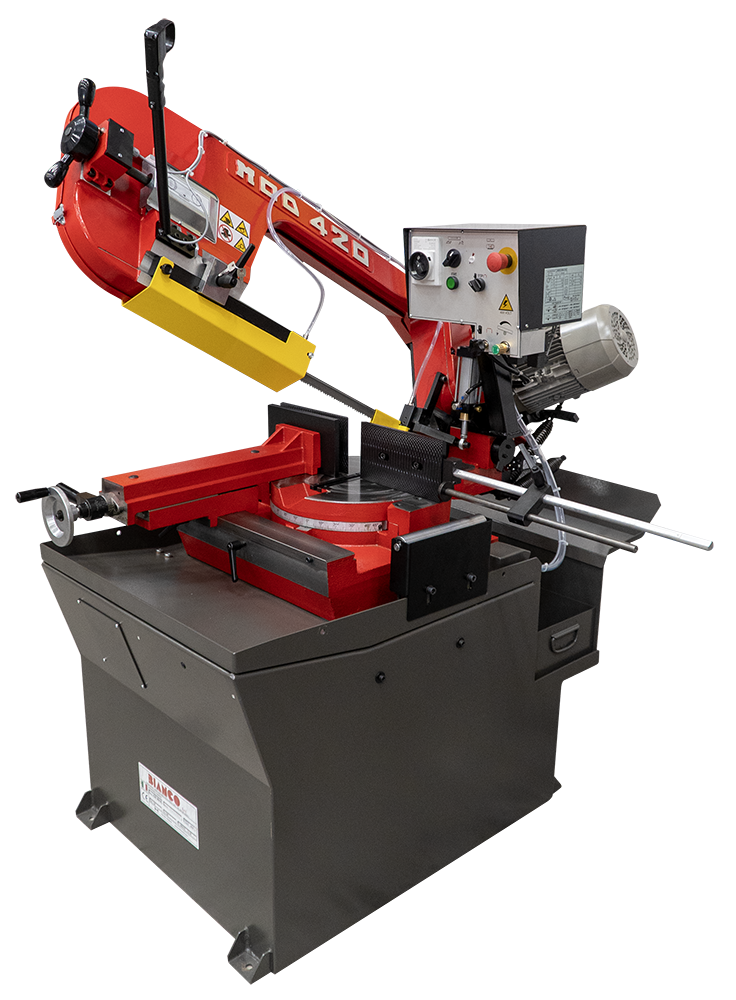

Bianco 420 MR
Bianco 420 MRBianco 420 MR
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 2

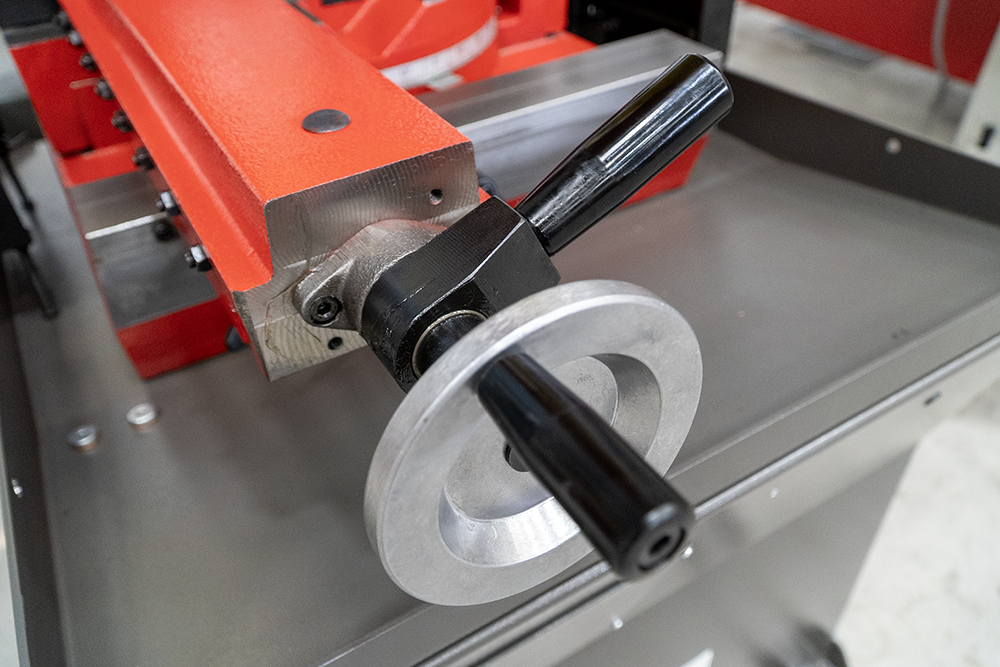

Vice Handle
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 2
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 3

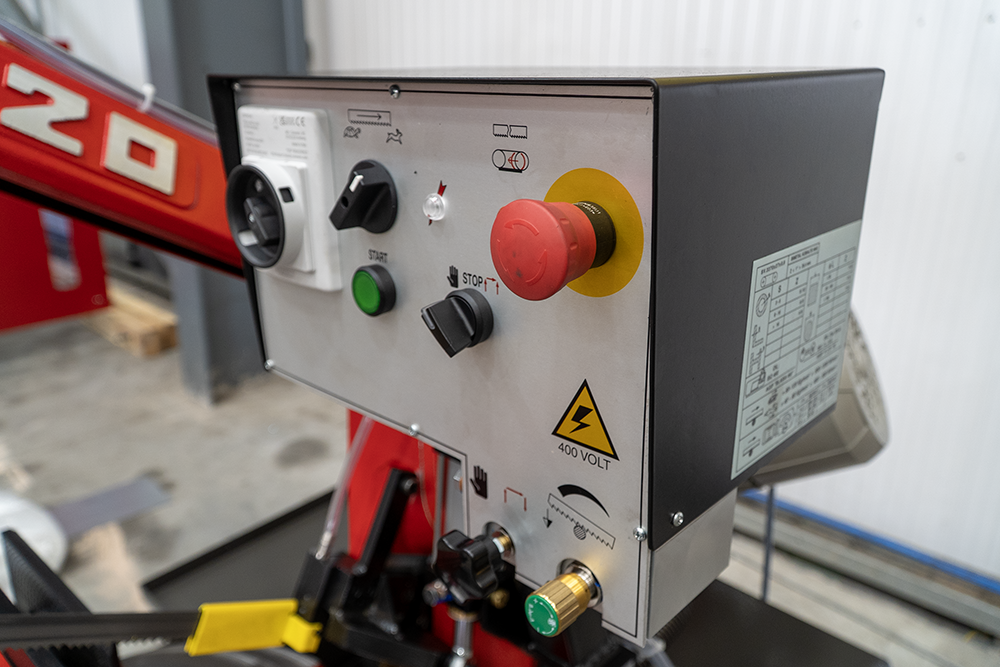

Standard Controller
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 3
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 4

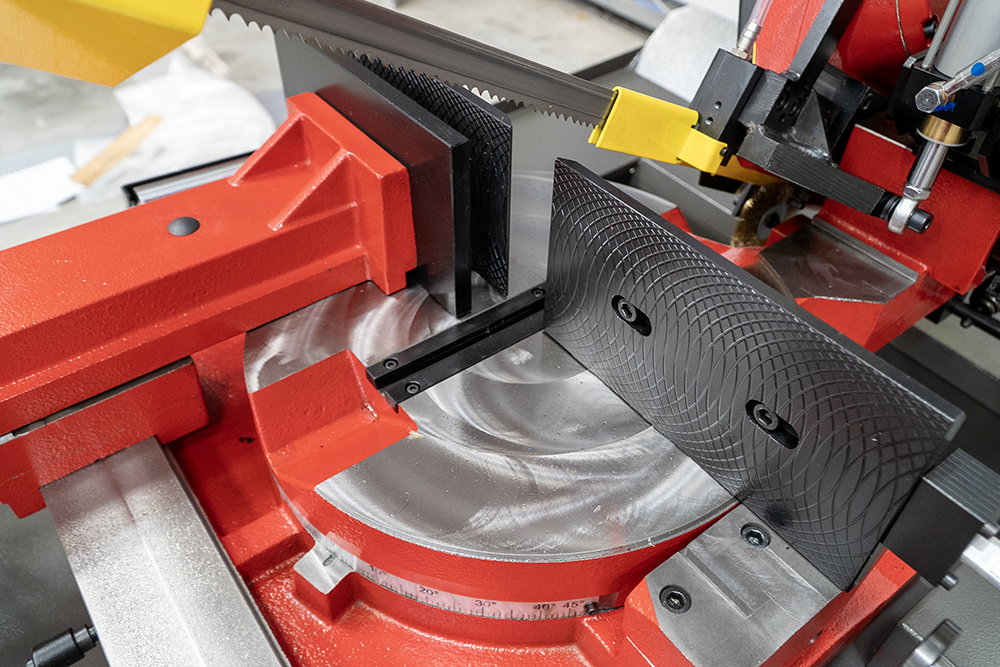

Vice and Ruler Guide
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 4
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 5

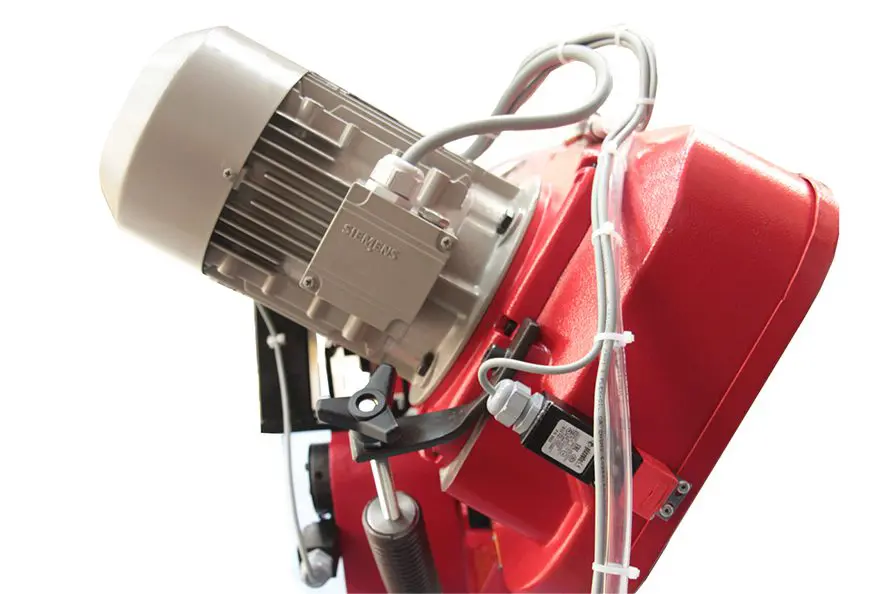

Siemens Motor
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 5
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 6

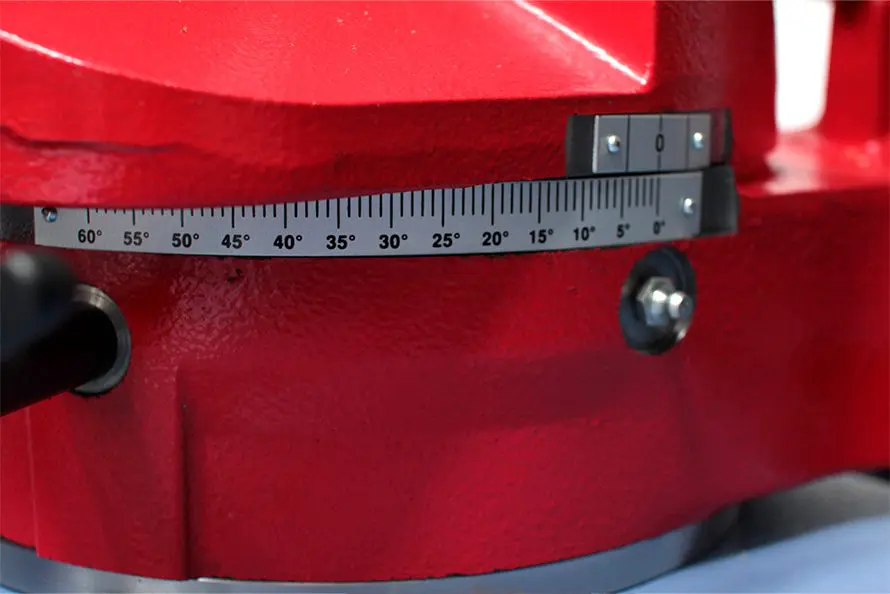

Mitre Scale
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 6
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 7

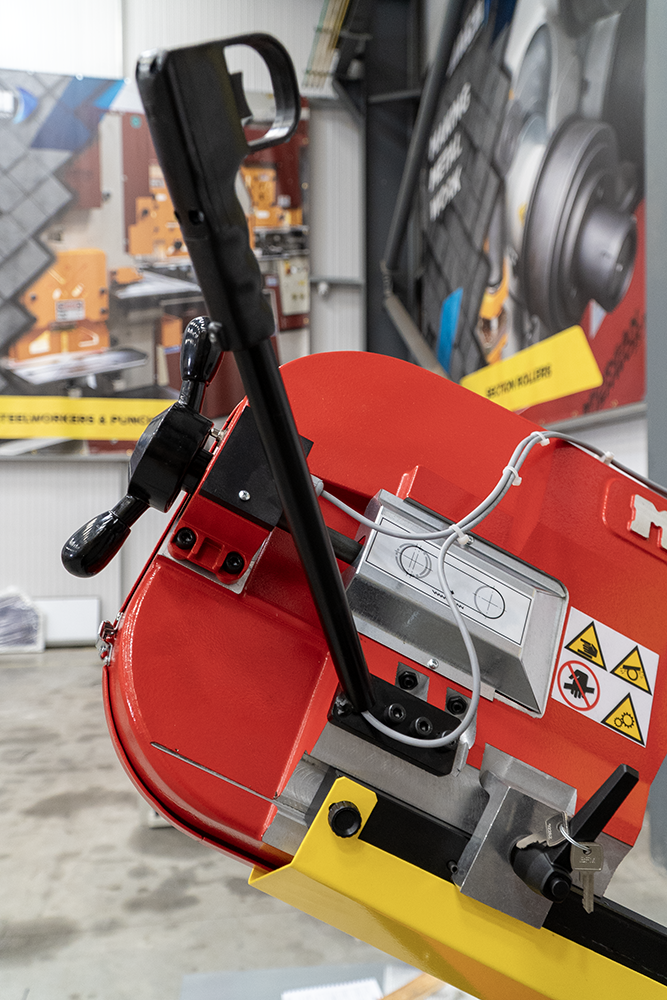

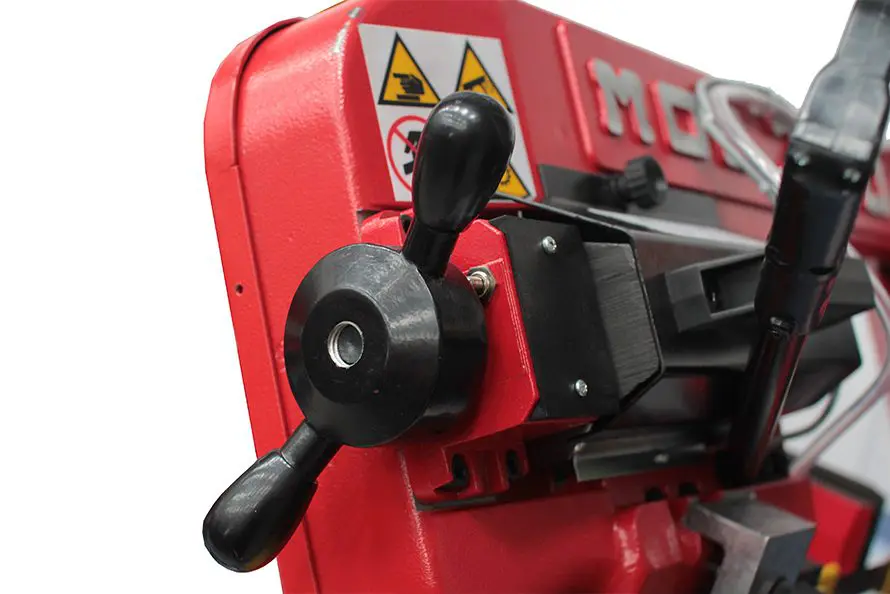

Blade Tension Adjustment
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 7
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 8
Pneumatic Vice (Optional)
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 8
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 9
Dry Cooling (Optional)
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 9
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 10
Frequency Inverter (Optional)
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 10
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 11
Variable Speed Motor
Bianco MR Auto Down-Feed Double Mitre Bandsaw 415v image 11
MODEL   330 MR     370 MR           420 MR
Capacity 90° 45°L 45°R 60°R 90° 45°L 45°R 60°R 90° 45°L 45°R 60°R
Round mm 250 160 170 100 280 180 200 130 290 220 250 150
Square mm 240 140 160 100 260 150 190 130 290 180 230 150
Rectangle mm 260 x 230 140 x 130 160 x 200 100 x 160 310 x 240 150 x 160 190 x 200 130 x 180 310 x 290 190 x 190 200 x 270 200 x 150
Blade Size mm 3010 x 27 x 0.9 3120 x 27 x 0.9 3270 x 27 x 0.9
Cutting Speed m/min 35 / 70 35 / 70 35 / 70
Motor Kw 0.9 – 1.5 0.9 – 1.5 0.9 – 1.5
Length mm 1400 1400 1400
Width mm 1500 1600 1650
Height mm 1800 1850 1900
Weight Kg 480 492 498
Operation Pull Down / Auto Down Feed Pull Down / Auto Down Feed Pull Down / Auto Down Feed
Vice Manual Manual Manual

Features

  • Special feature where you can choose between Instant pull down or switch to Automatic gravity down feed with variable control
  • Quick mitring swivel head up to 60° R and 45° L
  • Fast cutting
  • Sliding vice
  • Cast bow construction
  • Carbide blade guides for high accuracy
  • 2 speed motor
  • Heavy duty
  • Digital cutting angle display
  • Coolant system
  • Blade tension indicator
  • Safety interlock switch fitted to bandwheel cover
  • Material length stop

Options

  • Blade speed variation
  • Spray mist cooling system
  • Pneumatic Vice
  • Roller track and measuring systems

Bianco MR Auto Down-Feed Double Mitre Bandsaw 415V: Precision and Reliability

Bianco, a renowned Italian manufacturer, has been at the forefront of bandsaw innovation for over 30 years. Known for their exceptional craftsmanship and precision engineering, Bianco bandsaws are synonymous with reliability, durability, and performance. The Bianco MR Auto Down-Feed Double Mitre Bandsaw 415V exemplifies the brand’s commitment to quality, offering advanced features that cater to a wide range of industrial cutting needs.

Advanced Italian Engineering for Superior Precision

The Bianco MR bandsaw series is crafted with precision at its core. Each machine features a modern cast bow made from special alloys, ensuring rigidity and accuracy during operation. This attention to detail results in one of the most precise bandsaw ranges available on the market today. Whether you are cutting mild steel, stainless steel, or other materials, the Bianco MR ensures clean, accurate cuts every time.

Double Mitre Cutting Capability for Versatility

One of the standout features of the Bianco MR Auto Down-Feed Bandsaw is its double mitring head capability. This feature enables the saw to cut at angles of up to 60 degrees to the right and 45 degrees to the left, offering unparalleled flexibility for diverse cutting applications. This adaptability makes it an ideal choice for industries requiring precision mitre cuts, such as metal fabrication, construction, and engineering.

The inclusion of a sliding vice system further enhances its versatility. The sliding vice ensures secure material clamping and facilitates smooth, accurate cuts at any angle. The design allows for fixed roller track systems to be easily integrated, streamlining material handling and improving overall productivity.

Powerful Two-Speed Motor for Cutting Efficiency

Equipped with a two-speed motor, the Bianco MR is designed to handle a variety of materials with ease. The lower speed setting is optimized for cutting mild steel, while the higher speed is perfect for processing tougher materials such as stainless steel. This dual-speed functionality not only boosts efficiency but also extends the lifespan of the blade by ensuring optimal cutting conditions for each material type.

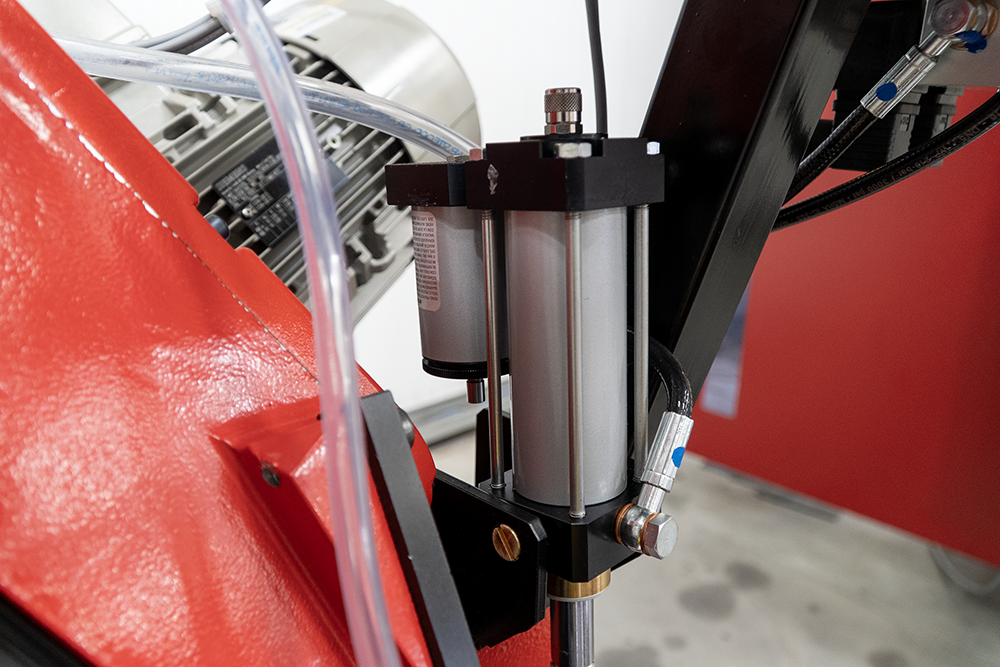

Auto Down-Feed for Enhanced Productivity

The automatic down-feed system is a key feature that sets the Bianco MR apart from manual or semi-automatic alternatives. This system ensures consistent cutting pressure and speed, leading to uniform results and minimizing operator fatigue. By automating the down-feed process, the machine allows operators to focus on other tasks, boosting overall workplace productivity.

Durable Construction for Long-Term Performance

The Bianco MR Auto Down-Feed Double Mitre Bandsaw is built to last. Its heavy-duty construction, combined with premium components, ensures long-term reliability even in demanding industrial environments. The use of special alloy castings not only enhances precision but also provides exceptional durability, allowing the machine to withstand continuous use without compromising performance.

Safety Features for Operator Protection

Bianco prioritizes operator safety in the design of its machines. The MR model includes integrated safety features such as blade guards, emergency stop buttons, and ergonomic controls. These elements not only protect the operator but also ensure compliance with workplace safety standards, making it a dependable choice for busy workshops.

Ideal for a Wide Range of Applications

The Bianco MR Auto Down-Feed Double Mitre Bandsaw is a versatile solution suitable for various industries, including:

  • Metal Fabrication: Precision mitre cuts for structural components and custom metalwork.
  • Engineering: Reliable performance for complex projects requiring high accuracy.
  • Construction: Durable construction and versatile cutting angles for on-site applications.

Its ability to handle multiple material types—from mild steel to stainless steel—makes it a valuable asset in any workshop.

Easy Maintenance and Blade Longevity

Maintaining the Bianco MR bandsaw is straightforward, thanks to its user-friendly design. Blade changes and routine maintenance tasks can be completed quickly, minimizing downtime. The machine’s two-speed motor and precision construction also contribute to blade longevity, reducing operational costs over time.

Summary

The Bianco MR Auto Down-Feed Double Mitre Bandsaw 415V combines Italian engineering, precision cutting capabilities, and operator-friendly features to deliver exceptional performance in industrial applications. Its double mitring head, two-speed motor, and auto down-feed system make it a versatile and reliable choice for metalworking professionals. Built with special alloy cast bows and designed for flexibility and durability, the Bianco MR bandsaw ensures accurate cuts and long-term efficiency.

Whether you need precise mitre cuts, robust construction, or advanced features, the Bianco MR Auto Down-Feed Double Mitre Bandsaw delivers on every front. Its innovative design and reliable performance make it an indispensable tool for professionals across industries.

Choose Bianco for Unmatched Precision and Reliability

Investing in the Bianco MR Auto Down-Feed Double Mitre Bandsaw means choosing a trusted brand with a proven track record of excellence. With its superior features and robust construction, this bandsaw is designed to meet the demands of modern workshops and industrial operations. Experience the difference that 30 years of Italian craftsmanship can make—choose Bianco for your cutting needs.
