Morgan Rushworth HBP Hydraulic Box & Pan Folder

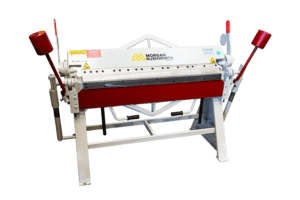

The Morgan Rushworth HBP hydraulic box and pan folder provides simple, powerful folding with easily adjustable manual angle setting device. The clamping and bending is controlled by means of a joystick or foot pedal or combination, allowing easy positioning of the material for folding. This machine offers high speed, increased productivity and is a cost effective alternative to press brake machines. The HBP range has 45° folding beam fingers which are hardened and ground and supplied in varying widths for ultimate versatility.
MODEL | HBP1270.25 | HBP1270.35 | HBP2040.25 | HBP2040.35 | HBP2540.25 | HBP2540.35 | HBP3050.20 | HBP3050.35 | HBP4010.10 | HBP4010.20 | |
STOCK CODE | M2404 | M2405 | M2406 | M2407 | M2408 | M2409 | M2410 | M2411 | M2412 | M2413 | |
Capacity (Mild Steel) | mm | 2.5 | 3.5 | 2.5 | 3.5 | 2.5 | 3.5 | 2.0 | 3.5 | 1.0 | 2.0 |
Capacity (Stainless Steel) | mm | 1.6 | 2.5 | 1.6 | 2.5 | 1.6 | 2.5 | 1.2 | 2.5 | 0.6 | 1.2 |
Bending Length | mm | 1270 | 1270 | 2040 | 2040 | 2540 | 2540 | 3050 | 3050 | 4010 | 4010 |
Maximum Folding Angle | 135° | 135° | 135° | 135° | 135° | 135° | 135° | 135° | 135° | 135° | 135° |
Maximum Opening of Clamping Beam | mm | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Maximum Tray Depth | mm | 152 | 152 | 152 | 152 | 152 | 152 | 152 | 152 | 152 | 152 |
Maximum Reverse Bend | mm | 16 | 25 | 16 | 25 | 16 | 25 | 16 | 25 | 25 | 25 |
Quantity & Size of Fingers | mm | 2 x 76, 2 x 102, 6 x 127, 1 x 152 |
2 x 76, 2 x 102, 6 x 127, 1 x 152 |
7 x 76, 3 x 102, 7 x 127, 2 x 152 |
7 x 76, 3 x 102, 7 x 127, 2 x 152 |
6 x 76, 5 x 102, 10 x 127, 2 x 152 |
6 x 76, 5 x 102, 10 x 127, 2 x 152 |
6 x 76, 4 x 102, 10 x 127, 10 x 152 |
6 x 76, 4 x 102, 10 x 127, 10 x 152 |
6 x 76, 6 x 102, 10 x 127, 11 x 152 |
6 x 76, 6 x 102, 10 x 127, 11 x 152 |
Back Gauge Travel | mm | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
Motor | kW | 1.5 | 2.2 | 2.2 | 3.7 | 2.2 | 3.7 | 2.2 | 3.7 | 2.2 | 3.7 |
Length | mm | 2150 | 2250 | 2900 | 3000 | 3450 | 3500 | 3950 | 4000 | 5050 | 5050 |
Width | mm | 1160 | 1300 | 1050 | 1100 | 1050 | 1100 | 1050 | 1100 | 1100 | 1100 |
Height | mm | 1570 | 1680 | 1680 | 1750 | 1680 | 1750 | 1680 | 1750 | 1750 | 1750 |
Weight | kg | 1000 | 1850 | 1400 | 2400 | 1700 | 3000 | 2250 | 3480 | 4000 | 4500 |
Features
- Heavy duty hydraulic range

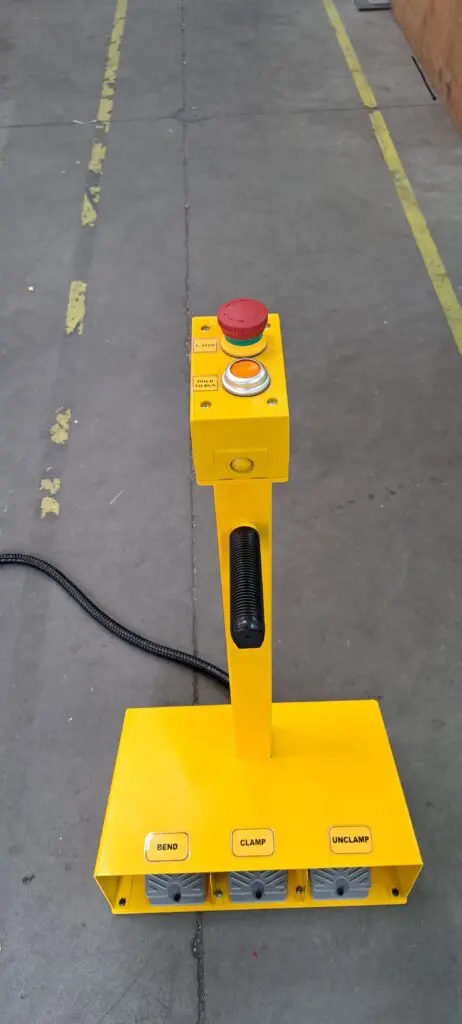

- Combined joystick and foot pedal control
- Safe clamping speed
- Manual folding angle stop with degree scale
- 45° segmented clamping beam blades
- Adjustment of the clamping beam for material thickness
- Crowning of the folding beam, clamping beam and bed beam
- Adjustment of the reinforcing angle for small return bends <25mm
- 600mm manual ruled back gauge
Options
- 800mm NC back gauge with additional guarding
- 2-axis NC control of bending angle and back gauge with additional guarding
