Morgan Rushworth DBR Manual Sheet Metal Bending Rolls

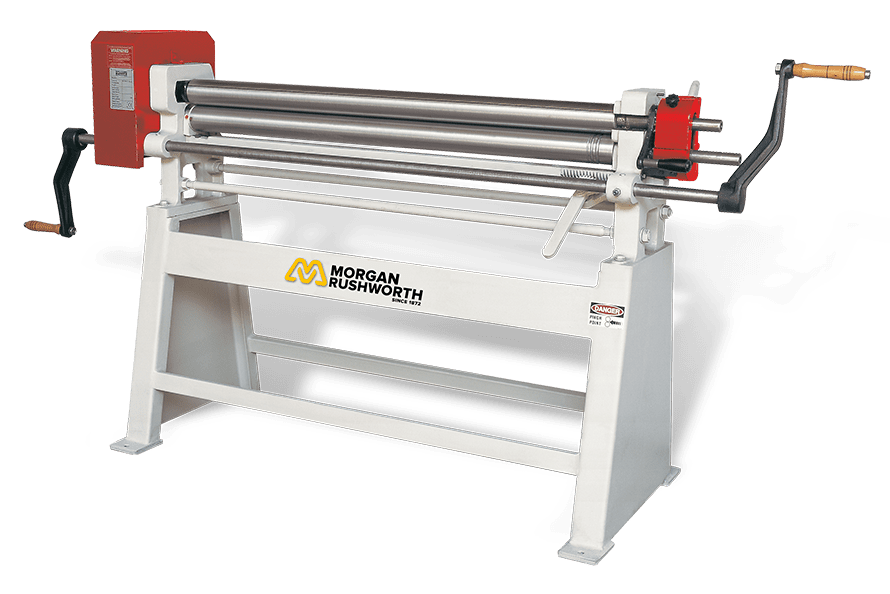

Front view of the Morgan Rushworth DBR Manual Bending Roll

The Morgan Rushworth DBR Manual Bending Sheet Roll range from 0.6mm – 0.8mm with bending lengths up to 1050mm. All models are of asymmetric design providing pre bending capability. The top slip roll allows removal of cylindrical components.

Front view of the Morgan Rushworth DBR Manual Bending Roll
Front view of the Morgan Rushworth DBR Manual Bending RollFront view of the Morgan Rushworth DBR Manual Bending Roll

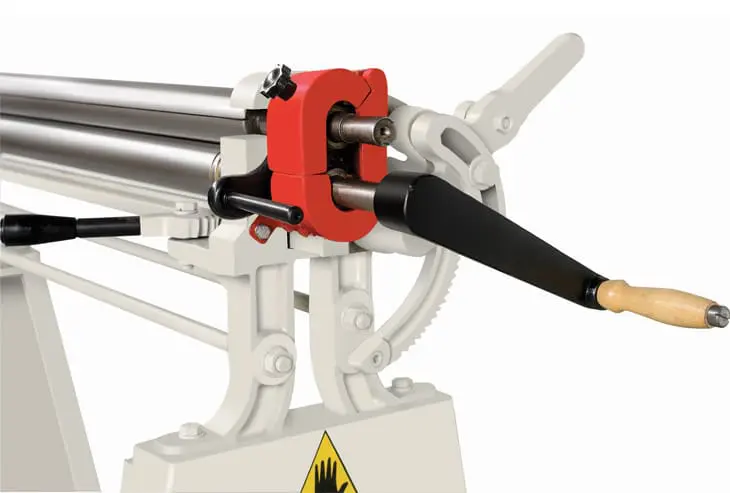

Close up side view of the DBR manual handle
DBR Rapid Pre-Bend
Close up side view of the DBR manual handle
Morgan Rushworth DBR Manual Sheet Metal Bending Rolls image 3
Round Bar Grooves
Morgan Rushworth DBR Manual Sheet Metal Bending Rolls image 3
Morgan Rushworth DBR Manual Sheet Metal Bending Rolls image 4
Cone Rolling Wheel
Morgan Rushworth DBR Manual Sheet Metal Bending Rolls image 4
Morgan Rushworth DBR Manual Sheet Metal Bending Rolls image 5
Top Slip Roll
Morgan Rushworth DBR Manual Sheet Metal Bending Rolls image 5
Morgan Rushworth DBR Manual Sheet Metal Bending Rolls image 6
Manual Rotation Handle
Morgan Rushworth DBR Manual Sheet Metal Bending Rolls image 6
Asymmetrical Bending DiagramAsymmetrical Bending Diagram
Newspaper article about the history of Morgan Rushworth bending rollsNewspaper article about the history of Morgan Rushworth bending rolls
MODELSTOCK CODEBENDING LENGTHPRE BENDINGMAX THICKNESSTOP ROLL DIALENGTHHEIGHTWIDTHWEIGHT
mmmmmmmmmmmmmmkg
DBR 1050/46M300010500.60.84613001100700240
DBR 1050/56M300110500.815613001100700270

Features

  • Top roll to slip
  • Manual rotation
  • Cone bending
  • Crowned Rolls
  • Manually adjusted side roll for up and down translation
  • Manual pinching of bottom roll
  • Round bar grooves

Options

  • Induction hardened rolls
  • Parallel Rolls
  • Powered side roll up and down translation
  • DRO for side roll position
  • Motorised roll rotation
