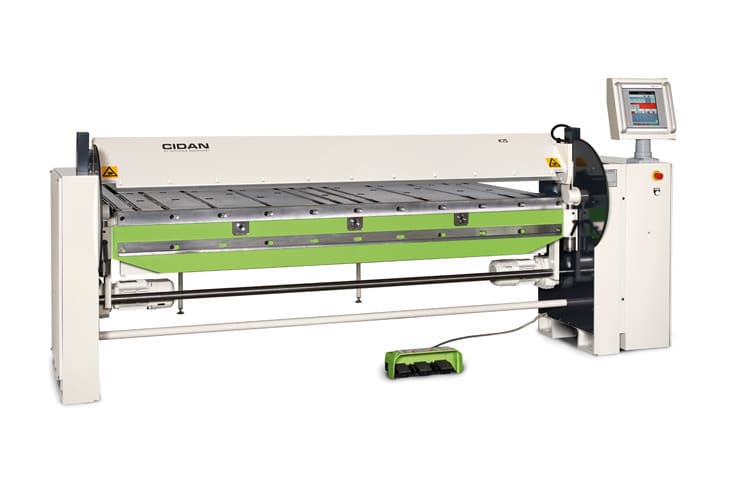

Main view Cidan K15 Folding Machine

Request a Quote







    Your Name *

    Email *

    Postcode *

    Company Name *

    Telephone No. *

    Your Message

    Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



    Your information will be held according to our privacy policy.

    UK Flag
    Alternatively call +44 (0)1432 346 580 for sales and support

    The Cidan K15 Folding Machine is extremely quick and easy to use, built in a sturdy all-welded construction with cast iron legs and side frames. The K15 is built for continuous running under the most demanding conditions. The machine is adapted for all types of folding for thinner materials.

    Main view Cidan K15 Folding Machine

    Request a Quote

    (Close request a quote)







      Your Name *

      Email *

      Postcode *

      Company Name *

      Telephone No. *

      Your Message

      Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



      Your information will be held according to our privacy policy.

      UK Flag
      Alternatively call +44 (0)1432 346 580 for sales and support

      Main view Cidan K15 Folding MachineMain view Cidan K15 Folding Machine
      Video thumbnail showing the Cidan K15 Folding Machine
      Video thumbnail showing the Cidan K15 Folding Machine
      Optional SBG Back Gauge DiagramOptional SBG Back Gauge Diagram
      Optional SBG Back GaugeOptional SBG Back Gauge
      Optional Movable Foot Switch on RailOptional Movable Foot Switch on Rail
      MultifoldMultifold
      Optional Ball TransfersOptional Ball Transfers
      Optional Tool CartOptional Tool Cart
      Optional Squaring ArmOptional Squaring Arm
      Combi Beam DiagramCombi Beam Diagram
      Eccentric Drive of the Clamping Beam DiagramEccentric Drive of the Clamping Beam Diagram
      Crowning DiagramCrowning Diagram
      MODELK15-25K15-30
      Folding Lengthmm25503100
      Folding Capacity Steel*mm1.751.5
      Folding Capacity Stainless Steel**mm1.10.9
      Folding Capacity Aluminum***mm2.62.2
      Opening Height – Clamping Beammm115115
      Outer Dimensions L x W x Hmm3530 x 1545 x 15904030 x 1545 x 1590
      Weightkg20553270
      Motor – Clamping Beamkw0.750.75
      Motor – Folding Beamkw1.11.1

      *400 N/mm2  – 58000 psi – **700 N/mm2 – 87000 psi – ***200 N/mm2 – 29000 psi – **** with motorised back gauge SBG – 15

      Features

      • Control System EasyLink with touch screen for input and storage of folding operations
      • Clamping beam with straight rail 30°
      • Lower beam rail
      • Double sided folding beam rail 7/10mm with quick change tooling (bayonet style)
      • Folding beam rail 20mm with quick tool changing
      • Manual crowning of folding beam rail

      Options

      • Control System ProLink control with touch screen and graphic programming
      • Off line program for ProLink
      • Motorised straight back gauge LBG or SBG (option on LBG)
      • Solida back gauge fingers (min. measure 6mm
      • Squaring arm
      • Round folding rail R= 2.5mm
      • Extra foot pedal with key switch
      • Hardened rails and tools
      • Movable foot switch on rail
      • Increased folding beam speed
      • K15-30 Kit to extend all rails to 3140mm
      • Folding beam rail 25mm
