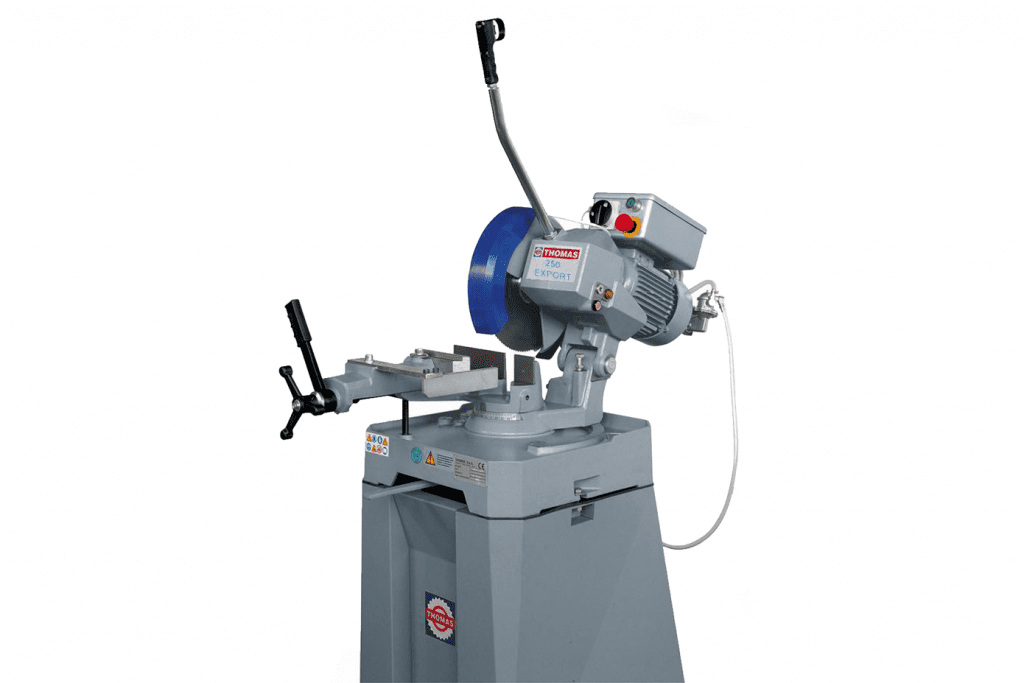

Thomas Pull Down & Semi Automatic Circular Saw
Request a Quote
The Thomas range of sawing machines has been manufactured in Italy since 1957. High quality components and attention to design has resulted in a truly heavy duty machine, well able to withstand years of intense use in today۪s busy workshops.
| MODEL | Export 250 | Super Cut 315 | 350 Super Technics | |||||||
| STOCKCODE | 15302 | 15303 | 15308 | |||||||
| Capacity | 90° | 45° L + R | 90° | 45° L + R | 90° | 45° L + R | ||||
| mm | 70 | 60 | 95 | 90 | 120 | 100 | ||||
| mm | 65 | 55 | 85 | 80 | 105 | 85 | ||||
| mm | 100 x 45 | 65 x 50 | 110 x 70 | 85 x 70 | 160 x 90 | 85 x 70 | ||||
| Blade Size | mm | 250ø x 32 bore | 315ø x 32 bore | 350ø x 32 bore | ||||||
| Blade Speed | rpm | 40/80 | 41/82 | 22/44/88 | ||||||
| Cutting Speed | m/min | 31/62 | 41/82 | 24/48/96 | ||||||
| Motor | Kw | 0.75 – 0.95 | 1.3 – 1.9 | 1.3 – 1.7 – 2.4 | ||||||
| Length | mm | 500 | 700 | 1100 | ||||||
| Width | mm | 780 | 780 | 780 | ||||||
| Height | mm | 1500 | 1530 | 1700 | ||||||
| Weight | Kg | 115 | 148 | 186 | ||||||
| Operation | Pull Down | Pull Down | Pull Down | |||||||
| Vice | Manual | Manual | Manual |
Features
- Heavy duty.
- Anti burr jaw.
- Mechanical coolant pump.
- Mitres 45¡ left and right.
- Quick lock vice.
Options
- Base
