Mueller Opladen 3D Robotic Section Profiling Machines

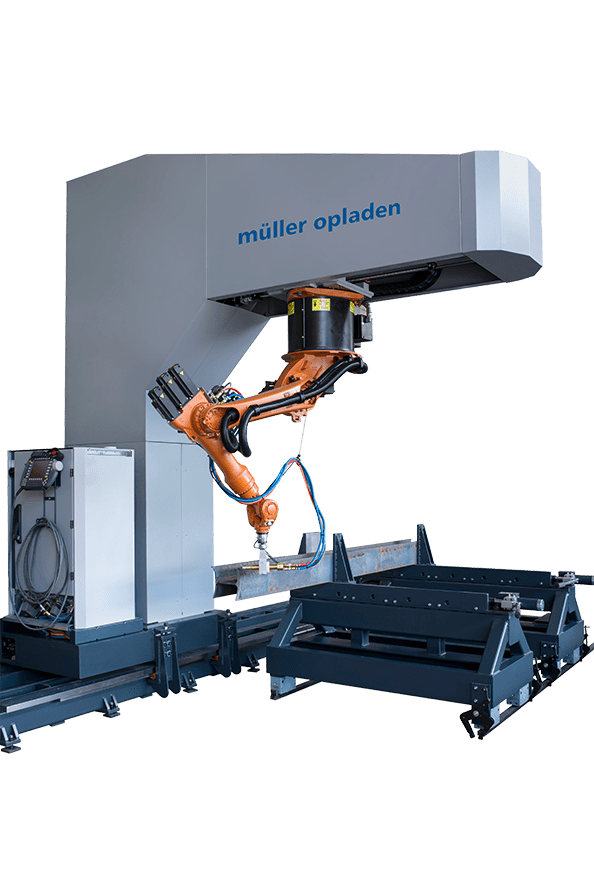

Müller Opladen Gmbh have been manufacturing tube and pipe profiling machines since the 1950s. The MO ROBO is their 3D Robotic plasma cutting machine for coping and profiling structural steel and is capable of processing a huge range of sizes.

The machine integrates a 6 or 8 axis Kuka robot for high accuracy cutting of H-Beam, I-Beam, T-Section, U-Channel and L-Angles. The standard machine is equipped with a 12 meter infeed and length measuring conveyor, the robotic cell and a 12 meter outfeed conveyor.

This machine cuts using plasma with the option of both Kjellberg and Hypertherm plasma systems.

Mueller Opladen 3D Robotic Section Profiling Machines imageMueller Opladen 3D Robotic Section Profiling Machines image
Video thumbnail showing the Mueller Opladen 3D Robotic Section Profiling Machines

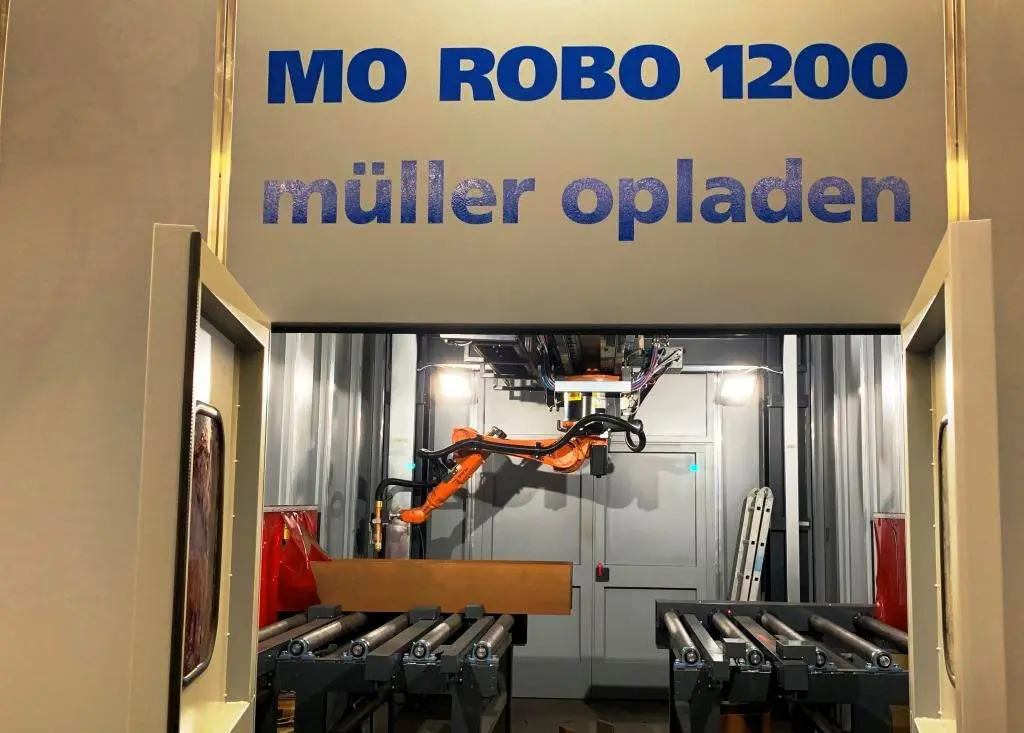

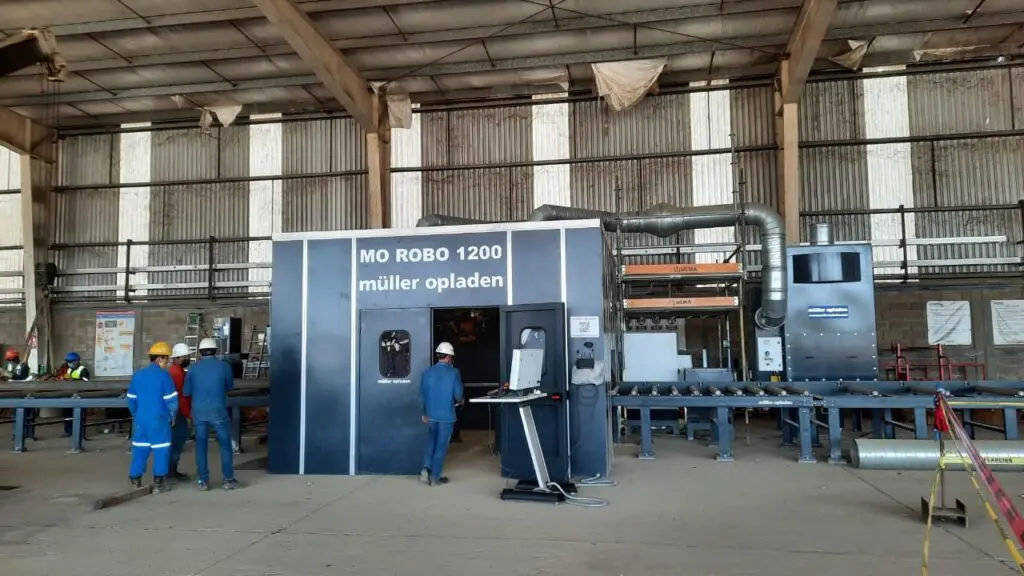

MO ROBO 1200
MO ROBO 1200
MO ROBO 1200
MO ROBO 1200
MO ROBO 1200
MO ROBO 1200
MODEL MO 600 ROBOMO 1200 ROBO
H/I Beam Size Rangemm100 x 50 – 610 x 305100 x 50 – 1220 x 430
T Beam Size RangemmN/A100 x 50 – 1100 x 400
C/U Channel Size Rangemm100 x 50 – 610 x 305100 x 50 – 1220 x 430
L Angle Size Rangemm75 x 75 – 610 x 30575 x 75 – 1220 x 430
Square or Rectangular Section SizemmN/A100 x 100 – 610 x 610
Maximum Workpiece Weightkg8,00012,000
Wall Thickness Range (Plasma)mm1 -801 – 80
Torch Angle RangeDeg± 70 / 45± 70 / 45
Number of CNC Axis66
LengthmmTBCTBC
WidthmmTBCTBC
HeightmmTBCTBC
Weightkg12,00016,000

Features

  • 3D robotic section plasma cutting
  • 6 axis Kuka robot cell
  • Full enclosure
  • H, I, T, U, L section processing
  • Infeed and length measuring conveyor
  • Outfeed conveyor
  • Kjellberg or Hypertherm plasma system

Options

Müller Opladen Gmbh have been manufacturing tube and pipe profiling machines since the 1950s. The MO ROBO is their 3D Robotic plasma cutting machine for coping and profiling structural steel and is capable of processing a huge range of sizes.

The machine integrates a 6 or 8 axis Kuka robot for high accuracy cutting of H-Beam, I-Beam, T-Section, U-Channel and L-Angles. The standard machine is equipped with a 12 meter infeed and length measuring conveyor, the robotic cell and a 12 meter outfeed conveyor.

This machine cuts using plasma with the option of both Kjellberg and Hypertherm plasma systems.
