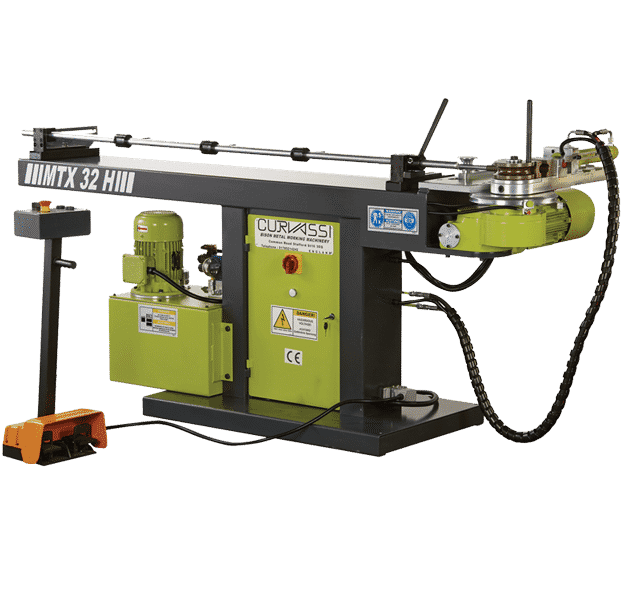

Main view Curvassi-MTX-32H-Mandrel-Tube-Bender

Request a Quote






Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

The Curvassi range of bending machines achieve fast and accurate bending in round and square tube, flat bar, round bar and square bar. Thin wall tube is effortlessly bend to a tight radius with the aid of a mandrel bar. The machines are ideally suited to production environments as a 180° bend is performed in just three seconds.

Main view Curvassi-MTX-32H-Mandrel-Tube-Bender

Request a Quote






Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

Main view Curvassi-MTX-32H-Mandrel-Tube-BenderMain view Curvassi-MTX-32H-Mandrel-Tube-Bender

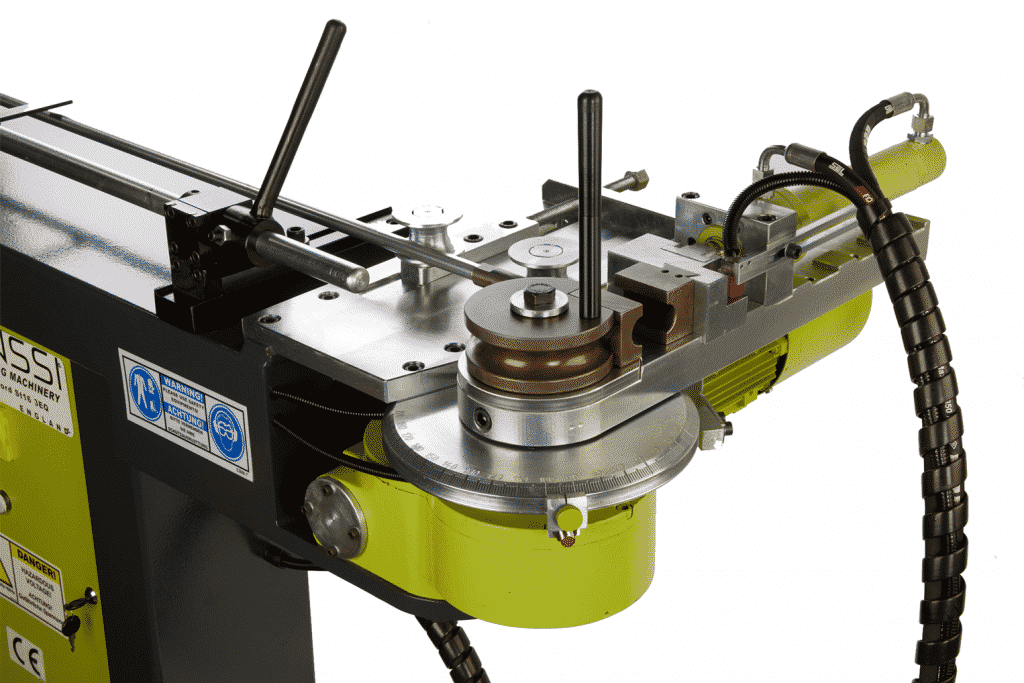

Curvassi MTX 32H Mandrel Tube Benders image 2Curvassi MTX 32H Mandrel Tube Benders image 2
MODELMTX 32H
Max Pipe Diametermm32
Max Wall Thicknessmm2
Max Bending Radiusmm275
Max Bending Angle(°)190
Bending Speed(0/sn)60
Motorkw2.2
Weightkg400
Lengthmm1950
Widthmm1000
Heightmm1050

Features

  • Built according to EC Safety Directives (CE-Mark Approved)
  • Heavy Duty Construction
  • Excellent bend quality
  • Very Easy To Use
  • Geared Motor Drive
  • 4.7” Touch Screen Angle Programmer With Multiple Steps
  • Foot Pedal Control
  • Hydraulic Clamping Movement
  • Manual Flip Length Stop System
  • Electrical Parts – Simens/Telemecanique
  • Complete tooling service

Options

  • Featured with hydraulic vice
