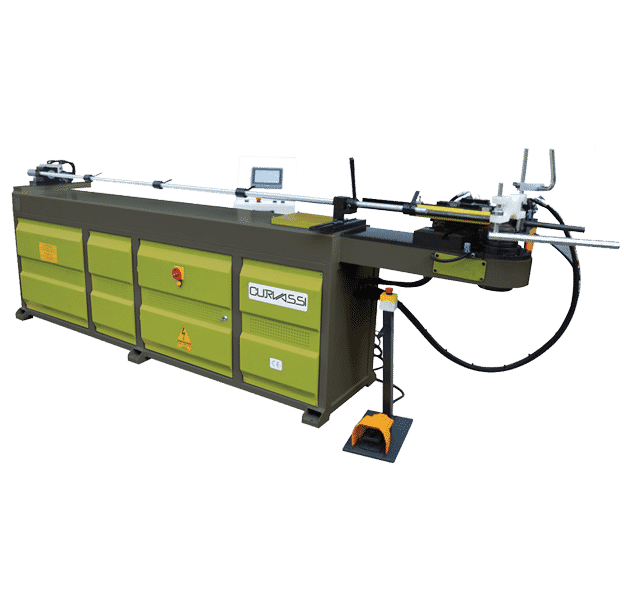

      Main view Curvassi-MTX-90NC-Mandrel-Tube-BenderMain view Curvassi-MTX-90NC-Mandrel-Tube-Bender
      MODELMTX 90 NC
      Max Pipe Diametermm90
      Max Wall Thicknessmm4
      Max Bending Radiusmm250
      Max Bending Angle(°)190
      Bending Speed(0/sn)30
      Motorkw15
      Weightkg2500
      Lengthmm4250
      Widthmm1300
      Heightmm1250

      Features

      • Built according to EC Safety Directives (CE-Mark Approved)
      • Heavy Duty Construction
      • Excellent bend quality
      • Very Easy To Use
      • Geared Motor Drive
      • 4.7” Touch Screen Angle Programmer With Multiple Steps
      • Foot Pedal Control
      • Hydraulic Clamping Movement
      • Manual Flip Length Stop System
      • Electrical Parts – Simens/Telemecanique
      • Complete tooling service

      Options
