Curvassi MTX 51NC Mandrel Tube Benders

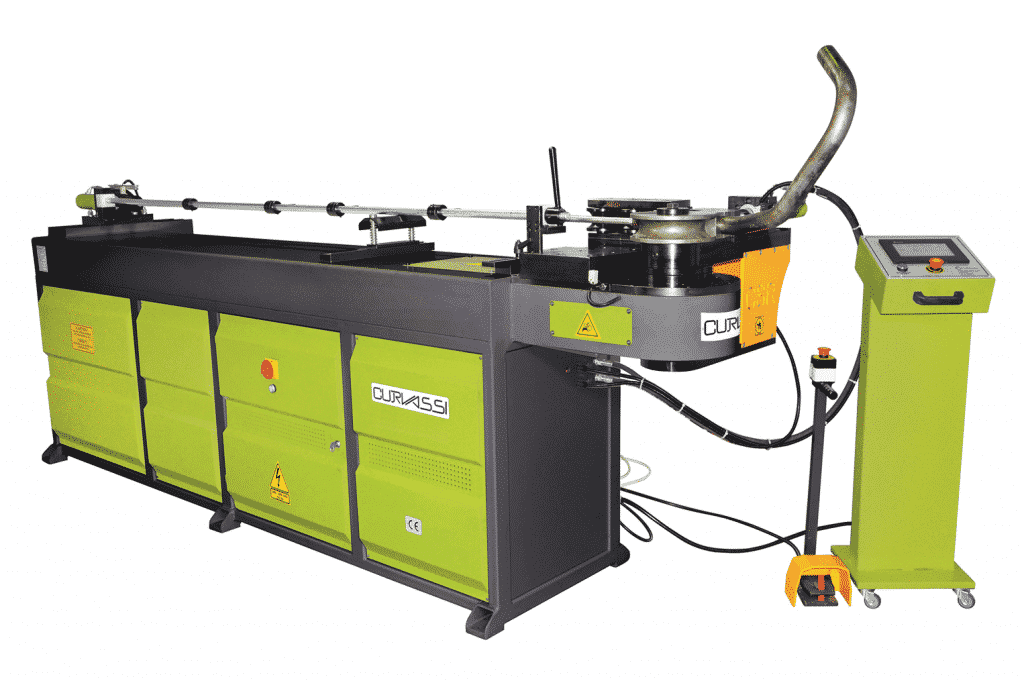

Main view Curvassi-MTX-51NC-Mandrel-Tube-Bender

Capable of bending up to 51mm pipe diameter, the MTX 51NC features a hydraulic vice, and a 4.7″ Touch Screen programmable controller, for multi-step bending.

The Curvassi range of bending machines achieve fast and accurate bending in round and square tube, flat bar, round bar and square bar. Thin wall tube is effortlessly bend to a tight radius with the aid of a mandrel bar. The machines are ideally suited to production environments as a 180° bend is performed in just three seconds.

Main view Curvassi-MTX-51NC-Mandrel-Tube-Bender

This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.

VIEW AlTERNATIVES
Main view Curvassi-MTX-51NC-Mandrel-Tube-BenderMain view Curvassi-MTX-51NC-Mandrel-Tube-Bender
MODEL MTX 51NC
Max Pipe Diameter mm 51
Max Wall Thickness mm 3
Max Bending Radius mm 250
Max Bending Angle (°) 190
Bending Speed (0/sn) 70
Motor kw 5.5
Weight kg 1050
Length mm 3500
Width mm 1150
Height mm 1150

Features

  • Built according to EC Safety Directives (CE-Mark Approved)
  • Heavy Duty Construction
  • Excellent bend quality
  • Very Easy To Use
  • Geared Motor Drive
  • 4.7” Touch Screen Angle Programmer With Multiple Steps
  • Foot Pedal Control
  • Hydraulic Clamping Movement
  • Manual Flip Length Stop System
  • Electrical Parts – Simens/Telemecanique
  • Complete tooling service
