Sheet Metal Guillotines

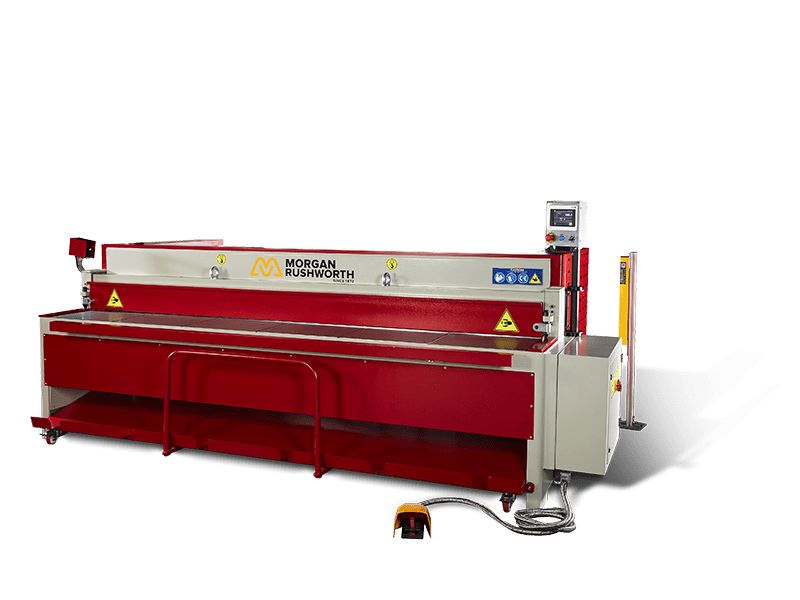

Mechanical Guillotine

The Morgan Rushworth and RVD range of mechanical guillotines are designed for fast accurate cutting of mild steel up to 5mm. Now available in eleven capacities with either the standard manually operated back gauge or the optional advanced Elgo NC back gauge.

Get A Quote

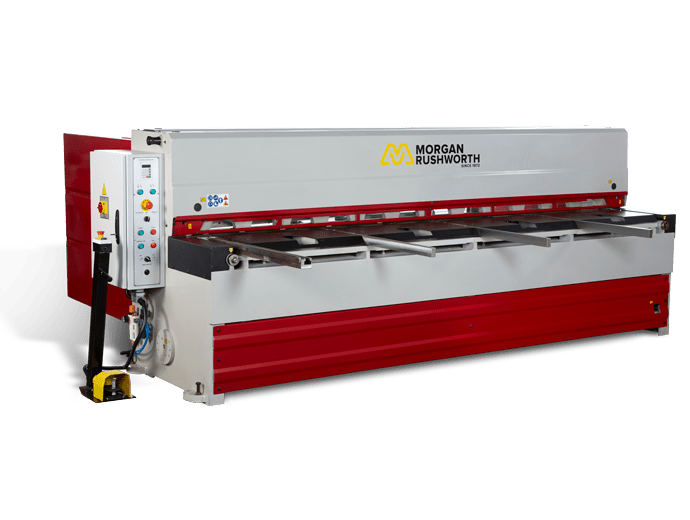

Swing Beam Hydraulic Guillotine

The powerful range of Morgan Rushworth hydraulic swing beam guillotines are now available with the front guard finger safety system which offers the operator great visibility and increases safety. All machines are fitted with stainless steel quality cutting blades as standard, giving flexibility to cut a range of materials without detriment to blade life. The optional user friendly Cybtouch 6 NC controller ensures accurate cutting with precision back gauge setting and the facility to store complete cutting lists including length and quantity. For longer lengths an automatic swing away backgauge is standard.

Get A Quote

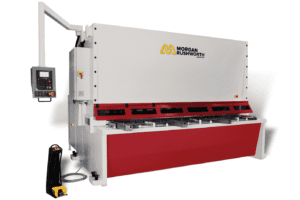

Variable Rake Hydraulic Guillotine

The Morgan Rushworth HSVS range of variable rake CNC sheet metal guillotines are heavy duty, strong machines designed for a long working life. The CNC controller automatically calculates and adjusts the blade gap, the back gauge position, cutting angle and stroke length simultaneously once the data is entered. Therefore the strokes per minute cutting cycle is significantly increased. The cutting angle automatically adjusts according to material thickness minimising the twisting of sheet during the cutting cycle.

Get A Quote

The Morgan Rushworth HSGS NC Swing Beam Guillotine 415V

Power and innovation combine to make the Morgan Rushworth HSGS series of hydraulic swing beam sheet metal guillotines a quintet of machines with the reliability and quality that few others are able to match.

Impressive cutting capacity

Capable of cutting material from 2560mm wide all the way up to an impressive 4060mm they are fitted with stainless steel cutting blades as standard. Capacitiesgo up to 8mm thickness (45kg/mm2) at speeds of up to 24 strokes per minute.

NC control enables accurate, efficient cutting with the ability to store and retrieve complete cutting lists and quantities quickly and easily. The HSGS series also benefits from the optional Cybtouch 8 CNC controller, delivering a range of CNC features and production line automation.

Optional Extras

The Morgan Rushworth HSGS NC Swing Beam range of guillotines use our new advanced front light guard, with multiple beams directed across the front of the blade and hold downs. This system immediately switches the machine off if the beam is interrupted, ensuring the very best operator safety levels and improved views of the work piece as the traditional guard is no longer necessary.

Other optional features include the Delem DAC 310 controller with powered blade gap adjustment, pneumatic sheet supports, angle gauge, longer squaring and support arms and a 1000mm back gauge.

Technical Specification

• NC Controller for back gauge position.
• One-piece honed and chrome plated double acting powerful cylinders.
• Stainless steel cutting blades. Bottom: 4, Top: 2 cutting sides.
• Easy adjustable blade gap adjustment system from single point.
• Bosch – Rexroth hydraulic system.
• High pressurised silent Atos pump.
• Fast and powerful back gauge with 750mm distance, moving by ball screwed shafts, with automatic swing away feature.
• Powerful hydraulic material hold downs.
• Cutting length adjustment allowing stroke adjustment for shorter sheets and to shorten the cutting time.
• Support table with roller bearings.
• Front support arms with ruler and flip stop.
• Foot pedal available for single or continuous cutting.
• Cutting line illumination.
• Rear guard with photo-cell

Find our more about Morgan Rushworth HSGS NC Swing Beam Guillotine here

"We’ve seen a 10% increase in turnover and a 20% increase in production since we’ve had the new machines..."

S.W. Asgood Engineering

"I’m a lover of Morgan Rushworth machines. I really like the quality of them..."

Ron James Welding Services

The Morgan Rushworth BHGS Hydraulic Swing Beam Guillotine

Powerful and versatile, the BHGS series of hydraulic swing beam guillotines deliver flexible cutting across a range of materials with minimal detriment to the life of the high quality stainless steel blades which are fitted as standard on each of the seven models that make the series.

Intelligent control

With that power and versatility also comes intelligence, thanks to the intuitive and easily accessible Cybtouch 6 NC controller. This ensures precision back gauge setting and the potential to store and retrieve complete cutting lists including lengths and quantities.

Cutting length capacities are 3060mm and 4060mm at up to 18 strokes per minute delivering the levels of efficiency, versatility and power that your fabricating business needs.

Optional Extras

A range of optional features ensures the BHGS hydraulic swing beam series can be tailored exactly to the way you need it. You can opt for a 1000mm back gauge travel in lieu of standard 750mm, as well as powered blade gap adjustment and pneumatic rear sheet supports. Tee Slot, flip stop & a rule on the front support arms can also be added along with angle gauge, a laser cutting line and longer squaring arms and support arms if you require them.

Technical Specification

• CybTouch 6 NC Controller
• Fast and powerful back gauge with 750mm travel
• Automatic swing away back gauge feature
• Stainless steel cutting blades with multiple cutting edges
• Cutting line illumination with shadow wire
• Cutting length stroke adjustment for narrower sheets reducing cutting time
• Digital stroke counter
• Easy blade gap adjustment system from single point
• Powerful hydraulic material hold downs prevent sheet sliding during cutting
• Support table with roller bearings
• 1000mm front squaring arm with tee slot and flip stop
• 1000mm Front support arms
• Foot pedal available for single or continuous cutting
• One-piece honed and chrome plated double acting powerful cylinders
• Rear photo-cell guards

Find out more about the Morgan Rushworth BHGS Hydraulic Swing Beam Guillotine

The Morgan Rushworth HSVS Hydraulic Variable Rake CNC Guillotine

Impressively strong and heavy duty, the HSVS series is built to last and to serve your unique requirements reliably. If those requirements change the HSVS series has all you need to adapt. Designed for automation as well as a long working life, the intuitive CNC control handles calculations and adjustments for the blade gap, the backgauge position, cutting angle and stroke length simultaneously once the data is entered.

Superior Cutting Quality

Together, these factors increase efficiency with a vastly superior ‘strokes per minute’ cutting cycle and no decrease in quality. Cutting angle adjustments are made automatically according to material thickness, minimising the twisting of sheet during cutting.

The HSVS series spans an incredible sixteen different models to make certain that, whatever your needs, the right one for you is here without compromises or trade-offs.

Optional Extras

As well as the impressive array of choice delivered by the models that make the HSVS series, come a range of optional extras. There is a pneumatic rear sheet support system available as well as tee slots and flip stops on the front support arms. The range can also be supplied with an angle gauge and Hydraulic automatic swing away back gauge.

Technical Specification

• Variable rake design
• Cybelec DNC60 CNC controlling blade gap, back gauge, stroke and cutting angle
• Adjustable stroke length to reduce stroke time when cutting narrow strips
• Digital stroke counter
• 1000mm powered ball screw back gauge with swing away feature for longer parts
• Backgauge retract feature
• High quality stainless grade top and bottom blades
• Top blade with 2 cutting edges and bottom blade with 4 cutting edges
• Cutting line illumination
• Side throat guards
• Compact low-maintenance hydraulic system
• Hydraulic overload protection
• Powerful material hold downs to prevent sheet sliding during cutting action
• Support table with roller bearings
• 1000mm Front squaring arm with measuring scale, tee slot and flip stop
• 1000mm Front support arms
• Foot pedal for single or continuous cutting cycles
• Photo cell rear guards
• Centralised lubrication system

Find out more about the Morgan Rushworth HSVS Hydraulic Variable Rake Guillotine
