TML 100 Permanent Lifting Magnet
You need to have the correct equipment to lift, move and position the work pieces and materials that you work with, you need a solution that you can trust, a solution that is reliable, convenient and won’t cost the earth. Anyone who has ever wondered how on earth they are going to move a piece of heavy metal across a busy work area will understand the problem. Or those, who have ever had to wait for a hot work piece to cool before it can be safely re-positioned may also relate to the frustration.
The new TML 100 Permanent Lifting Magnet enables easier lifting, moving, positioning, aligning, forming and transporting of your sheet & plate metal materials during production.

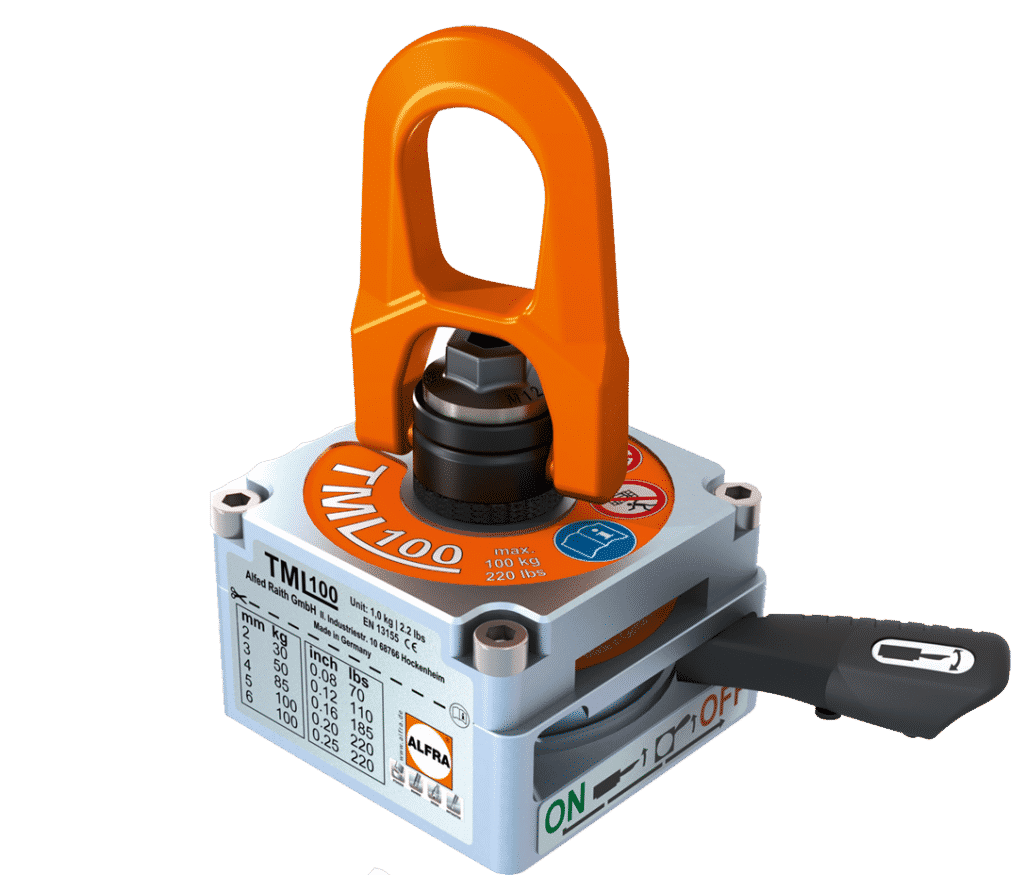

TML-100 Permanent Lifting Magnet
| Magnetic Contact Surface | mm | 80×52 |
| Height | mm | 85 (Lifting hook folded down) 147 (Lifting hook folded up) |
| Width | mm | 80 |
| Length | mm | 82.5 |
| Max Load | kg | Up to 100 (1:3 safe working mode) |
| Max Vertical Lifting Capacity | kg | up to 30 at 90 degrees (from 15mm S235 with 1:3 safe working mode) |
| Tear-Off Force | kg | 300 |
| Weight | kg | 1.7 |
Features
- Max lifting capacity of 50kg at 3mm material thickness and 100kg lifting capacity from 6mm (at safety factor 1:3)
- Outstanding performance on thin walled materials (already applicable from 1mm material thickness)
- 360° rotating and swivelling hook (also at maximum load)
Options
