Piranha P Single Operator Steelworker

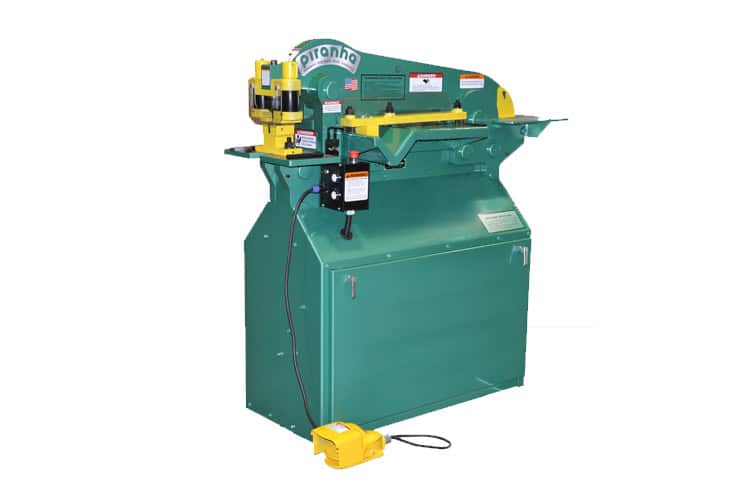

Main view - Piranha-P-Single-Operator-Steelworker

Request a Quote







    Your Name *

    Email *

    Postcode *

    Company Name *

    Telephone No. *

    Your Message

    Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



    Your information will be held according to our privacy policy.

    UK Flag
    Alternatively call +44 (0)1432 346 580 for sales and support

    Piranha P Single Operator Steelworker gives metal fabricators outstanding quality and innovative features. Every Piranha provides quality work, saving time in set up, adaptability and versatility through a wide range of tooling, and factory engineering support.

    Main view - Piranha-P-Single-Operator-Steelworker

    Request a Quote

    (Close request a quote)







      Your Name *

      Email *

      Postcode *

      Company Name *

      Telephone No. *

      Your Message

      Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



      Your information will be held according to our privacy policy.

      UK Flag
      Alternatively call +44 (0)1432 346 580 for sales and support

      Main view - Piranha-P-Single-Operator-SteelworkerMain view - Piranha-P-Single-Operator-Steelworker
      Video thumbnail showing the Piranha P Single Operator Steelworker
      Piranha P-70 Single Operator SteelworkerPiranha P-70 Single Operator Steelworker
      Piranha P-90 Single Operator SteelworkerPiranha P-90 Single Operator Steelworker
      Angle Bending DetailAngle Bending Detail
      Material Clamping DetailMaterial Clamping Detail
      Optional Roller Track AttachmentOptional Roller Track Attachment
      Optional AttachmentOptional Attachment
      Optional Tooling Attachment for BendingOptional Tooling Attachment for Bending
      Optional Tooling Attachment for PunchingOptional Tooling Attachment for Punching
      Optional Tooling Attachment for BendingOptional Tooling Attachment for Bending
      Angle Shearing DetailAngle Shearing Detail
      MODELP-50P-65P-90P-110P-140
      Throat Depth130mm200mm250mm300mm300mm
      Open Height300mm350mm380mm400mm400mm
      Closed Height190mm235mm260mm260mm260mm
      w/o Die Block
      Stroke Length101mm108mm123mm133mm133mm
      Platen Table Size (D-W)200 x 250mm250 x 430mm300 x 530mm370 x 530mm370 x 530mm
      Punch355kN445kN625kN800kN1070kN
      Hole Size (Max. Material)25mm (12mm)21mm (19mm)30mm (19mm)28mm (25mm)38mm (25mm)
      Max. Hole Size (Material)38mm (5mm)127mm (3mm)114mm (5mm)127mm (5mm)127mm (6mm)
      Plate Shear330mm Long380mm Long460mm Long520mm Long520mm Long
      15 x 150mm20 x 250mm25 x 150mm25 x 300mm25 x 300mm
      12 x 200mm16 x 380mm20 x 300mm20 x 450mm20 x 450mm
      6 x 330mm12 x 460mm12 x 500mm12 x 500mm
      Angle Shear90 x 90125 x 125 x 10mm127 x 127150×150150 x 150
      **w/ special bladex 8mm100 x 100 x 12mmx 13mmx16mmx 16mm
      Bar ShearOptional
      Round (min. to max.)6 to 36mm6 to 38mm12 to 50mm12 to 50mm12 to 50mm
      Square (min. to max.)12 to 25mm12 to 25mm12 to 35mm12 to 35mm12 to 35mm
      Coper-Notcher (Tons)350kN500kN670kN845kN845kN
      (Max.)60 x 75 x 6mm70 x 100 x 6mm90 x 125 x 10mm100 x 150 x 10mm100 x 150 x10mm
      Bending Attach. (std.)150mm200mm300mm300mm300mm
      (Optional Length)300mm300, 350, 600mm600mm600mm600mm
      Punch End
      Strokes Per Minute50 @ 12mm60 @ 12mm30 @ 19mm40 @ 19mm40 @ 19mm
      Optional Speed-Up KitN/AN/AN/A
      Work Station Height1067mm1067mm1067mm1118mm1118mm
      (Approx.)
      Hydraulics
      Pump LPM2839565656
      System R/V bar138179179183241
      Fluid Capacity (Liters)4575949494
      Motor Std. 230/460 3 Ph.
      1800 RPM3kW 3 Ph.7kW 3 Ph.11kW 3 Ph.11kW 3 Ph.14kW 3 Ph.
      Opt. Phase & Voltage
      Available
      Dimensions (Net)610 x 1397610 x 1676787 x 2007889 x 2286889 x 2286
      W-L-H Approx.x 1473mmx 1524mmx 1626mmx 1689mmx 1689mm
      Weight (Net)7711179192826302812
      kg Approx.

      Features

      • Punch Station

      The urethane strippers keep the material flat to ensure  a better quality punch. The shorter stroke ensures faster productivity and with no adjustments required results in an efficient and easy to use production.

      • Shearing Station

      The urethane hold-downs clamp and unclamp the material automatically with each stroke ensuring faster productivity. Unlike other conventional steelworkers the parts remain clamped during the entire shearing cycle to ensure a more accurate result. The complete clamping cycle promotes longer blade life making it much more cost effective.

      • Shearing Visibility

      Much easier to line up a cut line to the shear blade as the operator has a direct line of sight.

      • Shear Blade

      The low rake angle shear blade results in flatter parts being produced at a better quality. Piranha provide four shear edges on each blade to enhance cost efficiency and blade longevity.

      • Angle Shear

      The floating upper blade seats in the centre of the angle eliminating distortion ensuring the cut piece does not deform.

      • Coper Notch

      The low rake angle blade keeps the part flat and under control during notching process.

      • Bending Attachment

      The open ended attachment allows the angle to bent easily.

      • Installing the Attachment

      The dovetail slide makes the bending attachment easy to install.

      • Ease of Use

      All attachments and stations are at the same height making it easier to use. No need to adjsut the feed table height between stations.



      Options

      • Pipe/Tube Bending Attachment
      • Channel Die Block
      • Bending Attachments – Optional sizes range from 300 – 1120mm
      • 28XX Punch Attachment
      • Press Brake Tooling Holders
      • Quick set Gauging Tables – Fast set-up for punching multiple holes. Includes plate & angle-gauging guide bars. With left and right hand extensions available in 1.5m and 3m lengths.
      • Channel Shear
      • Bar Bender – Up to 65mm depending on available tonnage with adjustable die for different radii.
      • Mechanical Backgauges
      • Electrical Backgauges
      • 38mm Oversize Punch Attachment
      • Roller Feed Tables
