MG F Series Powered 2-Roll Plate Bending Rolls

The MG 2-roll bending machines are designed for the production rolling of complete cylinders in sheet metal material and are available in a range of length and thickness capacities. The urethane rubber coated lower roll provides immediate pre-bending of the material, while the upper roll can be fitted with a larger mandrel to achieve a particular diameter. A complete cylinder is finished in one pass and is left with a minimal flat part resulting in very fast cycle time to a completed component.

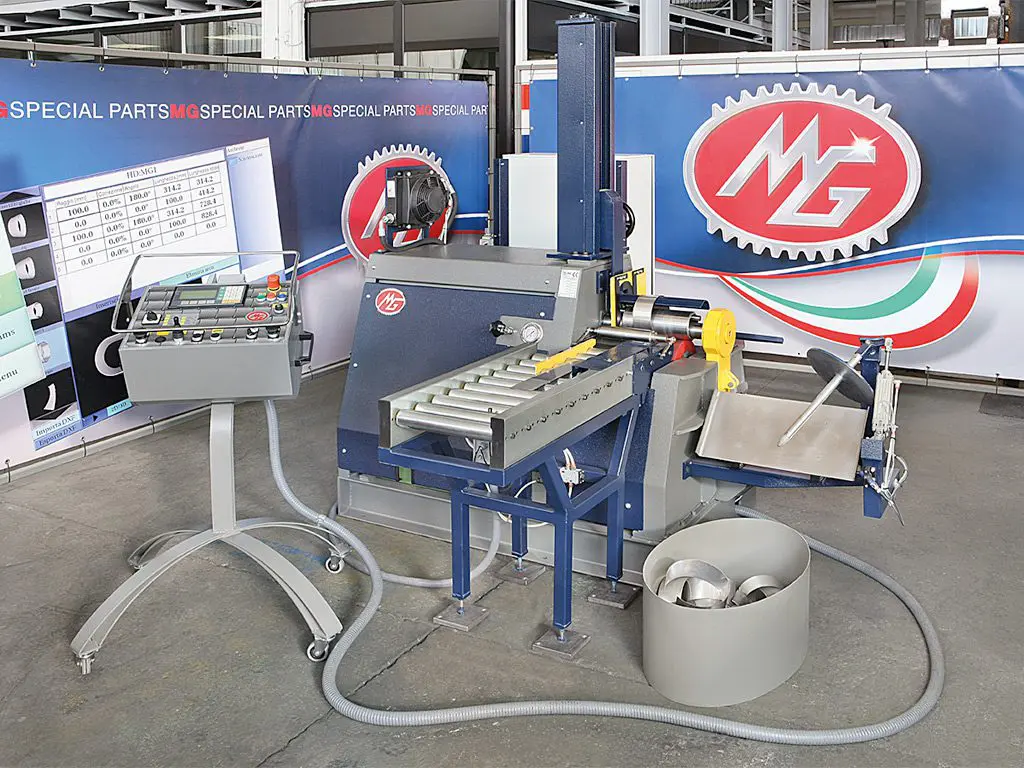

MG F Series Powered 2-Roll Plate Bending Rolls imageMG F Series Powered 2-Roll Plate Bending Rolls image
MG F Series Powered 2-Roll Plate Bending Rolls image 2MG F Series Powered 2-Roll Plate Bending Rolls image 2
MG F Series Powered 2-Roll Plate Bending Rolls image 3MG F Series Powered 2-Roll Plate Bending Rolls image 3
MG F Series Powered 2-Roll Plate Bending Rolls image 4MG F Series Powered 2-Roll Plate Bending Rolls image 4
MG F Series Powered 2-Roll Plate Bending Rolls image 5MG F Series Powered 2-Roll Plate Bending Rolls image 5
MG F Series Powered 2-Roll Plate Bending Rolls image 6MG F Series Powered 2-Roll Plate Bending Rolls image 6
MODEL STOCK CODE BENDING LENGTH ROLLING CAPACITY TOP ROLL dia BOTTOM ROLL dia MOTOR LENGTH WIDTH HEIGHT WEIGHT
mm mm mm mm kw mm mm mm kg
F 03 A 22031 350 1.2 60 160 4
F 05 A 21887 550 1.2 80 220 4 1,600 830 1,025 950
F 07 A 21888 750 1.2 90 220 5.5 1,850 830 1,025 1,045
F 10 A 21889 1,050 1.2 100 300 5.5 2,340 1,000 1,240 1,700
F 12 A 21890 1,250 1.2 110 300 5.5 2,540 1,000 1,240 1,850
F 15 B 21891 1,550 4 150 300 7.5 2,840 1,000 1,240 1,950
F 17 B 22032 1,750 4 140 300 7.5
F 20 B 21892  2,050 4 160 300 7.5 3,500 1,485 1,485 2,400

Features

  • 2-roll design with urethane rubber coated lower roll to provide instant pre-bending
  • Top roll mandrels can fit over the standard top roll to achieve a particular diameter
  • Finished diameter is completed in one pass
  • Rolled components have a straight part of only 1.5 to 2 times the material thickness
  • Fast bending cycle
  • Hydraulic pinching of lower roll
  • Hydraulic drop end for component removal
  • Electro welded and stress relieved frame construction
  • Permanent lubrication system; all parts are lubricated and sealed during assembly

Options

  • Top roll mandrels in a range of diameters
  • Overhead support
  • Loading system
  • Part ejector system
  • NC control
  • Automated production cell
