Delem DA-69T Controller

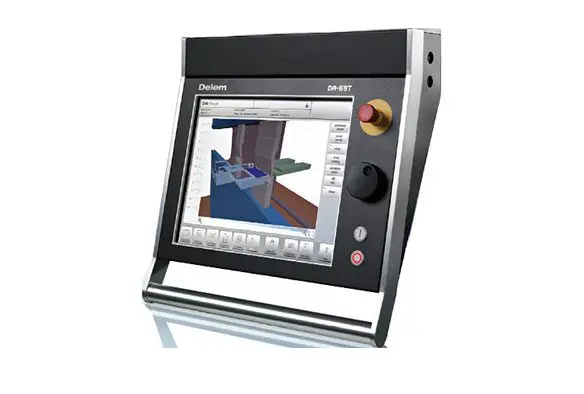

Main view Delem DA69T Control Panel

Request a Quote






Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

The new generation DA-Touch controls offer an ever higher grade of efficiency in programming, operation and control of today’s pressbrakes. Ease of use combined with state-of-the-art technology go hand in hand, improving productivity.

The touch screen screen gives access to the proven Delem user-interface and enables direct navigation between programming and production. Functions are directly located where you need them, offering optimised ergonomics throughout the application.

The DA-69T offers 2D as well as 3D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.

Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using pressbrakes easier, more efficient and more versatile than ever. The OEM-panel located above the screen reserved for machine functions and OEM-applicationswitches, is integrated in the design and can be used depending the required application.

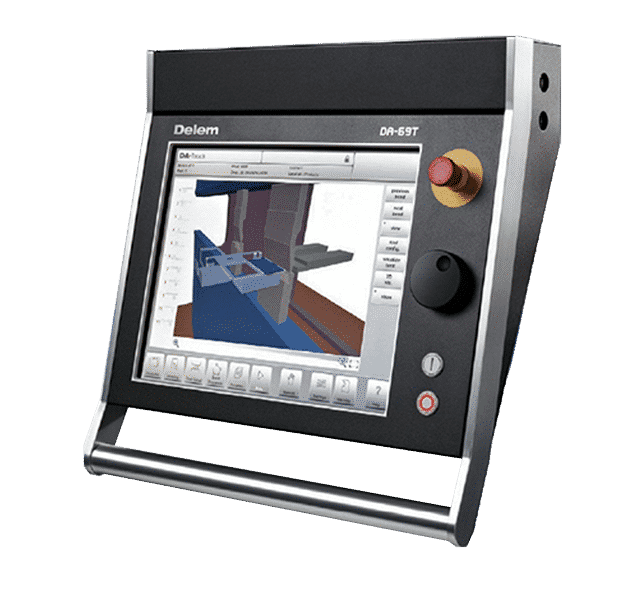

Main view Delem DA69T Control Panel

Request a Quote






Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

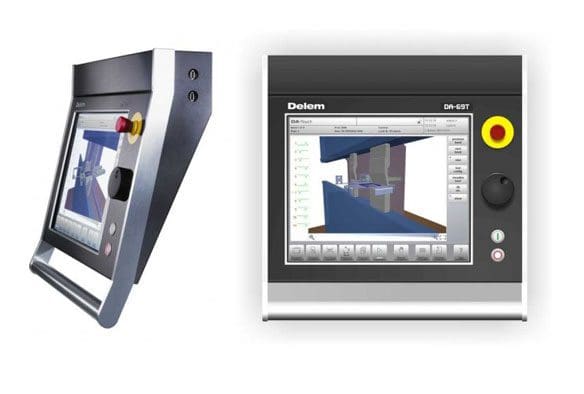

Main view Delem DA69T Control PanelMain view Delem DA69T Control Panel
Delem DA-69T Controller image 2Delem DA-69T Controller image 2
Delem-DA-69TDelem-DA-69T

General

  • Real-time embedded Windows OS
  • Multitasking environment
  • Instant shut off
  • Delem Modusys compatible

Electrical / Interfacing

  • Power supply: 24V
  • Modusys HSB bus
  • RS232 port x2
  • Network interface (100Mb/10Mb)
  • USB port x2
  • Safety PLC interfacing
  • Protractor interfacing
  • Angel control interfacing

Control

  • Servo / 2 speed AC control
  • Unipolair / frequency inverter control
  • Direct pressure valve control
  • Direct proportional valve Y1, Y2 control
  • Direct crowning control
  • Multiple digital function outputs
  • Tandem operation

Programming

  • Alphanumeric product naming
  • 2D/3D real-scale product
  • Programming and visualisation
  • Automatic bend sequence calculation in 2D and 3D
  • Easy graphical bend sequence swap and move
  • Hemmed products programming table
  • One page programming table
  • Graphical product and tool selection
  • Programmable material properties
  • Programmable axis speed
  • Free material programming
  • Product & tool search filter
  • Millimeters/inches, Kn/Ton selection
  • Stock counter
  • Product notes

Tooling

  • Graphical tool configuration
  • Multiple tool station set-ups
  • Tool segmentation visualisation
  • Alphanumeric tool identification
  • Free graphical tool programming
  • Hemming tools
  • Radius tools
  • Tool adapter support

Computed

  • Tooling safety zones
  • Press force
  • Bend allowance
  • Crowning adjustment
  • Developed length
  • Bottom force
  • Hemming force
  • Auto bumping calculation
  • Radius programming
  • Bend allowance table
  • Learned angle correction database

Miscellaneous

  • ‘Teach-in’ on all axes
  • Handwheel movement of all axes
  • Operator selectable dialogue languages
  • Integrated help functions
  • Error messaging system
  • Diagnostic program
  • Internet Explorer (web browser)
  • Remote diagnosis
  • User specific applications support
  • Machine time + stroke counter
  • On board Analysis Tool
  • Sequencer functionality (PLC)

Features

  • 3D and 2D graphical touch screen programming mode
  • 3D visualisation in simulation and production
  • 17″ high resolution colour TFT, high brightness
  • Standard Windows application suite
  • Delem Modusys compatibility (module scalability and adaptivity)
  • USB, peripheral interfacing
  • Open system architecture
  • Sensor bending and correction interface
  • Colour LCD display
  • 1280 x 1024 picels, 32 bit colour
  • Full touch screen controll (IR-touch)
  • Storage capacity 2GB
  • Emergency switch
  • Integrated OEM-panel

Options

  • Part support control
  • X1-X2 angle programming
  • Barcode reader interfacing
  • Protractor interfacing
  • Frame deflection compensation
  • Sensor bending and correction interfacing
  • Sheet thickness measurement and compensation system
