Bauer Bohrmax Z CNC Automatic Drill & Mill

Main view Bauer-Bohrmax-Z-CNC-Automatic-Drill-&-Mill

BAUER BOHRMAX – the answer to economical drilling and light milling on long work pieces.

The Bohrmax is a 3 axis drilling head system which can drill and mill the top surface of almost any material. The machine is of a robust design with proven German engineering components and a heavy structure to suit the engineering and fabrication industry. It is simple to use with very little CNC knowledge required.

An operator can be imported via a DXF or CSV file. A qualified engineer can program parts quickly and simply making it not only ideal for large quantity production but also for one-off workpieces. An option is available to enable data to be imported via the USB port in DXF or CSV file format.

Experience has proved that it is quicker to load a job with as few as two holes onto the Bohrmax and program it, rather than mark and drill by hand. To further speed up production, especially where the workpiece requires different sized holes and milled parts, the ten tool magazie and changer is available as an option.

Main view Bauer-Bohrmax-Z-CNC-Automatic-Drill-&-Mill

This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.

VIEW AlTERNATIVES
Main view Bauer-Bohrmax-Z-CNC-Automatic-Drill-&-MillMain view Bauer-Bohrmax-Z-CNC-Automatic-Drill-&-Mill
Video thumbnail showing the Bauer Bohrmax Z CNC Automatic Drill & Mill
Video thumbnail showing the Bauer Bohrmax Z CNC Automatic Drill & Mill

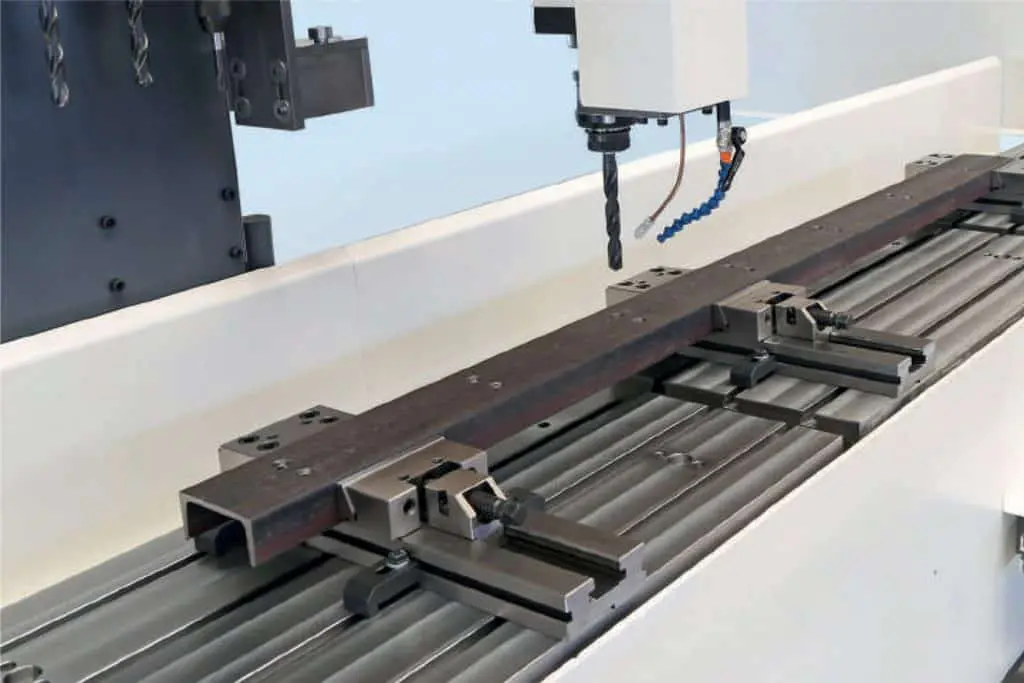

Detail of the Bauer Bohrmax Z CNC Automatic Drill and MillDetail of the Bauer Bohrmax Z CNC Automatic Drill and Mill

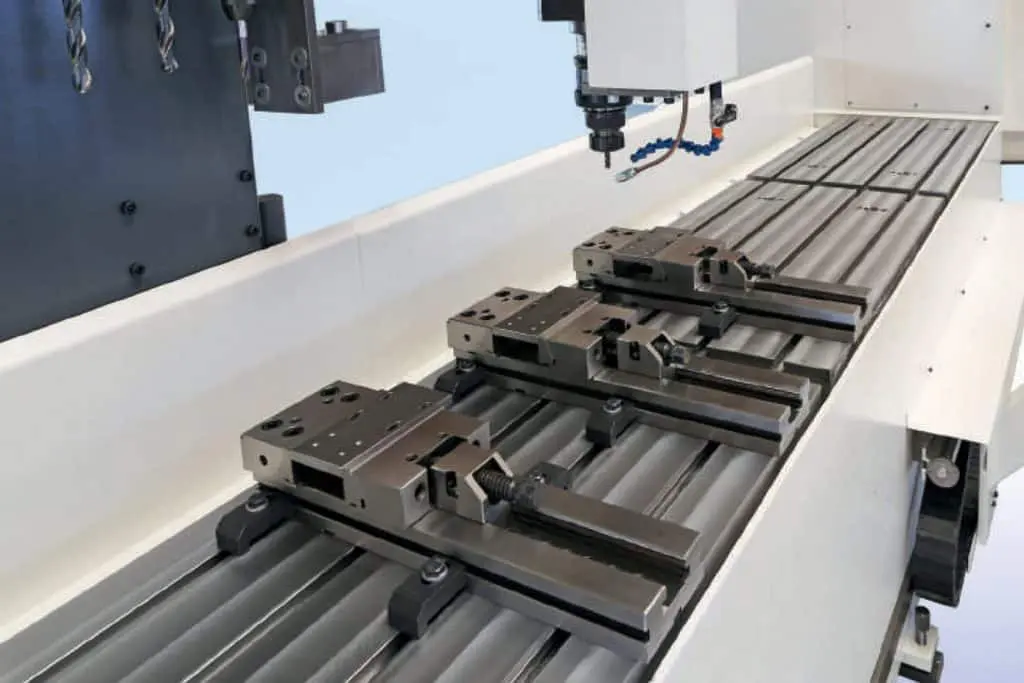

Detail of the Bauer Bohrmax Z CNC Automatic Drill and MillDetail of the Bauer Bohrmax Z CNC Automatic Drill and Mill
Detail of the Bauer Bohrmax Z CNC Automatic Drill and MillDetail of the Bauer Bohrmax Z CNC Automatic Drill and Mill
Bauer Bohrmax Z CNC Automatic Drill & Mill image 7Bauer Bohrmax Z CNC Automatic Drill & Mill image 7
Model    Bohrmax Z
Stockcode
Drill Head RPM 140-2000
Servo Motor Axis x + y + z axis
Rapid Traverse X Axis m/min 20
Rapid Traverse Y Axis m/min 20
Rapid Traverse Z Axis m/min 20
Distance: Table Top to Chuck (Bottom Side) mm 700
Table Width mm 560
T-slots m 14
Drill Diameter mm Mar-32
Tapping Capacity mm >20
X Axis Tolerance mm 0.1
Y & Z Axis Tolerance mm 0.1
Drive Drill Head Kw 4



MODEL Travel X-Axis (mm) Travel Y-Axis (mm) Travel Z-Axis (mm)
Bohrmax Z 20 2000 580 650
Bohrmax Z 30 3000 580 650
Bohrmax Z 40 4000 580 650
Bohrmax Z 50 5000 580 650
Bohrmax Z 60 6000 580 650
Bohrmax Z 70 7000 580 650

Features

  • Spray Mist Lubrication System or conventional coolant
  • Front Light Barrier
  • Rear access guarding
  • 18″ Touch Screen Control
  • Line-by-line programming

Options

  • Hydraulic Vice Support
  • Support Rolls
  • Tool Changer for 10 tools
  • 7.5kw Motor required for milling purposes
  • Data import from DXF or CSV files
  • Rear and Side fences
  • Chip conveyor
  • Manual control pendant
  • Automatic material height scanner
