APS Portable Punching Machines

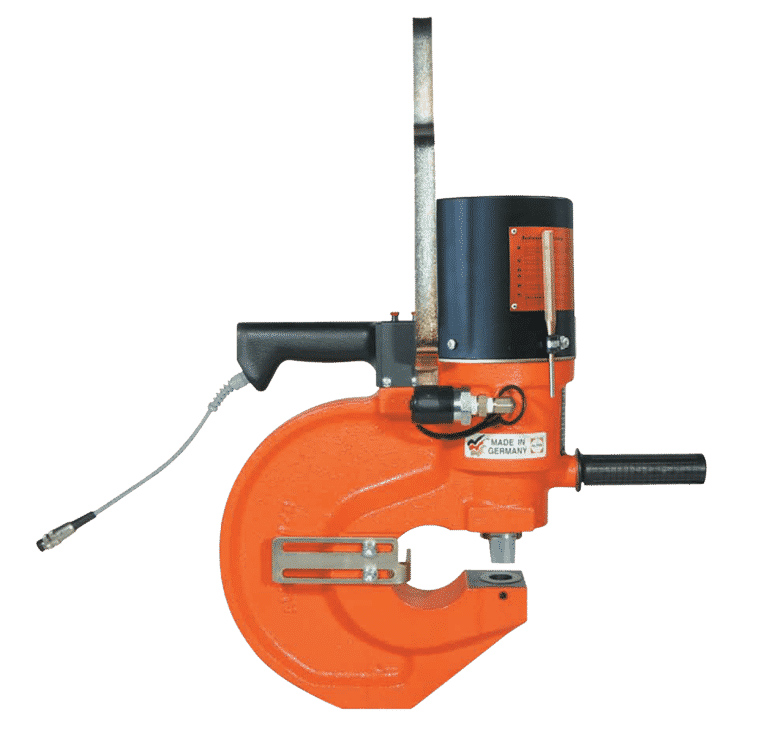

Main view APS Portable Punching Press

The APS portable punching machines are ideal for punching I beams and a whole host of applications, saving considerable time compared to drilling. Available in various capacities and throat depths there is a machine for most requirements.

Main view APS Portable Punching Press

This product is now discontinued however we'd be happy to discuss alternative options with you. If you're looking for consumables, servicing or spare parts for this product, please contact our sales team.

Main view APS Portable Punching PressMain view APS Portable Punching Press
APS 120 Portable Bending PressAPS 120 Portable Bending Press
Rated Capacity 30 Tonnes 44 Tonnes
Maximum Capacities 22 x 10mm 25 x 14mm
Maximum Punching Thickness 13mm 16mm
Punching Stroke 18mm 25mm
Throat Depth 70mm 120mm
Weight 21kg 35kg
Punching Time 8 sec 13 sec
Return Time 2 sec 2 sec


  • Quick and clean punching of holes
  • Almost noiseless operation
  • Power inching for accurate alignment
  • Portable yet powerful
  • Can be bench mounted for punching base plates, etc.
  • Tool kit included
  • Large range of punch and dies available – round, square, slot and special shapes
  • 5M hydraulic hose
  • Depth stop
  • Suspension hanger
