EP Punch EP V Portable Punching Machines

The Diamond EP Punch portable punching machines are ideal for punching I beams and a whole host of applications, saving considerable time compared to drilling. Available in various capacities and throat depths there is a machine for most requirements.

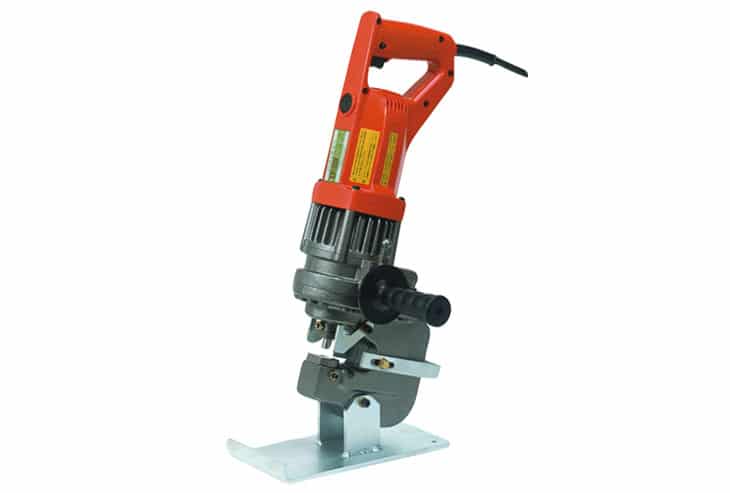

EP Punch EP V Portable Punching Machines imageEP Punch EP V Portable Punching Machines image
Video thumbnail showing the EP Punch EP V Portable Punching Machines
Front view EP-Portable-Punching-MachineFront view EP-Portable-Punching-Machine
EP Punch EP V Portable Punching Machines image 4
Punch assembly
EP Punch EP V Portable Punching Machines image 4
EP Punch EP V Portable Punching Machines image 5
Adjustable depth stop
EP Punch EP V Portable Punching Machines image 5
MODEL   EP-1475V EP-19V EP-2110V
STOCK CODE 16512 / 16513 16514 / 16515 16516 / 16517
Rated Capacity tonnes 11 16 30
Maximum Capacities mm 14 x 6 19 x 6 22 x 10
Maximum Punching Thickness mm 6 6 10
Punching Stroke mm 10 10 13
Voltage V 110 / 240 110 / 240 110 / 240
Throat Depth mm 37.5 55 65
Weight kg 10 14.5 21
Punching Time sec 2 2 2
Return Time sec 2 2 2

Features

  • Fast punching
  • Light weight
  • Compact size
  • Self contained – no additional powerpack
  • Punches round and slotted holes
  • Considerable time savings
  • Adjustable depth stop
  • Ideal for site applications
  • Supplied with base for bench work
  • Steel case included.

Options
