Meyer Precision Centre Lathes

The Meyer Precision Lathes range from 360mm to 660mm swing capacities and from 1000mm to 4000mm distance between centres. The sturdy SB industrial lathes are ideal for the tool room and for jobbing operations. The heavy duty SG machines are available in eight different sizes and have the added benefit of 2-axis DRO and the super quick tool change system fitted as standard. The ST range are large capacity industrial lathes with a 660mm swing with the distances between centres available up to 4000mm. Power traverse is fitted as standard equipment to all ST models which are operator friendly for the longer length machines.

All Meyer industrial lathes are of the Gap Bed design with precision ground bed and saddle. Meyer machines are equipped with generous levels of standard equipment including 3 and 4 jaw chucks and face plate.

Meyer Precision Centre Lathes image

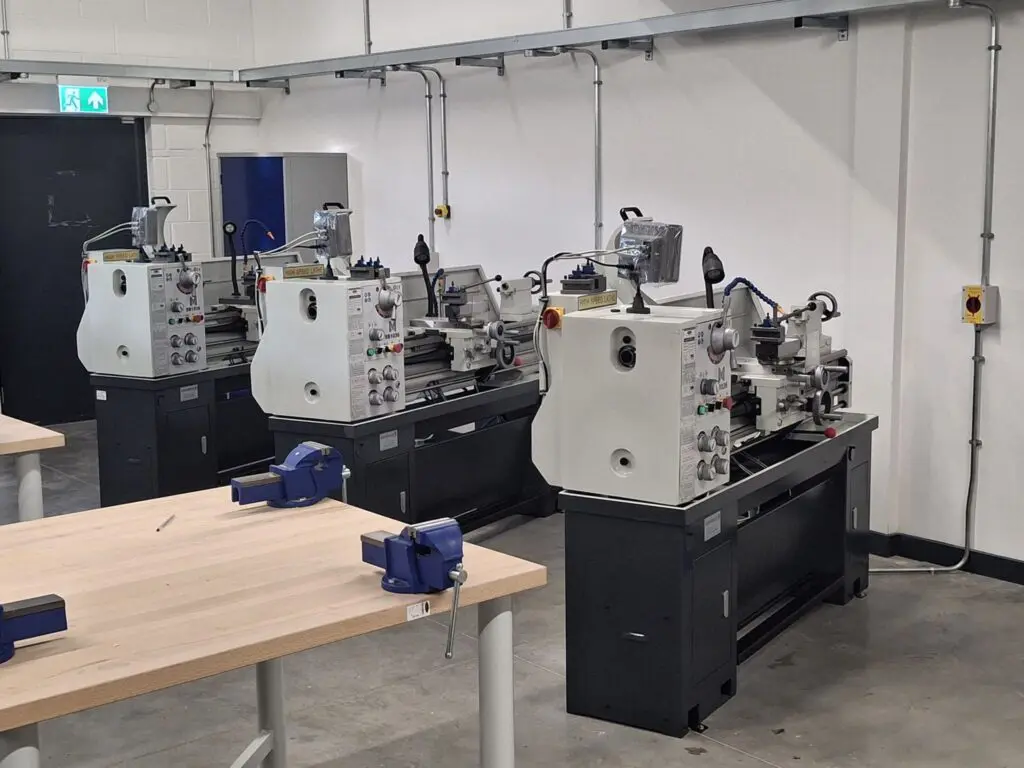

Meyer SB1036
Meyer Precision Centre Lathes image
Video thumbnail showing the Meyer Precision Centre Lathes
Meyer Precision Centre Lathes image 3

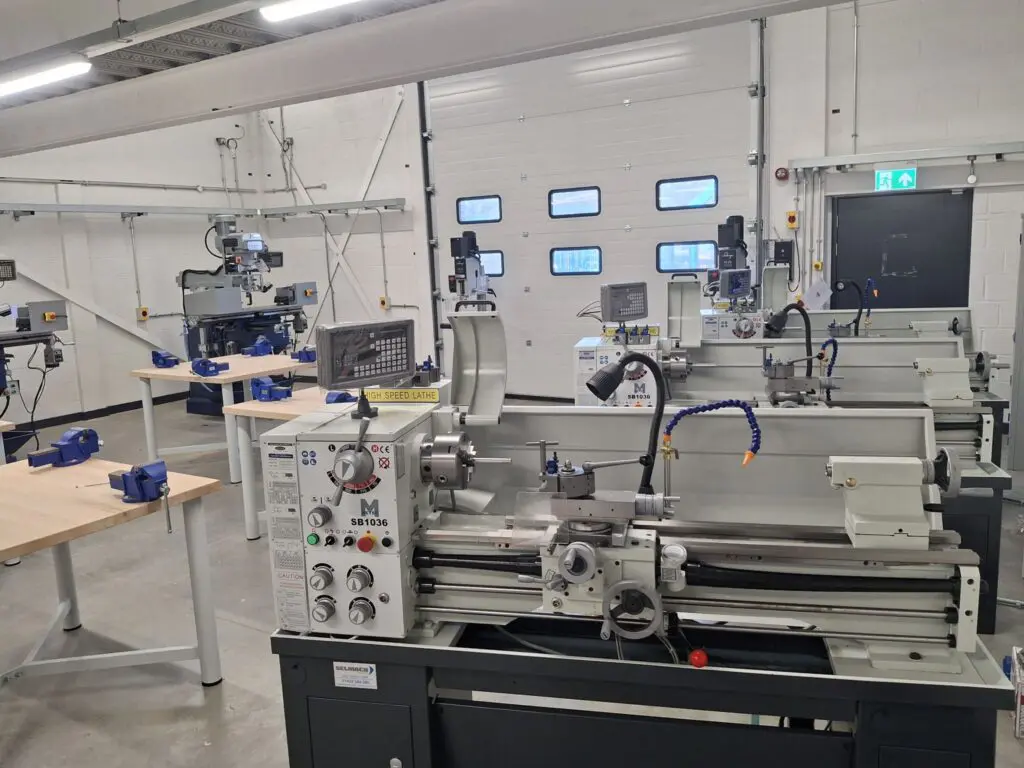

Meyer SB1036
Meyer Precision Centre Lathes image 3
Meyer Precision Centre Lathes image 4
Meyer SM1041 Lathe
Meyer Precision Centre Lathes image 4
Meyer Precision Centre Lathes image 5
Meyer SG1041
Meyer Precision Centre Lathes image 5
Meyer Precision Centre Lathes image 6
Meyer ST3066 Lathe
Meyer Precision Centre Lathes image 6
Detail of Meyer-Lathe-Quick-Change-Tool-Post-Detail-Optional-for-SB-range,-Standard-on-SG-and-ST-RangesDetail of Meyer-Lathe-Quick-Change-Tool-Post-Detail-Optional-for-SB-range,-Standard-on-SG-and-ST-Ranges
Detail of Meyer-Lathe-Quick-Change-Tool-Post-Detail-Optional-for-SB-range,-Standard-on-SG-and-ST-RangesDetail of Meyer-Lathe-Quick-Change-Tool-Post-Detail-Optional-for-SB-range,-Standard-on-SG-and-ST-Ranges
Detail of Meyer-Lathe-optional-Taper-Turning-AttachmentDetail of Meyer-Lathe-optional-Taper-Turning-Attachment
View-through-the-bed-and-saddle-SG Meyer Lathe-rangeView-through-the-bed-and-saddle-SG Meyer Lathe-range
Meyer Precision Centre Lathes image 11Meyer Precision Centre Lathes image 11
Meyer Precision Centre Lathes image 12Meyer Precision Centre Lathes image 12
Meyer Precision Centre Lathes image 13Meyer Precision Centre Lathes image 13
Detail of Meyer-Lathe-SG-Control-PanelDetail of Meyer-Lathe-SG-Control-Panel
Detail of Meyer-Lathe-SB-Control-PanelDetail of Meyer-Lathe-SB-Control-Panel
Meyer Precision Centre Lathes image 16Meyer Precision Centre Lathes image 16
Meyer Precision Centre Lathes image 17Meyer Precision Centre Lathes image 17
Meyer Precision Centre Lathes image 18Meyer Precision Centre Lathes image 18
SG1056 (1)
SG1556 (2)   ST1566 (1)
SG1041 (1) SG1046 (1) SG2056 (3) ST2066 (2)
SB1036 SM1041 SG1541 (2) SG1546 (2) SG3056 (4) ST4063 ST3066 (3)
Capacities
Swing over Bed mm 360 410 410 460 560 630 660
Swing over Cross Slide mm 212 255 224 274 350 350 440
Swing over Gap mm 491 580 640 690 788 830 900
Length of Gap mm 210 250 155 155 200 230 250
Distance between Centres (1) mm 1000 1000 1000 1000 1000 4000 1500
Distance between Centres (2) mm 1500 1500 1500 2000
Distance between Centres (3) mm 2000 3000
Distance between Centres (4) mm 3000
Width of Bed mm 187 250 300 300 350 550 400
Feed Rates
Longitudinal – no.of steps 36 36 42 42 35 72 25
Longitudinal – range mm/rev 0.050-0.696 0.050-0.696 0.031-1.7 0.031-1.7 0.059-1.646 0.048 – 24.3 0.022 – 0.74
Cross – no.of steps 36 36 42 42 35 72 25
Cross – range mm/rev 0.013-0.188 0.013-0.188 0.014-0.784 0.014-0.784 0.02-0.573 0.024 – 12.15 0.044 – 1.48
Max. Travel of Cross Slide mm 118 160 290 290 326 350 368
Max. Travel of Compound Rest mm 68 68 120 120 130 200 230
Thread Cutting
Metric – no. of steps 28 28 41 41 47 54 54
Metric – range mm 0.2-5.0 0.2-5.0 0.1-14 0.1-14 0.2-14 1-240 0.45 – 120
Imperial – no. of steps 36 36 60 60 60 36 54
Imperial – range TPI 8-112 8-112 2-112 2-112 2-112 28-1 7/16 – 80
Diametric – no of steps 36 36 50 50 50 27 42
Diametric – range DP 8-112 8-112 4-112 4-112 4-112 30-1 7/8 – 160
Module – no. of steps 22 22 34 34 39 27 42
Module – range MP 0.2-3 0.2-3 0.1-7 0.1-7 0.1-7 0.5 – 60 0.25- 60
Lead Screw Pitch mm 3 3 6 6 6 12 2 or 12
Headstock
Spindle Nose D1-4 D1-6 D1-6 D1-6 D1-8 D-11 D1-8
Spindle Bore mm 38 52 58 58 80 100 105
Spindle Bore Taper MT 5 6 6 6 7 6 5
Spindle Speeds – no. of steps 8 16 12 12 12 18 16
Spindle Speeds – range rpm 70-2000 45-1800 25-2000 25-2000 25-1600 14-750 26-1700
Tailstock
Quill Diameter mm 32 50 60 60 75 100 90
Quill Travel mm 100 120 120 120 180 240 235
Quill Taper MT 3 4 4 4 5 6 5
Power
Motor kW 1.5 3.3 4 4 7.5 11 7.5
Dimensions
Length (1) mm 1900 1940 2170 2170 2400 6000 3210
Length (2) mm 2720 2720 2900 3710
Length (3) mm 3400 4720
Length (4) mm 3900
Width mm 700 850 1040 1040 1120 1600 1230
Height mm 1250 1320 1340 1370 1460 1600 1600
Weight (1) kg 670 1550 1670 1720 2020 6600 2800
Weight (2) kg 1970 2020 2370 2950
Weight (3) kg 2720 3320
Weight (4) kg 3065

Features

  • Heavy duty.
  • Chuck guard with interlock switch.
  • Halogen lamp.
  • Steady rest
  • Follow rest
  • 4 jaw chuck.
  • 3 jaw chuck.
  • Face plate.
  • Coolant system.
  • 2 axis DRO
  • Super quick tool change system with 4 holders
  • ST – Power traverse

Options

  • Taper turning attachment – SG/ST only.
