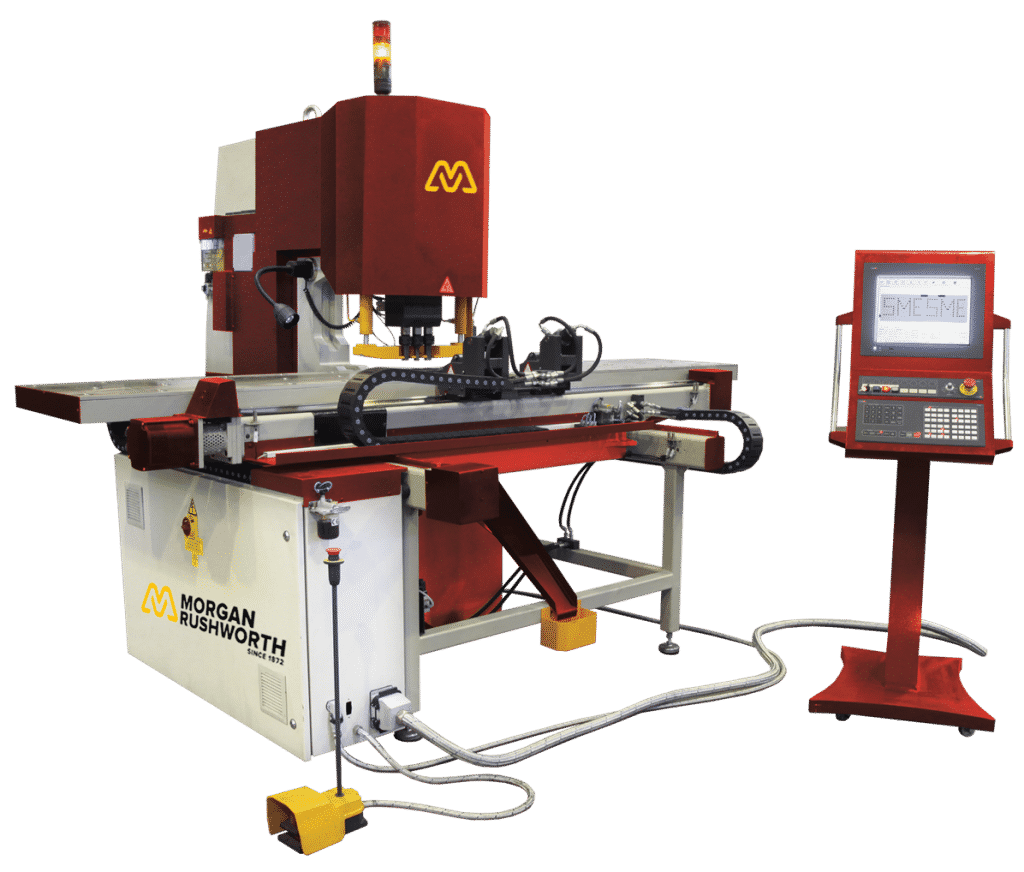

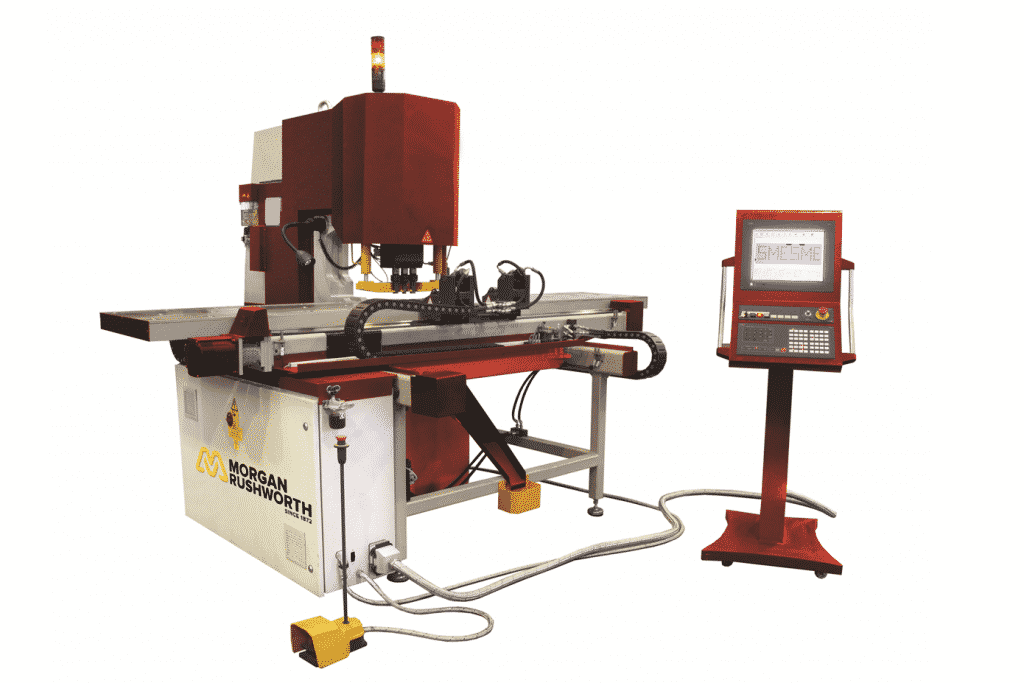

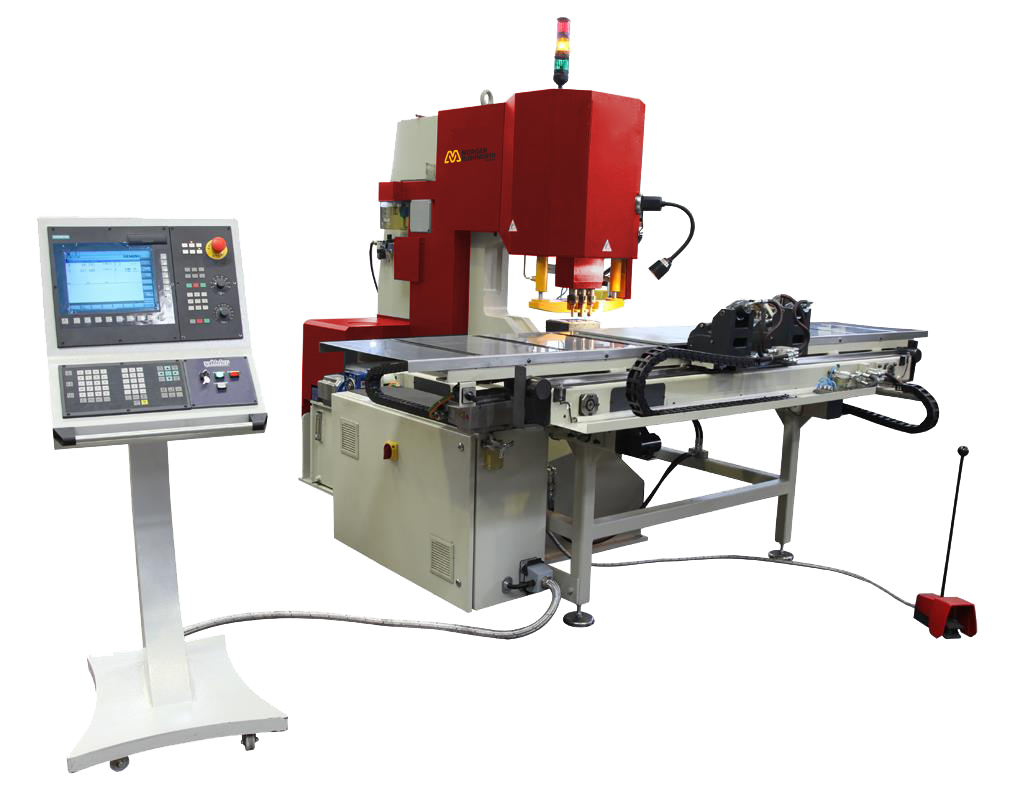

Morgan Rushworth HSP CNC Punch

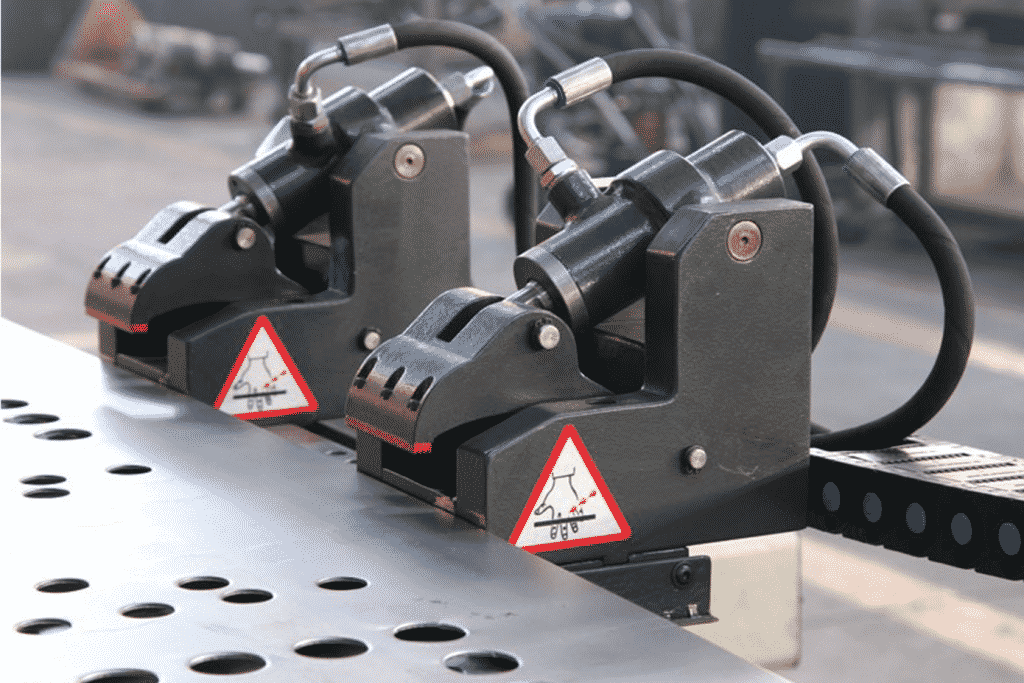

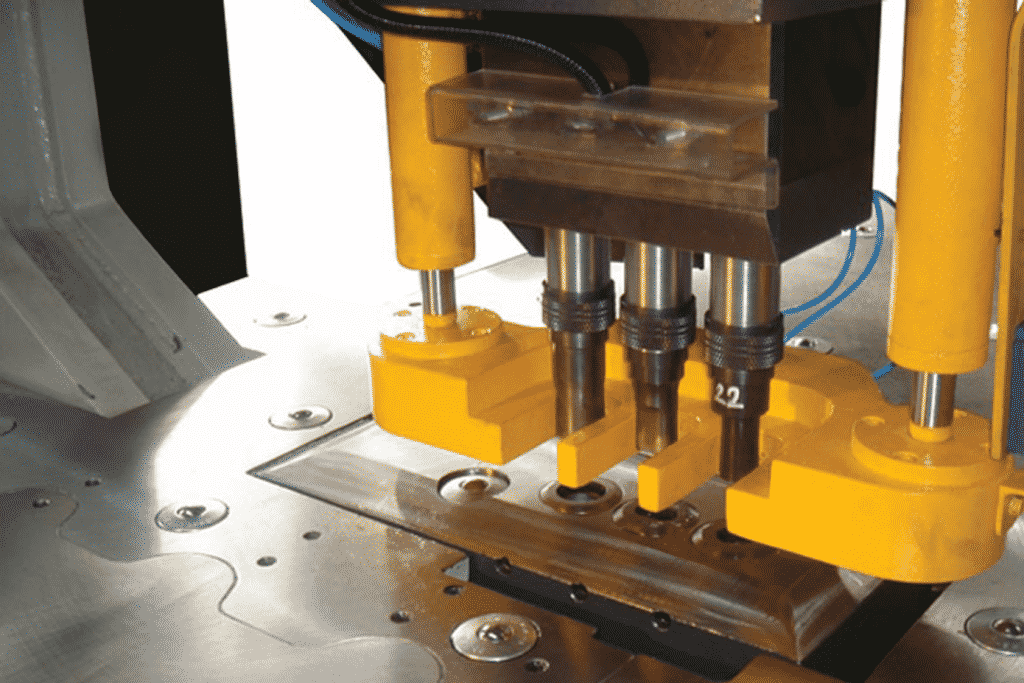

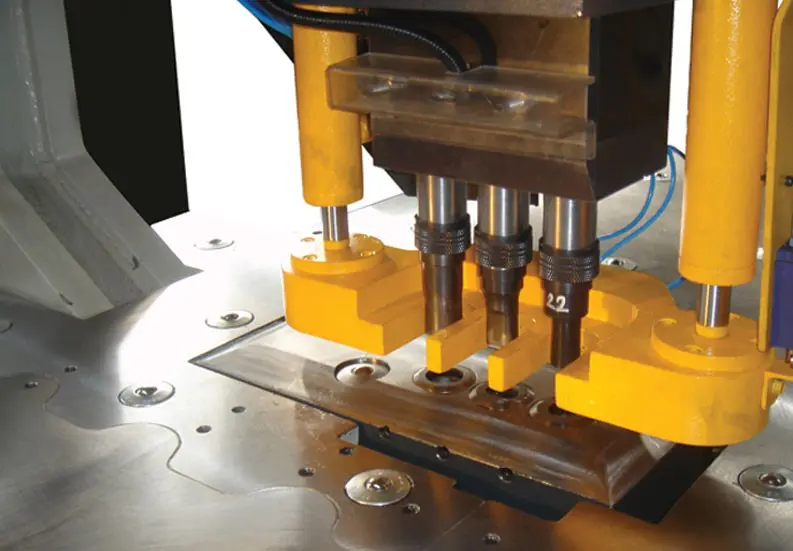

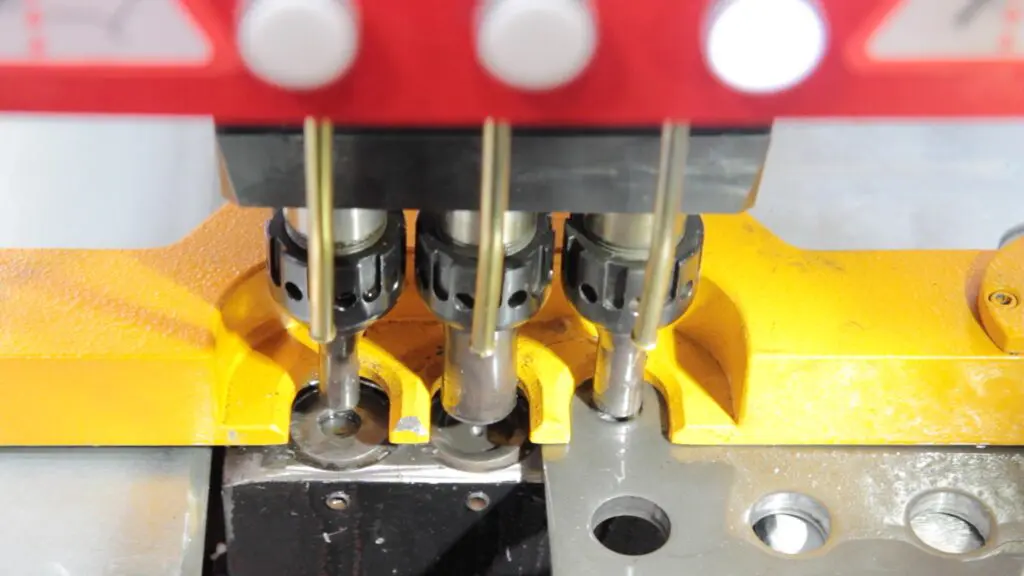

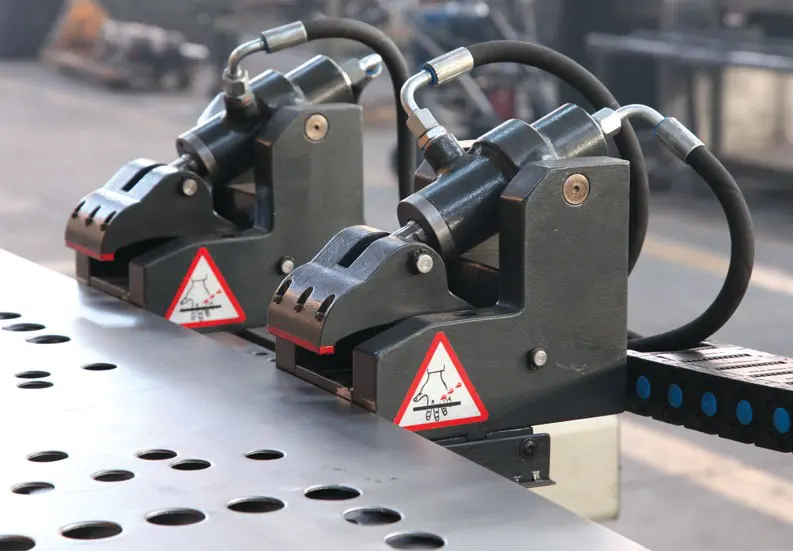

The Morgan Rushworth HSP CNC Punch Range are fully automatic punching machines. The punch station can be equipped with triple tool holders for varying hole sizes. The hydraulic grippers clamp the material and move the work piece by CNC command to punching positions. Work pieces can be easily drawn up on the CNC control and saved for future use. The HSP CNC range are high production machines.
| MODEL | Units | HSP 95 CNC | HSP 125 CNC | HSP 175 CNC |
|---|---|---|---|---|
| Stock Code | M9008CNC | M9009CNC | M9010CNC | |
| Punching Diameter X Maximum Thickness | mm | 33 x 20 | 34 x 26 | 40 x 32 |
| Maximum Diameter X Thickness | mm | 57 x 12 | 57 x 16 | 57 x 22 |
| Stroke Length | mm | 80 | 80 | 80 |
| Throat Depth | mm | 625 | 625 | 625 |
| Stroke Count (in 20mm approaches) | Strokes per min | 18 | 18 | 18 |
| Motor Power | kW | 7.5 | 11 | 11 |
| Length | mm | 1850 | 2000 | 2700 |
| Width | mm | 950 | 950 | 1120 |
| Height | mm | 1920 | 1970 | 2160 |
| Weight (Approx.) | kg | 5500 | 6000 | 800 |
Features
- Table sizes 3050 x 500mm
- X/Y movement 1600 x 600mm
- Max table weight 240kg.
- Material thickness capacity 2-26mm
- Positioning precision 0.1mm
- Minimum approach on sides 60mm
- Adjustable table clamps according to material thickness.
- Working Light
- Mobile CNC Control Panel
- Dividable Table
- Hydraulic Material Holding Clamp
- Includes Siemens CNC Software
- Manual Punching Mode
- You can enter and save programmes (CAM)
Options
- Triple Punch Station (Thickness 2-16mm with 3 head option)
