Meyer Geared Head Drilling Machine 415v

The Meyer range of powerful geared head drills are an exceptionally heavy duty construction, that has firmly established a reputation for long life and reliability. Through the years the Meyer range has become renowned for the quality and robustness of their design and build. The drills are manufactured with high quality components and assembled with highest standards of accuracy resulting in machines sold worldwide and bought with confidence.

The Meyer SR Geared Head Drilling Machine range will not disappoint.



Meyer Geared Head Drilling Machine 415v image

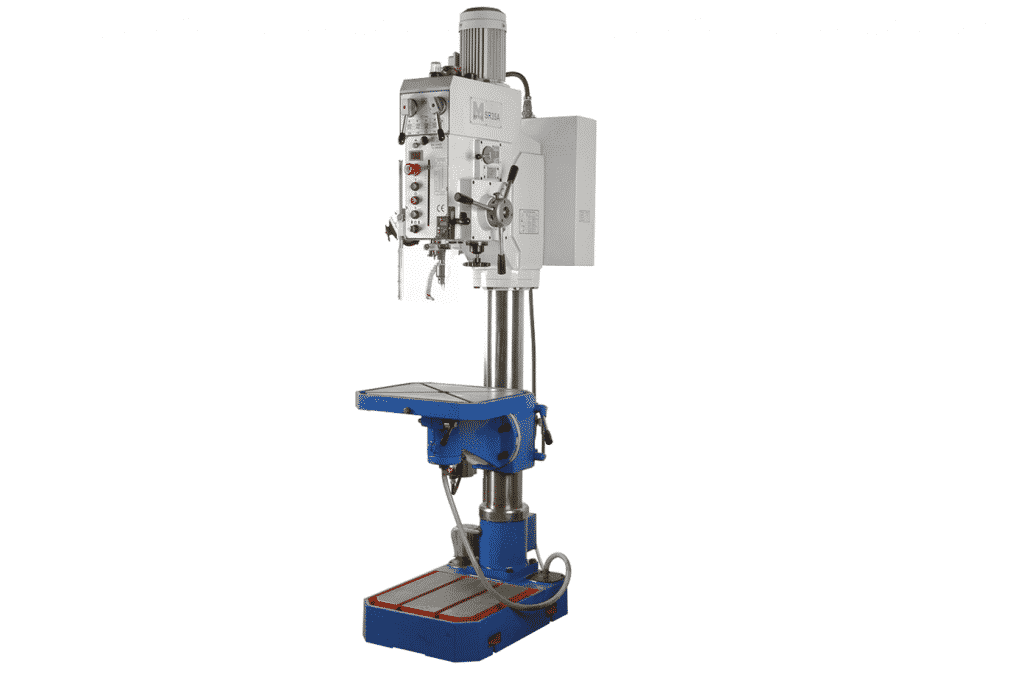

Meyer SR25
Meyer Geared Head Drilling Machine 415v image
Video thumbnail showing the Meyer Geared Head Drilling Machine 415v
Video thumbnail showing the Meyer Geared Head Drilling Machine 415v
Meyer Geared Head Drilling Machine 415v image 4

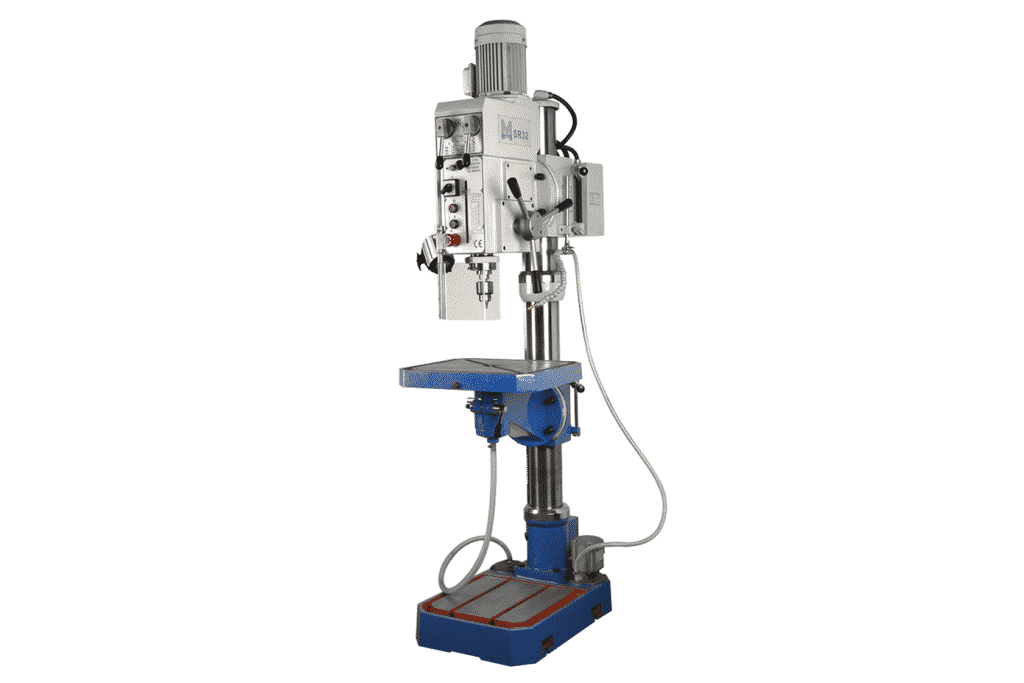

Meyer SR32
Meyer Geared Head Drilling Machine 415v image 4
Meyer Geared Head Drilling Machine 415v image 5

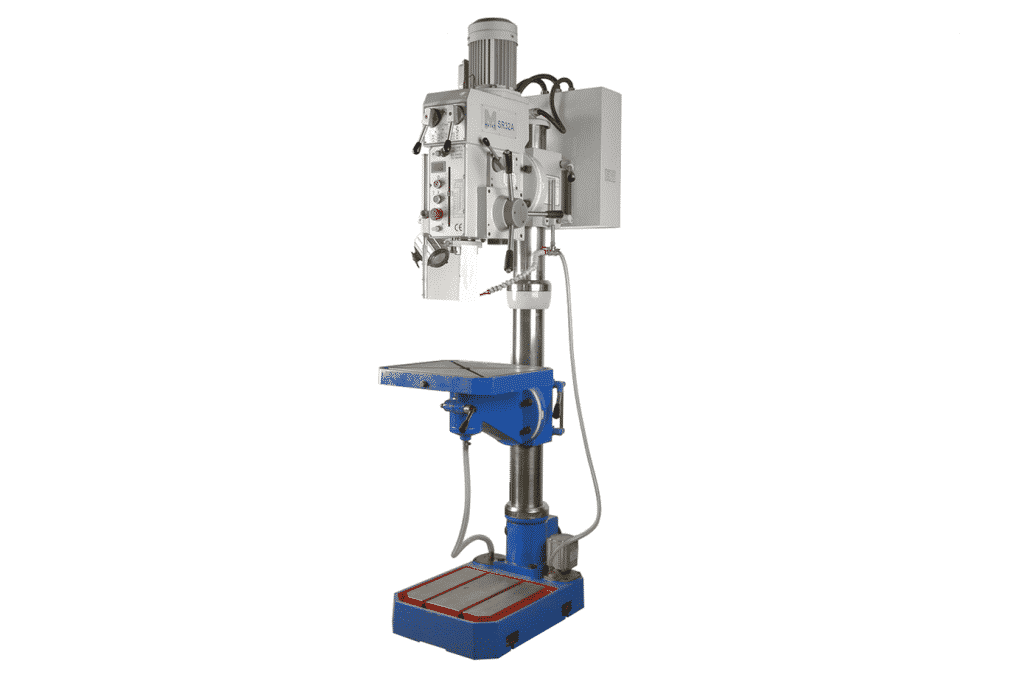

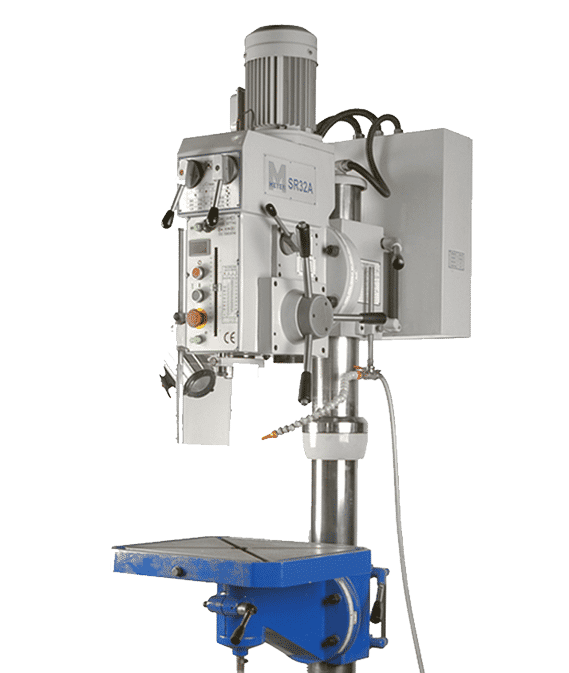

Meyer SR32AE
Meyer Geared Head Drilling Machine 415v image 5
Meyer Geared Head Drilling Machine 415v image 6

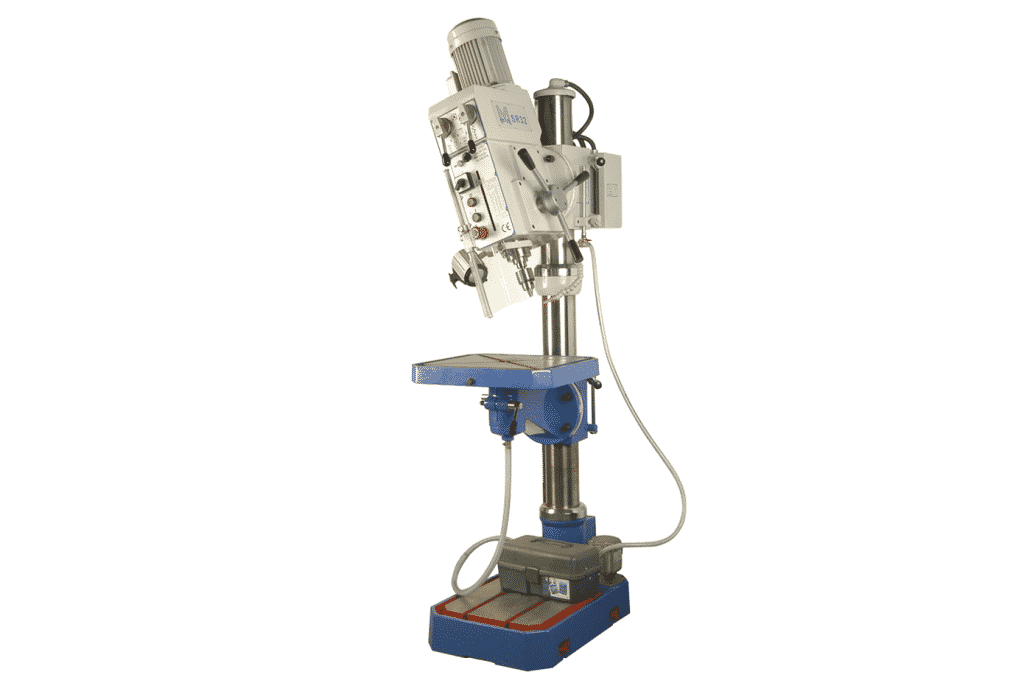

Meyer SR32AE with tilting head
Meyer Geared Head Drilling Machine 415v image 6
Meyer Geared Head Drilling Machine 415v image 7

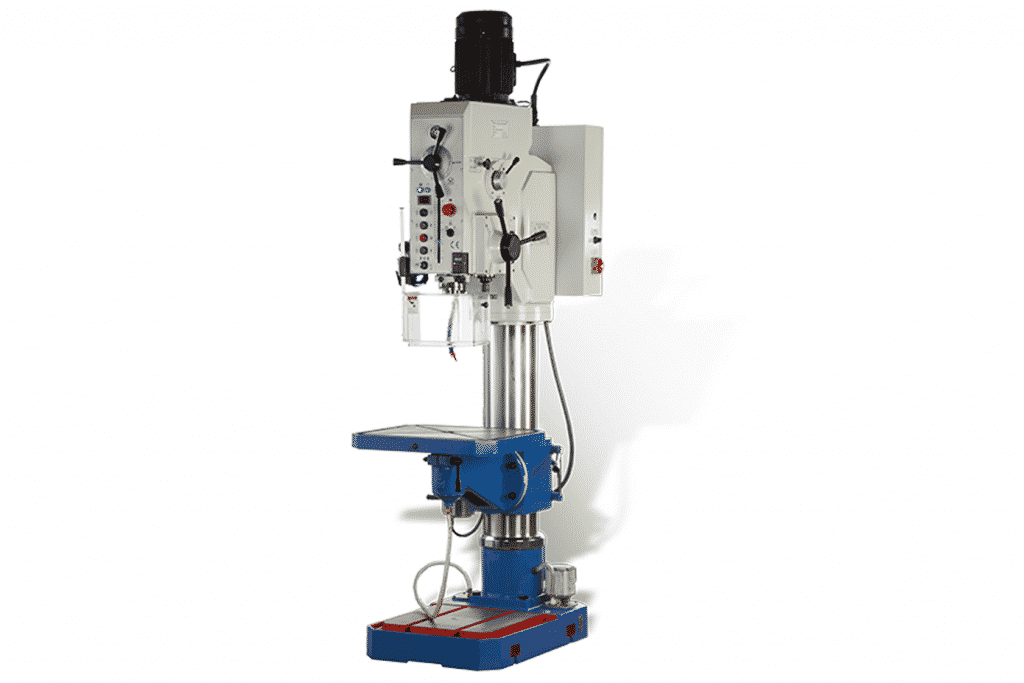

Meyer SR50VAE
Meyer Geared Head Drilling Machine 415v image 7
Meyer Geared Head Drilling Machine 415v image 8
Heavy Duty Geared Motor
Meyer Geared Head Drilling Machine 415v image 8
Meyer Geared Head Drilling Machine 415v image 9
Rise and Fall Head
Meyer Geared Head Drilling Machine 415v image 9
Meyer Geared Head Drilling Machine 415v image 10
Rise and Fall Table
Meyer Geared Head Drilling Machine 415v image 10
Meyer Geared Head Drilling Machine 415v image 11
Hydraulic Rise and Fall Table (SR50VAE)
Meyer Geared Head Drilling Machine 415v image 11
Meyer Geared Head Drilling Machine 415v image 12
Protective Guarding
Meyer Geared Head Drilling Machine 415v image 12
Meyer Geared Head Drilling Machine 415v image 13
Adjustable Low Voltage Lamp
Meyer Geared Head Drilling Machine 415v image 13
Meyer Geared Head Drilling Machine 415v image 14
Flood Coolant
Meyer Geared Head Drilling Machine 415v image 14
Meyer Geared Head Drilling Machine 415v image 15
Large Adjustable Work Table
Meyer Geared Head Drilling Machine 415v image 15
Meyer Geared Head Drilling Machine 415v image 16
Variable Speeds & Depth Control
Meyer Geared Head Drilling Machine 415v image 16
Meyer Geared Head Drilling Machine 415v image 17
Variable Speeds (SR50VAE)
Meyer Geared Head Drilling Machine 415v image 17
Meyer Geared Head Drilling Machine 415v image 18

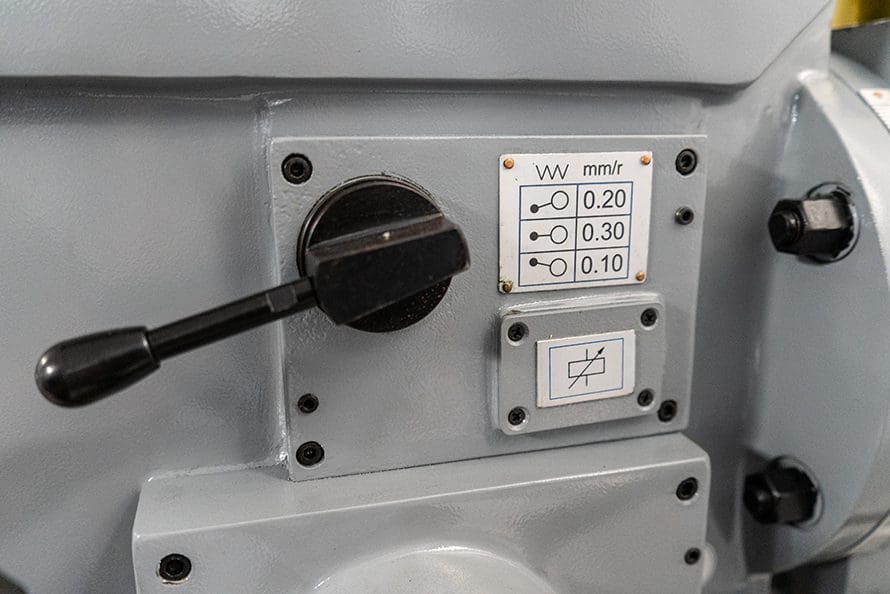

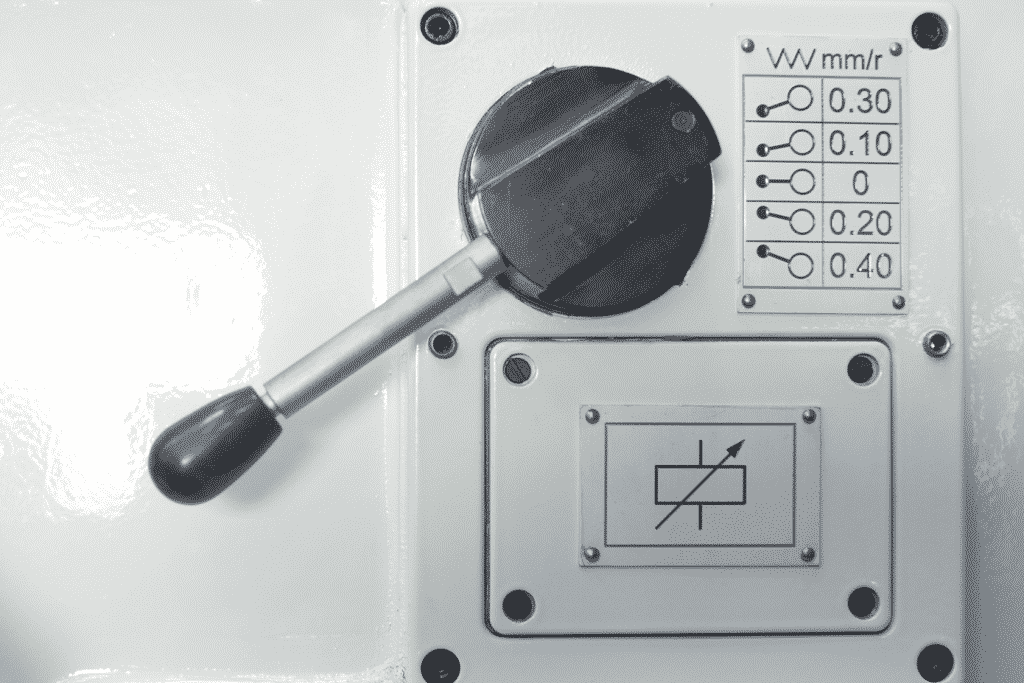

Auto Feed (SR32AE & SR50VAE)
Meyer Geared Head Drilling Machine 415v image 18
Meyer Geared Head Drilling Machine 415v image 19
Auto-Tapping on the SR32AE
Meyer Geared Head Drilling Machine 415v image 19
Meyer Geared Head Drilling Machine 415v image 20
Digital Read Out
Meyer Geared Head Drilling Machine 415v image 20
Meyer Geared Head Drilling Machine 415v image 21
Tapping or Drilling Mode (SR32AE)
Meyer Geared Head Drilling Machine 415v image 21
A front shot of the SR50VAE showing the depth limited and auto-tapping handle
SR50VAE Pillar Drill with auto-tapping and the depth limiter.
A front shot of the SR50VAE showing the depth limited and auto-tapping handle
Meyer Geared Head Drilling Machine 415v image 23
Descent Speed Controls
Meyer Geared Head Drilling Machine 415v image 23
Meyer Geared Head Drilling Machine 415v image 24
Descent Speed Controls (SR50VAE)
Meyer Geared Head Drilling Machine 415v image 24
Meyer Geared Head Drilling Machine 415v image 25
Tilt Angle Head (SR32AE)
Meyer Geared Head Drilling Machine 415v image 25
Meyer Geared Head Drilling Machine 415v image 26
Drill Press Vice (Optional)
Meyer Geared Head Drilling Machine 415v image 26
Meyer Geared Head Drilling Machine 415v image 27
Universal Cross Table (Optional)
Meyer Geared Head Drilling Machine 415v image 27
MODEL SR25SR32SR32AESR50VAE
STOCKCODE18046180411804218066
Capacitymm25323250
Column diamm95120120180
Spindle TaperMT no3444
MotorKw0.751/1.21/1.23
Speedsrpm125 – 2825 (stepped)125 – 3030 (stepped)125 – 3030 (stepped)50 – 2200 (variable)
Spindle Strokemm110160160240
Work Tablemm350 x 400500 x 420500 x 420580 x 460
Base Platemm340 x 340330 x 330320 x 320440 x 450
Throatmm240320320360
CoolantNoStandardStandardStandard
Auto FeedNoNoYesYes
Tapping FacilityNoNoYesYes
RPM Digital Read OutNoNoYesYes
Lengthmm700830830980
Widthmm450510510650
Heightmm1900218021802370
WeightKg400470510655

Features

  • Geared head
  • Exceptional heavy construction
  • Large work tables
  • Auto tool release
  • Eye shield with interlock switch
  • Low voltage lamp
  • Rise and fall table
  • Rise and fall head
  • Forward and reverse
  • Coolant (All models except SR25)
  • Auto feed (SR32AE and SR50VAE only)
  • Tapping Facility (SR32AE and SR50VAE only)
  • Digital Read Out of live RPM count (SR32AE and SR50VAE only)
  • Variable Drill Speed (SR50VAE only)

Options

  • Drill Press Vice: 18009
  • Universal Cross Table: 18047

The Meyer range of powerful geared head drills are an exceptionally heavy duty construction, that has firmly established a reputation for long life and reliability. Through the years the Meyer range has become renowned for the quality and robustness of their design and build. The drills are manufactured with high quality components and assembled with highest standards of accuracy resulting in machines sold worldwide and bought with confidence.
A mainstay of virtually every fabrication shop in the country, a pillar drill allows for quick and efficient hole drilling and tapping. With morse taper drill bits, you can quickly hot swap drill bits for different requirements.

Large work tables, guarding and rise and fall tables and heads, the Meyer range is extremely versatile for whatever material you are working with.

The SR32AE and SR50VAE feature auto feed and tapping facility. The SR50VAE also features a variable drill speed, ideal for getting that perfect drill pierce quality.

The Meyer SR Geared Head Drilling Machine range will not disappoint.
