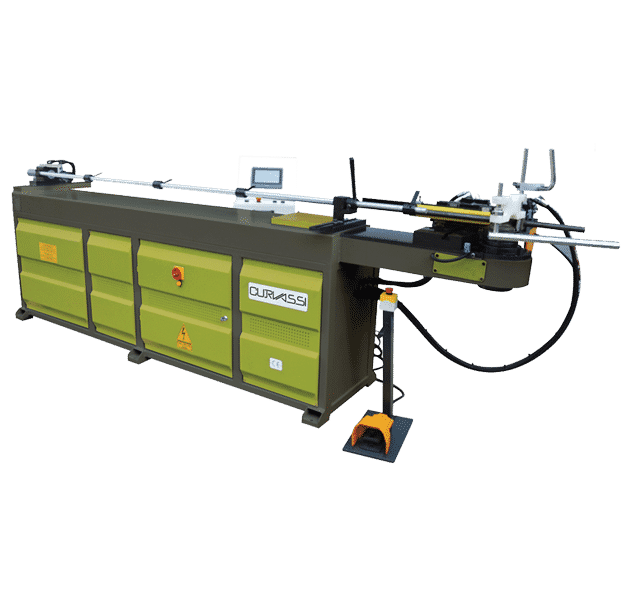

Main view Curvassi-MTX-65NC-Mandrel-Tube-Bender

Request a Quote







    Your Name *

    Email *

    Postcode *

    Company Name *

    Telephone No. *

    Your Message

    Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



    Your information will be held according to our privacy policy.

    UK Flag
    Alternatively call +44 (0)1432 346 580 for sales and support

    The Curvassi range of bending machines achieve fast and accurate bending in round and square tube, flat bar, round bar and square bar. Thin wall tube is effortlessly bend to a tight radius with the aid of a mandrel bar. The machines are ideally suited to production environments as a 180° bend is performed in just three seconds.

    Main view Curvassi-MTX-65NC-Mandrel-Tube-Bender

    Request a Quote

    (Close request a quote)







      Your Name *

      Email *

      Postcode *

      Company Name *

      Telephone No. *

      Your Message

      Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



      Your information will be held according to our privacy policy.

      UK Flag
      Alternatively call +44 (0)1432 346 580 for sales and support

      Main view Curvassi-MTX-65NC-Mandrel-Tube-BenderMain view Curvassi-MTX-65NC-Mandrel-Tube-Bender
      Video thumbnail showing the Curvassi MTX 65NC Mandrel Tube Benders
      Curvassi-MTX-65-NC-Mandrel-Tube-BenderCurvassi-MTX-65-NC-Mandrel-Tube-Bender

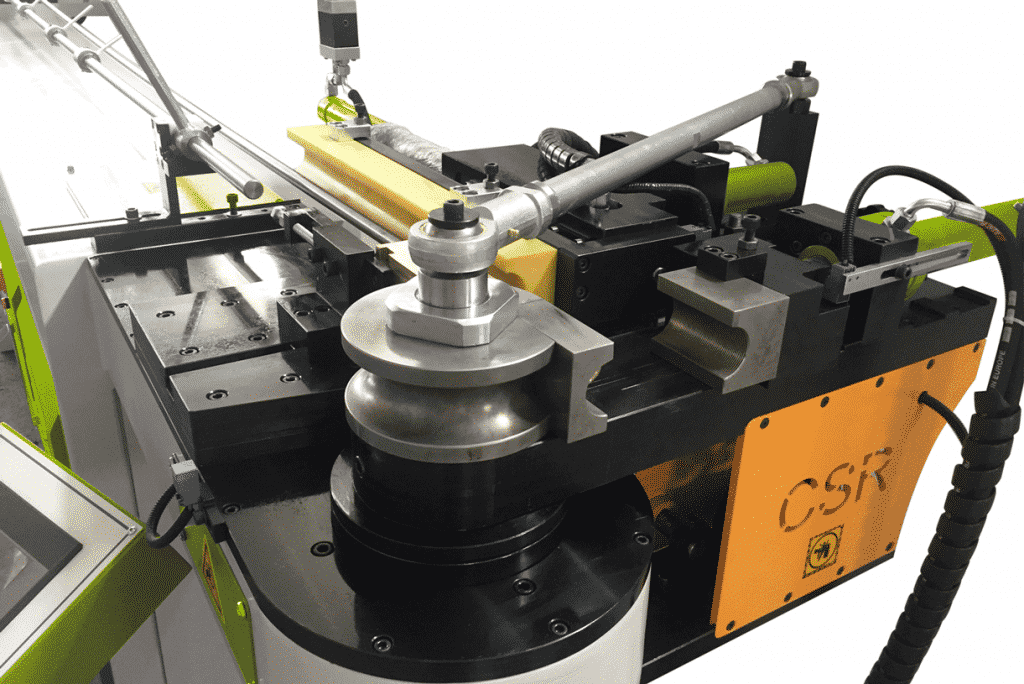

      Curvassi-MTX65-Mandrel-Tube-Bender-DetailCurvassi-MTX65-Mandrel-Tube-Bender-Detail
      MODELMTX 65 NC
      Max Pipe Diametermm63
      Max Wall Thicknessmm3.5
      Max Bending Radiusmm250
      Max Bending Angle(°)190
      Bending Speed(0/sn)Adjustable
      Max Pipe Lengthmm3250
      Max Hydraulic Press (bar)mm200
      Bending Speedrev/min7-10
      Hydraulic Bending Powerkw4
      Bending Engine Powerkw7.5
      Weightkg1600
      Lengthmm4215
      Widthmm1200
      Heightmm1435

      Features

      • Built according to EC Safety Directives (CE-Mark Approved)
      • Heavy Duty Construction
      • Excellent bend quality
      • Very Easy To Use
      • Geared Motor Drive
      • 4.7” Touch Screen Angle Programmer With Multiple Steps
      • Foot Pedal Control
      • Hydraulic Clamping Movement
      • Manual Flip Length Stop System
      • Electrical Parts – Simens/Telemecanique
      • Complete tooling service

      Options
