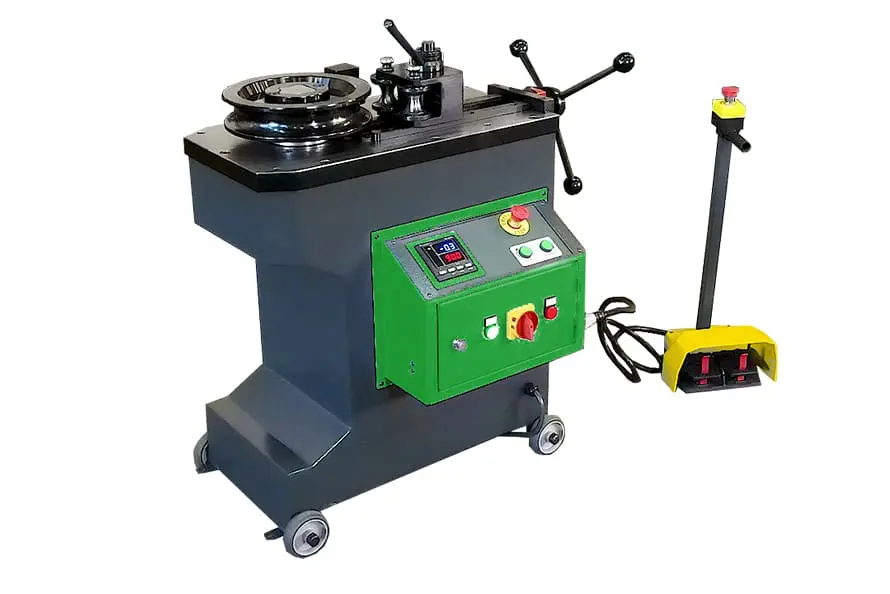

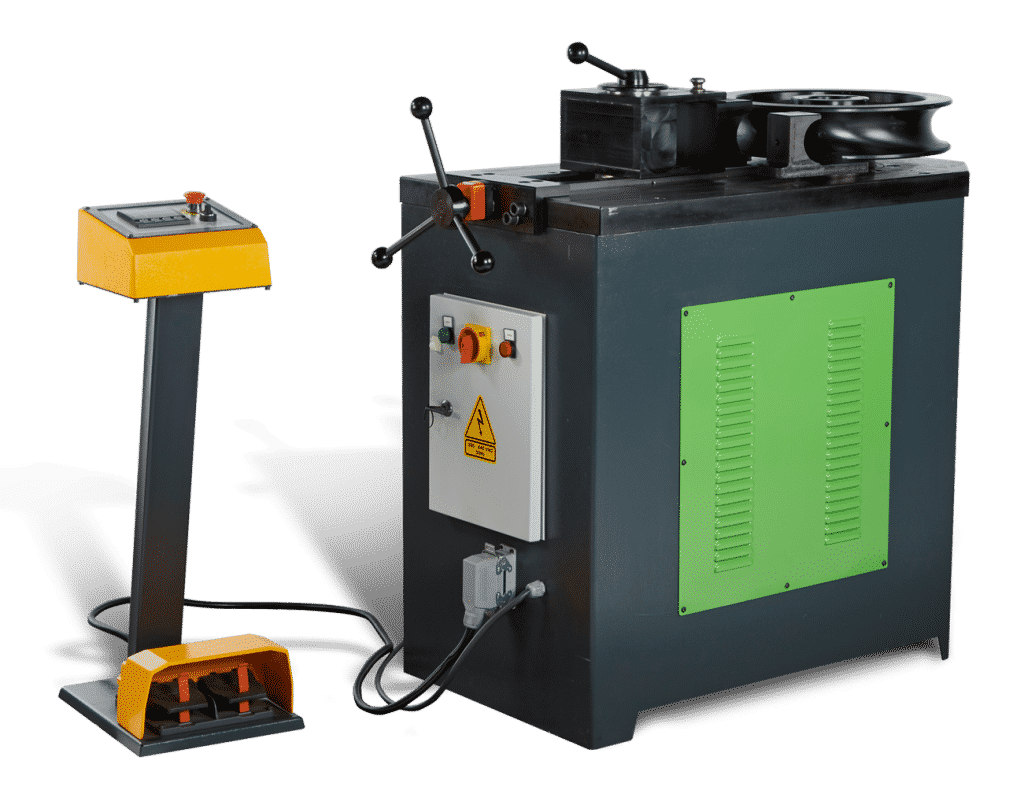

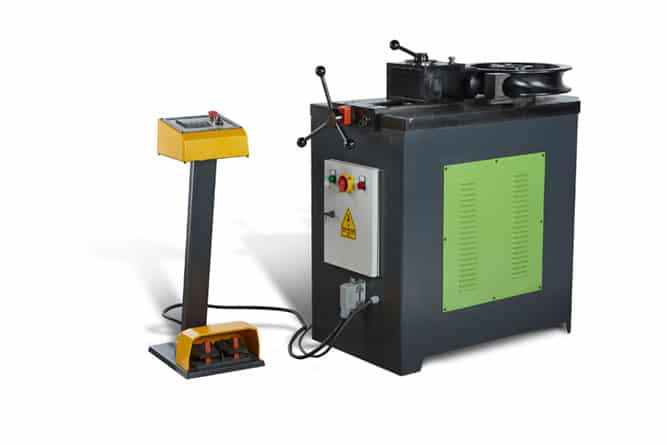

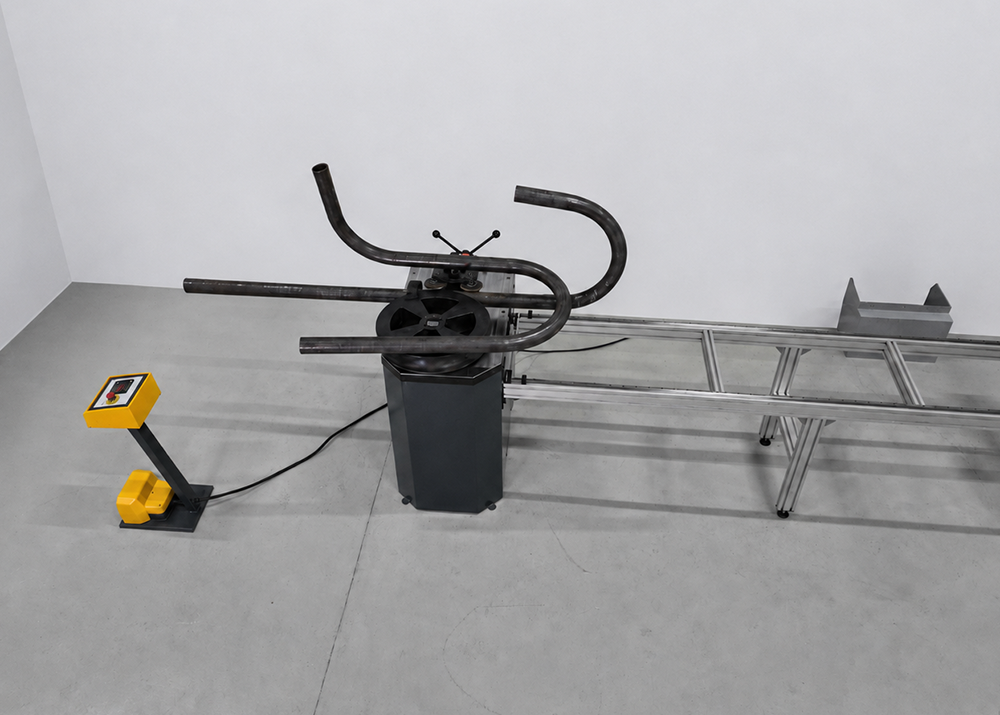

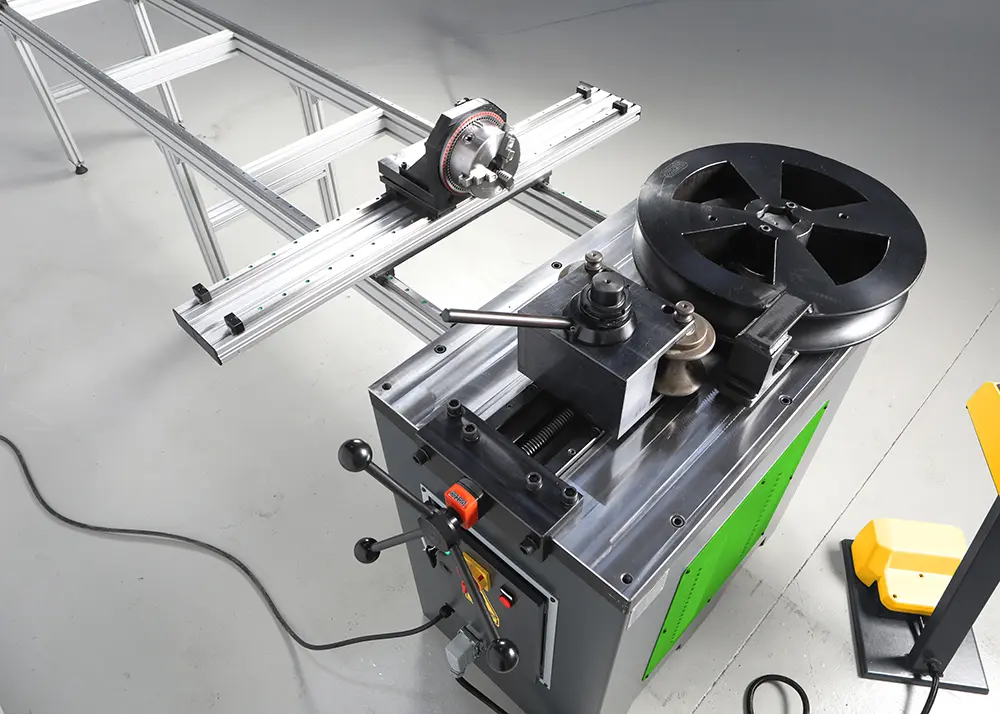

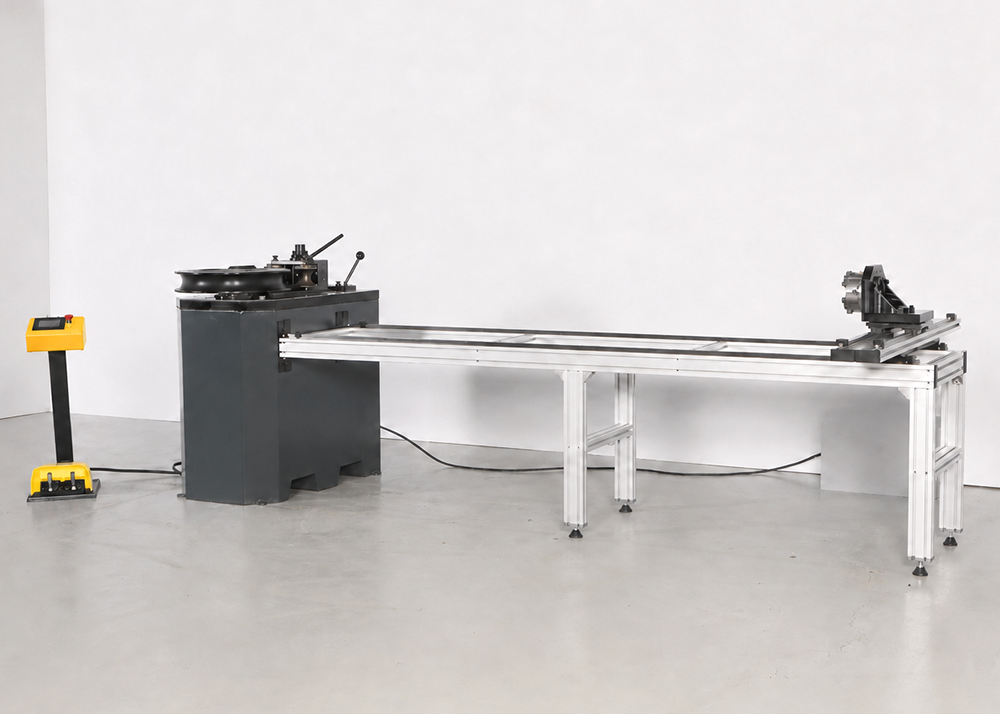

Curvassi RTS Tube Bender

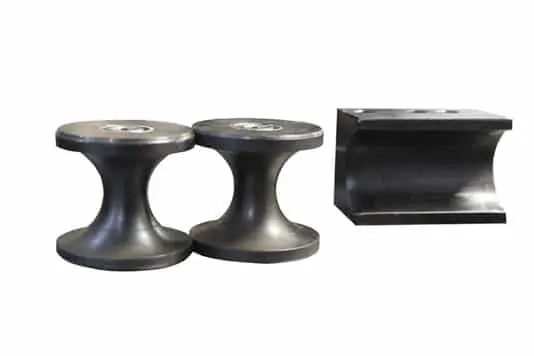

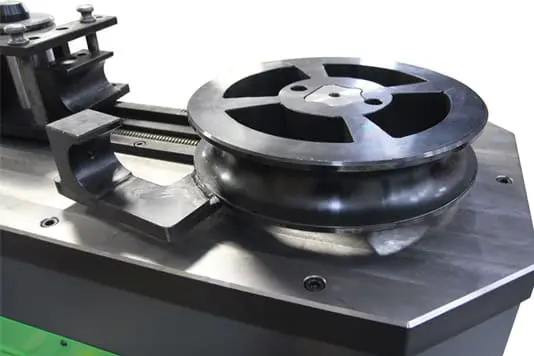

The Curvassi range of rotary tube bending machines have been designed for high quality bending of both metric and imperial tube sizes with a wall thickness sufficient to bend without a mandrel. Tooling can be supplied any tube diameter within the capacity of the machine and in a variety of centre line radii. Four models are available with tube bending capacities of up to 48.5mm, 60mm, 76mm and 100mm diameter, based on mild steel tube.
| MODEL | RTS 48 | RTS 60 | RTS 76 | RTS 100 | |
| STOCK CODE | 21733 | 21730 | 21731 | 21732 | |
| Max. Tube Capacity (Mild Steel) | mm | ⌀ 48.3 x 3.5 | ⌀ 60.3 x 4 | ⌀ 76.1 x 4 | ⌀ 100 x 4 |
| Max. Profile Dimensions (Mild Steel) | mm | 40 x 40 x 4 | 50 x 50 x 4 | 60 x 60 x 4 | 80 x 80 x 4 |
| Minimum Bending Radius | mm | 59 | 59 | 59 | 99 |
| Maximum Bending Radius | mm | 350 | 425 | 450 | 475 |
| Maximum Bending Angle | deg | 180 | 180 | 180 | 180 |
| Height of Bending Head | mm | 68 | 80 | 80 | 134 |
| Motor | Kw | 1.1 | 1.5 | 4.0 | 11 |
| Bending Speed | RPM | 2.5 | 2.25 | 3 | 1.7 |
| Torque | Nm | 4,202 | 6,367 | 12,000 | 61,717 |
| Length | mm | 800 | 1,200 | 1,300 | 1,400 |
| Width | mm | 566 | 600 | 700 | 800 |
| Height | mm | 1,000 | 1,200 | 1,300 | 1,700 |
| Weight | Kg | 315 | 510 | 650 | 1,600 |
Features
- Heavy duty construction
- Excellent bend quality

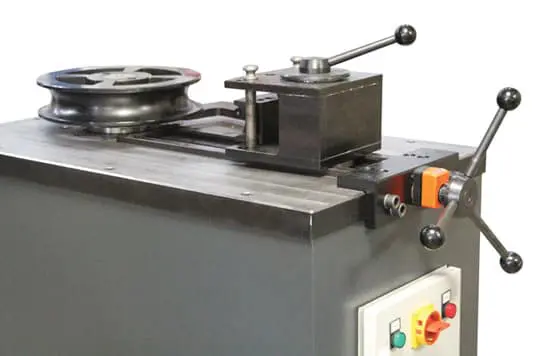

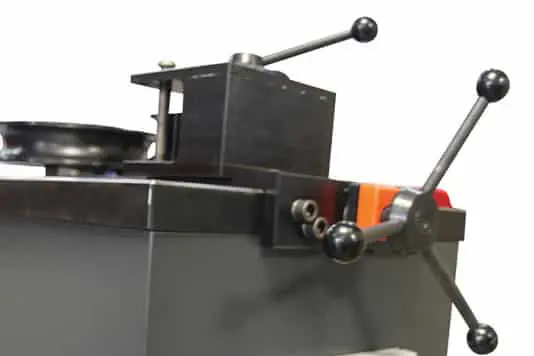

- Quick release guide block

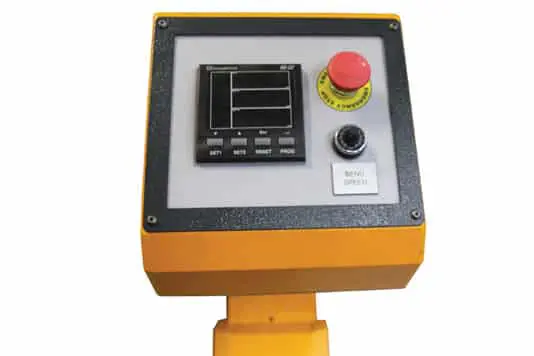

- Digital read out of bending angle

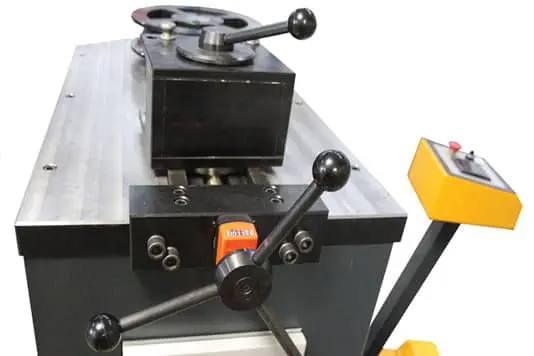

- Counter read out for guide block position
- Variable bending speed
- Complete tooling service

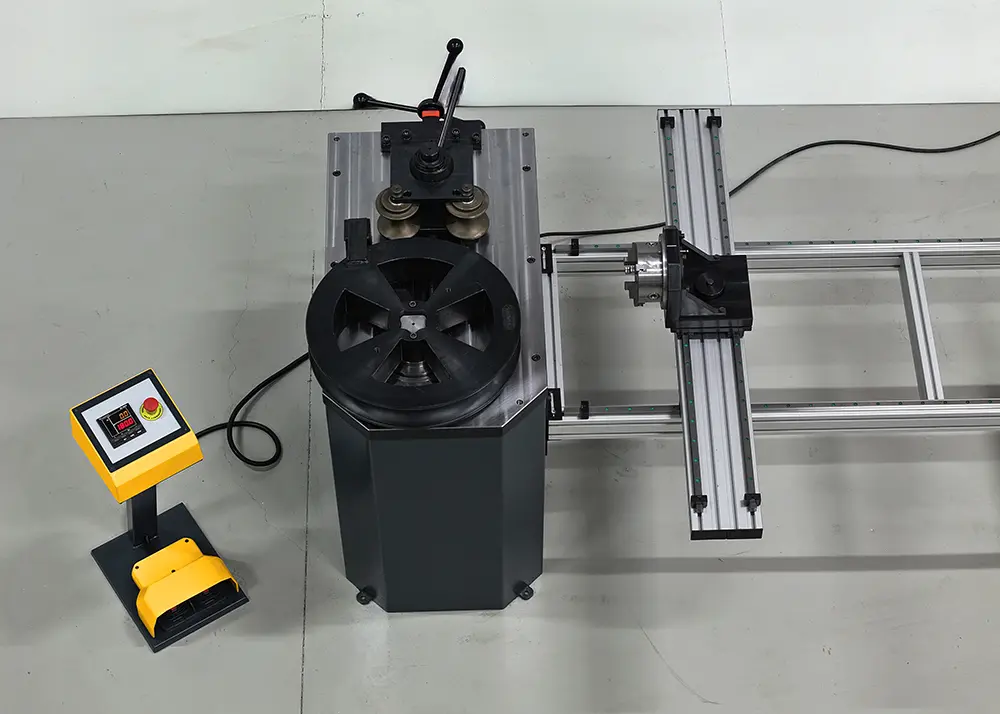

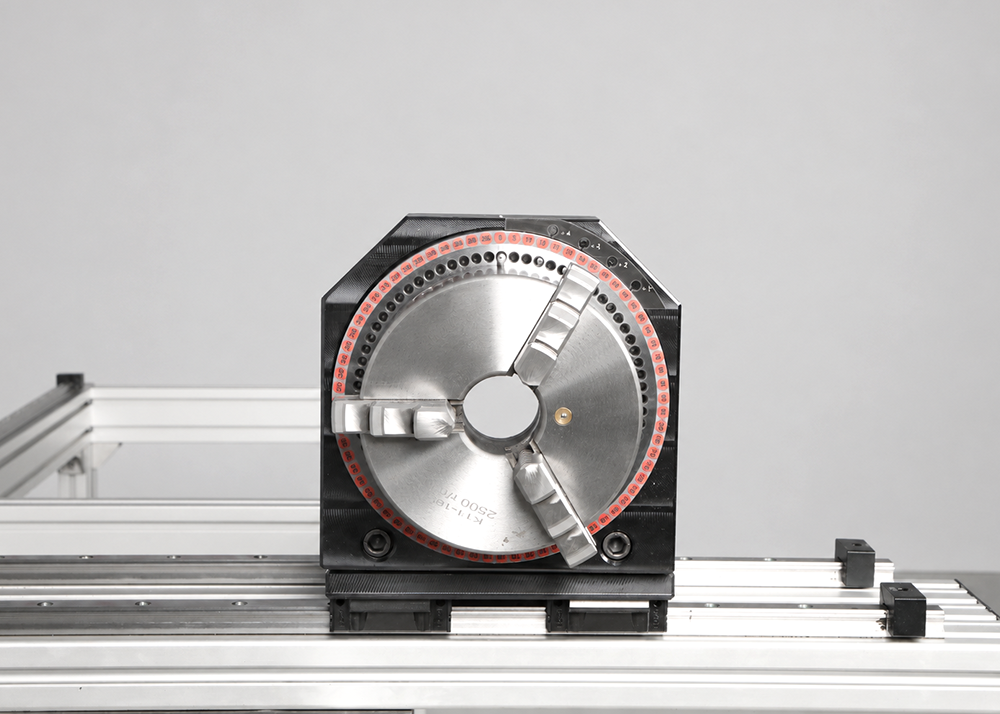

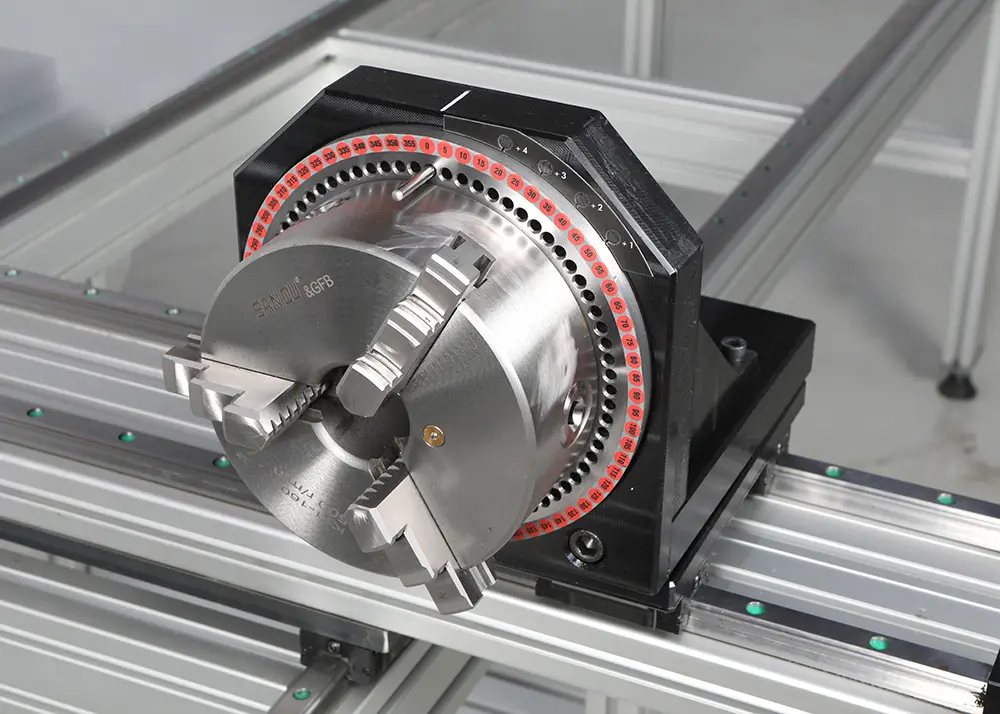

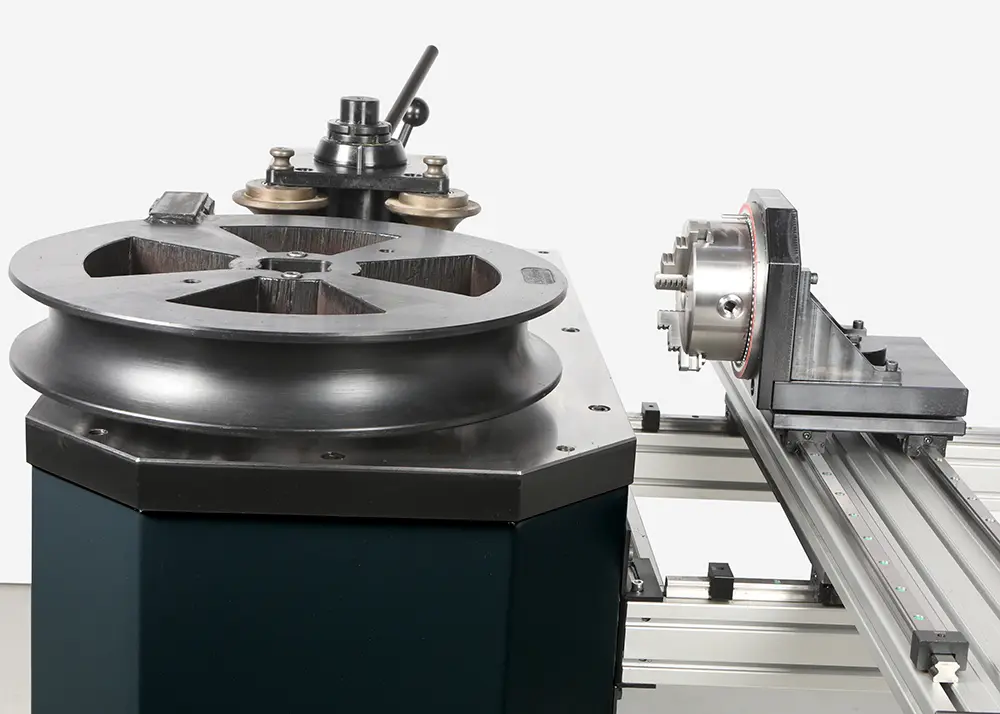

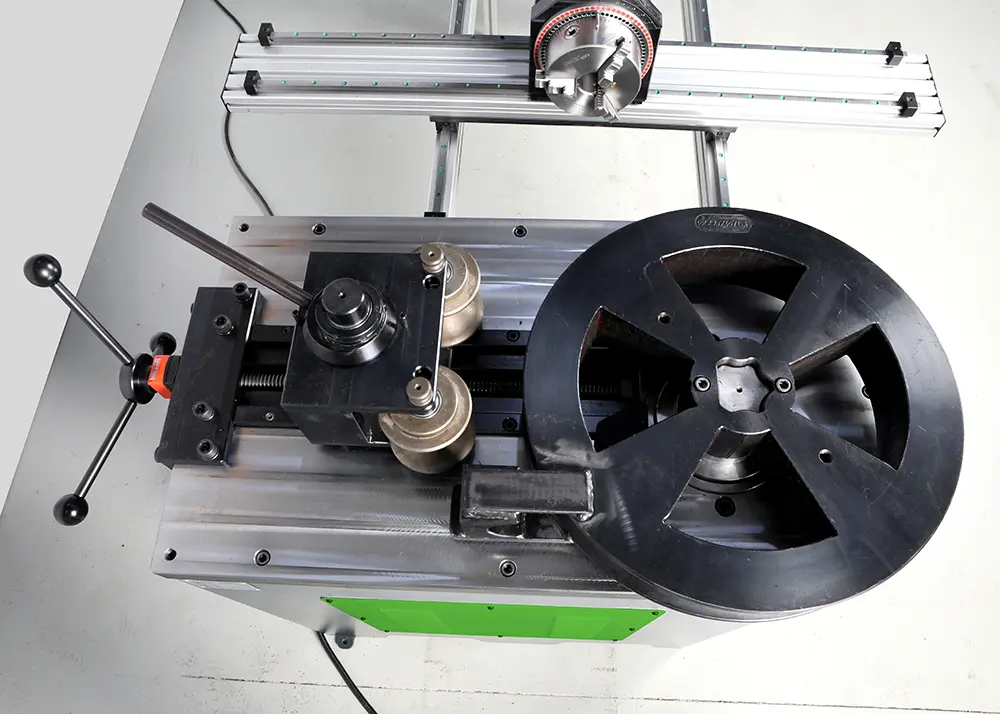

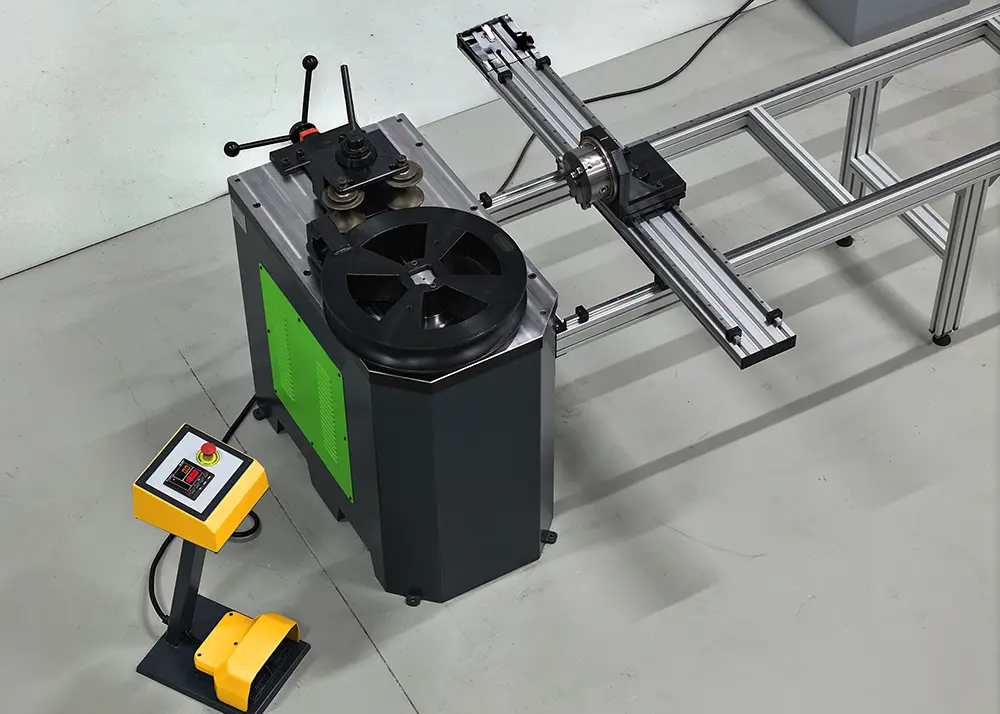

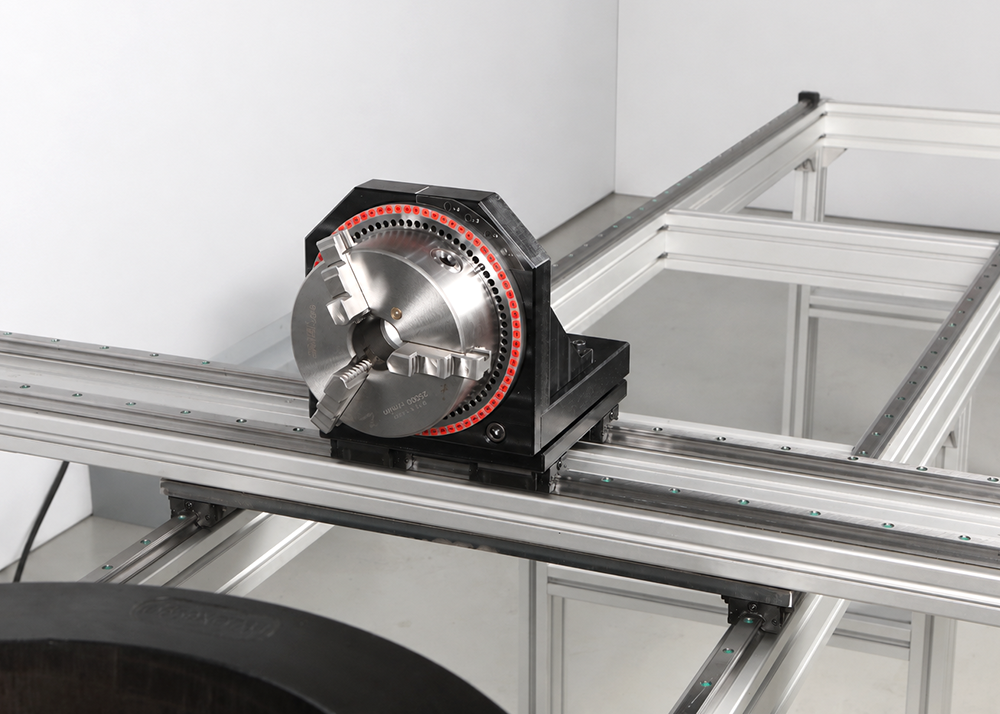

Options
