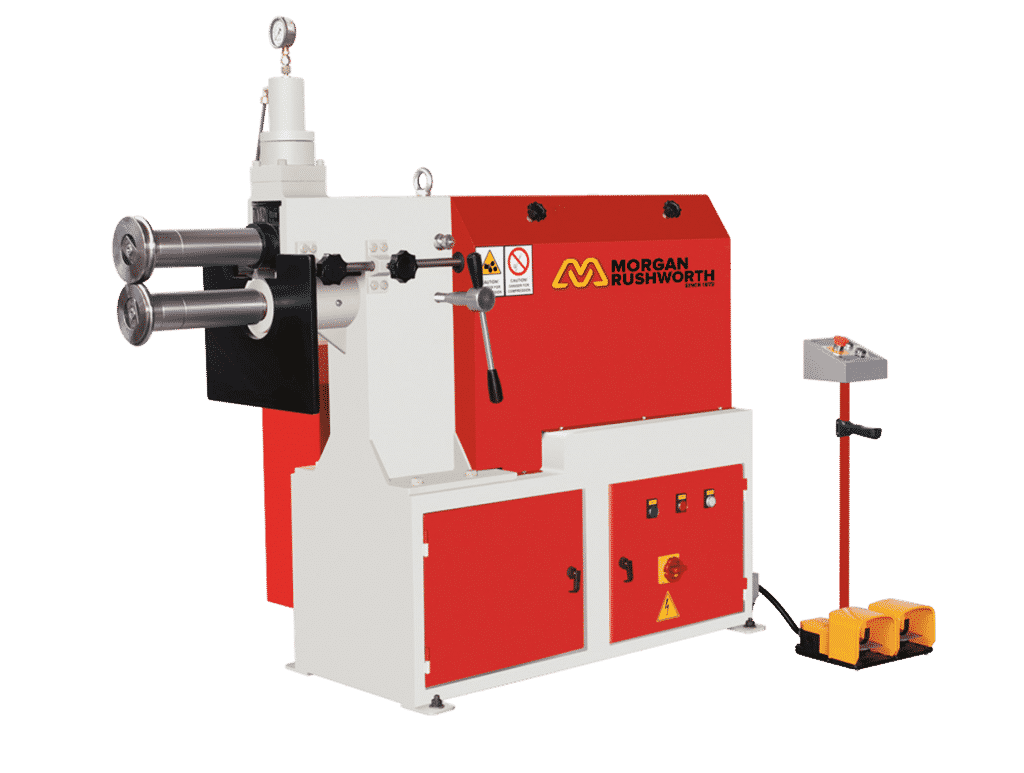

Morgan Rushworth HPS Hydraulic Swaging Machine

Main view - Morgan-Rushworth-HPS-Hydraulic-Swaging-Machine

The Morgan Rushworth range of MS, PS and HPS swaging machines are available in manual, powered and hydraulic variants. Swaging machines are designed to form various shapes to sheet material and are particularly suited for tubular ductwork applications. Easily interchangeable rolls are included as standard equipment to form the specific shape required.

Main view - Morgan-Rushworth-HPS-Hydraulic-Swaging-Machine
Main view - Morgan-Rushworth-HPS-Hydraulic-Swaging-MachineMain view - Morgan-Rushworth-HPS-Hydraulic-Swaging-Machine
Front view Morgan-Rushworth-PS-260-Powered-Swaging-MachineFront view Morgan-Rushworth-PS-260-Powered-Swaging-Machine
MODEL HPS 260/4.0
STOCK CODE M7012
Capacity mm 4
Roll Diameter mm 132
Throat depth with gauge mm 260
Throat depth without gauge mm 500
Shaft Diameter Ø mm 40
Motor kw 2.2 + 0.55
Rotational Linear Speed m/min 5
Length mm 1,800
Width mm 700
Height mm 1,600
Weight kg 450



Features

  • Steel welded frame
  • Adjustable idler roll
  • Adjustable end stop
  • Reduction motor with brake – PS and HPS
  • Hydraulic top roll adjustment – HPS 400
  • 3 sets of standard rolls – PS 250, PS 400 and HPS 400
  • 5 sets of standard rolls – MS 125 and PS 125

Options

  • Optional special rolls available
