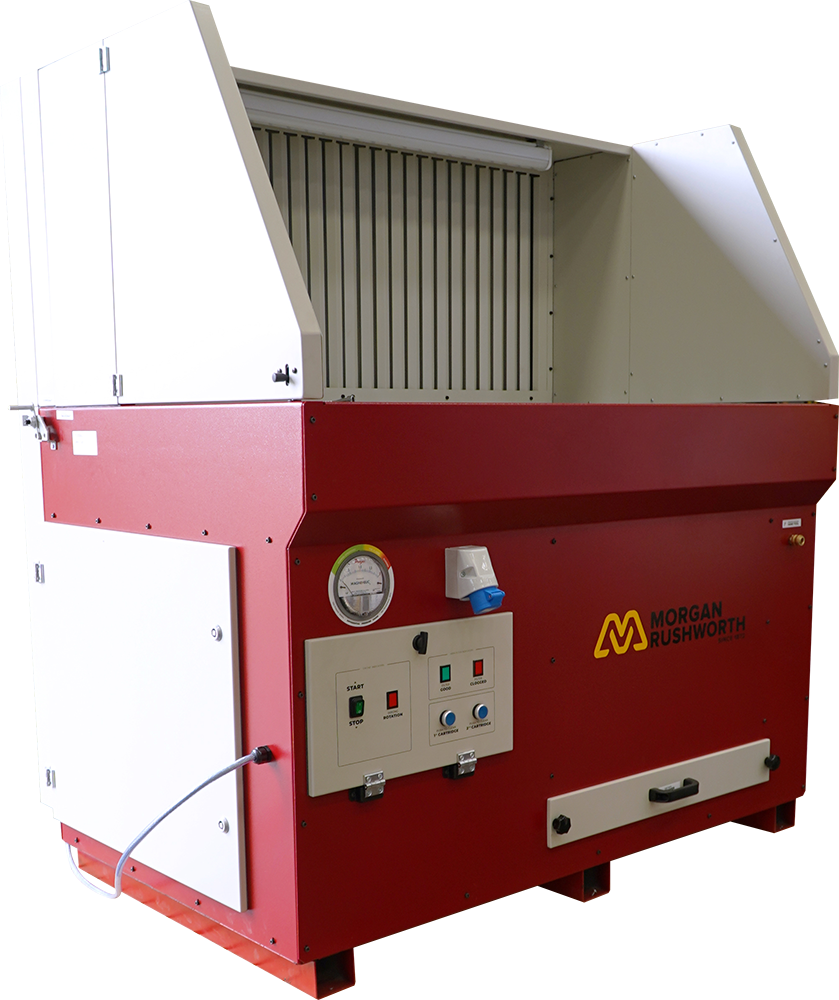

Morgan Rushworth GWB Dust & Fume Extraction Tables

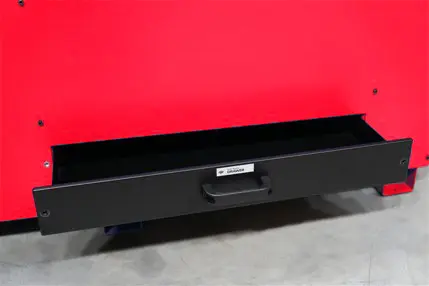

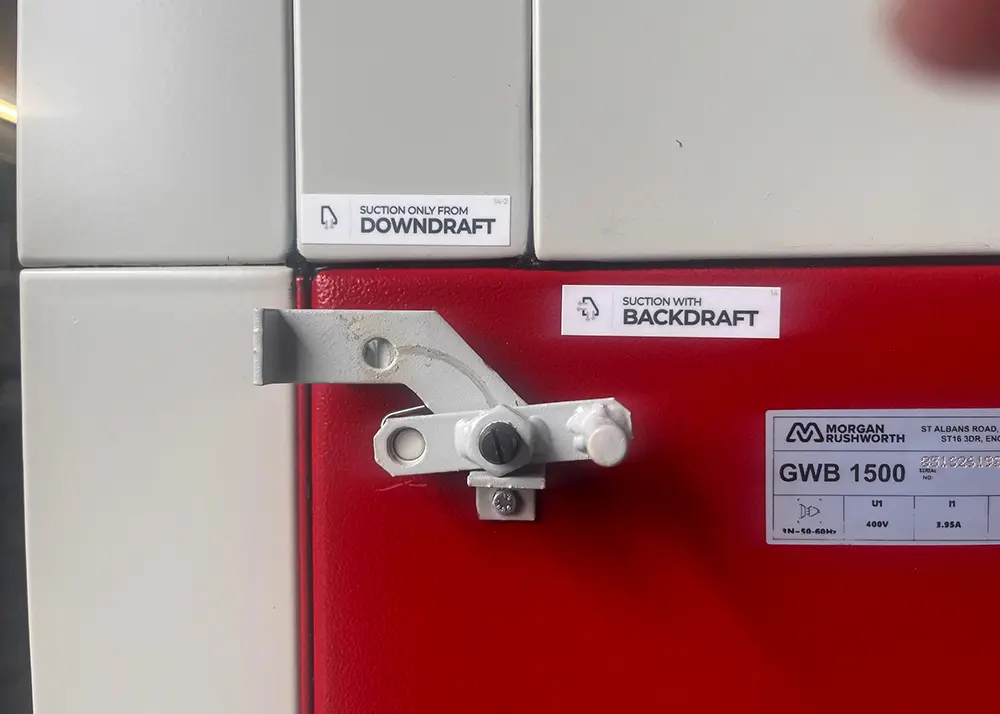

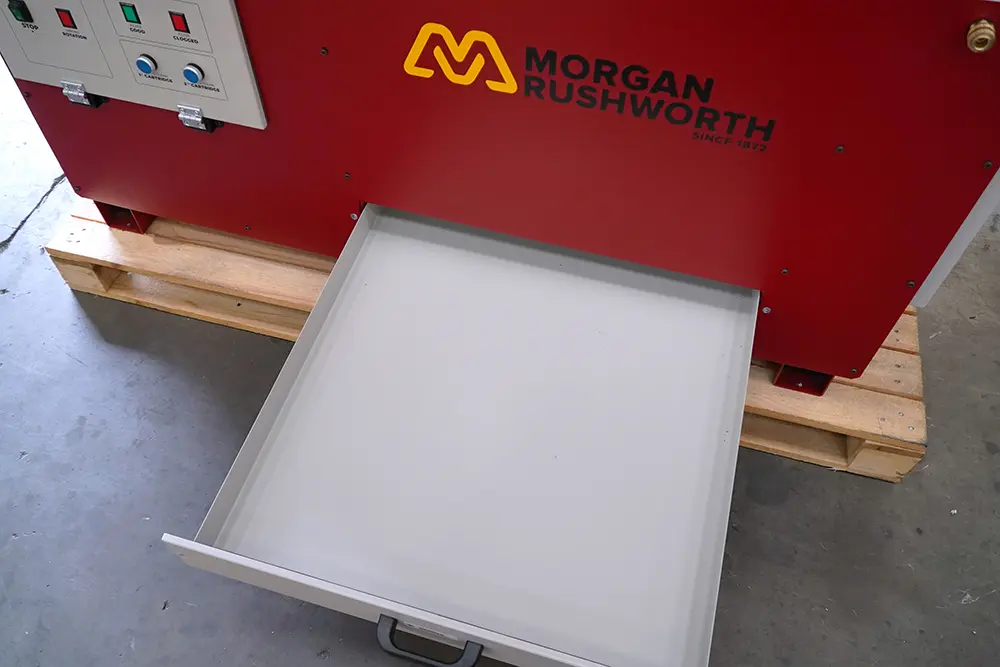

The Morgan Rushworth GWB Dust and Fume Extraction Tables are designed for both grinding and welding applications, featuring both downdraft and rear extraction. With a fully integrated extraction system, filter units, and accessible dust drawers, these tables are ready for use once connected to a power and air supply.
Featuring a 1400mm x 900mm work table, it provides ample space for small to medium project work. Equipped with automatic filter cleaning, it is capable of 99% dust particle removal efficiency.
Workstations are not suitable for materials which have explosive dust characteristics such as aluminium, titanium and magnesium etc. For alloyed steel processing polyester non-woven ePTFE (Teflon membrane) filter media is recommended.
| MODEL | GWB-1500 | |
| Table Width | mm | 1400 |
| Table Depth | mm | 900 |
| Suction Capacity | m3/saat | 900 |
| Filter Efficiency | % | 99 |
| Sound Level | dB(A) | <75 |

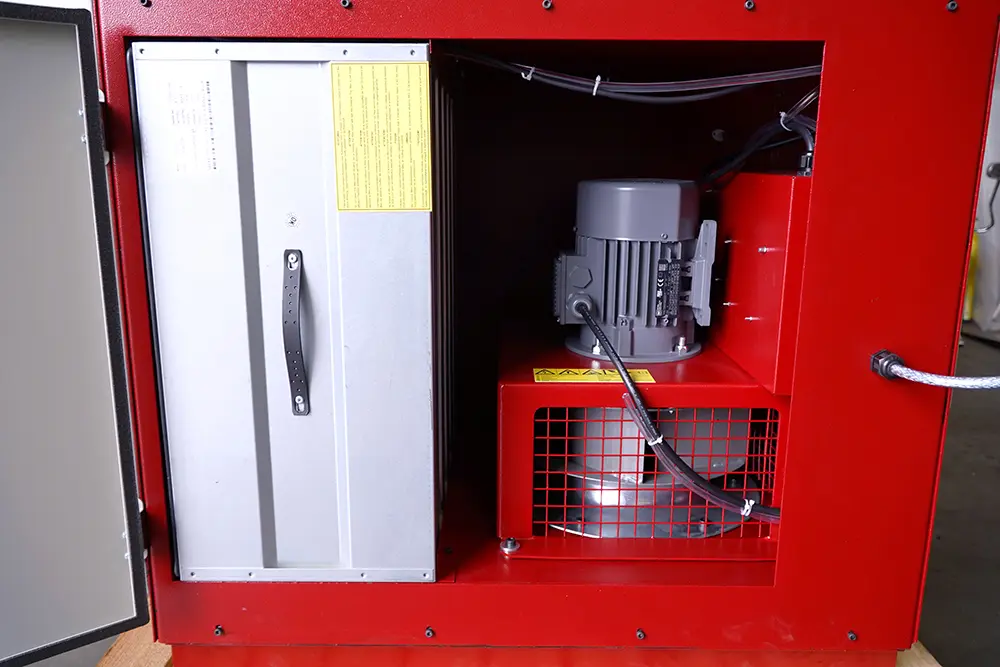

| Motor | kW | 2.2 |
| Length | mm | 1055 |
| Width | mm | 1500 |
| Height (excluding arms) | mm | 1650 |
| Weight | kg | 440 |
Workstations are not suitable for materials which have explosive dust characteristics such as aluminium, titanium and magnesium etc. For alloyed steel processing polyester non-woven ePTFE (Teflon membrane) filter media is recommended.
Features
- Working surface dimensions: 900 x 1400 x 900 mm.
- Designed for precision and coarse grinding, as well as cutting operations on welded surfaces.

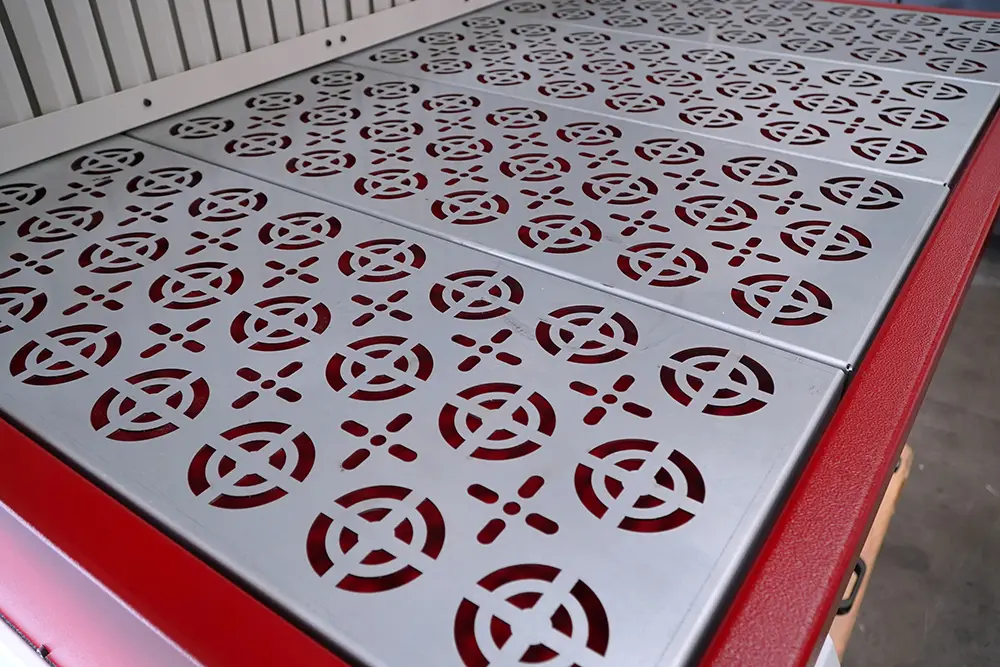

- The table surface features a perforated metal grid.

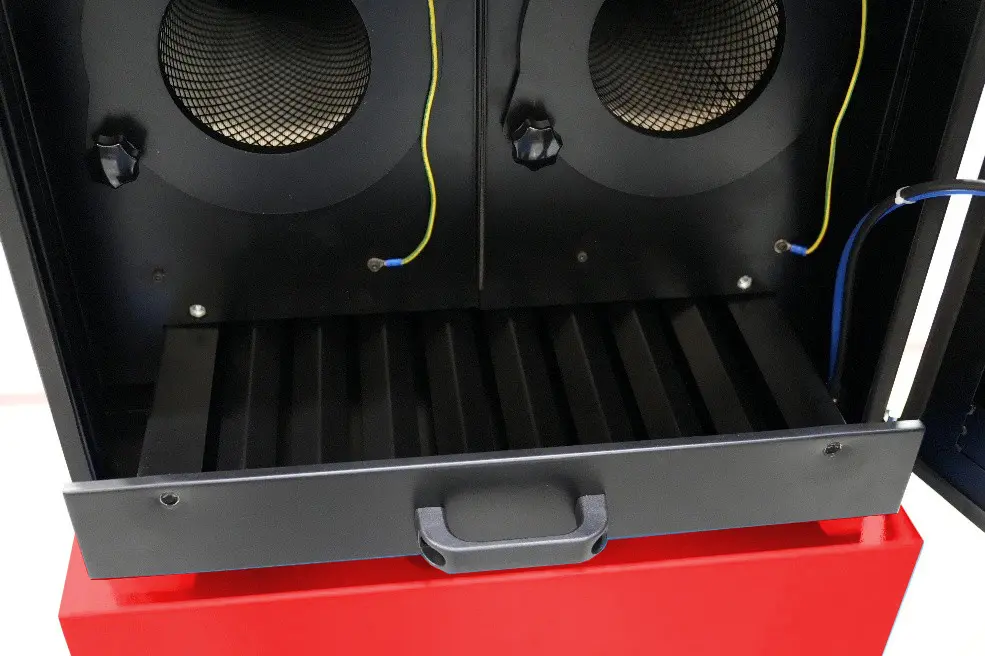

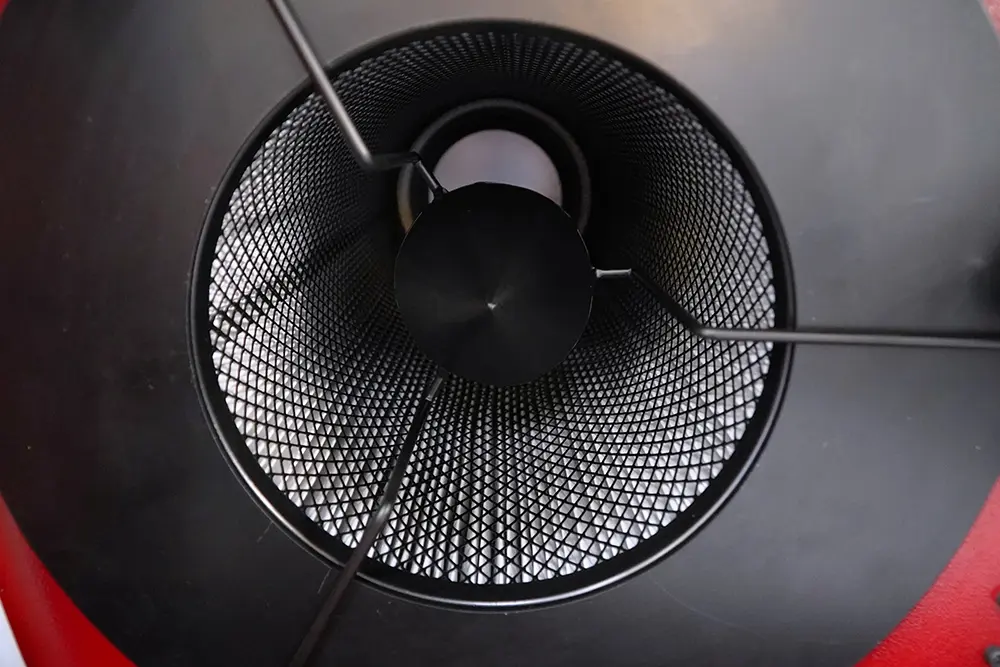

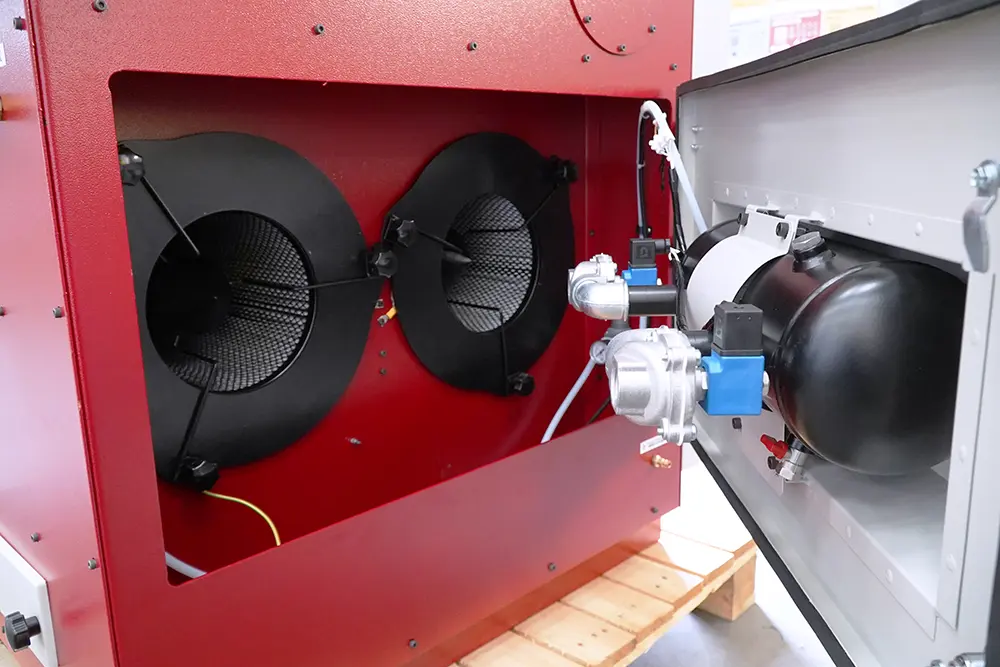

- Equipped with 2 cylinder-type filters, providing 99% efficiency in dust particle removal.

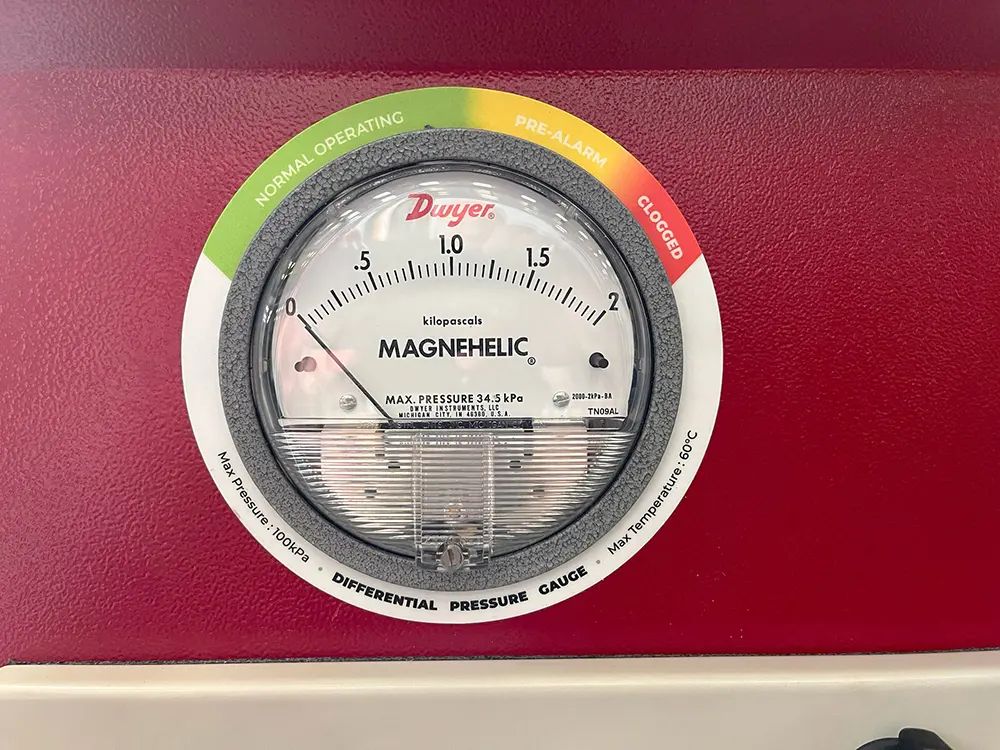

- Integrated pressure gauge allows monitoring of filter saturation.

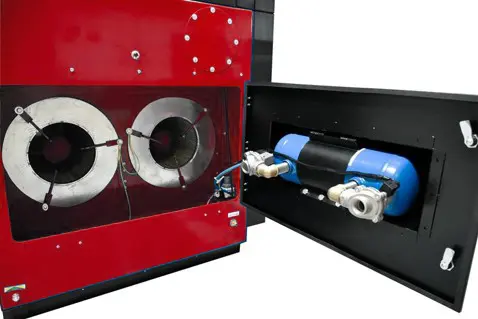

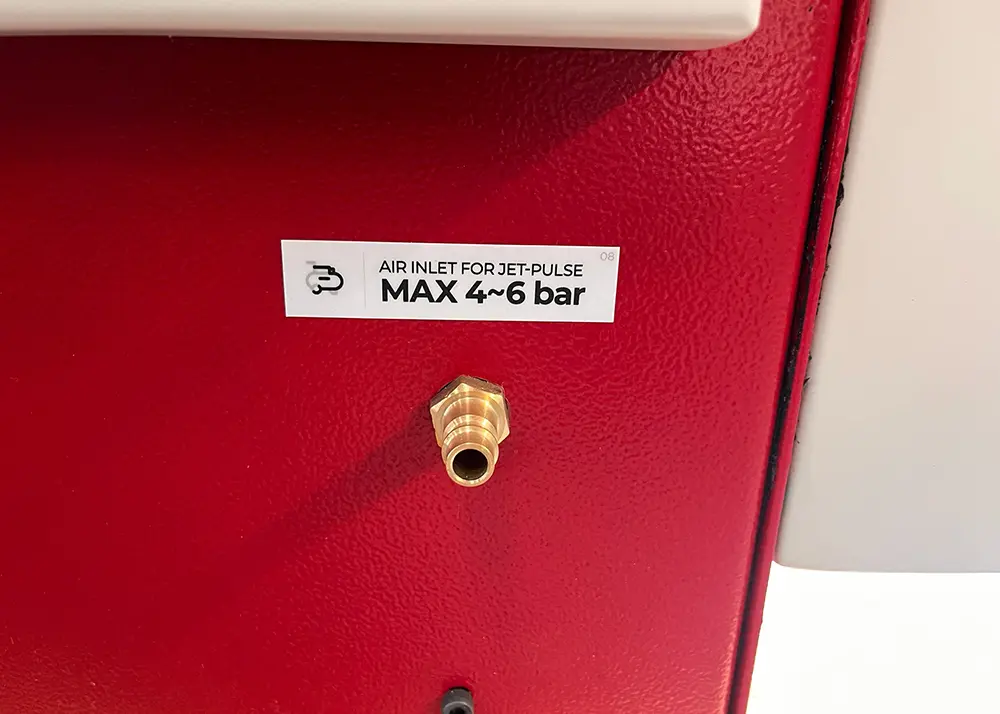

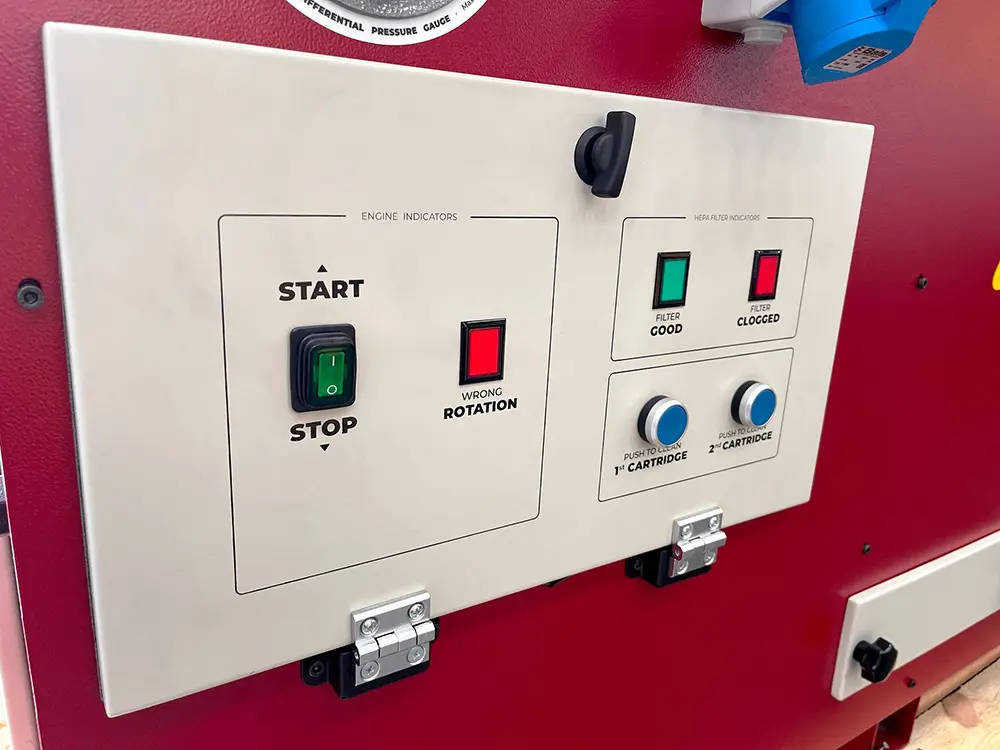

- Automatic filter cleaning: when filters reach a predefined pressure, pressing the machine button initiates air cleaning.

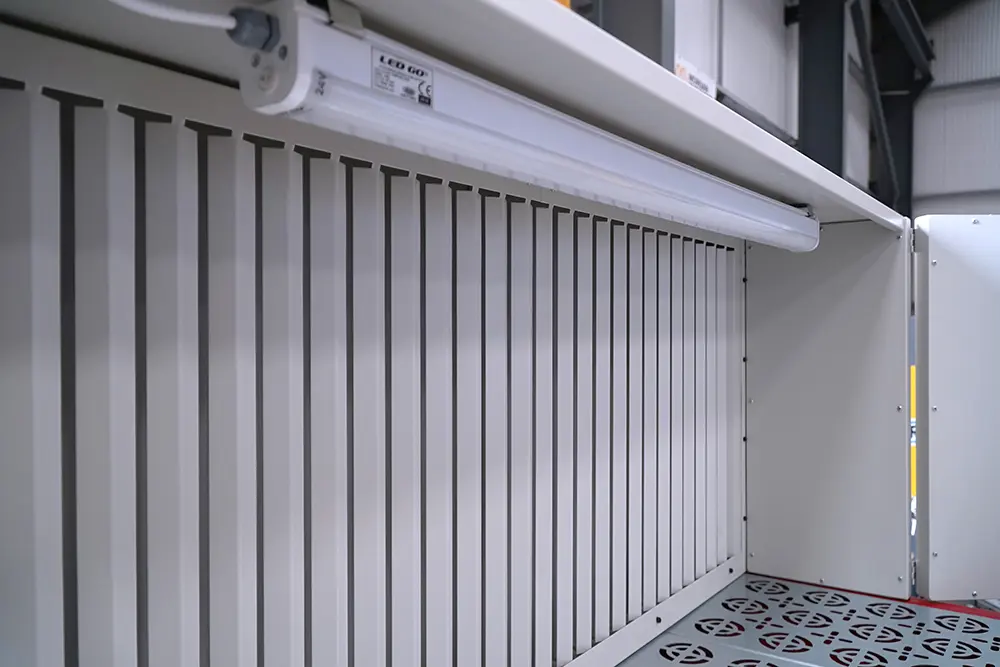

- LED lighting ensures optimal visibility during operations.
- Built-in 220 V power outlet on the table surface.
- Supplied with a 3-meter power cord.

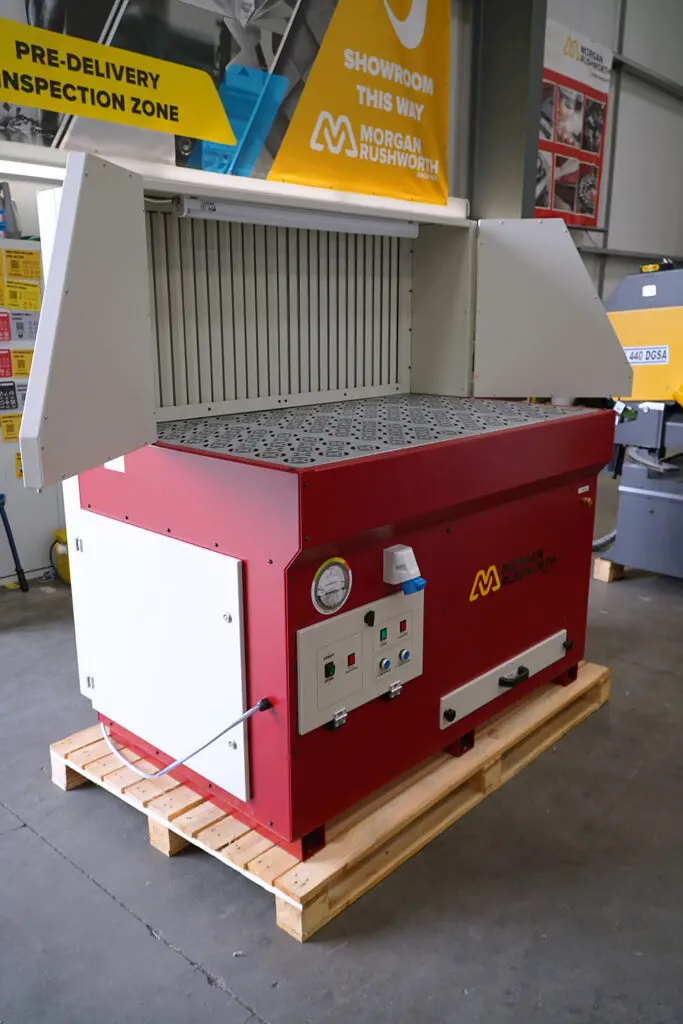

- Standard equipment includes a protective hood set.
