Morgan Rushworth KAB Filter Unit

View Product Downloads / Full Specification Sheet

Request A Quote

KAB Filter units are specially designed for dedusting of welding fume, smoke and dust at manual or robotic welding stations. Ready-to-operate (plug-n-play) with filters, integrated fan, control panel and automatic jet pulse cleaning. KAB Series with W3 certification acc. to EN ISO 15012 standard, is used in any welding process including stainless steel welding.

View Product Downloads / Full Specification Sheet

Request A Quote

Gallery & Video

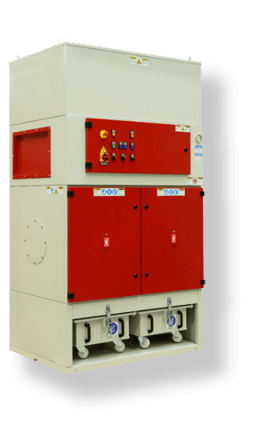

Morgan Rushworth KAB Filter Unit imageMorgan Rushworth KAB Filter Unit image

Technical Specs

MODEL KAB-42 KAB-43 KAB-44 KAB-62 KAB-63 KAB-64 KAB-65 KAB-82 KAB-83 KAB-84 KAB-102 KAB-103 KAB-104 KAB-122 KAB-123
Capacity m3/h 1700-2800 1700-2800 1700-2800 2520-4200 2520-4200 2520-4200 2520-4200 3360-5600 3360-5600 3360-5600 4200-7000 4200-7000 4200-7000 5000-8400 5000-8400
Fan Pressure Pa 2330 3200 4250 2140 2850 3900 5300 2140 2930 4000 2350 3200 4700 2500 3700
Motor kw  2.2  3.0 4.0 3.0 4.0 5.5  7.5 4.0 5.5 7.5 5.5 7.5 11.0 7.5 11.0
Filter Surface m2  28 28 28 42 42 42 42 56 56 56 70 70 70 84 84

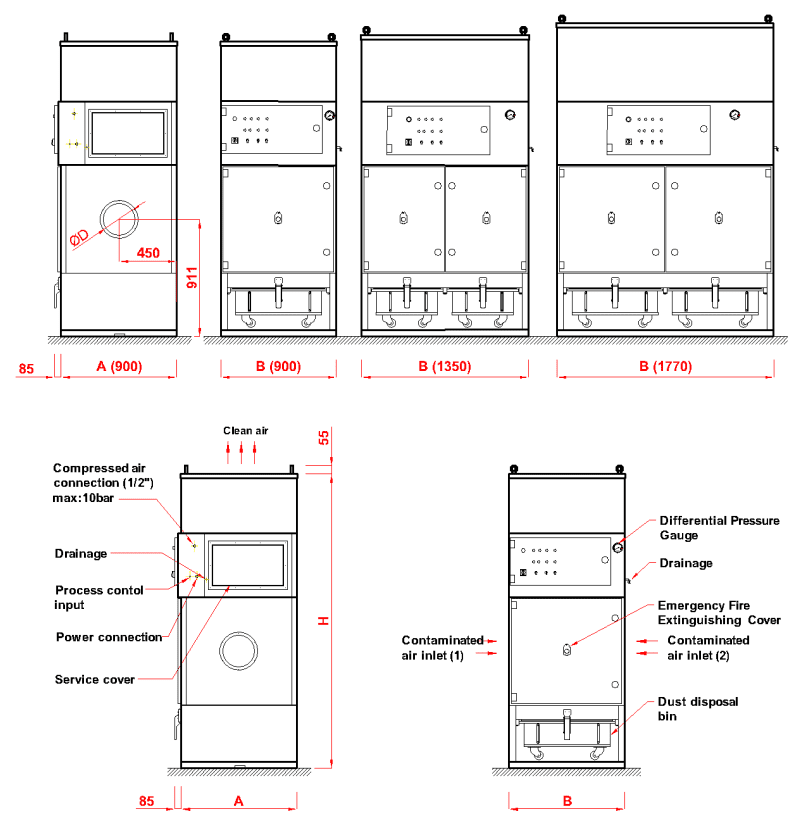

A x B mm  900 x 900 900 x 900  900 x 900 900 x 950 900 x 950 900 x 950 900 x 950  900 x 1350 900 x 1350 900 x 1350 900 x 1770  900 x 1770  900 x 1770  900 x 1770  900 x 1770
Height (H) mm  2268 2268 2298 2268 2268  2331 2331 2282 2349 2349 2368 2368 2449 2368 2449
Dust Bin liter  1 x 100  1 x 100   1 x 100  1 x 100  1 x 100  1 x 100  1 x 100  2 x 70   2 x 70   2 x 70  2 x 100   2 x 100   2 x 100   2 x 100   2 x 100
0D mm  200  200  200 250  250 250 250  280 280 280 315 315 315 355 355
Weight kg  392 395 405 403 413 424 435 524 535 539 546 551 618 558 625

Features & Options

Features

  • Low consumption of pressured-air with ∆P controlled automatic jet-pulse cleaning.
  • Automatic start and stop synchronous with the operation. Fault signal sharing.
  • Visual real-time dust level control of filter elements via manometer.
  • Automation is implemented with simple control panel with worldwide available components.

Options

  • OPTIONAL-VFD driven and automatic PID pressure transmitter fan speed control for energy saving.

Full Description

  • KAB Filter units are specially designed for dedusting of
    welding fume, smoke and dust at manual or robotic
    welding stations.
  • Ready-to-operate (plug-n-play) with filters, integrated fan,
    control panel and automatic jet pulse cleaning.
  • KAB Series with W3 certification acc. to EN ISO 15012
    standard, is used in any welding process including
    stainless steel welding.
  •  Thanks to its compact tower design, KAB saves space on
    production ground.
