Morgan Rushworth SM Filter Unit

The Morgan Rushworth SM-Series Filter Units provide efficient dedusting for dry dust created during industrial tasks such as welding, mixing, and grinding. Featuring Dust Class M standard cartridge filters, they deliver excellent filtration performance to ensure clean, safe air.

These units are designed to recirculate filtered air back into the workspace, preventing heat loss and promoting energy efficiency. By maintaining a healthier environment for operators, the SM-Series supports compliance with industry dust control standards while offering an eco-friendly, practical solution for a wide range of applications.

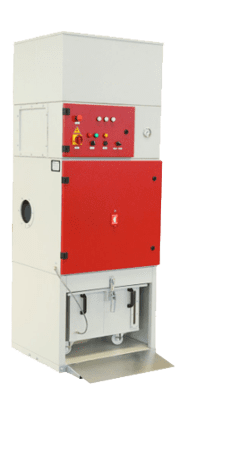

Morgan Rushworth SM Filter Unit imageMorgan Rushworth SM Filter Unit image

MODEL SM-1500 SM-2200 SM-3000
Capacity m3/h 1500 2200 3000
Fan Pressure Pa 2300 2300 2300
Motor kw 1.5 2.2 3.0
Filter Area m2 20 30 40
Dust Bin litre 100 130 130

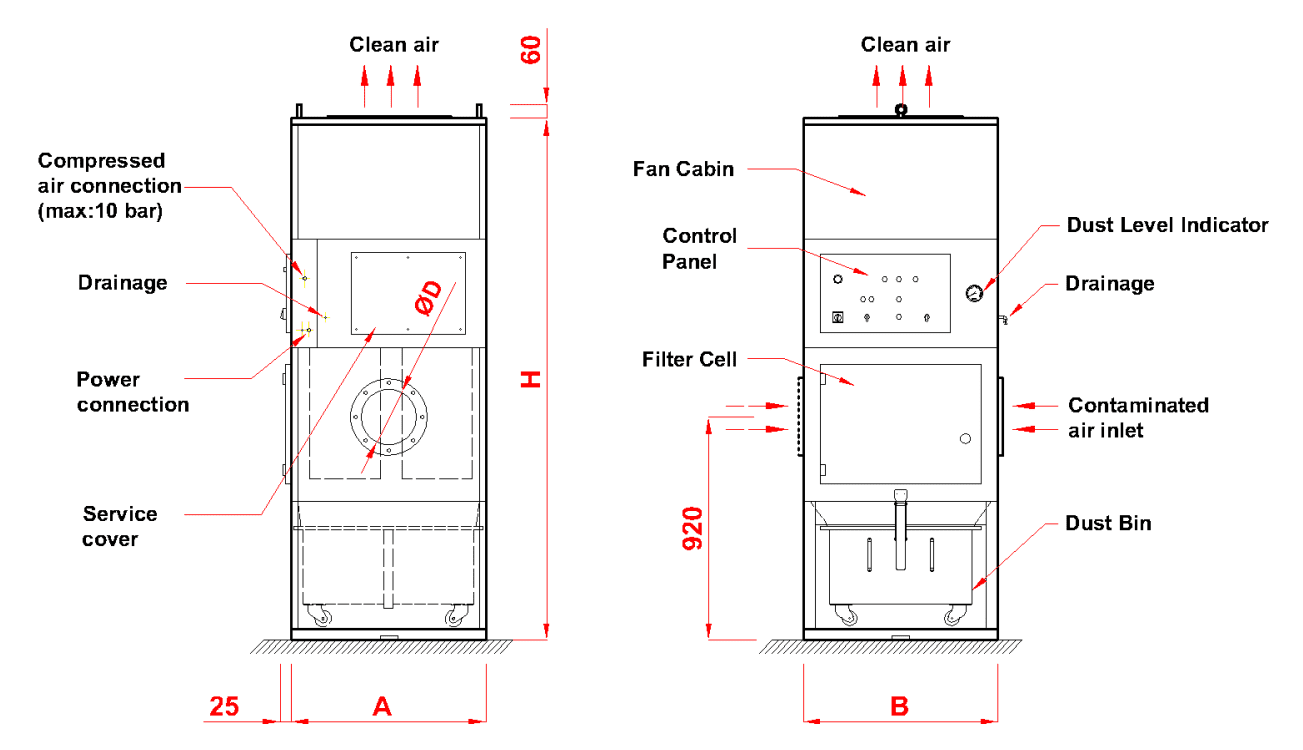

A x B mm 650 x 800 840 x 800 840 x 800
Height (H) mm 2138 2156 2200
0D mm 160 200 250
Weight kg 211 242 258

Features

  • High filtration efficiency with Dust Class: M certified (acc. to EN 60335-2-69) filter elements which arrests 0,2-2 micron particles with 99,9% efficiency.
  • Maximum operational safety with fully integrated control panel and internal electrical wiring.
  • Visual real-time dust level control of filter elements via coloured manometer.
  • Depending on various industrial operations, SM – filter units can be equipped with optional Aluminium coated, ePTFE Teflon membrane, Flame Retardant Polyester and Stainless steel construction Propylene nonwoven filter elements, on request.
  • Average 10000-15000 working hour lifespan with effective reverse jet pulse cleaning.
  • The light-weight fan impellers are made of aluminium, which ensures long motor life-time.
  • High efficient, backward curved fans confirming ERP 2015 with G2.5 balance grade (static and dynamic) are direct coupled to
    motors.
  • OPTIONAL-Automatic PID control with pressure transmitter regulated VFD (Variable Frequency Drive) for fan speed control ensures energy saving with optimum performance.

Options

Morgan Rushworth SM-Series Filter Units

The Morgan Rushworth SM-Series Filter Units are expertly engineered to manage dry dust created during various industrial processes such as welding, grinding, and mixing. These high-performance units provide a reliable solution for maintaining a clean and healthy working environment, ensuring compliance with dust control regulations while offering energy efficiency and operational reliability.

Equipped with Dust Class M standard cartridge filters, the SM-Series ensures thorough filtration of dust particles, delivering clean air back into the workspace. This advanced system combines functionality with eco-friendly benefits, making it an essential tool for a wide range of industries.

Exceptional Dust Filtration

The core of the SM-Series is its advanced filtration system. Designed to handle Dust Class M levels, the units effectively capture fine dust particles, including those hazardous to health. This ensures that airborne contaminants are removed, protecting operators from respiratory risks and enhancing overall workplace safety.

The cartridge filters are robust and long-lasting, requiring minimal maintenance while delivering consistent performance. Their easy-to-access design allows for quick replacement when necessary, ensuring the unit remains fully operational without extended downtime.

Recirculation of Clean Air

One of the standout features of the Morgan Rushworth SM-Series is its ability to recirculate clean, filtered air back into the workspace. By doing so, these units reduce the need for external ventilation systems, preventing heat loss and maintaining a comfortable working environment.

This recirculation capability not only conserves energy but also contributes to a more sustainable operation. It is particularly beneficial in colder climates or environments where maintaining indoor temperature is crucial. The SM-Series provides a practical and eco-friendly solution that meets the demands of modern industry.

Designed for Industrial Applications

The versatility of the SM-Series Filter Units makes them suitable for a wide range of industrial applications. From welding and grinding to mixing and sanding, these units are built to handle the challenges of dust-intensive processes. Their durable construction ensures they perform reliably, even in demanding conditions.

Each unit is designed to integrate seamlessly into existing workshop setups. The compact and ergonomic design means they can be installed in smaller spaces without compromising efficiency. Their quiet operation also ensures minimal disruption to the working environment.

Energy-Efficient and Cost-Effective

Energy efficiency is a key feature of the Morgan Rushworth SM-Series. By recirculating clean air, these units eliminate the need for external air exchange systems, reducing energy consumption and lowering operational costs.

The longevity of the Dust Class M filters further contributes to cost savings, as they require less frequent replacement compared to standard filters. Combined with the unit’s reliable performance, this makes the SM-Series an economical choice for businesses looking to improve dust control without incurring excessive maintenance expenses.

Enhanced Workplace Safety

Maintaining a safe working environment is crucial in any industrial setting, and the SM-Series Filter Units play a vital role in achieving this. By effectively removing hazardous dust particles from the air, these units protect workers from health risks such as respiratory conditions and long-term exposure to harmful substances.

In addition to health benefits, the units also improve overall workplace cleanliness. Reducing dust accumulation on equipment and surfaces minimises the risk of damage and ensures a more efficient and productive workspace.

Easy Maintenance and Operation

The Morgan Rushworth SM-Series Filter Units are designed with user convenience in mind. The cartridge filters are easily accessible for replacement, and the system itself requires minimal maintenance. Operators can quickly perform routine checks and servicing, keeping downtime to a minimum and ensuring consistent performance.

The straightforward setup process further enhances usability. These units are ready to operate with minimal installation requirements, allowing businesses to quickly integrate them into their workflows.

Eco-Friendly Solution

Environmental sustainability is becoming increasingly important in industrial operations, and the SM-Series Filter Units align with this goal. By recirculating clean air and reducing energy usage, these units help businesses minimise their environmental impact.

Their durable design and long-lasting filters also reduce waste, further contributing to a greener and more responsible operation. For businesses looking to balance productivity with sustainability, the SM-Series is an ideal choice.

Conclusion

The Morgan Rushworth SM-Series Filter Units offer a comprehensive solution for managing dry dust in industrial environments. With their advanced Dust Class M filtration system, energy-efficient air recirculation, and robust design, these units deliver reliable performance while promoting workplace safety and sustainability.

Whether you’re dealing with welding fumes, grinding dust, or other industrial particulates, the SM-Series ensures a cleaner, healthier, and more efficient workspace. Invest in the Morgan Rushworth SM-Series today and experience the benefits of advanced dust control technology tailored to the demands of modern industry.
