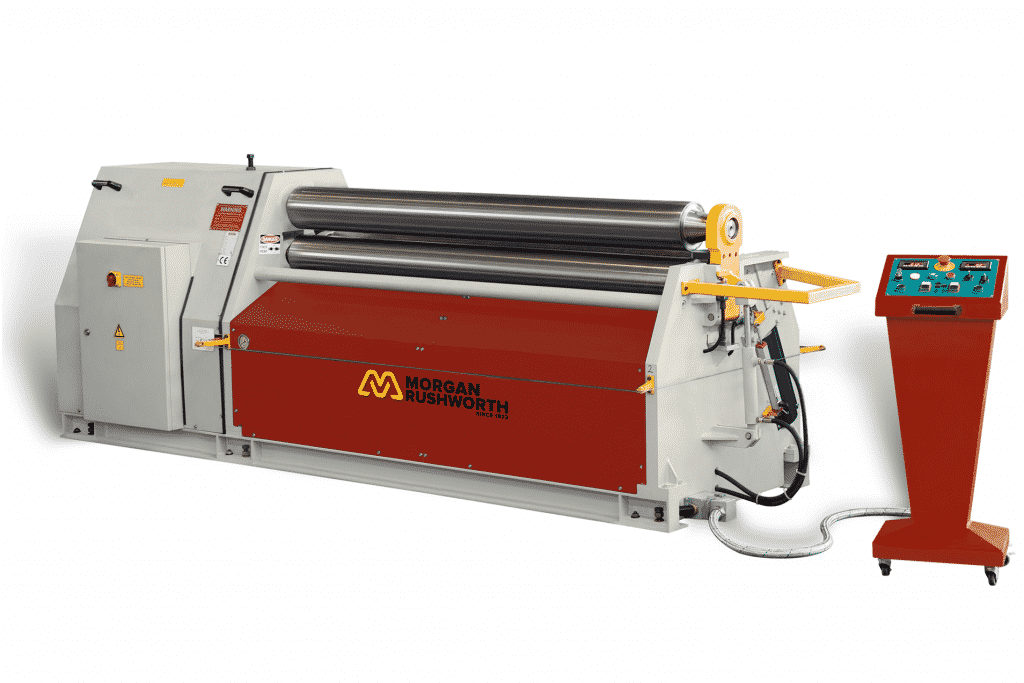

Morgan Rushworth ASBH Powered Hydraulic Bending Rolls
The powerful ASBH models feature the hydraulic side roll up and lower roll and down translation ensuring powerful and quick pre-bending of material. The hydraulic drop end enables quick ejecting of rolled material. Induction hardened rolls feature as standard. ASBH machines are available up to 3050mm bending widths.
| BENDING LENGTH | TOP/BOTTOM ROLL DIA | SIDE ROLL DIA | ROLLING CAPACITY | PRE-BENDING CAPACITY | ROLLING CAPACITY (AT 5 X TOP ROLL DIA) |
PRE-BENDING CAPACITY (AT 5 X TOP ROLL DIA) |
ROLLING SPEED (AT 1.5 X TOP ROLL DIA) |
MOTOR (AT 1.5 X TOP ROLL DIA) |
LENGTH | WIDTH | HEIGHT | WEIGHT | ||
| MODEL | STOCK CODE | mm | mm | mm | mm | mm | mm | mm | m/min | mm | mm | mm | kg | |
| ASBH 650/80 | M3656 | 650 | 80 | 80 | 3.5 | 3 | 3 | 2.5 | 5 | 1.1 + 0.75 | 1950 | 950 | 960 | 800 |
| ASBH 1050/80 | M3657 | 1050 | 80 | 80 | 2.5 | 2 | 2 | 1.5 | 5 | 1.1 + 0.75 | 2350 | 950 | 960 | 920 |
| ASBH 1270/80 | M3658 | 1270 | 80 | 80 | 2 | 1.5 | 1.5 | 1 | 5 | 1.1 + 0.75 | 2570 | 950 | 960 | 950 |
| ASBH 1270/100 | M3659 | 1270 | 100 | 90 | 3 | 2 | 2 | 1.5 | 6.5 | 1.1 + 0.75 | 2570 | 950 | 960 | 1150 |
| ASBH 1270/130 | M3660 | 1270 | 130 | 130 | 5 | 4 | 4 | 3 | 5 | 2.2 + 0.75 | 3020 | 1150 | 1110 | 1750 |
| ASBH 1270/150 | M3661 | 1270 | 150 | 130 | 7 | 5 | 5 | 4 | 6 | 2.2 + 1.1 | 3020 | 1150 | 1110 | 1825 |
| ASBH 1270/180 | M3662 | 1270 | 180 | 150 | 10 | 7.5 | 7.5 | 5.5 | 5 | 4.0 + 1.1 | 3070 | 1350 | 1290 | 2100 |
| ASBH 1270/200 | M3663 | 1270 | 200 | 180 | 12 | 10 | 10 | 8 | 6 | 4.0 + 1.5 | 3070 | 1350 | 1290 | 2200 |
| ASBH 1550/80 | M3664 | 1550 | 80 | 80 | 1.5 | 1 | 1 | 0.5 | 5 | 1.1 + 0.75 | 2850 | 950 | 960 | 1100 |
| ASBH 1550/100 | M3665 | 1550 | 100 | 90 | 2 | 1.5 | 1.5 | 1 | 6.5 | 1.1 + 0.75 | 2850 | 950 | 960 | 1200 |
| ASBH 1550/130 | M3666 | 1550 | 130 | 130 | 4.5 | 3.5 | 3.5 | 2.5 | 5 | 2.2 + 0.75 | 3300 | 1150 | 1110 | 1850 |
| ASBH 1550/150 | M3667 | 1550 | 150 | 130 | 6.5 | 4.5 | 4.5 | 3.5 | 6 | 2.2 + 1.1 | 3300 | 1150 | 1110 | 2000 |
| ASBH 1550/180 | M3668 | 1550 | 180 | 150 | 9 | 7 | 7 | 5 | 5 | 4.0 + 1.1 | 3350 | 1350 | 1290 | 2310 |
| ASBH 1550/200 | M3669 | 1550 | 200 | 180 | 11 | 9 | 9 | 7 | 6 | 4.0 + 1.5 | 3350 | 1350 | 1290 | 2450 |
| ASBH 1550/220 | M3670 | 1550 | 220 | 180 | 12 | 10 | 10 | 8 | 5 | 5.5 + 1.5 | 3500 | 1500 | 1370 | 3250 |
| ASBH 1550/250 | M3671 | 1550 | 250 | 200 | 15 | 12 | 12 | 1 | 5 | 7.5 + 1.5 | 3500 | 1500 | 1370 | 3600 |
| ASBH 2050/130 | M3672 | 2050 | 130 | 130 | 4 | 3 | 3 | 2 | 5 | 2.2 + 0.75 | 3800 | 1150 | 1110 | 2050 |
| ASBH 2050/150 | M3673 | 2050 | 150 | 130 | 6 | 4 | 4 | 3 | 6 | 2.2 + 1.1 | 3800 | 1150 | 1110 | 2250 |
| ASBH 2050/180 | M3674 | 2050 | 180 | 150 | 8 | 6 | 6 | 4 | 5 | 4.0 + 1.1 | 3850 | 1350 | 1290 | 2690 |
| ASBH 2050/200 | M3675 | 2050 | 200 | 180 | 10 | 8 | 8 | 6 | 6 | 4.0 + 1.5 | 3850 | 1350 | 1290 | 2950 |
| ASBH 2050/220 | M3676 | 2050 | 220 | 180 | 11 | 9 | 9 | 7 | 5 | 5.5 + 1.5 | 4000 | 1500 | 1370 | 3750 |
| ASBH 2050/250 | M3677 | 2050 | 250 | 200 | 12 | 10 | 10 | 8 | 5 | 7.5 + 1.5 | 4000 | 1500 | 1370 | 4200 |
| ASBH 2550/150 | M3678 | 2550 | 150 | 130 | 4 | 3 | 3 | 2 | 6 | 2.2 + 1.1 | 4300 | 1150 | 1110 | 2500 |
| ASBH 2550/180 | M3679 | 2550 | 180 | 150 | 6 | 4 | 4 | 3 | 5 | 4.0 + 1.1 | 4350 | 1350 | 1290 | 3070 |
| ASBH 2550/200 | M3680 | 2550 | 200 | 180 | 8 | 6 | 6 | 4 | 6 | 4.0 + 1.5 | 4350 | 1350 | 1290 | 3450 |
| ASBH 2550/220 | M3681 | 2550 | 220 | 180 | 9 | 7 | 7 | 5 | 5 | 5.5 + 1.5 | 4500 | 1500 | 1370 | 4250 |
| ASBH 2550/250 | M3682 | 3050 | 250 | 200 | 10 | 8 | 8 | 6 | 5 | 7.5 + 1.5 | 4500 | 1500 | 1370 | 4800 |
| ASBH 3100/180 | M3683 | 3050 | 180 | 150 | 4 | 3 | 3 | 2 | 5 | 4.0 + 1.1 | 4850 | 1350 | 1290 | 3450 |
| ASBH 3100/200 | M3684 | 3050 | 200 | 180 | 6 | 4 | 4 | 3 | 6 | 4.0 + 1.5 | 4850 | 1350 | 1290 | 3950 |
| ASBH 3100/220 | M3685 | 3050 | 220 | 180 | 8 | 6 | 6 | 4 | 5 | 5.5 + 1.5 | 5000 | 1500 | 1370 | 4750 |
| ASBH 3100/250 | M3686 | 3050 | 250 | 200 | 9 | 7 | 7 | 5 | 5 | 7.5 + 1.5 | 5000 | 1500 | 1370 | 5400 |
Capacities are given for 250 N/mm² plate yielding strength
Features

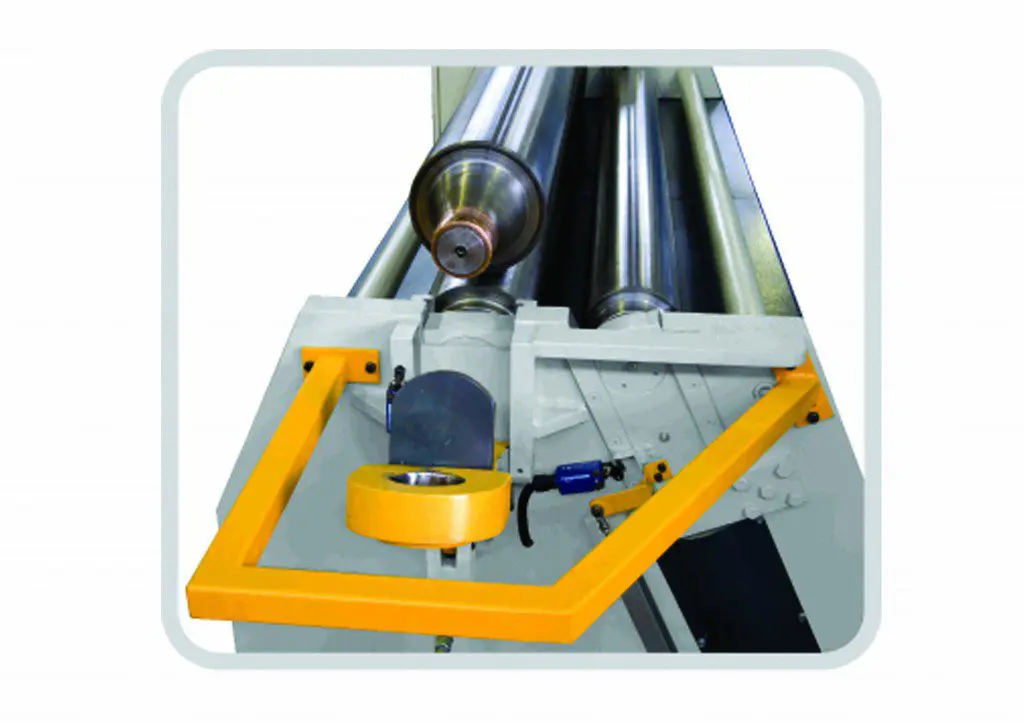

Hydraulic drop end to ensure easy material remove (Top roll tilt 275mm and 300mm dia top roll models).
- Heavy duty strong welded steel construction
- Hydraulic side roll for up/down translation
- Electrically driven top and bottom roll rotation with plenatery gearbox
- DRO for side and lower roll position
- Induction hardened rolls

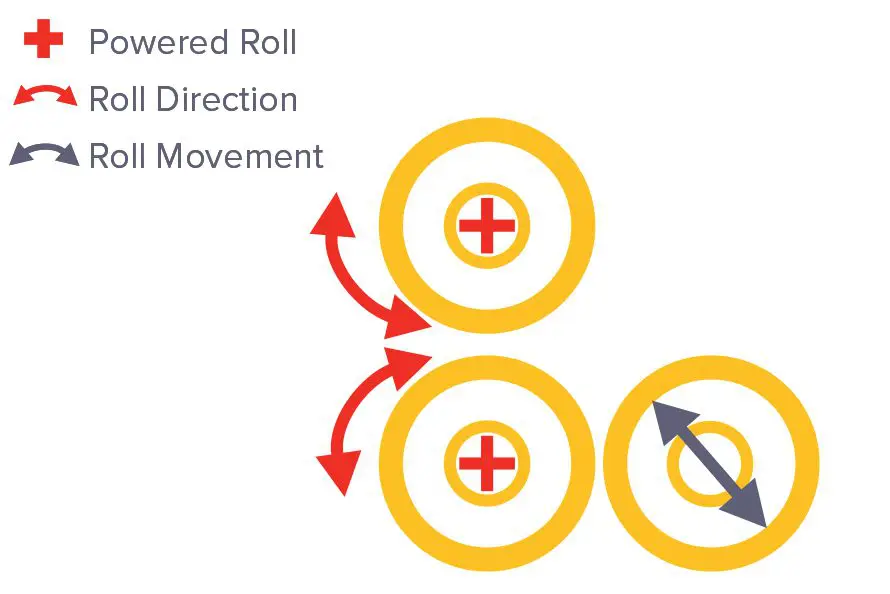

- Asymmetric roll configuration
- Cone bending device
- High powered production range
Options
- Hydraulic centre support
- Hydraulic side supports
- Two speed rotation
- Hydraulically driven top/bottom roll rotation on 220-250 top roll models
