Idroline S Hydro-Abrasive Waterjet Cutting System

The Idroline S hydro-abrasive waterjet cutting system is an elite design which ensures superior technological and productive performance. This system is capable of cutting a wide variety of materials using a very high pressure jet of water or a mixture of water and abrasive. Waterjet cutting is often used during fabrication of machine parts. It is the preferred method when the materials being cut are sensitive to the high temperatures generated by other methods. Waterjet cutting is used in various industries including mining and aerospace for cutting, shaping and reaming.

Request a Quote






Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

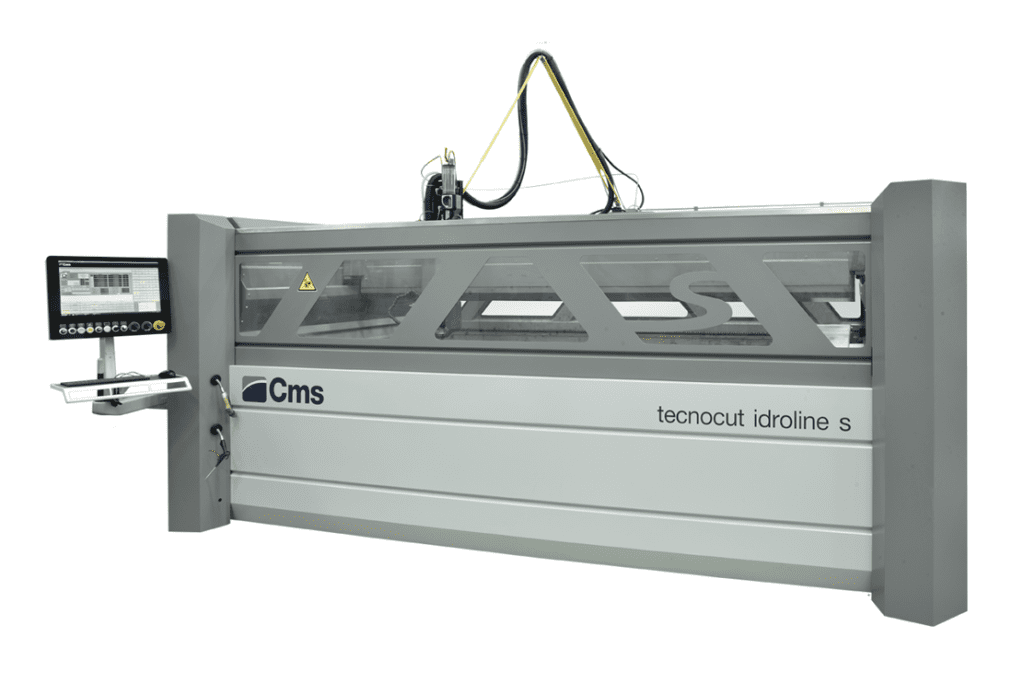

Front view of the CMS Tecnocut Idroline S WaterjetFront view of the CMS Tecnocut Idroline S Waterjet
Video thumbnail showing the Idroline S Hydro-Abrasive Waterjet Cutting System
Easy Pump Pressure IntensifierEasy Pump Pressure Intensifier
Jetpower EVO Pressure IntensifierJetpower EVO Pressure Intensifier
CMS Tecnocut Idroline S Waterjet NozzleCMS Tecnocut Idroline S Waterjet Nozzle
CMS Tecnocut Idroline S Waterjet Remote ControlCMS Tecnocut Idroline S Waterjet Remote Control
CMS Tecnocut Idroline S Waterjet Automatic LubricationCMS Tecnocut Idroline S Waterjet Automatic Lubrication
CMS Tecnocut Idroline S Waterjet Setting DeviceCMS Tecnocut Idroline S Waterjet Setting Device
Detail of a waterjet cutting on an axisDetail of a waterjet cutting on an axis
Detail of a waterjet dredge systemDetail of a waterjet dredge system
Detail of a waterjet dredge systemDetail of a waterjet dredge system
Detail of a water laser pointerDetail of a water laser pointer
Detail of a waterjet rotating on an axis to cut tubeDetail of a waterjet rotating on an axis to cut tube
Idroline S Hydro-Abrasive Waterjet Cutting System image 14Idroline S Hydro-Abrasive Waterjet Cutting System image 14
IDROLINE S17302040
X Axis3000mm4000mm
Y Axis1700mm2000mm
Z Axis350mm350mm
B Axis+/- 60°v
Tubes 42>508mmTubes 42>508mm
R AxisLength Max 2570mmLength Max 2570mm
Weight Max 400kgWeight Max 400kg
Support Plane
Rest Surface3700 x 2050 mm4650 x 2050 mm
Over all Dimensions5700 x 2700 x 3700mm6400 x 3000 x 3800mm
Weight4000kg4500kg
  • Digital CNC communication with remote push-button panel
  • New Z axis strokes up to 350mm 3 axis, up to 250mm 5 axis and tube cutting up to 500mm
  • OSAI cnc with control panel to check the system’s main fuctional parameters
  • Stand grid plate
  • Electronic hopper for abrasive automatic monitoring with sensors for cutting parameters automatic control
  • Automatic hose reel
  • 330kg Abrasive Feeding System
  • 30/60 Hp Easy Pump Pressure Intensifer
  • 30/60/120 Hp Jetpower Evo Pressure Intensifer
  • Probe system for automatic adjustment of cutting head distance from the machine workpiece
  • Drilling Head
  • Laser pointer
  • Rotating axis for pipe processing
  • Setting device
  • EWL – Electronic Water Level gauge (max 100mm)
  • 5 axis cutting head with IKC technology
  • Anti-collision feeler pin
  • Pipe processing
  • 2000kg Abrasive Feeding System
