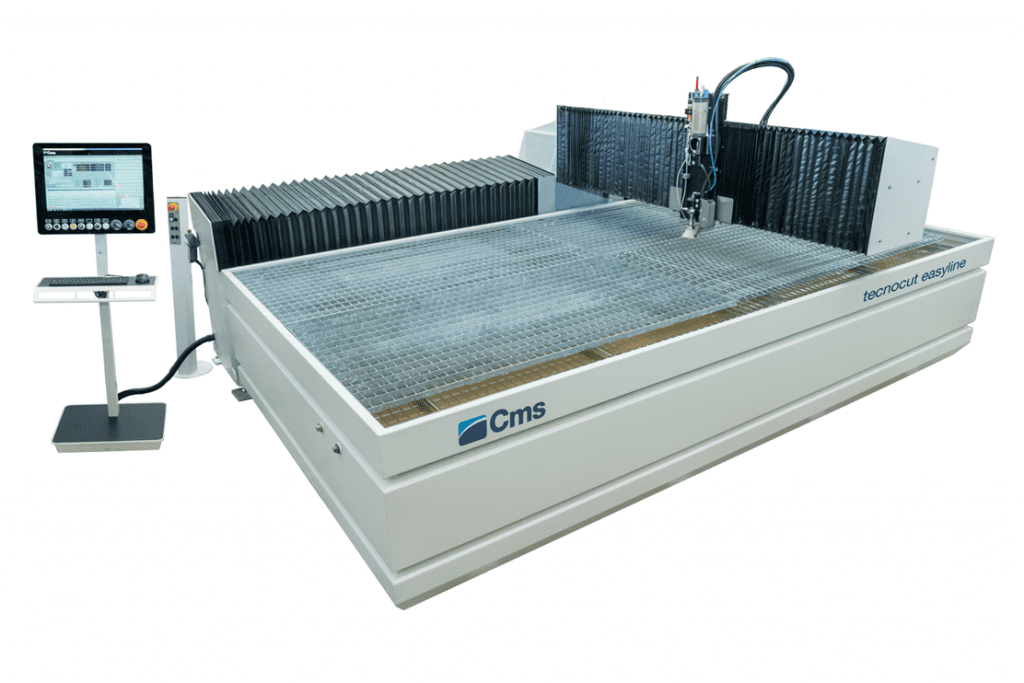

    The Easyline waterjet offers all customers an entry level accurate, cost effective waterjet cutting system. This system is capable of cutting a wide variety of materials using a very high pressure jet of water or a mixture of water and abrasive. Waterjet cutting is often used during fabrication of machine parts. It is the preferred method when the materials being cut are sensitive to the high temperatures generated by other methods. Waterjet cutting is used in various industries including mining and aerospace for cutting, shaping and reaming.

    Main view - CMS-Tecnocut-Easyline-Waterjet-Cutter

    Request a Quote

    (Close request a quote)







      Your Name *

      Email *

      Postcode *

      Company Name *

      Telephone No. *

      Your Message

      Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



      Your information will be held according to our privacy policy.

      UK Flag
      Alternatively call +44 (0)1432 346 580 for sales and support

      Main view - CMS-Tecnocut-Easyline-Waterjet-CutterMain view - CMS-Tecnocut-Easyline-Waterjet-Cutter
      Video thumbnail showing the Easyline Waterjet Cutter
      Easy Pump Pressure IntensifierEasy Pump Pressure Intensifier
      Jetpower EVO Pressure IntensifierJetpower EVO Pressure Intensifier
      Greenjet Evo IntensifierGreenjet Evo Intensifier
      Model1010202020402060
      Stockcode
      X axis1000mm2000mm4000mm6000mm
      Y axis1000mm2000mm2000mm2000mm
      Z axis220mm220mm220mm220mm
      Rest Surface1210 x 1225mm2210 x 2225mm4210 x 2225mm6210 x 2225mm
      Overall Dimensions1936 x 2393mm2936 x 3393mm4936 x 3393mm6936 x 3393mm

      Features

      • Mobile Console with Notebook PC
      • Accurate linear motion by rack and pinion, protected by heat welded bellows ensuring perfect tightness against water and dust
      • Automatic lubrication system
      • Cutting head equipped with touch feeler to adjust automatically the cutting head height
      • Working surfaces dedicated to different cutting applications
      • Cyclone abrasive removal system
      • Protection of the work area by light barriers
      • Cantilever with independent tank which allows an ease of access from the three open sides
      • 180kg Abrasive Feeding System

      Options

      • 30/60 Hp Easy Pump Pressure Intensifer
      • 30/60/120 Hp Jetpower Evo Pressure Intensifer
      • Xstream Pressure Intensifer
      • Laser pointer
      • Anti-collision feeler
      • Drilling Unit
      • Electronic Hopper
      • 330kg /2000kg Abrasive Feeding System
