    With a very low profile, the EDX EM12 Low Profile Magnetic Drilling Machine 110V can be used in spaces previously impossible to reach with conventional mag drills. Despite a total height of only 198mm, conventional 35mm length mag cutters can still be used – there’s no requirement for special cutters.

    Main view EDX-EM12-Low-Profile-Magnetic-Drilling-Machine-110V

    Request a Quote

    (Close request a quote)







      Your Name *

      Email *

      Postcode *

      Company Name *

      Telephone No. *

      Your Message

      Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



      Your information will be held according to our privacy policy.

      UK Flag
      Alternatively call +44 (0)1432 346 580 for sales and support

      Gallery & Video

      Main view EDX-EM12-Low-Profile-Magnetic-Drilling-Machine-110VMain view EDX-EM12-Low-Profile-Magnetic-Drilling-Machine-110V

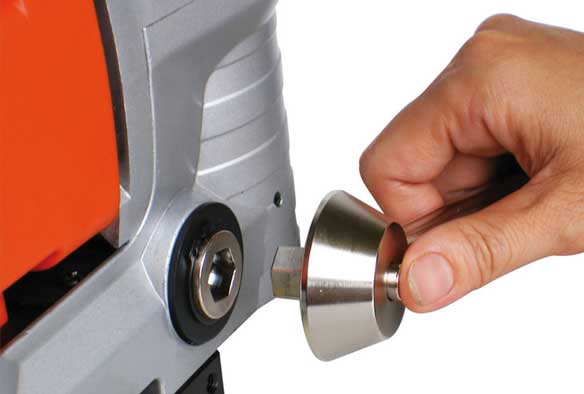

      Close up EDX-Low-Profile-Mag-Drill-Handle-DetailClose up EDX-Low-Profile-Mag-Drill-Handle-Detail

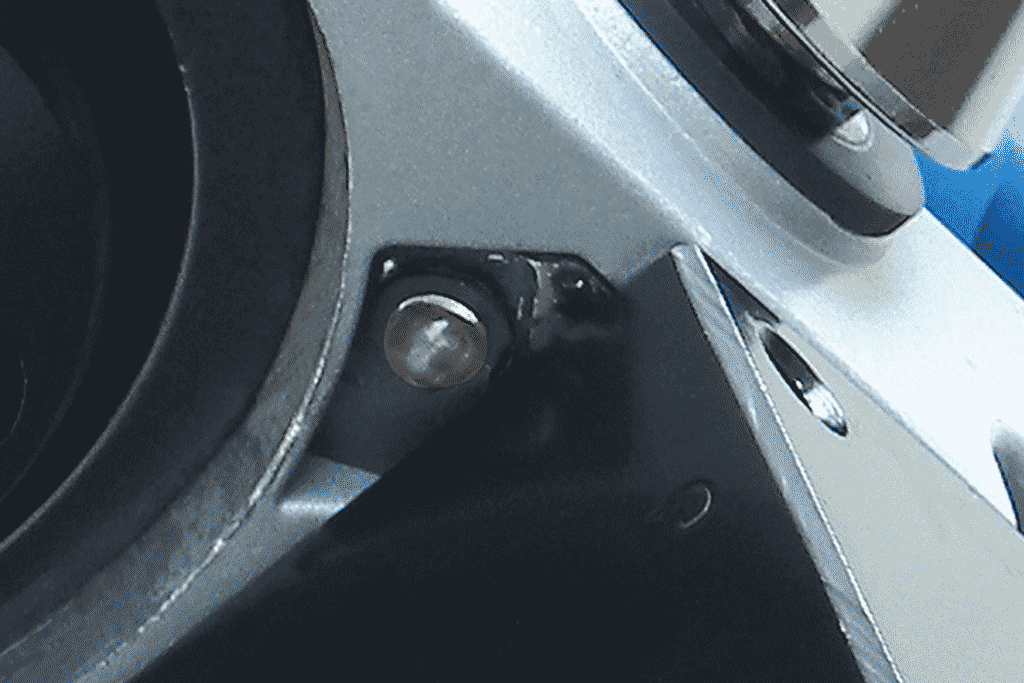

      Close up EDX-Low-Profile-Mag-Drill-LED-Light-DetailClose up EDX-Low-Profile-Mag-Drill-LED-Light-Detail
      EDX EM12 Low Profile Magnetic Drilling Machine 110V image 4EDX EM12 Low Profile Magnetic Drilling Machine 110V image 4
      EDX-Low-Profile-Mag-Drill-on-Steel-H-Beam-DetailEDX-Low-Profile-Mag-Drill-on-Steel-H-Beam-Detail

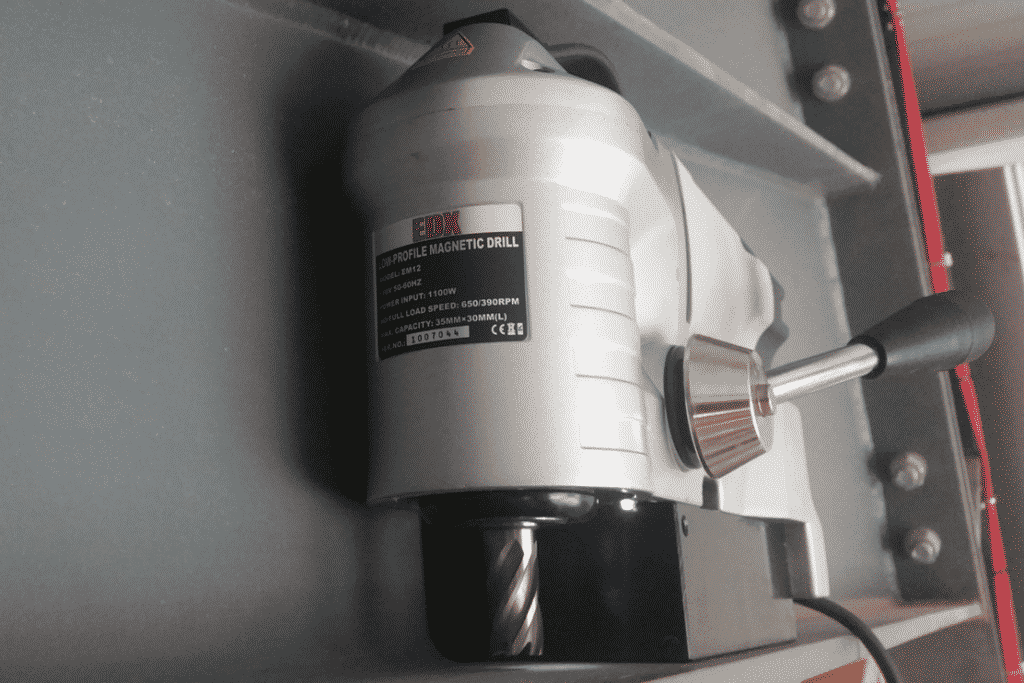

      EDX-Low-Profile-Mag-Drill-on-Steel-H-Beam-Detail-02EDX-Low-Profile-Mag-Drill-on-Steel-H-Beam-Detail-02

      Technical Specs

      MODEL LoPro35
      Clamping forcekgs1500
      MotorWatts1100
      Speedrpm390
      Lengthmm285
      Widthmm101
      Heightmm200
      Weightkg10
      Cutter Capacitymm35 x 30
      Strokemm–
      Twist Drill Capacitymm–
      Morse TaperNo–

      Features & Options

      Features

      • Max Capacity Diameter x Depth Of Cut : 35mm x 30mm
      • Weldon Shank : 19mm
      • Magnetic Adhesion : 15000N
      • Overload Protection

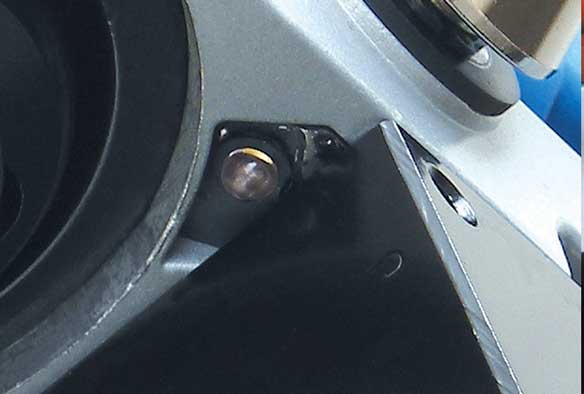

      • Work Light For Accurate Positioning
