BIG JURIJ Flat Steel Straightening Machines

The BIG JURIJ straightens via pressure on the material and prevents tensile stress. This ensures that the yield point is maintained and plastic deformation of the material will be avoided, with a throughput of up to 15 metres per minute. Just one person is required for operation of the machine.

The BIG JURIJ works with high precision and process reliability. Once the settings are specified, every flat bar of this batch will be consistently straightened. Thus, any helper can operate this flat steel straightening machine.

BIG JURIJ Flat Steel Straightening Machines imageBIG JURIJ Flat Steel Straightening Machines image
Video thumbnail showing the BIG JURIJ Flat Steel Straightening Machines
BIG JURIJ Flat Steel Straightening Machines image 3

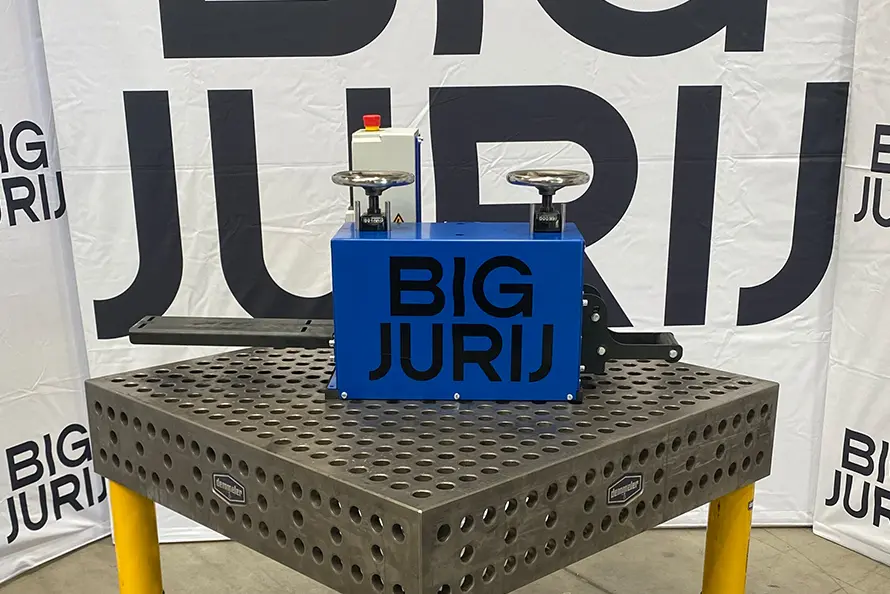

BIG JURIJ Mini
BIG JURIJ Flat Steel Straightening Machines image 3
BIG JURIJ Flat Steel Straightening Machines image 4BIG JURIJ Flat Steel Straightening Machines image 4
BIG JURIJ Flat Steel Straightening Machines image 5

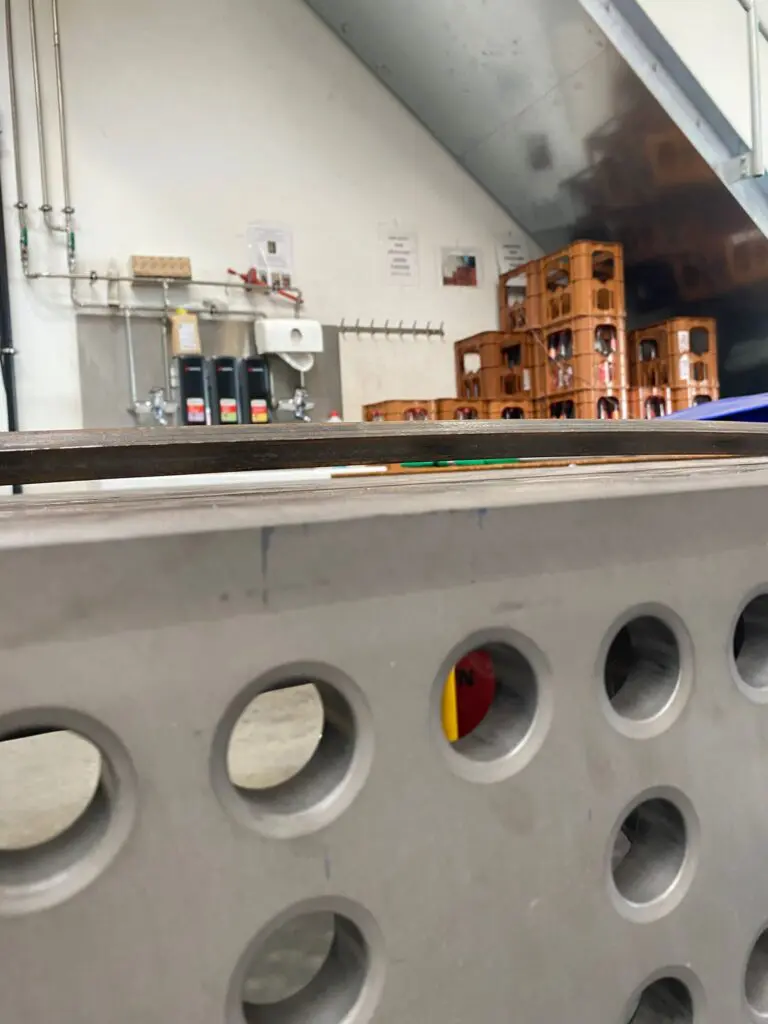

Bar [Before]
BIG JURIJ Flat Steel Straightening Machines image 5
BIG JURIJ Flat Steel Straightening Machines image 6
Bar [After]
BIG JURIJ Flat Steel Straightening Machines image 6
BIG JURIJ Flat Steel Straightening Machines image 7
Optional Grooved Roller for straightening round bar and square bar
BIG JURIJ Flat Steel Straightening Machines image 7
MODEL Capacities Mini S L XL
Material Length mm Min. 200 Min. 450 Min. 450 Min. 1200
Cross Section mm 20 x 5
to
60 x 12
30 x 5
to
60 x 12 / 50 x 15*
30 x 5
to
80 x 20*
30 x 6
to
300 x 30*
Connection Amp / V 16 / 400 16 / 400 16 / 400 16 / 400
Throughput Speed m/min 15 10 10 0 – 15
Length mm 540 1200 1200 1200
Width mm 510 800 800 1500
Height mm 490 800 800 2000
Weight kg 180 315 680 3,500

Features

  • Heavy Duty
  • Impressive Capacities
  • Up to 15ms per minute throughput
  • 4 Sizes available
  • Up to 300 x 30mm dimensions
  • Handles pieces as long as required, only limited by space for in-feed and out-feed!

Options

  • Grooved rollers for straightening round and square bar

The BIG JURIJ straightens via pressure on the material and prevents tensile stress. This ensures that the yield point is maintained and plastic deformation of the material will be avoided, with a throughput of up to 10 metres per minute. Just one person is required for operation of the machine.

The BIG JURIJ works with high precision and process reliability. Once the settings are specified, every flat bar of this batch will be consistently straightened. Thus, any helper can operate this
flat steel straightening machine.
