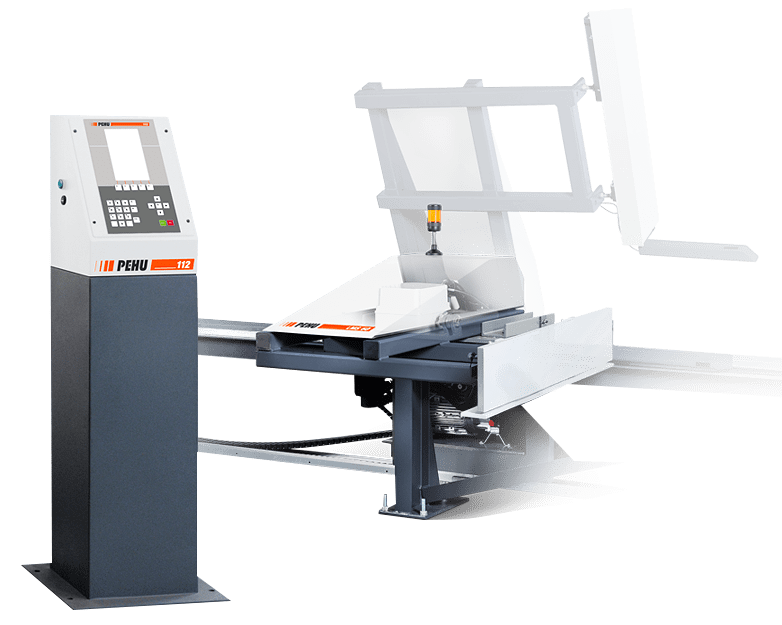

PEHU LMS 60 Automatic Measuring System with Digital Readout
The PEHU LMS60 is a robust and highly capable automatic measuring system, engineered for heavy-duty applications where strength, accuracy, and automation are key. Operators input the required stop positions into the NC control, and the LMS60 carries out the programme with reliable, high-speed precision. It can be paired with various machinery, including saws, drills, punching machines, and steelworkers.
Positioned above the LMS30 and LMS45, the LMS60 offers greater capacity and advanced automation features, making it an excellent choice for high-volume or industrial environments. The range also includes the heavy-duty LMS80, and the manual LMS15 – which can be upgraded with a controller for a flexible, entry-level automation solution.
| MODEL | Servo Control | Measuring Operation | Flip-Up Stop Operation | Set-Up | Width | Base Length | Additional Lengths | Positioning Accuracy | Positioning Speed |
| mm | mm | m | mm | m/min | |||||
| PEHU LMS15-04 | N/A – Manual | Manual + DRO | Manual | Attaches to existing roller track system | 350 | 4,000 (3.6m working length) | +1m per length | +/- 0.2 mm | Manual |
| PEHU LMS15-04 + 112S (3.3) | 112S 3.3Nm Servo Control | Semi-Automatic (Stroke Control) | Manual | Attaches to existing roller track system | 350 | 4,000 (3.6m working length) | +1m per length | +/- 0.2 mm | Manual |
| PEHU LMS30-04 + 112S (3.3) | 112S 3.3Nm Servo Control | Semi-Automatic (Stroke Control) | Manual | Attaches to existing roller track system | 350 | 4,000 (3.6m working length) | +1m per length | +/- 0.1 mm | +/- 40 |
| PEHU LMS30-04 + 112 (3.3) | 112 3.3Nm Servo Control | Fully Automatic | Manual | Attaches to existing roller track system | 350 | 4,000 (3.6m working length) | +1m per length | +/- 0.1 mm | +/- 40 |
| PEHU LMS45-04 + 112S (3.3) | 112S 3.3Nm Servo Control | Semi-Automatic (Stroke Control) | Manual | Attaches to existing roller track system | 630 | 4,000 (3.6m working length) | +1m per length | +/- 0.1 mm | +/- 40 |
| PEHU LMS45-04 + 112 (3.3) | 112 3.3Nm Servo Control | Fully Automatic | Manual | Attaches to existing roller track system | 630 | 4,000 (3.6m working length) | +1m per length | +/- 0.1 mm | +/- 40 |
| PEHU LMS45-04 + 112 (5.0) | 112 5.0Nm Servo Control | Fully Automatic | Manual | Attaches to existing roller track system | 630 | 4,000 (3.6m working length) | +1m per length | +/- 0.1 mm | +/- 40 |
| PEHU LMS60-06 | 112 5.0Nm Servo Control | Fully Automatic | Hydraulic / Electric | Integrated into a seperate dedicated frame | 830 | 6,000 (4.5m working length) | +1m per length | +/- 0.1 mm | +/- 40 |
| PEHU LMS80-06 | 112 5.0Nm Servo Control | Fully Automatic | Hydraulic / Electric | Integrated into a seperate dedicated frame | 1,100 | 6,000 (4.5m working length) | +1m per length | +/- 0.1 mm | +/- 40 |
Features
- Lengths: base 6 m (4.5 m working length), can be extended per meter
- Stop: hydraulic-electric folding
- Position/repeat accuracy: ± 0.1 mm
- Position speed: ± 40 m/min (depending on gearbox)
- Mounting: free-standing frame
- Coating: textured powder coating RAL 7016 (dark grey) RAL 9006 (light grey)
Options
- Manual or powered flip up stop to allow cutting of longer material
- Pneumatic or hydraulic gripper or material clamp on the feeder unit
- Material Stop Warning Lamp
- Control Display in Arm
- Interconnection Kit (Used for linking the PEHU system with the machine it is paired with for further automation)
- Extension Kits for PEHU Rail
- Gravity or powered roller track to suit
- Light Guard Safety System
PEHU LMS30 to LMS80 Length Measuring Systems
The PEHU LMS30 to LMS80 range comprises advanced powered measuring systems, configurable as either auto-measuring or auto-feeding systems. These solutions enhance productivity by automating material positioning tasks. Operators simply enter the required stop positions via the NC control, and the system will automatically execute the program sequence until completion.
These systems can be configured for use with saws, drills, steelworkers, or punching machines, and offer varying levels of capacity, automation, and control depending on the chosen model.
PEHU LMS30 – For Light to Medium-Duty Workflows
- Ideal for sawing, drilling, punching, and shearing machines
- Can be positioned to the left or right of the machine
- Standard: 4m angle line with 30mm linear guide, extendable
- Stop carriage with backlash-free linear guides and manual folding stop
- Compatible with existing roller conveyors
Controls:
- Standard: PEHU 112S – 3.3 Nm semi-automatic servo control
- Optional: PEHU 112 – 3.3 Nm fully automatic push-up control
PEHU LMS45 – Step Up to Medium & Heavy-Duty Material Handling
- Suitable for use with sawing, drilling, punching, and shearing machines
- Mountable on either side of the machine
- Standard: 4m angle line with 45mm linear guide, extendable
- Stop carriage with two linear guides and manual folding stop
- Easy mounting to existing roller conveyors
Controls:
- Standard: PEHU 112S – 3.3 Nm semi-automatic control
- Optional: PEHU 112 – 3.3 Nm or 5.0 Nm fully automatic control
PEHU LMS60 – Heavy-Duty Accuracy for Demanding Environments
- Designed for high-accuracy positioning in heavy-duty industries
- Works on both sides of sawing machines
- Built on a robust UNP frame
- Supplied with hydraulic or electric folding stop
- Includes sensors to slow roller conveyors and confirm stop engagement
Controls:
- Standard: PEHU 112 – 5.0 Nm servo control
- Used as a 1-axis point-to-point stop system
PEHU LMS80 – Unmatched Strength for Industrial Giants
- Ideal for extremely heavy materials requiring precise positioning
- Works on either side of the sawing machine
- Includes heavy-duty UNP frame and servo-controlled folding stop
- Equipped with sensors for conveyor control and visual confirmation
Controls:
- Standard: PEHU 112 – 5.0 Nm servo control
- 1-axis NC point-to-point operation for optimal accuracy
Optional Extras
PEHU Extension:
All systems are extendable by the metre. Each extension includes:
- Special powder-coated angle line (Ral 7016)
- Linear rail, rack, cable duct and carrier
PEHU Automatic Folding Stop:
- Standard manual folding stop (LMS15/30/45)
- Gas spring assist available for LMS15/30/45
- Electric folding stop available for LMS45
- Hydraulic/electric folding stop standard on LMS60/80
PEHU Material Stop Light:
- Lights up when material contacts the stop – helpful for long lengths
PEHU Material Clamp:
- Prevents rolling during pushing
- Adjustable width with manual, pneumatic, or hydraulic options
PEHU Control Display in Arm:
- Adjustable-angle display on hinged mount
- Max 8m cable length from control cabinet
PEHU Interconnection Kit:
- Enables communication between the PEHU system and processing machine
- Converts semi-automatic to fully automatic operation or automates manual machines
