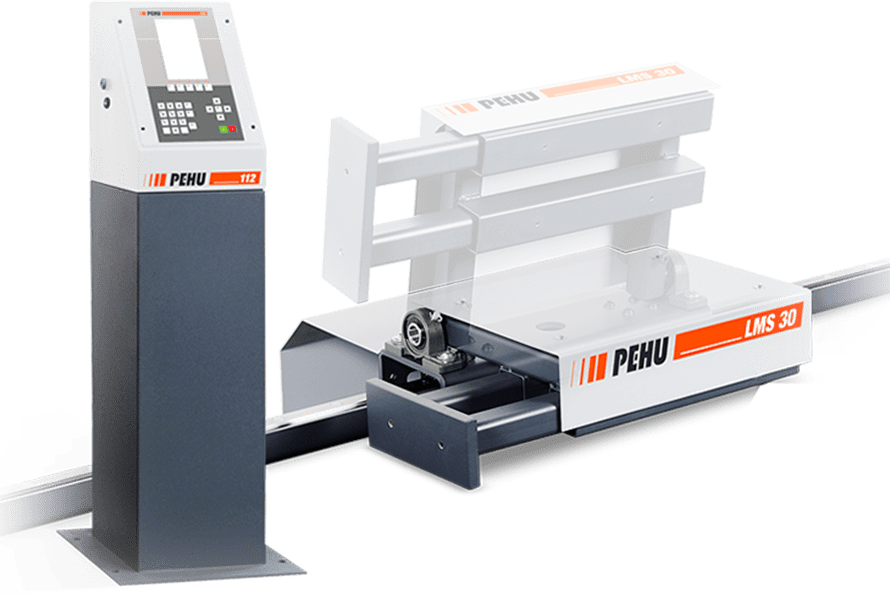

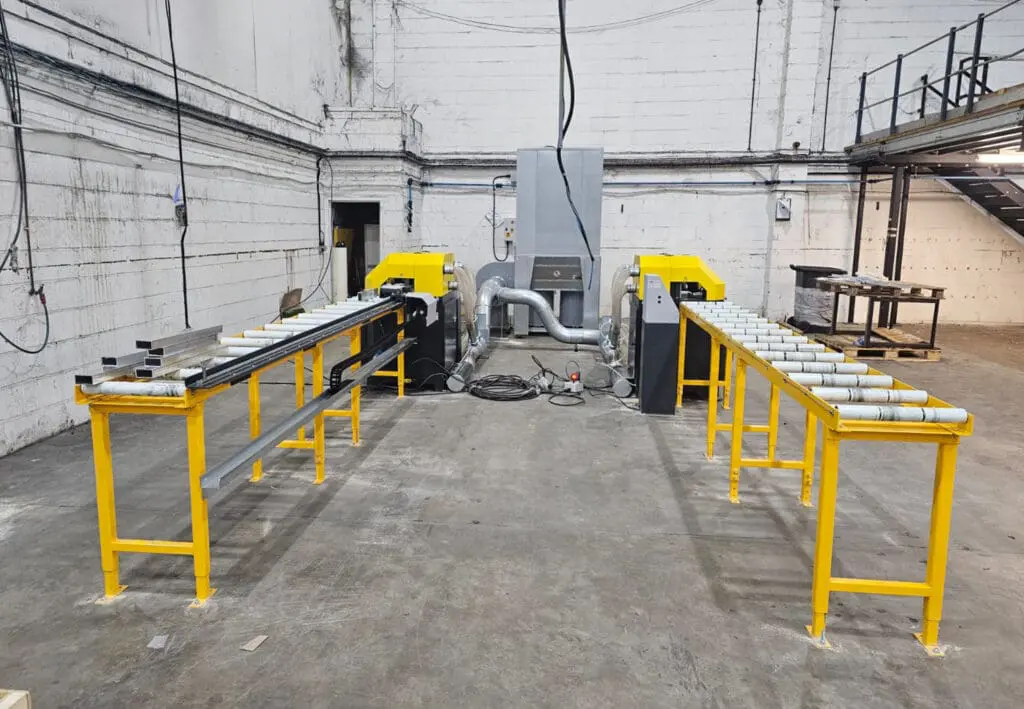

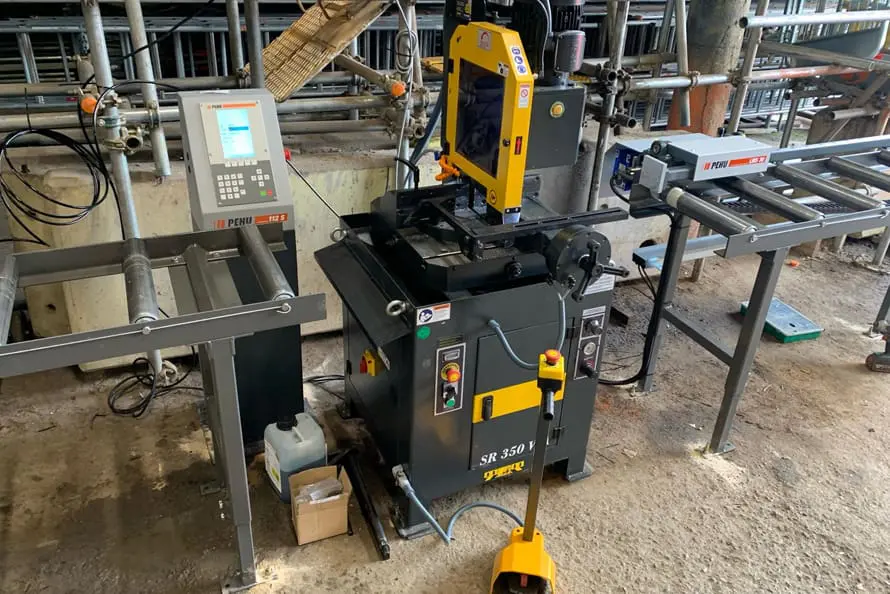

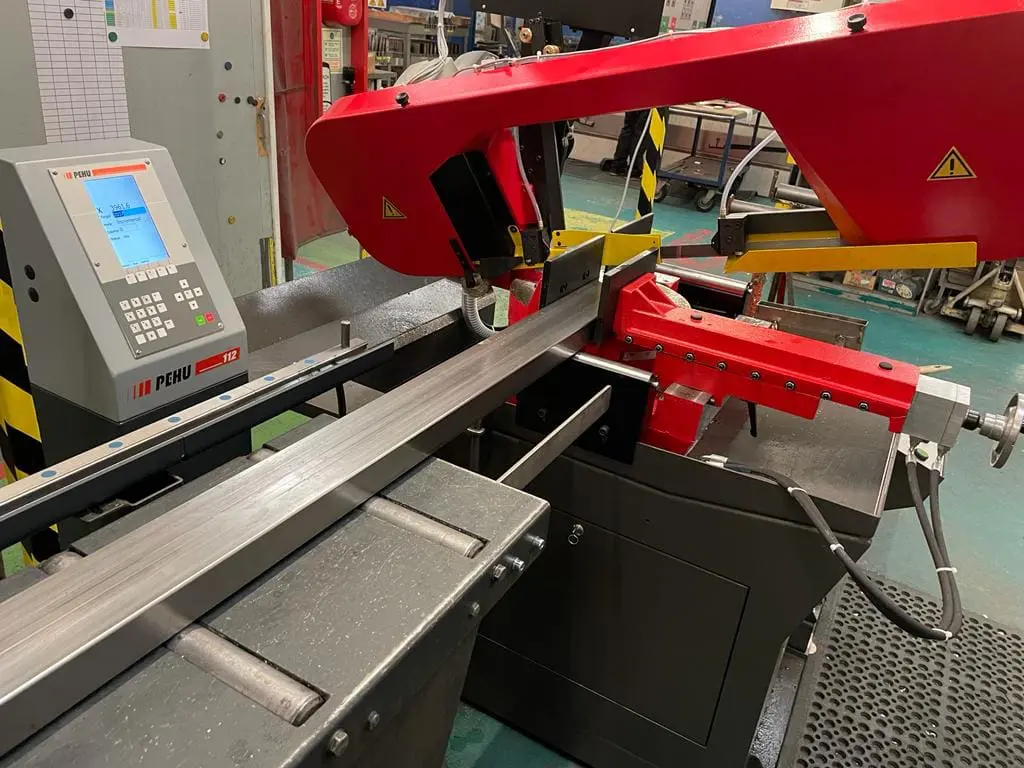

PEHU LMS 30 Automatic Measuring System with Digital Readout
The PEHU LMS30 is a versatile powered measuring system, designed for both automatic measuring and feeding. Operators simply enter the required stop positions into the NC control, and the system executes the programme with precision and ease. It can be configured to work with a wide range of machinery, including saws, drills, punching machines, and steelworkers.
For larger or more demanding applications, the LMS45, LMS60, and LMS80 models offer increased capacity and enhanced automation options. The range also includes the manual LMS15, which can be upgraded with a controller for automatic measuring – providing a flexible entry point into automation.
| MODEL | Servo Control | Measuring Operation | Flip-Up Stop Operation | Set-Up | Width | Base Length | Additional Lengths | Positioning Accuracy | Positioning Speed |
| mm | mm | m | mm | m/min | |||||
| PEHU LMS15-04 | N/A – Manual | Manual + DRO | Manual | Attaches to existing roller track system | 350 | 4,000 (3.6m working length) | +1m per length | +/- 0.2 mm | Manual |
| PEHU LMS15-04 + 112S (3.3) | 112S 3.3Nm Servo Control | Semi-Automatic (Stroke Control) | Manual | Attaches to existing roller track system | 350 | 4,000 (3.6m working length) | +1m per length | +/- 0.2 mm | Manual |
| PEHU LMS30-04 + 112S (3.3) | 112S 3.3Nm Servo Control | Semi-Automatic (Stroke Control) | Manual | Attaches to existing roller track system | 350 | 4,000 (3.6m working length) | +1m per length | +/- 0.1 mm | +/- 40 |
| PEHU LMS30-04 + 112 (3.3) | 112 3.3Nm Servo Control | Fully Automatic | Manual | Attaches to existing roller track system | 350 | 4,000 (3.6m working length) | +1m per length | +/- 0.1 mm | +/- 40 |
| PEHU LMS45-04 + 112S (3.3) | 112S 3.3Nm Servo Control | Semi-Automatic (Stroke Control) | Manual | Attaches to existing roller track system | 630 | 4,000 (3.6m working length) | +1m per length | +/- 0.1 mm | +/- 40 |
| PEHU LMS45-04 + 112 (3.3) | 112 3.3Nm Servo Control | Fully Automatic | Manual | Attaches to existing roller track system | 630 | 4,000 (3.6m working length) | +1m per length | +/- 0.1 mm | +/- 40 |
| PEHU LMS45-04 + 112 (5.0) | 112 5.0Nm Servo Control | Fully Automatic | Manual | Attaches to existing roller track system | 630 | 4,000 (3.6m working length) | +1m per length | +/- 0.1 mm | +/- 40 |
| PEHU LMS60-06 | 112 5.0Nm Servo Control | Fully Automatic | Hydraulic / Electric | Integrated into a seperate dedicated frame | 830 | 6,000 (4.5m working length) | +1m per length | +/- 0.1 mm | +/- 40 |
| PEHU LMS80-06 | 112 5.0Nm Servo Control | Fully Automatic | Hydraulic / Electric | Integrated into a seperate dedicated frame | 1,100 | 6,000 (4.5m working length) | +1m per length | +/- 0.1 mm | +/- 40 |
Features

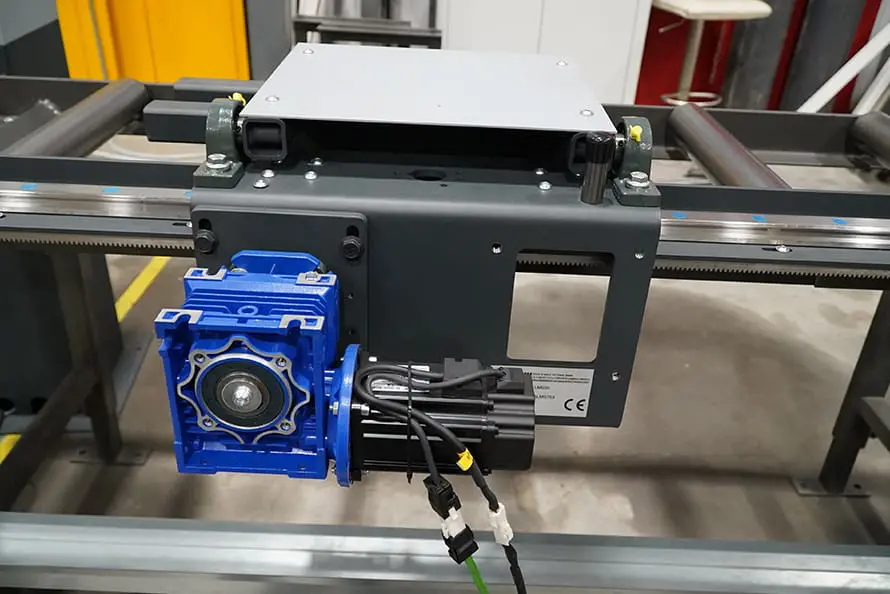

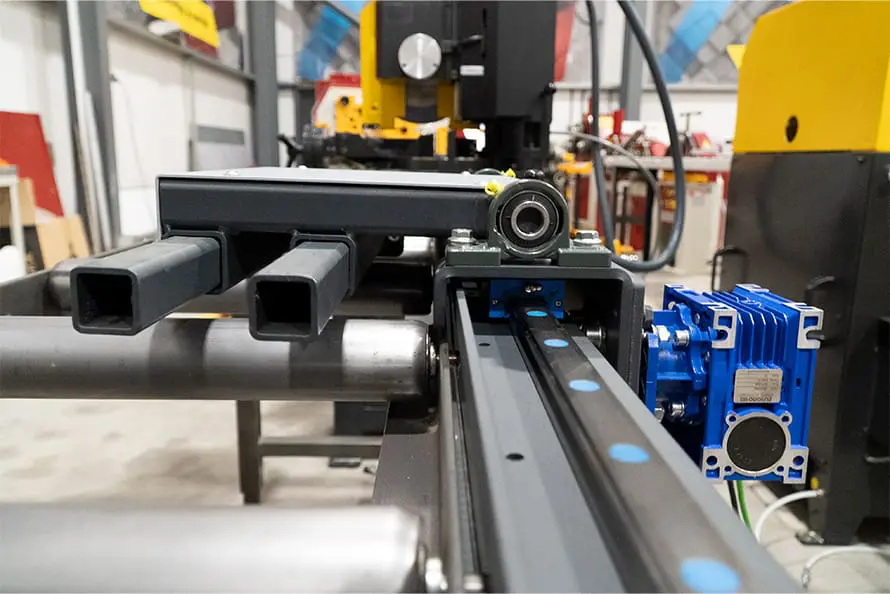

- Servo-Controlled Stop Carriage: Equipped with a 3.3 Nm servo motor and rotary encoder, ensuring precise positioning and repeatability of ±0.1 mm

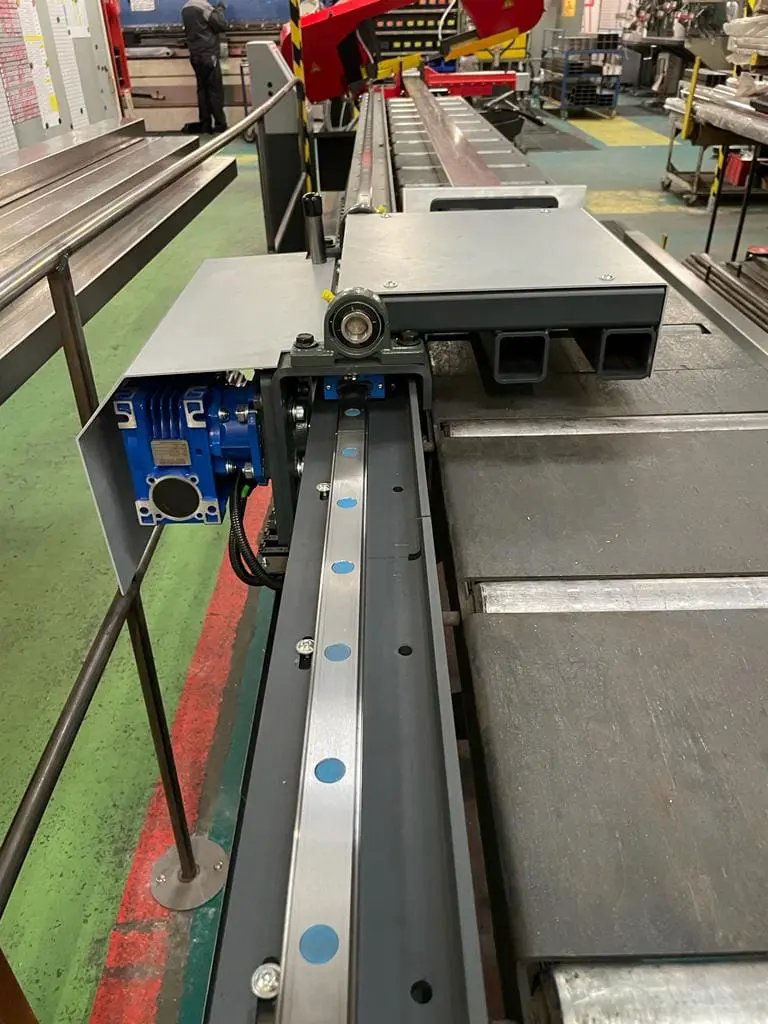

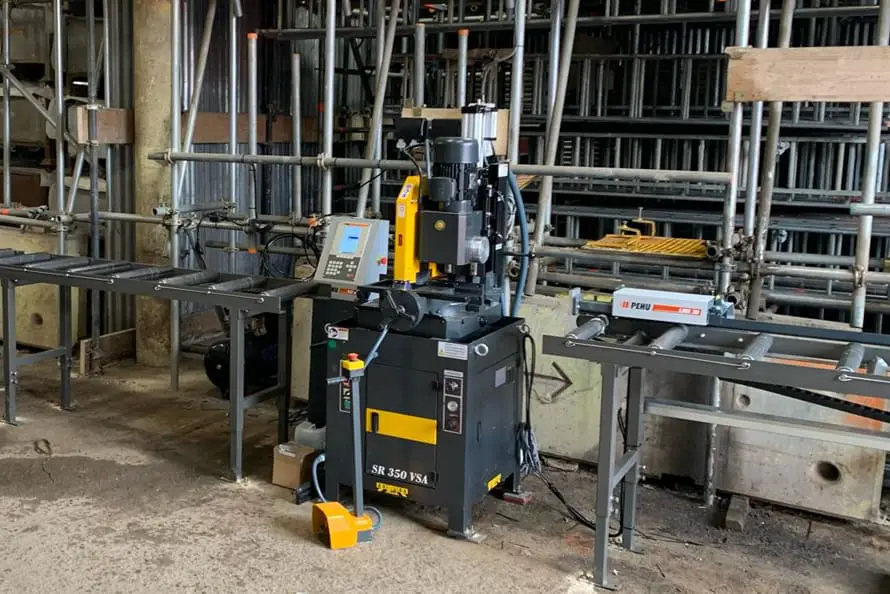

- Linear Guidance System: Utilises a precision linear rail for smooth and accurate stop movement
- Digital Readout: Displays the stop position clearly, facilitating easy operation
- Programmable NC Control: Allows the operator to input required stop positions, with the system automatically executing the program
- Manual Flip-Up Stop: Standard feature enabling the cutting of longer materials
- Modular Design: Standard base length of 4,000 mm (3.6 m working length), extendable in 1,000 mm increments
- Mounting Compatibility: Can be mounted on either side of a machine tool and is compatible with new or existing roller conveyors
Options
- Powered Flip-Up Stop: Facilitates the handling of longer materials
- Material Clamps: Available in pneumatic or hydraulic variants to secure materials during processing
- Material Stop Warning Lamp: Provides a visual indicator when material contacts the stop
- Control Display in Arm: Offers flexible positioning of the control interface for operator convenience
- Interconnection Kit: Enables integration with processing machines for enhanced automation
- Extension Kits: Allow for the extension of the PEHU rail to accommodate longer materials
- Roller Tracks: Available in gravity or powered configurations to suit specific requirements

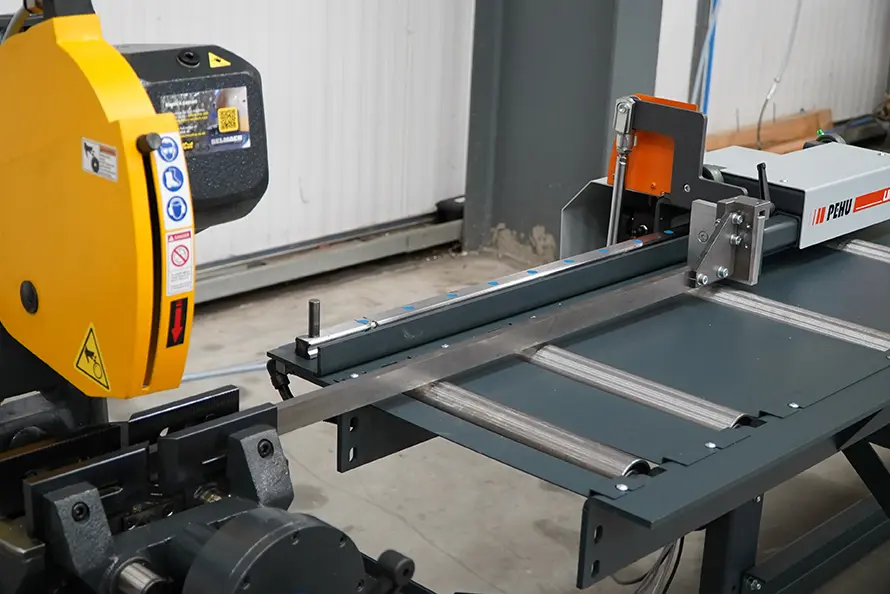

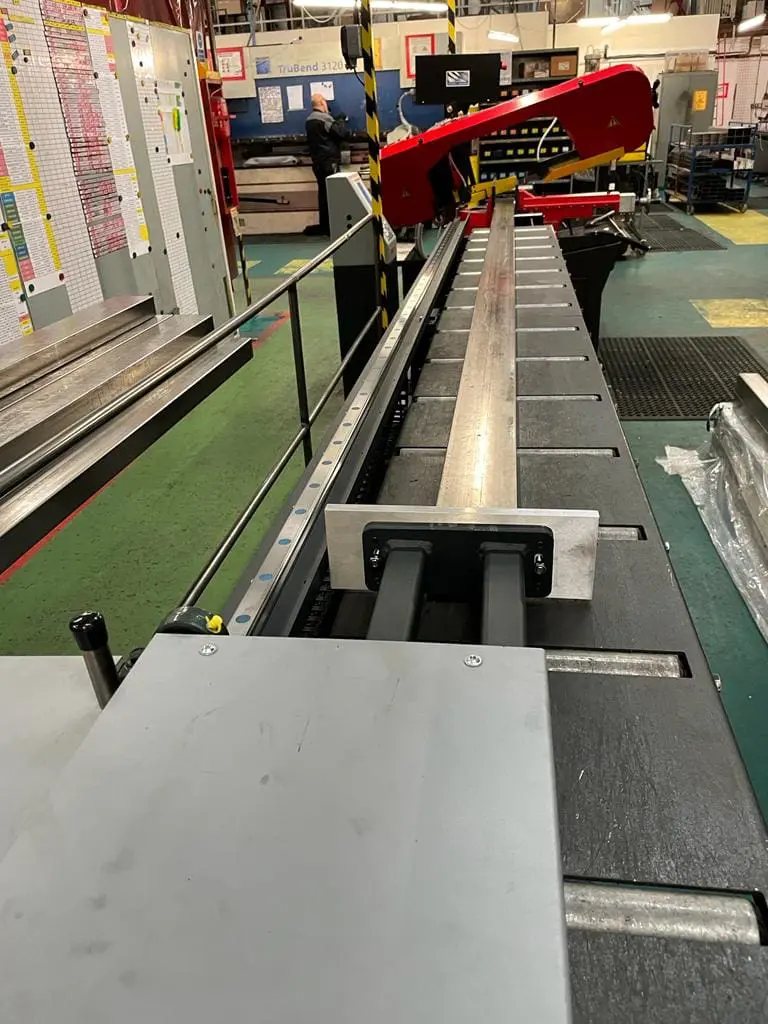

- 1000mm Steel Finger: Extend the stop past your roller track for smaller parts cutting (can be cut down to suit)
- 1600mm Steel Finger: Extend the stop past your roller track for smaller parts cutting (can be cut down to suit)
- Hold-to-run Safety System: For ultimate user safety, a hold-to-run safety system ensures your hands / operator are always out of the way.

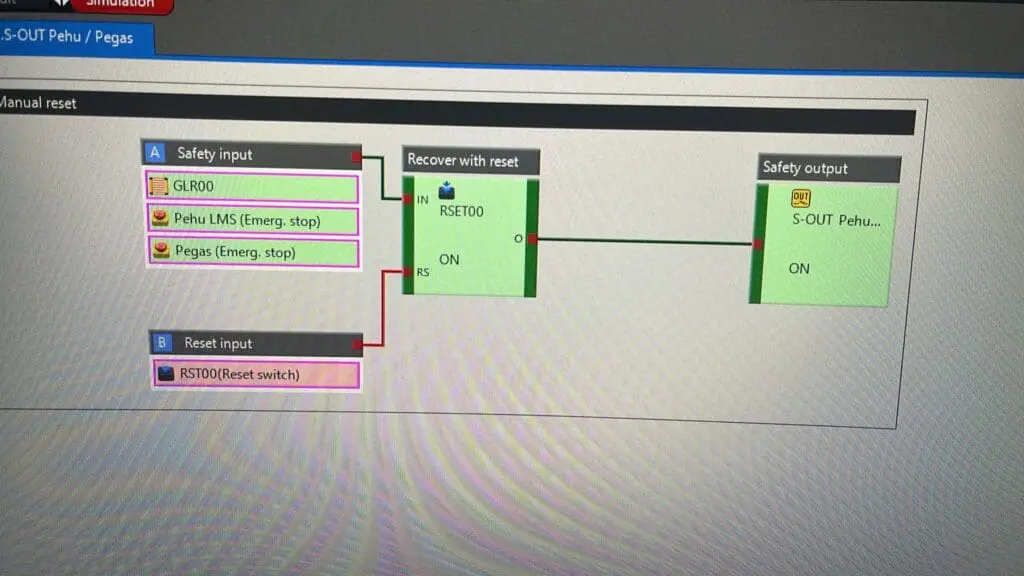

- Light Guard Safety System: Enhances operator safety during machine operation
PEHU LMS30 to LMS80 Length Measuring Systems
The PEHU LMS30 to LMS80 range comprises advanced powered measuring systems, configurable as either auto-measuring or auto-feeding systems. These solutions enhance productivity by automating material positioning tasks. Operators simply enter the required stop positions via the NC control, and the system will automatically execute the program sequence until completion.

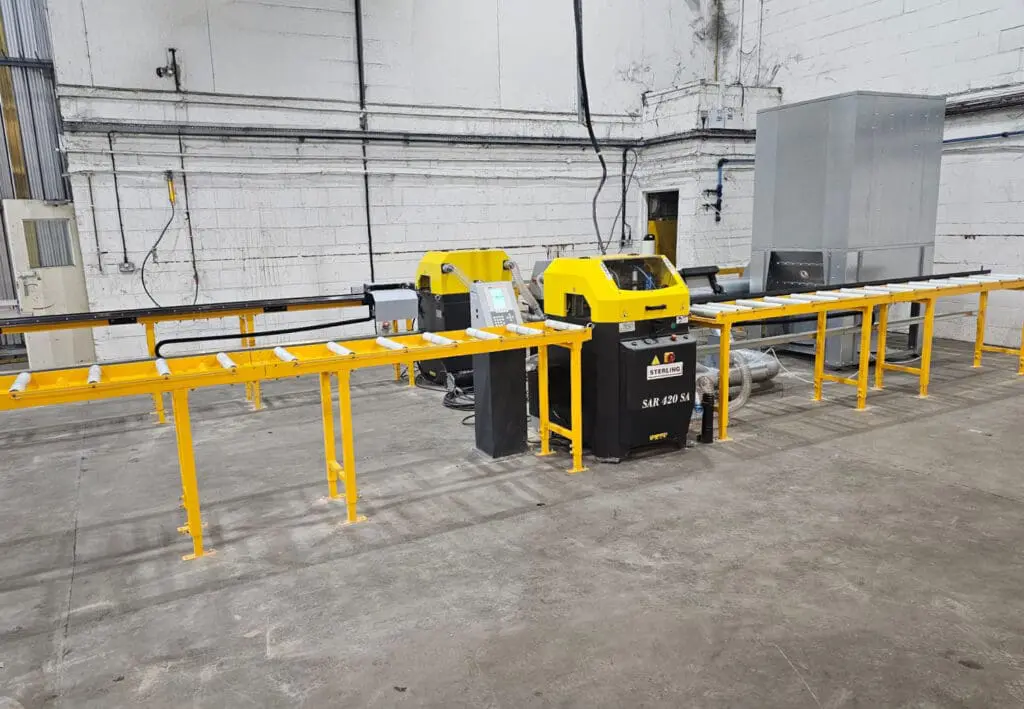

These systems can be configured for use with saws, drills, steelworkers, or punching machines, and offer varying levels of capacity, automation, and control depending on the chosen model.

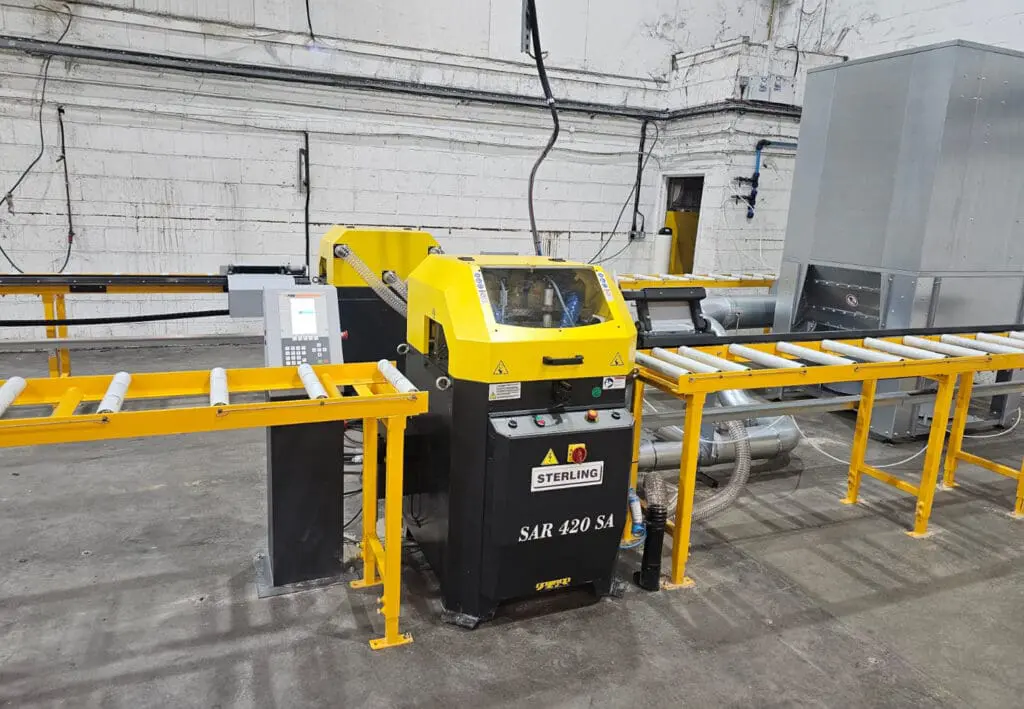

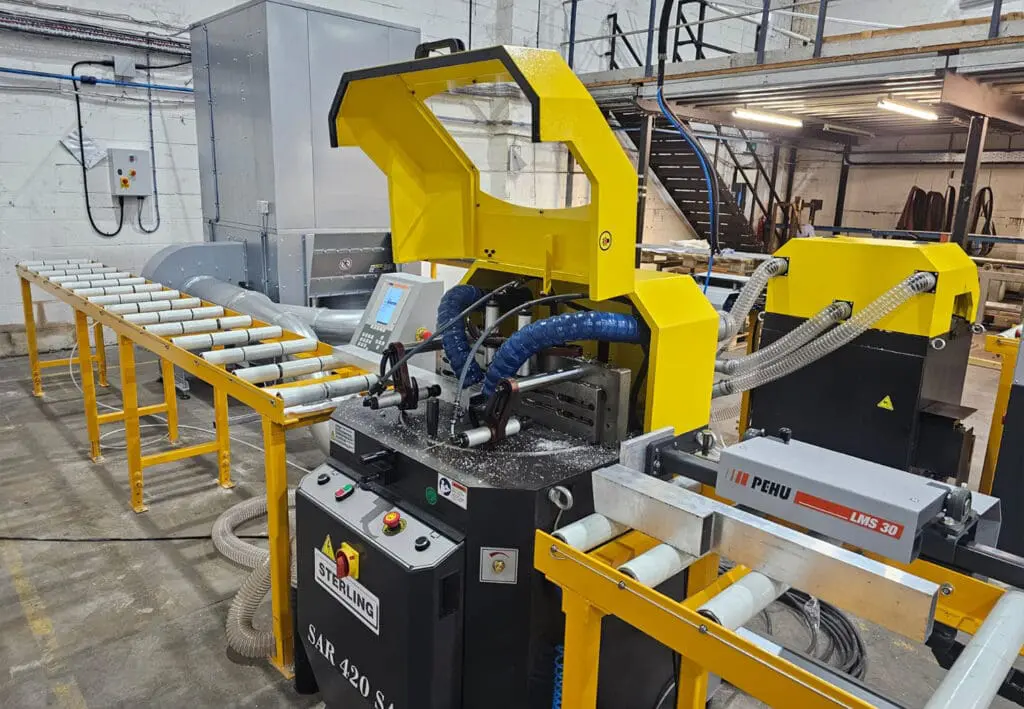

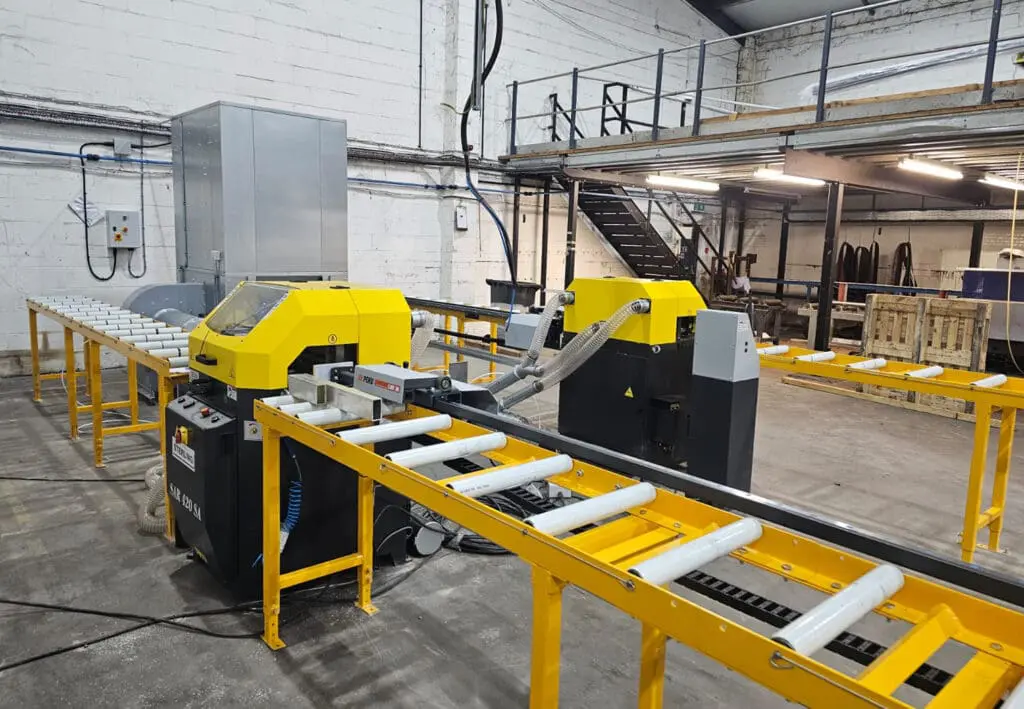

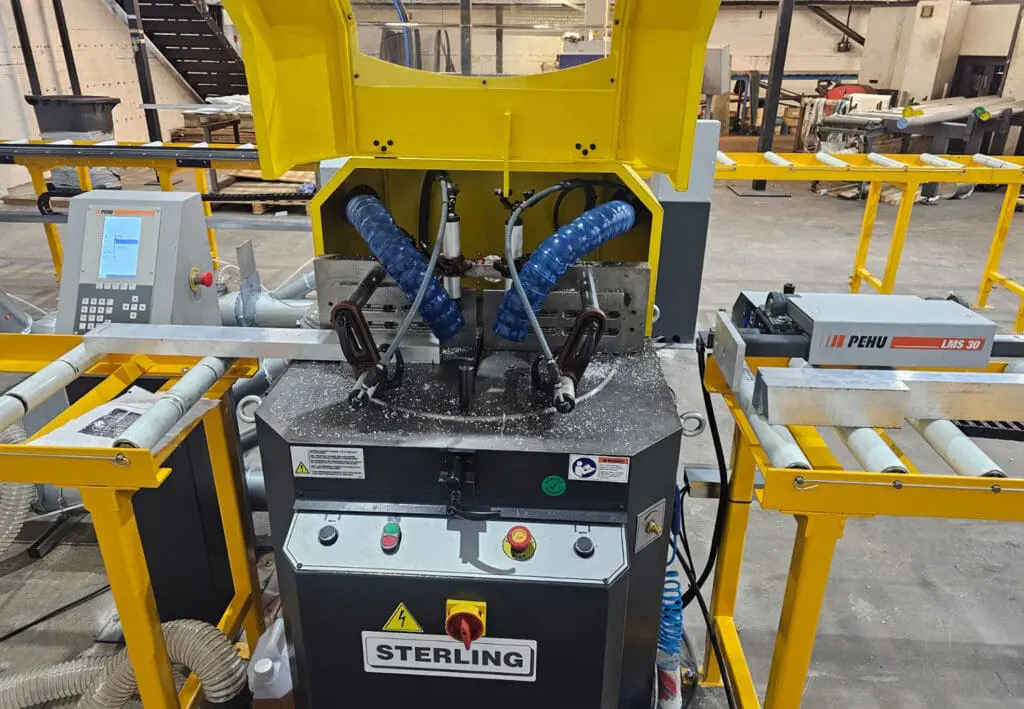

PEHU LMS30 – For Light to Medium-Duty Workflows
- Ideal for sawing, drilling, punching, and shearing machines
- Can be positioned to the left or right of the machine
- Standard: 4m angle line with 30mm linear guide, extendable
- Stop carriage with backlash-free linear guides and manual folding stop
- Compatible with existing roller conveyors
Controls:

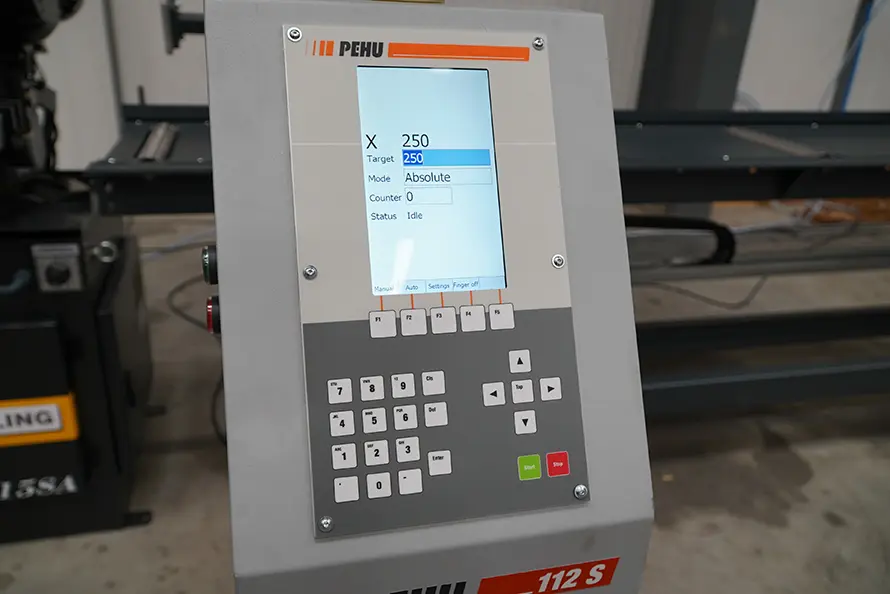

- Standard: PEHU 112S – 3.3 Nm semi-automatic servo control
- Optional: PEHU 112 – 3.3 Nm fully automatic push-up control
PEHU LMS45 – Step Up to Medium & Heavy-Duty Material Handling
- Suitable for use with sawing, drilling, punching, and shearing machines
- Mountable on either side of the machine
- Standard: 4m angle line with 45mm linear guide, extendable
- Stop carriage with two linear guides and manual folding stop
- Easy mounting to existing roller conveyors
Controls:
- Standard: PEHU 112S – 3.3 Nm semi-automatic control
- Optional: PEHU 112 – 3.3 Nm or 5.0 Nm fully automatic control
PEHU LMS60 – Heavy-Duty Accuracy for Demanding Environments
- Designed for high-accuracy positioning in heavy-duty industries
- Works on both sides of sawing machines
- Built on a robust UNP frame
- Supplied with hydraulic or electric folding stop
- Includes sensors to slow roller conveyors and confirm stop engagement
Controls:
- Standard: PEHU 112 – 5.0 Nm servo control
- Used as a 1-axis point-to-point stop system
PEHU LMS80 – Unmatched Strength for Industrial Giants
- Ideal for extremely heavy materials requiring precise positioning
- Works on either side of the sawing machine
- Includes heavy-duty UNP frame and servo-controlled folding stop
- Equipped with sensors for conveyor control and visual confirmation
Controls:
- Standard: PEHU 112 – 5.0 Nm servo control
- 1-axis NC point-to-point operation for optimal accuracy
Optional Extras
PEHU Extension:
All systems are extendable by the metre. Each extension includes:
- Special powder-coated angle line (Ral 7016)
- Linear rail, rack, cable duct and carrier
PEHU Automatic Folding Stop:
- Standard manual folding stop (LMS15/30/45)
- Gas spring assist available for LMS15/30/45
- Electric folding stop available for LMS45
- Hydraulic/electric folding stop standard on LMS60/80
PEHU Material Stop Light:
- Lights up when material contacts the stop – helpful for long lengths
PEHU Material Clamp:
- Prevents rolling during pushing
- Adjustable width with manual, pneumatic, or hydraulic options
PEHU Control Display in Arm:
- Adjustable-angle display on hinged mount
- Max 8m cable length from control cabinet
PEHU Interconnection Kit:
- Enables communication between the PEHU system and processing machine
- Converts semi-automatic to fully automatic operation or automates manual machines
You may also like…
Frequently Asked Questions
What is the PEHU LMS 30 automatic measuring system designed to do?
The PEHU LMS 30 uses a servo-controlled stop carriage to position material accurately for repeated sawing, drilling or punching operations. Depending on the controller and integration, it can be configured for semi-automatic measuring or fully automatic positioning and feeding.
What working length is available on the PEHU LMS 30?
The published LMS30-04 has a 4,000mm base length and approximately 3,600mm working length. Extension sections are available in 1m increments for longer measuring requirements.
What positioning accuracy does the PEHU LMS 30 offer?
Selmach lists ±0.1mm positioning accuracy for the LMS 30. This refers to the positioning system; finished-part tolerances also depend on the cutting or processing machine and material handling.
What is the difference between the LMS 30 semi-automatic and fully automatic controls?
The LMS30-04 with PEHU 112S 3.3Nm control is listed as semi-automatic stroke control, while the PEHU 112 3.3Nm configuration is listed as fully automatic. Confirm whether you need a stop-only arrangement or a linked feeding sequence before ordering.
Can the PEHU LMS 30 work with a bandsaw or circular saw?
Yes. Selmach describes the LMS 30 as suitable for integration with saws and other processing machines. Compatibility depends on the saw, conveyor, safety arrangement and any interconnection kit required for the chosen automation level.
Does the PEHU LMS 30 include roller track?
Roller track is available separately. The LMS 30 can be fitted to a suitable existing conveyor, or Selmach can help specify an infeed or outfeed track to match the machine and material being handled.
What should operators check to keep the LMS 30 accurate?
Keep the linear guide, rack and stop face free from swarf and damage; inspect the travel path and check the stop position against a known dimension. Follow PEHU guidance for servo faults, calibration and maintenance.
Is a Selmach Service Plan available for the PEHU LMS 30?
Ask Selmach about servicing and whether the LMS 30 and its associated processing machine can be covered under an appropriate Service Plan. Confirm that the quotation includes the measuring system, controller and any integrated safety equipment.
