Nargesa MT Scrollmaker

The Nargesa twisting and bending machines have been designed to coldbend and twist components for the decorative and ornamental ironwork industry. A comprehensive tooling package to enable bar twisting, bar bending and rope braiding is standard with each machine. Optional attachments for tube bending and bow top fencing are available. The quick tool change system ensures minimum down time providing maximum efficiency. The programmable models ensure job repeat-ability for consistent bending and twisting requirements.

Request a Quote






Your Name *

Email *

Postcode *

Company Name *

Telephone No. *

Your Message

Tick to join our mailing list and receive special offers, machinery and industry news articles. You can unsubscribe at any time.



Your information will be held according to our privacy policy.

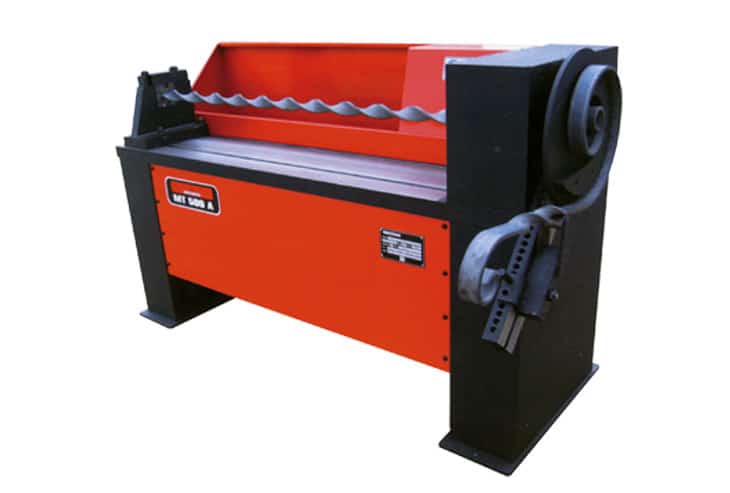

ScrollmakerScrollmaker
Nargesa MT500A Automatic Scrollmaker 415v Control PanelNargesa MT500A Automatic Scrollmaker 415v Control Panel
Nargesa Scrollmaker - TwistingNargesa Scrollmaker - Twisting
Nargesa Scrollmaker - ScrollsNargesa Scrollmaker - Scrolls
Nargesa Scrollmaker - CirclesNargesa Scrollmaker - Circles
Nargesa Scrollmaker - BendingNargesa Scrollmaker - Bending
Nargesa Scrollmaker - BraidingNargesa Scrollmaker - Braiding
Nargesa Scrollmaker 415VNargesa Scrollmaker 415V
MODELMT150AMT150RMT500A
Twisting Bar – Rectangle:35 x 8mm35 x 8mm50 x 10mm
Twisting Bar – Square:20mm20mm40mm
Scrolls – Rectangle40 x 10mm to 120 OD / 40 x 10mm to 220 OD40 x 10mm to 120 OD / 40 x 10mm to 220 OD40 x 10mm to 120 OD / 40 x 10mm to 220 OD / 50 x 10mm to 450 OD
Scrolls – Square:16mm 220 OD16mm to 220 OD16mm to 220 OD / 25mm to 450 OD
Circles – Square:16mm16mm20mm
Circles – Round:16mm16mm20mm
Bar Bending – Rectangle:40 x 10mm40 x 10mm50 x 10mm
Bar Bending – Square:16mm16mm20mm
Bar Bending – Round:16mm16mm20mm
Rope Braiding – Square:4x 10mm4x 10mm4x 20mm
Rope Braiding – Round:4x 10mm4x 10mm4x 20mm
Operation:AutomaticManualAutomatic
Motor: Kw0.37 Kw0.37 Kw4.0 Kw
Length:1740mm1740mm2220mm
Width:650mm650mm980mm
Height:1055mm1055mm1280mm
Weight:235 Kg235 Kg1300 Kg

* Programmable control for job repeat-ability
* Heavy duty construction.
* Rapid cold-bending of round, square and flat bar.
* Quick change tooling.
