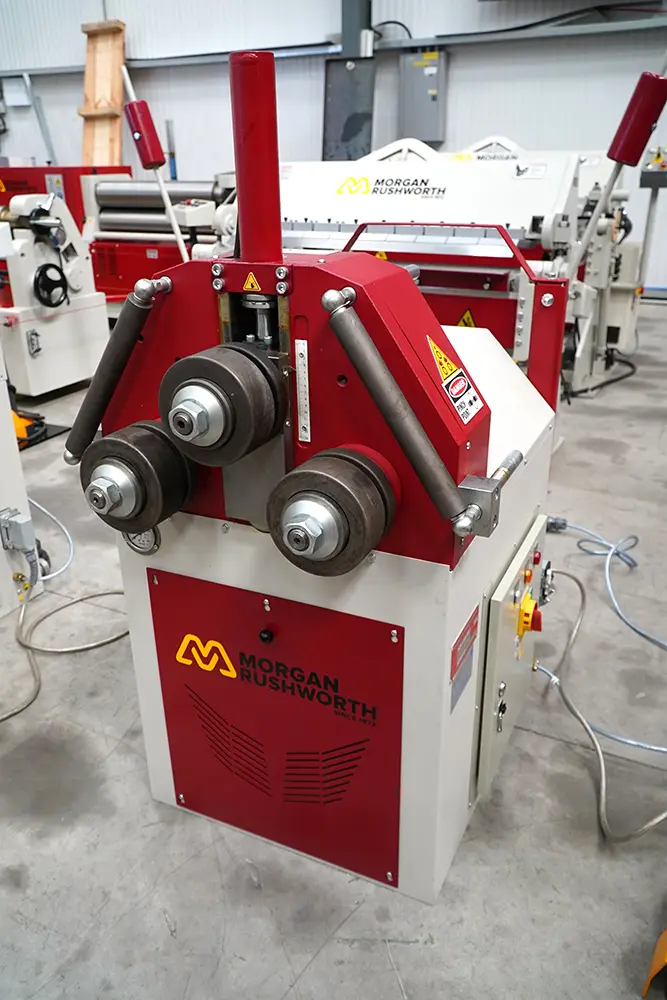

Morgan Rushworth PSR-H Ring Rolling Machine 415v
The Morgan Rushworth powered ring rolling machines are available in shaft diameters of 50mm and feature a Hydraulic ram on the top shaft. Including a full set of rolls for the bending of flat bar, flat bar on edge, round bar, square bar and box section.

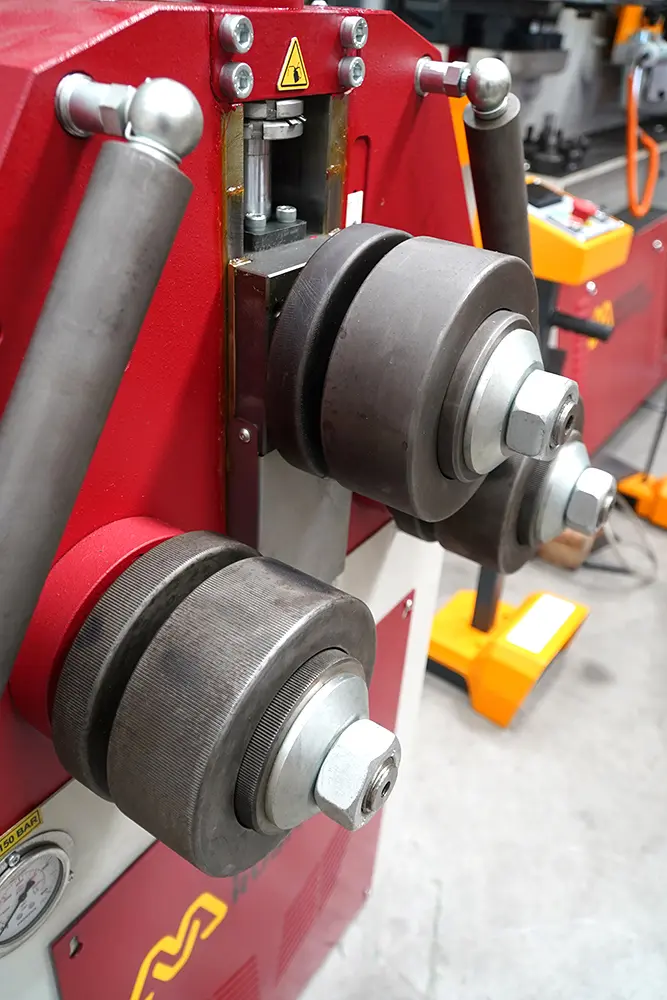

Both of the bottom rolls are powered, providing positive traction, while the top adjustable idler roll determines the bending radius according to its position. The Hydraulic ram removes the manual part of the process with this machine, and attaching a DRO makes getting precise measurements a breeze.
| MODEL | PSR-H 50/155 | |
| STOCK CODE | M6019 | |
| Shaft diameter | mm | 50 |
| Roll diameter | mm | 155 |
| Rolling speed | m/min | 4.3 |
| Power | kW | 1.5 |
| Length | mm | 730 |
| Width | mm | 830 |
| Height | mm | 1350 |
| Weight | kg | 400 |
For bending capacities, see our capacities chart
Features
- Operates horizontally or vertically.

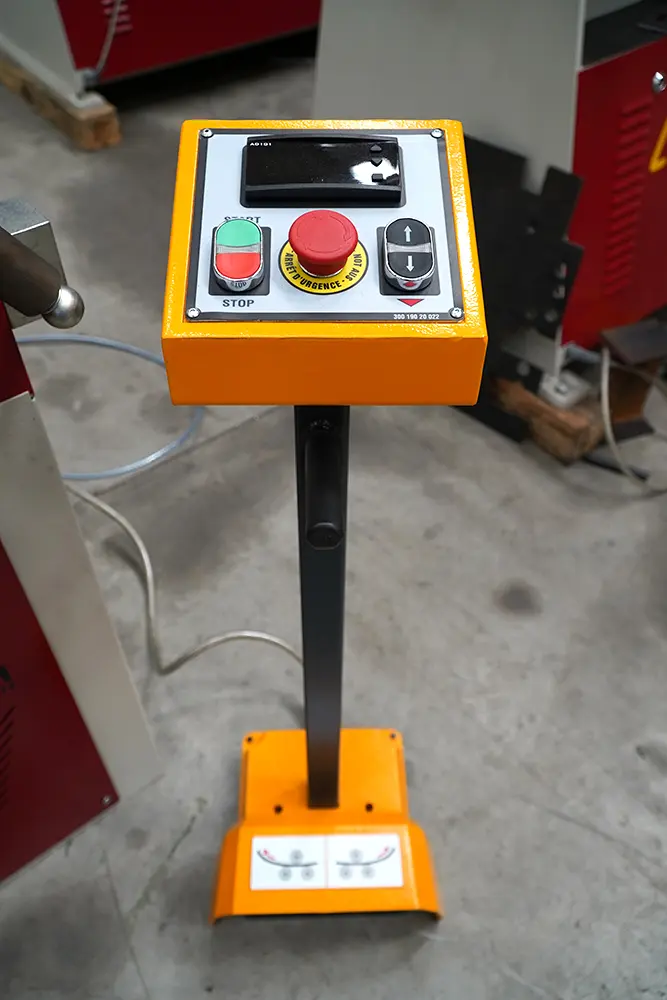

- Forward and reverse Foot Pedal.

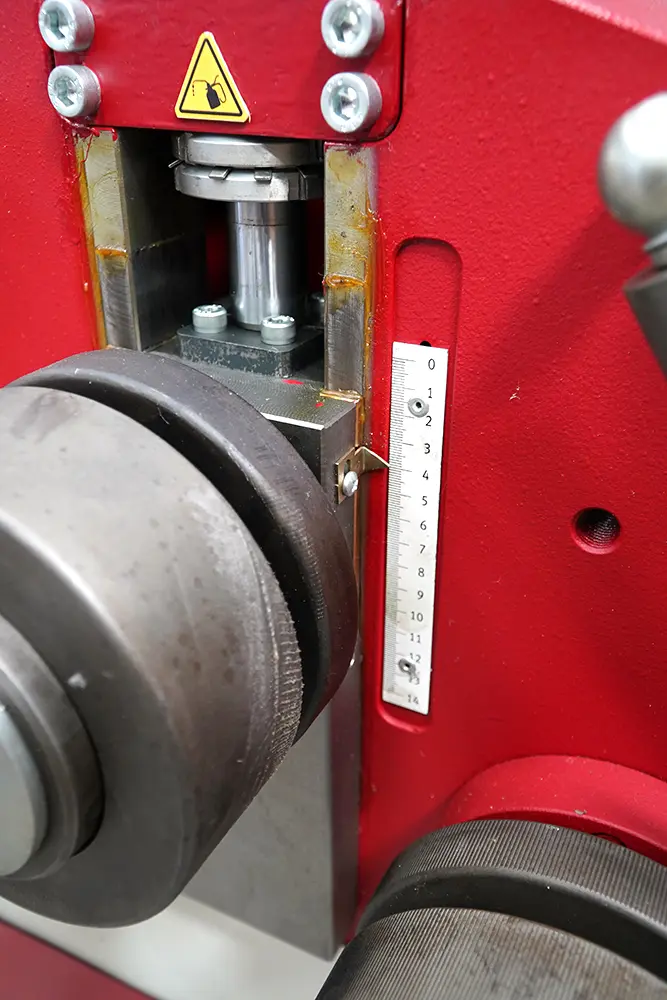

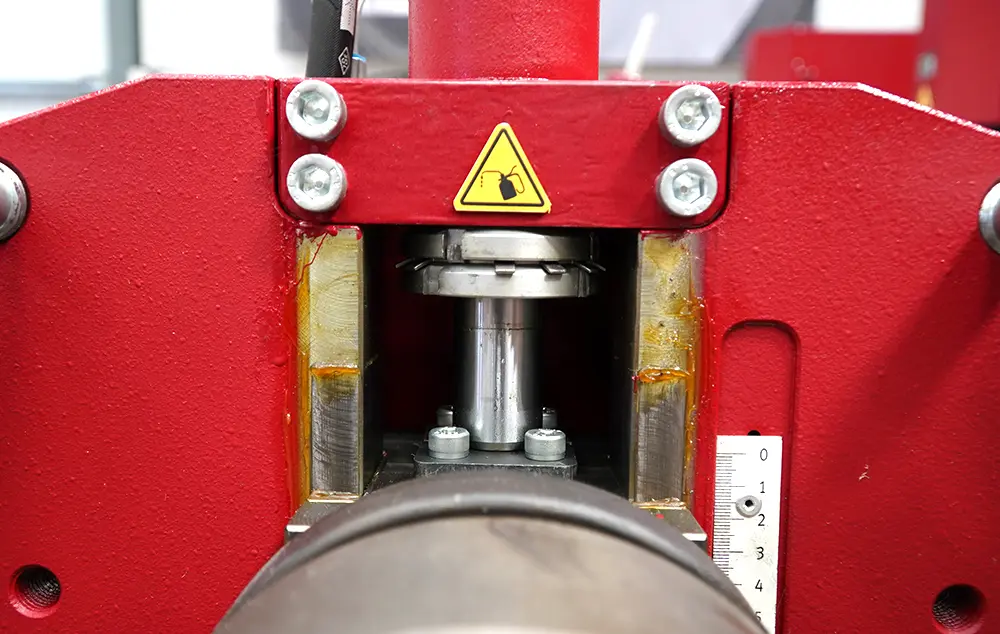

- Hydraulic roll adjustment with pointer and scale roll position indicator
- DRO Top Roll Indicator
- A cost effective solution to out sourcing of sectional roller.
- Variable speed
Options
- Optional tube rolls available on request.
- Removal of DRO
- See the Standard PSR35 / PSR50 ranges for non-hydraulic top roll option
Morgan Rushworth PSR-H Ring Rolling Machine 415V: Versatile and Efficient Bending Solutions
The Morgan Rushworth PSR-H Ring Rolling Machine 415V is a versatile and efficient tool designed to meet the demands of various bending applications. With precision engineering and user-friendly features, this machine is ideal for fabricators and manufacturers seeking reliable performance. Equipped with a hydraulic ram on the top shaft and a full set of rolls, the PSR-H model is capable of bending a wide range of materials, including flat bar, flat bar on edge, round bar, square bar, and box section, making it suitable for diverse industrial tasks.
Powered Bottom Rolls for Consistent Material Feeding
A standout feature of the PSR-H Ring Rolling Machine is its powered bottom rolls. Both bottom rolls are driven, ensuring positive traction and smooth, consistent material feeding during the bending process. This powered operation reduces the risk of slipping or uneven results, making the machine particularly suited to high-precision applications. The adjustable top idler roll allows operators to control the bending radius with ease, enabling consistent and accurate results across various material types and thicknesses.
Hydraulic Ram for Effortless Adjustments

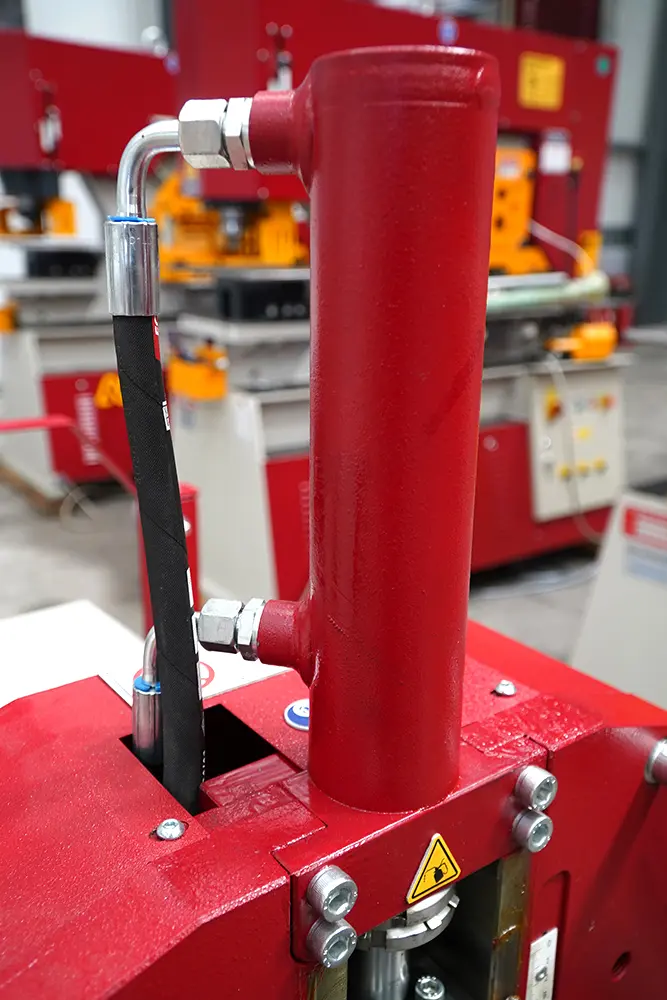

The inclusion of a hydraulic ram on the top shaft enhances the machine’s functionality by removing the need for manual adjustments. This hydraulic mechanism reduces operator effort and increases efficiency, making it easier to achieve precise bends. The hydraulic system also improves repeatability, allowing for consistent results across multiple workpieces. This feature is particularly beneficial in production environments where uniformity and speed are critical.
Enhanced Precision with Digital Readout (DRO)
For projects requiring tight tolerances, the PSR-H Ring Rolling Machine can be equipped with an optional Digital Readout (DRO). The DRO provides real-time feedback on the position of the top roll, enabling operators to make precise adjustments confidently. By eliminating the guesswork associated with manual measurements, the DRO minimises errors and ensures each bend meets exact specifications, making it an invaluable addition for complex and intricate projects.
Versatility in Material Handling
The PSR-H Ring Rolling Machine is designed to handle a wide variety of materials and profiles, from flat and round bars to square bars and box sections. This versatility makes it suitable for a range of industries, including construction, manufacturing, and metal fabrication. Its robust construction ensures reliable performance and durability, even under heavy use. With a full set of rolls included as standard, operators can start working on diverse projects immediately without needing additional tooling.
User-Friendly Design for Improved Productivity
The PSR-H Ring Rolling Machine prioritises operator convenience with its hydraulic adjustments and powered rolls, simplifying the bending process and reducing fatigue. Its intuitive controls and ergonomic design make it accessible to operators of all skill levels. Additionally, the machine’s compact footprint allows for easy integration into various workshop environments, making it a practical choice for businesses of all sizes.
Applications Across Industries
From creating decorative rings and spirals to bending structural components for industrial use, the PSR-H Ring Rolling Machine offers the flexibility needed for a wide range of applications. Its ability to handle various materials and profiles makes it a valuable asset for industries such as:
- Construction: Bending structural elements for building projects.
- Manufacturing: Producing parts for machinery and equipment.
- Metal Fabrication: Creating custom components for specialised projects.
The machine’s precision and reliability ensure it meets the demands of both small-scale operations and large-scale production environments.
Durability and Low Maintenance
The Morgan Rushworth PSR-H Ring Rolling Machine is built to last, with high-quality components and a sturdy frame capable of withstanding daily use in demanding industrial settings. This durability translates to lower maintenance requirements and reduced downtime, maximising return on investment. Businesses can rely on the PSR-H for long-term, consistent performance with minimal upkeep.
Conclusion: Precision, Efficiency, and Versatility
The Morgan Rushworth PSR-H Ring Rolling Machine 415V is a powerful and versatile tool for bending a wide range of materials and profiles. With features such as powered bottom rolls, a hydraulic ram, and the option for a Digital Readout, this machine delivers precision, efficiency, and ease of use. Its robust construction, user-friendly design, and ability to handle diverse applications make it a valuable asset for industries ranging from metal fabrication to construction.
By investing in the PSR-H Ring Rolling Machine, businesses can enhance their bending capabilities, improve productivity, and achieve consistent, high-quality results across a variety of projects.
