Morgan Rushworth Laser Welding Safety Enclosure

Morgan Rushworth Laser Welding Safety Enclosure main view

The Morgan Rushworth Laser Welding Safety Enclosure is fully modular, and can be used to build your perfect welding environment, whether you need several smaller booths, or one large one. Featuring a fused electrical panel and a safety interlock system, the operator can weld in complete safety without the risk of anyone being exposed to the beam should they open the door. Add-ons include a roof, lighting systems, or a CCTV Camera system to allow remote monitoring of the welfare of the operator.

Laser Welding Technology utilises a Class 4 Laser, that can be highly dangerous if used without adequate PPE. As such all Laser Welders should be used in a laser-proof enclosure, where the reflective beam cannot escape the workspace.

Morgan Rushworth Laser Welding Safety Enclosure main view
Morgan Rushworth Laser Welding Safety Enclosure main viewMorgan Rushworth Laser Welding Safety Enclosure main view
Morgan Rushworth Laser Welding Safety Enclosure 1Morgan Rushworth Laser Welding Safety Enclosure 1
Safety Interlock
Safety Interlock
Safety Interlock
Fused Electrical Panel
Fused Electrical Panel
Fused Electrical Panel
Laser Safe Glass Panels
Laser Safe Glass Vision Panels
Laser Safe Glass Panels
Roof and Lighting Systems
Roof and Lighting Systems (Optional)
Roof and Lighting Systems
Morgan Rushworth Laser Welding Safety Enclosure Interior
A 3m x 3m install
Morgan Rushworth Laser Welding Safety Enclosure Interior
A recent 4m x 4m Installation with Roof Interior
A recent 4m x 4m Installation with Roof (Interior)
A recent 4m x 4m Installation with Roof Interior
A recent 4m x 4m Installation with Roof
A recent 4m x 4m Installation with Roof
A recent 4m x 4m Installation with Roof
A 5m x 5m Installation
A 5m x 5m Installation
A 5m x 5m Installation
Double Doors with extra Viewing Panels 5m x 5m
Double Doors with extra Viewing Panels (5m x 5m)
Double Doors with extra Viewing Panels 5m x 5m

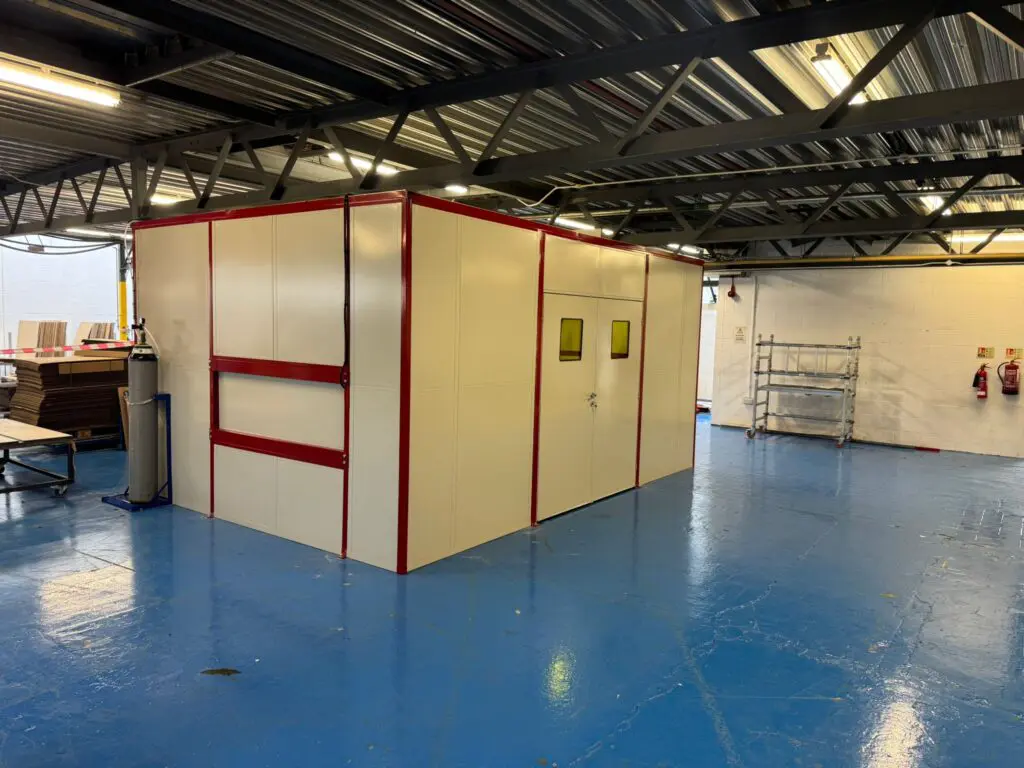

Booth with Conveyor

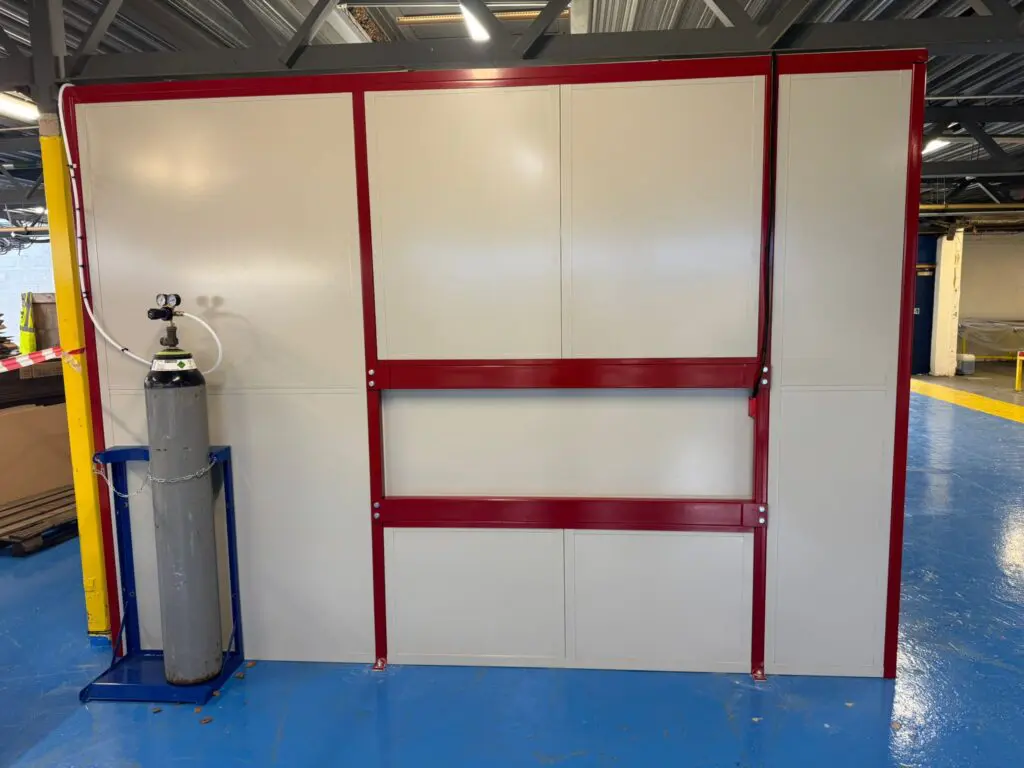

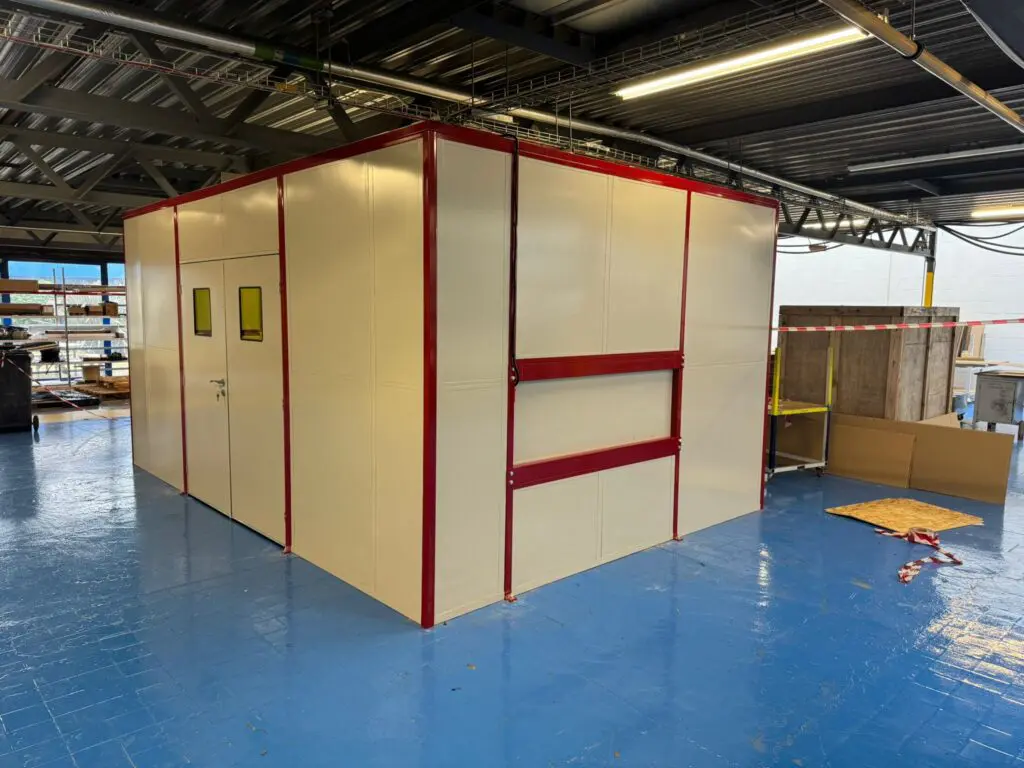

Booth with Conveyor Door
Booth with Conveyor
Booth with Conveyor Door
Booth with Conveyor Door
Booth with Conveyor Door
Booth with Conveyor Door
Booth with Conveyor Door
Booth with Conveyor Door

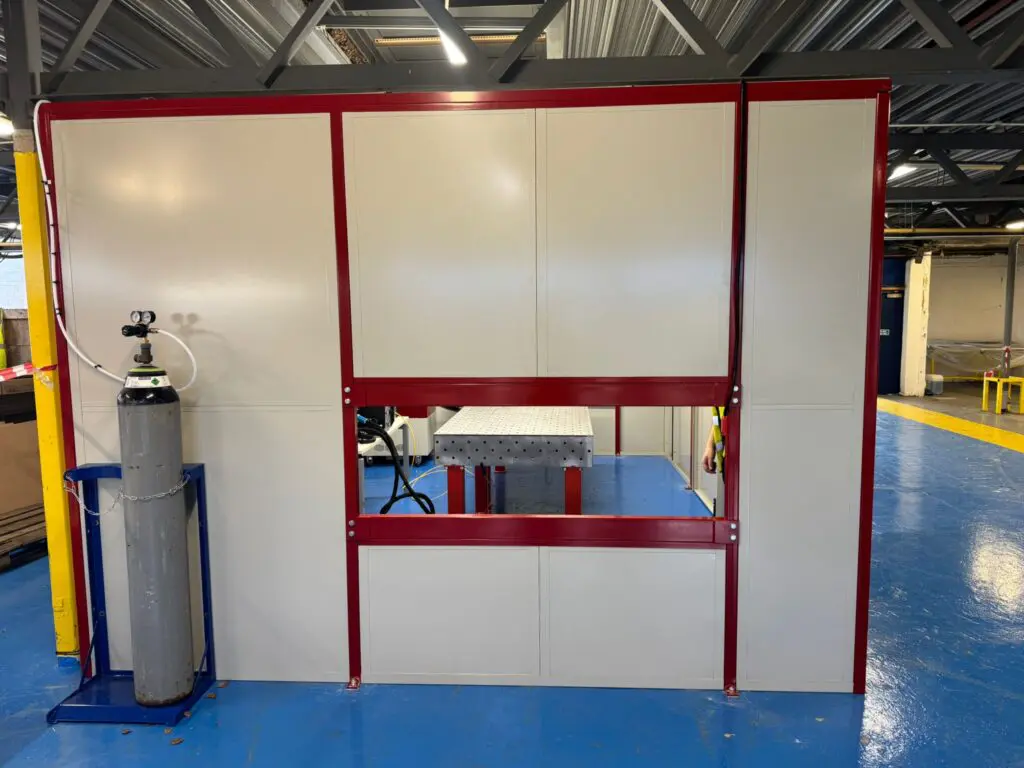

Booth with Conveyor Doors
Booth with Conveyor Doors
Booth with Conveyor Doors

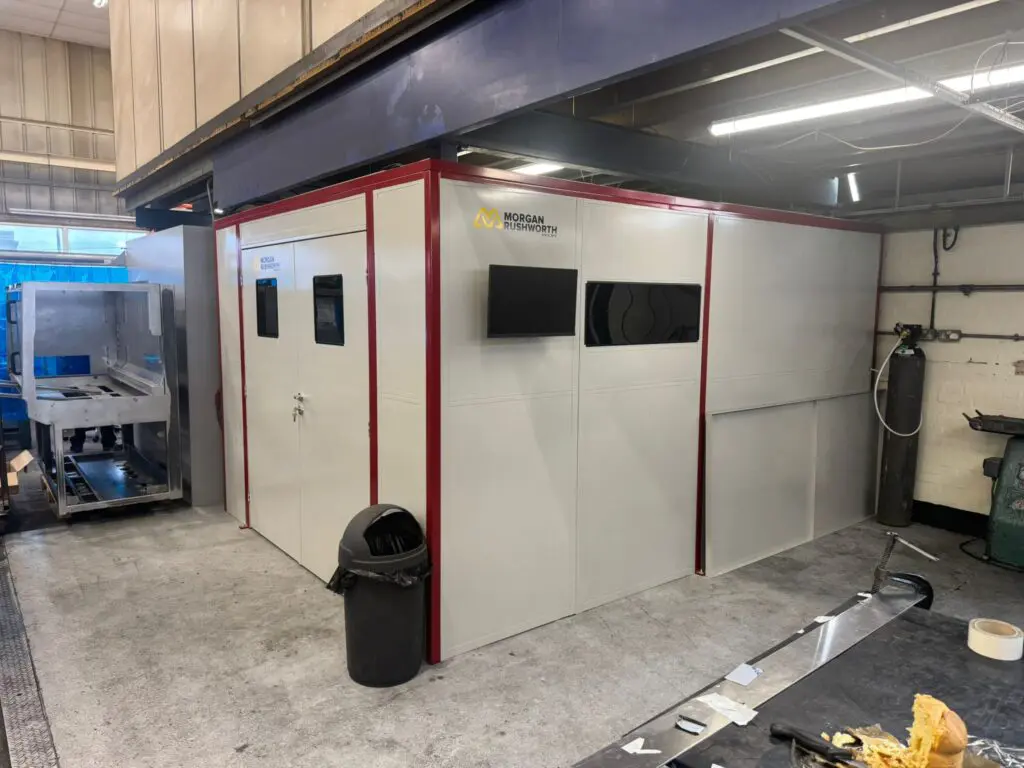

Booth with 2 Camera CCTV
Booth with 2 Camera CCTV System
Booth with 2 Camera CCTV

These booths are entirely modular, and can be as small as a 2m x 2m booth, or as large as required. Our standard booth size recommendation would be a 3m x 3m booth, which includes a door in one of the 1m panels for access in and out of the booth.

MODEL 3×3 Enclosure (No roof)
Stock Code 820-SCE-KIT3X3
Panel Sizes (Each) mm 1,000 x 2,300
Composition Single skin steel partition panel with box section and angle frame
Safety Interlock Single Safety Interlock Supplied for connection to IPG LightWELD Laser Welder
Access Standard single-hinged door panel with laser-safe vision window (940mm x 2000mm opening)
Panels 10x Standard Panels, 1x Vision Panel (910mm x 320mm laser-safe vision window), 1, Door Panel
Finish Powder coated single skin steel panels
Width mm 3,110
Length mm 3,110
Height mm 2,300

Features

  • A 3m x 3m booth is our standard size and would feature 1 door and a vision panel
  • 1m modular panels
  • Mix and match with solid, laser-safe vision panels or doors.
  • Supplied with a safety interlock system for connecting to an IPG LightWELD System
  • Powder coated, solid steel construction
  • Quick and simple assembly – just bolts together
  • Flexible and re-configurable to suit a dynamic workplace
  • Supplied with a Fuse board, 32A 240V Socket and 2 x 2Gang 13A Sockets
  • Suitable connection components for electric works

Options

  • Additional panels / vision panels
  • Double Door System for larger booths
  • Custom solutions such as conveyor doors or additional openings
  • Enclosed roof system
  • Lighting systems
  • CCTV Welfare System
  • Welding Table
  • Welding Table Accessories
  • Extraction Systems

With the introduction of Laser Welding, this has led to the need for dedicated safety enclosures in order to provide a safe working environment for both the laser welding operator and other staff members working nearby.

Safety is of the upmost importance with laser welding, the class 4 lasers could blind someone if they’re not wearing suitable PPE, and that’s why the laser welding machines that we supply need to be used in a safety interlock enabled enclosure. This insures that no-one can interact with the laser without appropriate PPE. Our range of modular safety enclosures can be built to suit your exacting requirements. Whether you need to fit the enclosure into a specific location within the workshop, or to accommodate certain size workpieces.

Depending on your situation, a roof is also available for the enclosure, this is required should there be a 2nd story, or mezzanine floor that could allow someone to see into the booth during operation.

A standard configuration of a 3m x 3m enclosure includes a single sliding door and a vision panel featuring laser safe glass to allow other staff to look in. There is safety interlock system which attaches to our LightWELD Laser Welding systems.

The optional roof system includes a lighting set-up as well.

The modular design means you can build a system to suit your needs.

Frequently Asked Questions

Why is a dedicated laser welding safety enclosure needed?

Handheld LightWELD systems are Class 4 lasers and present serious direct and reflected beam hazards. A correctly specified enclosure helps contain the beam and restrict access while welding. Selmach supplies modular enclosures with safety interlocks, but the installation still requires a documented laser risk assessment, training and appropriate PPE.

What size is the standard Morgan Rushworth laser welding booth?

Selmach describes a nominal 3 m by 3 m booth as a standard arrangement and lists external dimensions of approximately 3,110 by 3,110 mm with a height of 2,300 mm. Its modular panels can be arranged for smaller or larger workspaces. Confirm the final internal clearances and access before ordering.

Can the laser safety enclosure be built to a custom size?

Yes. The enclosure uses modular steel panels, with solid, laser-safe vision and door panels available to suit the workshop and workpiece. Selmach describes layouts from around 2 m by 2 m upwards. The final design should account for operator movement, material handling, access and the laser risk assessment.

How does the safety interlock work with a LightWELD machine?

The enclosure is supplied with an interlock intended for connection to an IPG LightWELD system. Opening an interlocked access door interrupts laser operation to help prevent unintended exposure. The exact wiring, stop function and validation must be checked during installation; interlocks should never be bypassed.

Are laser-safe viewing windows available for the enclosure?

Yes. Selmach lists laser-safe vision panels and doors with viewing windows, allowing observation without an open line of sight to the welding area. The glazing must be rated for the installed laser wavelength and exposure conditions, and its suitability should be confirmed as part of the enclosure specification.

Does the laser welding enclosure need a roof?

A roof may be required where someone could look into the booth from above, such as from a mezzanine or upper floor. Selmach lists roof and lighting systems as options. The correct arrangement depends on the site risk assessment, possible reflected-beam paths and local layout.

Can extraction, lighting and CCTV be added to the laser enclosure?

Yes. Selmach lists optional roof and lighting systems, CCTV welfare monitoring, additional door and panel configurations, and extraction systems. Confirm which items are included in the quotation and ensure ventilation and monitoring arrangements do not compromise the laser containment or safety interlocks.

Can Selmach provide servicing and a Service Plan for the Morgan Rushworth Laser Welding Safety Enclosure?

Selmach offers machinery Service Plans covering planned maintenance and support, with Essentials, Standard, Advanced and Advanced Plus levels listed on its service page. Ask Selmach to confirm whether the Morgan Rushworth Laser Welding Safety Enclosure is eligible, what equipment and accessories are included, the required operator checks and the quoted call-out terms. Do not assume a specific plan or laser-system component is covered until the service team confirms it.
