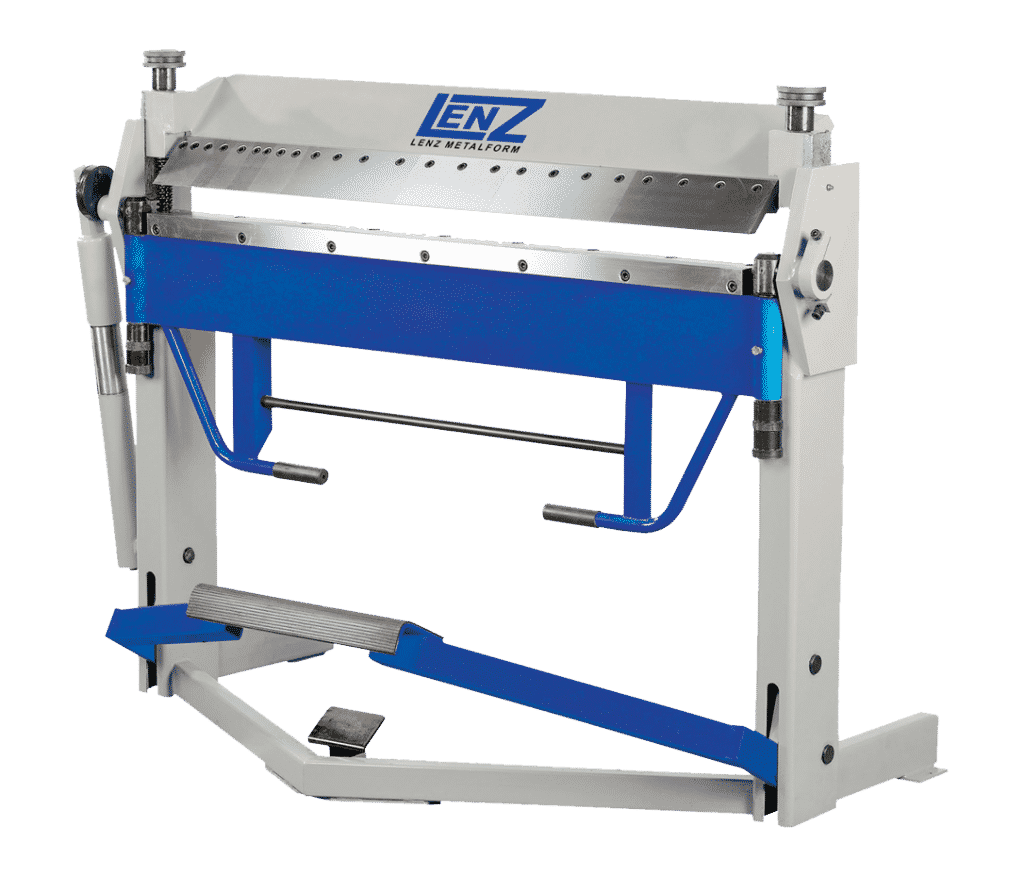

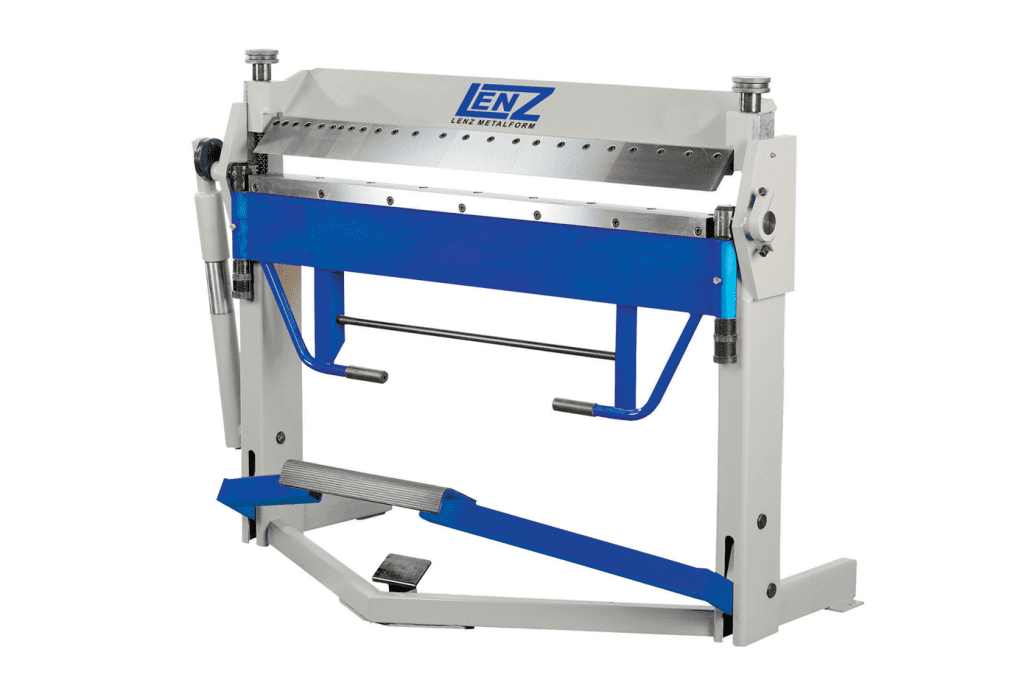

Lenz Metalform LTBP Treadle Box and Pan Folder
The Lenz Metalform LTBP folder treadle system has been designed for hands free operation to position the material with the aid of a foot operated beam clamp. A spring loaded strut ensures easy bending operation. The two adjusting screws at the top of the machine can be altered according to material thickness. The fingers are machined to 45° providing a maximum bending angle of 135°.
Request a Quote
| MODEL | LTBP 1020/2.5 | LTBP 1270/2.0 | |
| STOCK CODE | 21543 | 21544 | |
| Capacity | mm | 2.5 | 2 |
| Bending Length | mm | 1020 | 1270 |
| Maximum Folding Angle | 135° | 135° | |
| Quantity & Size of Fingers | mm 1 ea | 25, 30, 35, 40, | 23, 30, 35, 40, |
| 45, 50, 75, 100 | 45, 50, 75, 100 | ||
| 150, 200, 270 | 150, 200, 250, 270 | ||
| Length | mm | 1400 | 1700 |
| Width | mm | 850 | 850 |
| Height | mm | 1150 | 1150 |
| Weight | Kg | 285 | 320 |
* Heavy duty with spring assisted bending.
* Bends heavy gauge material.
* Treadle clamping feature provides both hands available for positioning.
* Box and pan design.
* Hardened and ground fingers.
