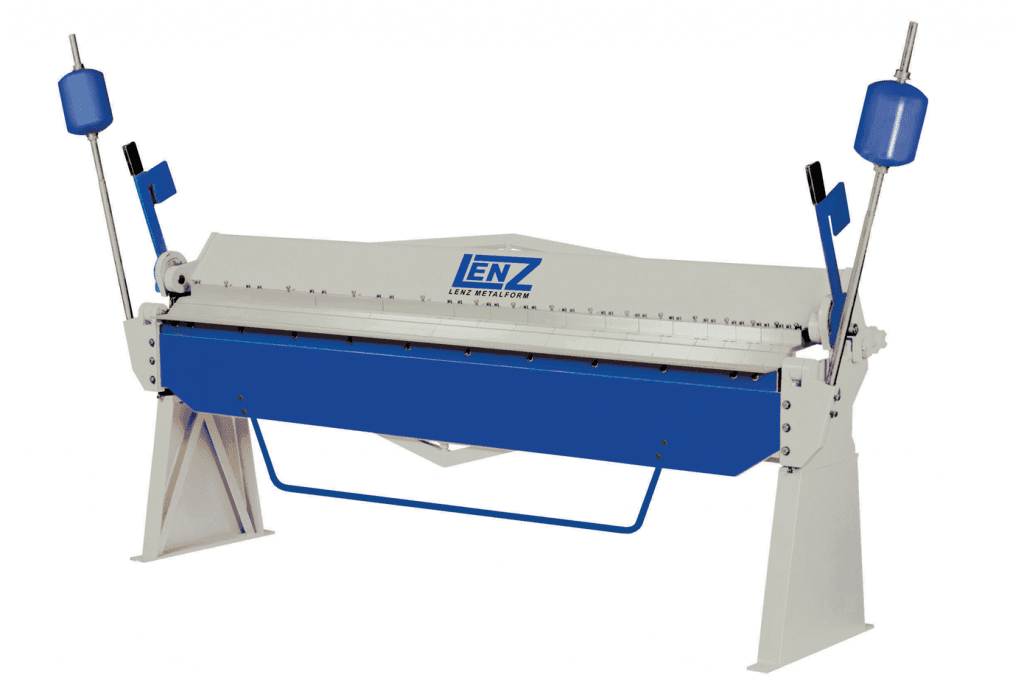

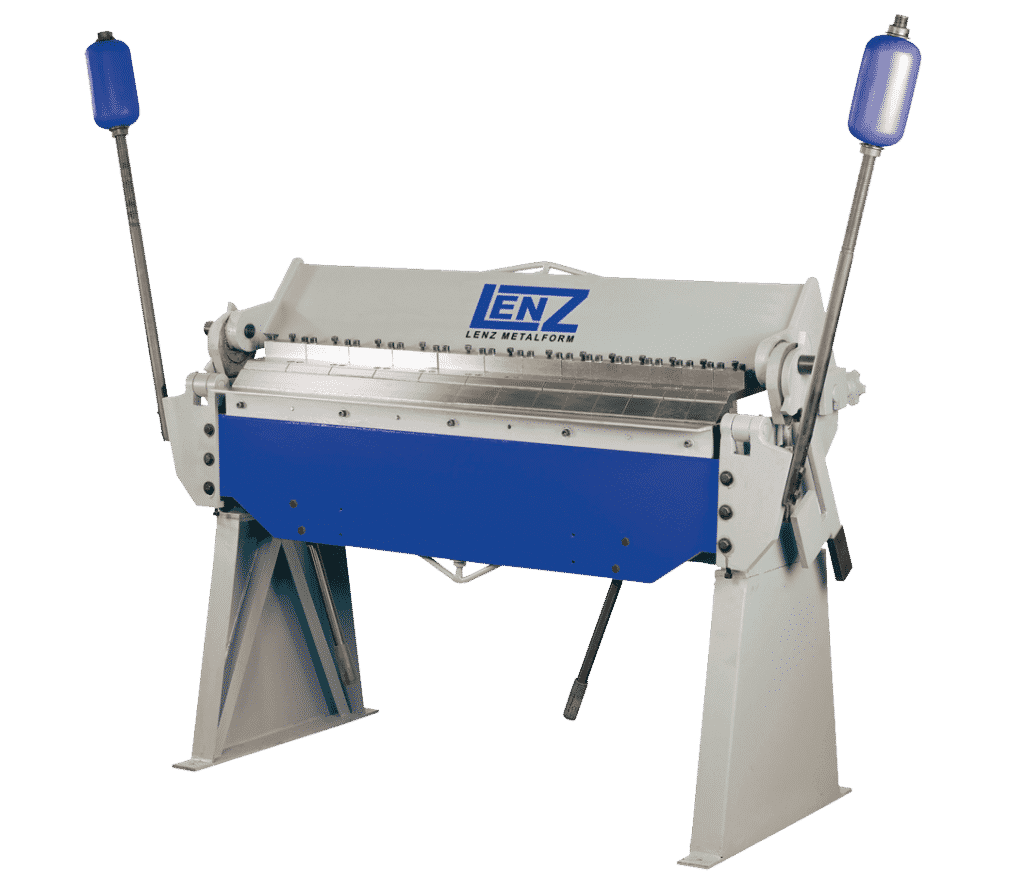

Lenz Metalform LCBP Manual Box and Pan Folder
Request a Quote
The five model range of heavy duty Lenz Metalform LCBP Box and Pan folders are available in up to 2.5m bending capacities and a maximum bending length of 3000mm. The counter balance weights greatly assist the operator, especially during repetition cycles. The Lenz Metalform LCBP range have 45° angled fingers which are hardened and ground and supplied in varying widths for ultimate versatility.
MODEL | LCBP 1270/2.5 | LCBP 2040/2.5 | LCBP 2540/2.5 | LCBP 3050/2.0 | |
STOCK CODE | 21545 | 21546 | 21547 | 21548 | |
Capacity | mm | 2.5 | 2.5 | 2.5 | 2 |
Bending Length | mm | 1270 | 2040 | 2540 | 3050 |
Maximum Folding Angle | 135° | 135° | 135° | 135° | |
Quantity & Size of Fingers | mm | 6 x 76 | 2 x 76, 2 x 104, | 1 x 63, 1 x 76, | 3 x 76, 3 x 127, |
2 x 103 | 3 x 127, 3 x 158, | 1 x 89, 1 x 102, | 3 x 153, 3 x 254, | ||
5 x 127 | 3 x 287 | 3 x 127, 4 x 152,4 x 305 | 4 x 305 | ||
Length | mm | 1800 | 2500 | 3000 | 3500 |
Width | mm | 650 | 640 | 700 | 720 |
Height | mm | 1200 | 1050 | 1100 | 1120 |
Weight | Kg | 520 | 890 | 1190 | 1490 |
Features
* Heavy duty manual range with counter balance weights.
Options
