CBC UNI Tube Bending Machine
The CBC UNI Tube Bending Machine combines versatility and precision, catering to both simple and complex bending applications. Designed for ease of use, the machine ensures high-quality bends across a variety of materials and wall thicknesses. A comprehensive range of formers, with options for counter formers or guide rollers, guarantees excellent results for every application.

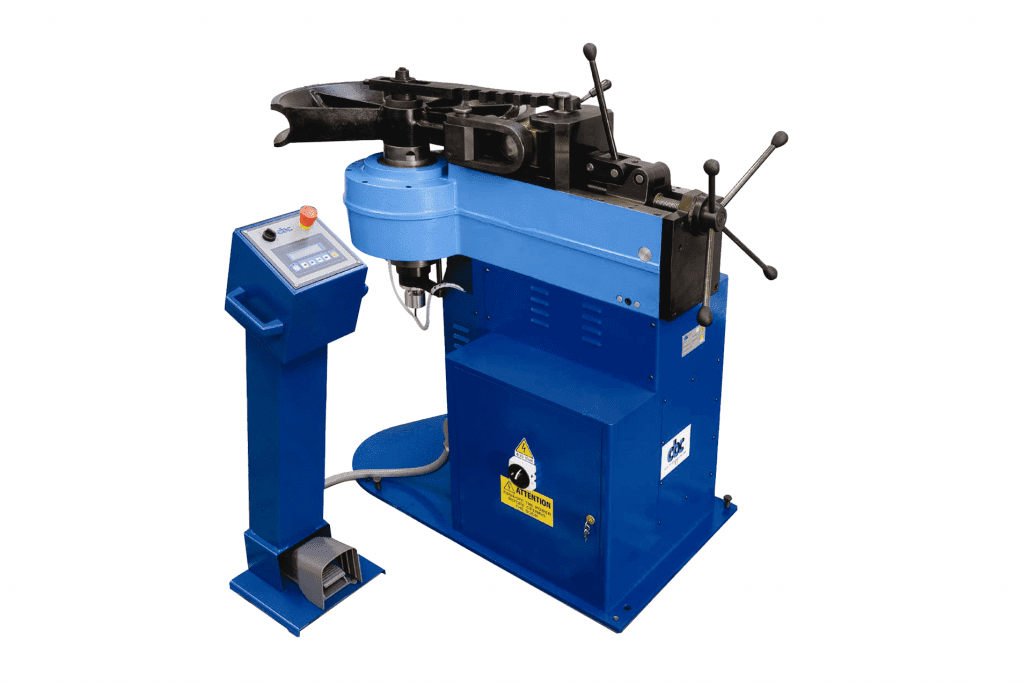

The powerful CBC UNI 89 model is capable of bending mild steel tubes up to 88.9mm with 8mm wall thickness, making it ideal for heavy-duty tasks. Additional features, such as a moving arm with positioning stops and a plane of bend indicator, enhance accuracy and productivity.
| MODEL | UNI 30 | UNI 42 MAN | UNI 42 | UNI 42 DIG | UNI 60 | UNI 60 DIG | UNI 70/C | UNI 76 | UNI 89 | |
| STOCK CODE | 21374 | 21194 | 21195 | 21196 | 21197 | 21198 | 21199 | 21314 | 21364 | |
| Capacity mm (Mid Steel) | 33.7 x 3.2 | 42.4 x 3.2 | 42.4 x 3.2 | 42.4 x 3.2 | 48.3 x 3.2 | 48.3 x 3.2 | 60.0 x 4 | 76.0 x 6 | 88.9 x 8 | |
| Maximum Bending Angle | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | 180 | |
| Motor | Kw | 1.1 | – | 0.56 | 0.56 | 0.98 | 0.98 | 1.5/2.2 | 3/4 | 4.8 |
| Programs | 50 | – | – | 50 | – | 50 | 70 | 50 | 50 | |
| Bends/Program | 9 | – | – | 9 | – | 9 | 6 | 9 | 9 | |
| Weight | Kg | 120 | 18 | 35 | 35 | 60 | 60 | 210 | 450 | 650 |
| Length | mm | 740 | 400 | 520 | 520 | 520 | 520 | 810 | 1000 | 1200 |
| Width | mm | 900 | 200 | 170 | 170 | 210 | 210 | 400 | 710 | 650 |
| Height | mm | 1000 | 250 | 350 | 350 | 410 | 410 | 1100 | 1100 | 1200 |
Features
- Manual UNI 42 provides quality bending at competitive pricing.
- NEW UNI 30 for fast bending of tubes up to 1” gas.
- Superb bend quality.
- Complete tooling service.
- Adjustable limit switch with angle scale standard on UNI 42 and UNI 60. Programmer with memories including ‘spring back’ allowance standard on
- UNI42 digital, UNI 60 digital, UNI 70/C.
- NEW CBC UNI 89 with large 88.9mm x 8mm bending capacity.
Options
- 2 wheeled cabinet available for UNI 42, UNI 42 digital, UNI 60 and UNI 60 digital.

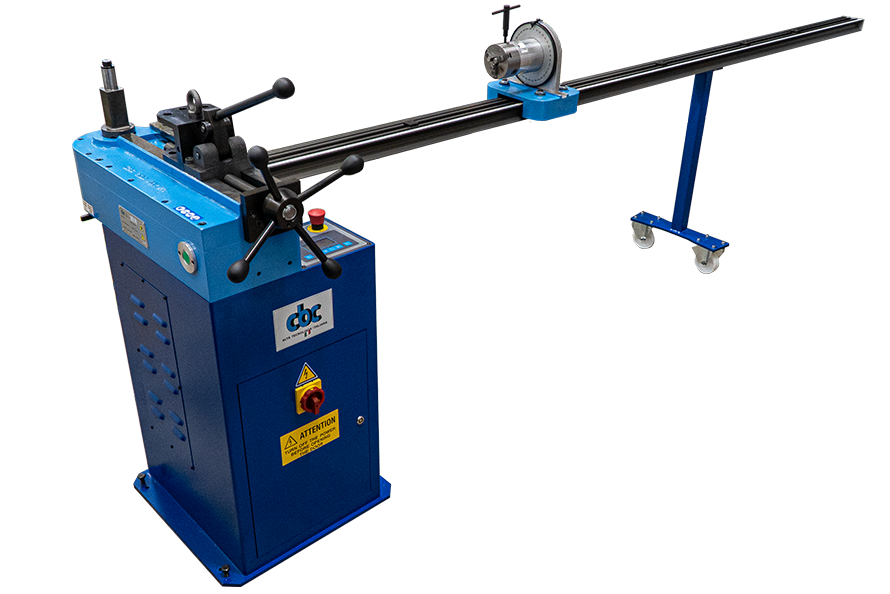

- Moving arm with plane of bend indicator available for UNI 42, UNI 42 Digital, UNI 60 and UNI 60 Digital.
- 110V models.
CBC UNI Tube Bending Machine: Versatility and Precision in Tube Bending
The CBC UNI Tube Bending Machine is an advanced solution for tube bending needs, designed to accommodate a wide range of applications. From straightforward manual operations to precision-driven programmable production tasks, the CBC UNI range offers unparalleled versatility and performance. Whether you need a simple bend or a complex multi-plane configuration, this machine guarantees accuracy and reliability, making it an essential tool for fabricators and metalworkers.
Precision and High-Quality Bends
A defining feature of the CBC UNI Tube Bending Machine is its ability to deliver consistent, high-quality bends. The comprehensive range of tooling available ensures precise results across various materials and wall thicknesses. Each former can be specified with either counter formers or guide rollers, depending on the material being bent and its structural requirements.
For fabricators working with demanding materials such as stainless steel, aluminium, or mild steel, the CBC UNI provides the flexibility and precision necessary to maintain consistent quality. Its design ensures smooth, distortion-free bends, even for challenging applications.
Powerful Performance with the CBC UNI 89
The CBC UNI 89, the latest addition to the range, offers exceptional capabilities for heavy-duty bending tasks. With the ability to bend 88.9mm tubes with an 8mm wall thickness, this model is ideal for industries requiring high-capacity tube bending, such as construction, manufacturing, and automotive.
Despite its impressive power, the UNI 89 maintains the same level of precision and ease of use as other models in the CBC UNI range, ensuring it meets the demands of both large-scale production environments and smaller workshops.
Innovative Features for Enhanced Productivity
The CBC UNI Tube Bending Machine is equipped with a variety of features that improve efficiency and simplify operation. These include:

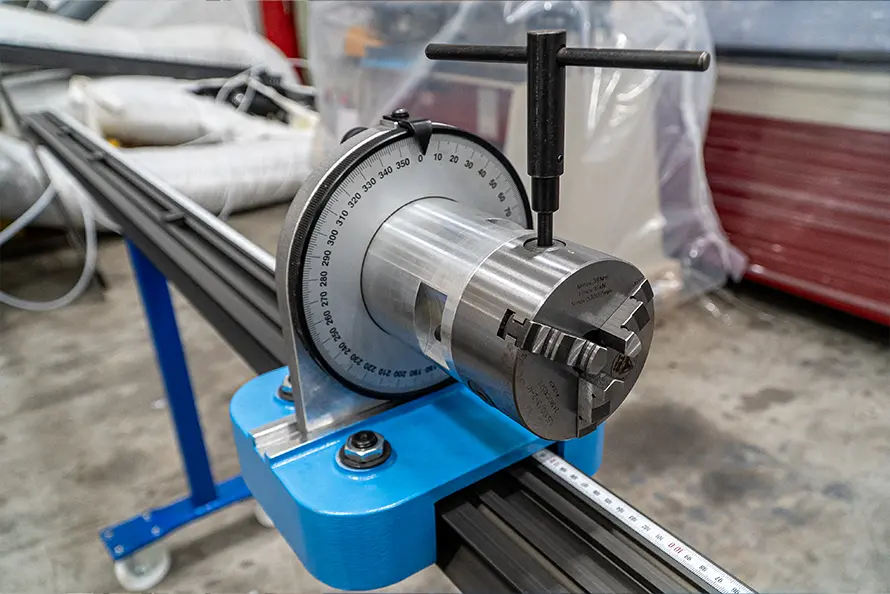

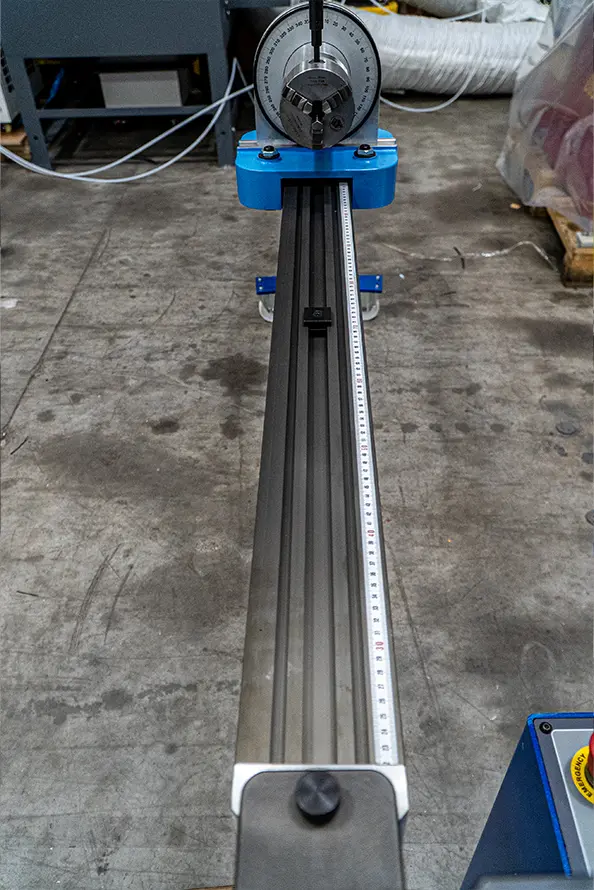

- Moving Arm with Positioning Stops: This optional feature allows for repeatable bends with minimal effort, ensuring accuracy and consistency in high-production environments.

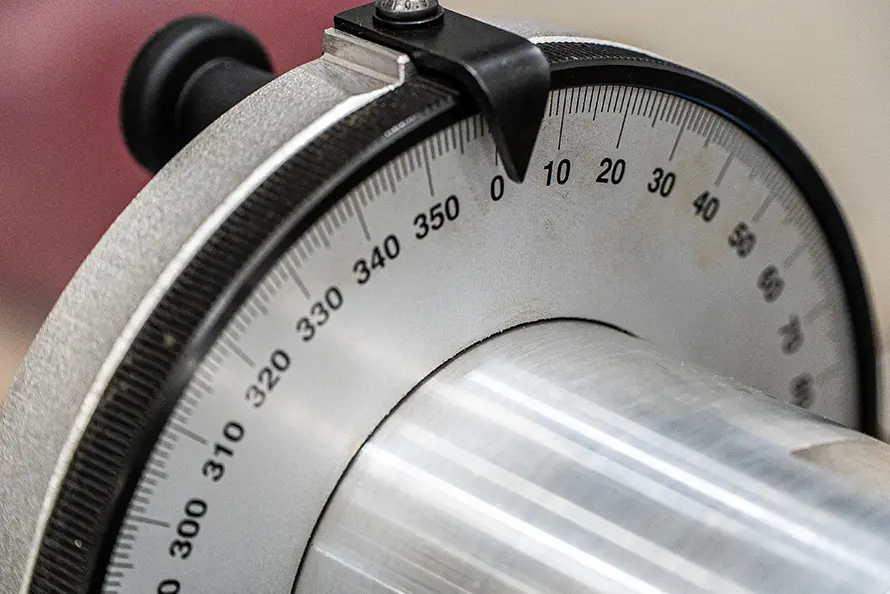

- Plane of Bend Indicator: Another optional addition, this feature helps operators maintain precise alignment during multi-plane bending tasks, reducing errors and waste.

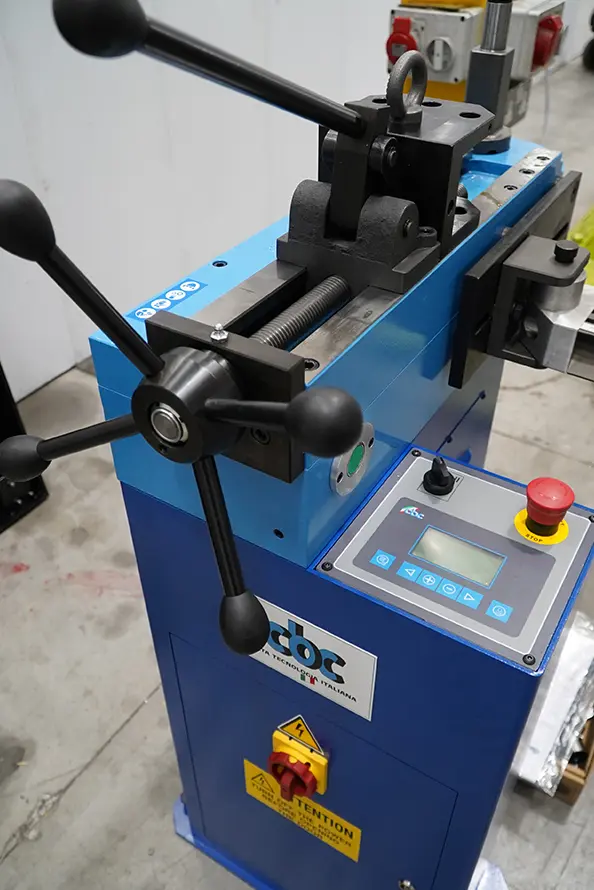

- Programmable Controls: On higher-end models, programmable settings enable operators to automate the bending process, saving time and improving accuracy for complex or repetitive tasks.
These features make the CBC UNI range suitable for fabricators seeking to increase productivity without compromising on quality.
Comprehensive Tooling for Versatile Applications
The CBC UNI range is supported by a comprehensive tooling selection, which makes it highly versatile for different applications. The tooling options are designed to accommodate a wide variety of tube shapes, sizes, and materials, including:
- Mild Steel: Ideal for structural and industrial applications.
- Stainless Steel: For projects requiring durability and corrosion resistance.
- Aluminium: Lightweight and versatile for automotive or aerospace use.
- Other Alloys: Suitable for specialised industries.
With the ability to customise formers and guide rollers, operators can achieve the exact results required for their specific needs. This flexibility makes the CBC UNI an indispensable tool for professionals working in diverse industries.
Applications Across Industries
The CBC UNI Tube Bending Machine is designed to serve a wide range of industries, including:
- Construction: Producing structural components for buildings, bridges, and other projects.
- Manufacturing: Creating custom parts and assemblies for machinery and equipment.
- Automotive: Shaping exhaust systems, roll cages, and other vehicle components.
- Aerospace: Bending lightweight materials for precision applications.
- Custom Fabrication: Handling one-off or bespoke projects requiring intricate designs.
With its robust capabilities and adaptable tooling, the CBC UNI can handle everything from small-scale workshops to large industrial operations.
Compact Design with Exceptional Durability
Despite its powerful performance, the CBC UNI Tube Bending Machine is designed to fit into a variety of workshop spaces. Its compact footprint ensures that even small workshops can benefit from its advanced features and capabilities.
Built with high-quality materials and precision engineering, the CBC UNI is designed to withstand the rigours of daily use in demanding environments. Its durability ensures long-term reliability, reducing maintenance requirements and maximising return on investment.
Key Features of the CBC UNI Tube Bending Machine
- High-Capacity Bending: Handles tubes up to 88.9mm diameter and 8mm wall thickness (CBC UNI 89 model).
- Comprehensive Tooling Range: Offers formers and guide rollers for various materials and wall thicknesses.
- Optional Enhancements: Includes moving arm with positioning stops and plane of bend indicator for precision and repeatability.
- Ease of Use: Designed for simple operation, from manual tasks to programmable production.
- Compact and Durable Design: Fits into small workshops while maintaining robust performance.
Summary: CBC UNI Tube Bending Machine
The CBC UNI Tube Bending Machine delivers unparalleled precision and versatility, catering to both simple and complex tube bending tasks. With a comprehensive tooling range, it ensures high-quality bends for materials such as mild steel, stainless steel, and aluminium. The CBC UNI 89 model is capable of bending tubes up to 88.9mm with 8mm wall thickness, making it ideal for heavy-duty industrial applications.
Equipped with optional features like a moving arm with positioning stops and a plane of bend indicator, the CBC UNI offers enhanced productivity and accuracy. Its compact, durable design and wide-ranging capabilities make it a perfect fit for workshops and industries requiring reliable and efficient tube bending solutions.
Why Choose the CBC UNI Tube Bending Machine?
The CBC UNI Tube Bending Machine combines ease of use, flexibility, and precision to deliver exceptional results for fabricators and metalworkers. Whether you’re working on one-off projects or large-scale production, its advanced features and high-capacity performance ensure consistent quality and efficiency.
For professionals seeking a reliable and versatile tube bending machine, the CBC UNI range stands out as the ultimate choice. Invest in the CBC UNI Tube Bending Machine and experience unparalleled performance for your workshop needs.
