Morgan Rushworth RF Roll Former 415V

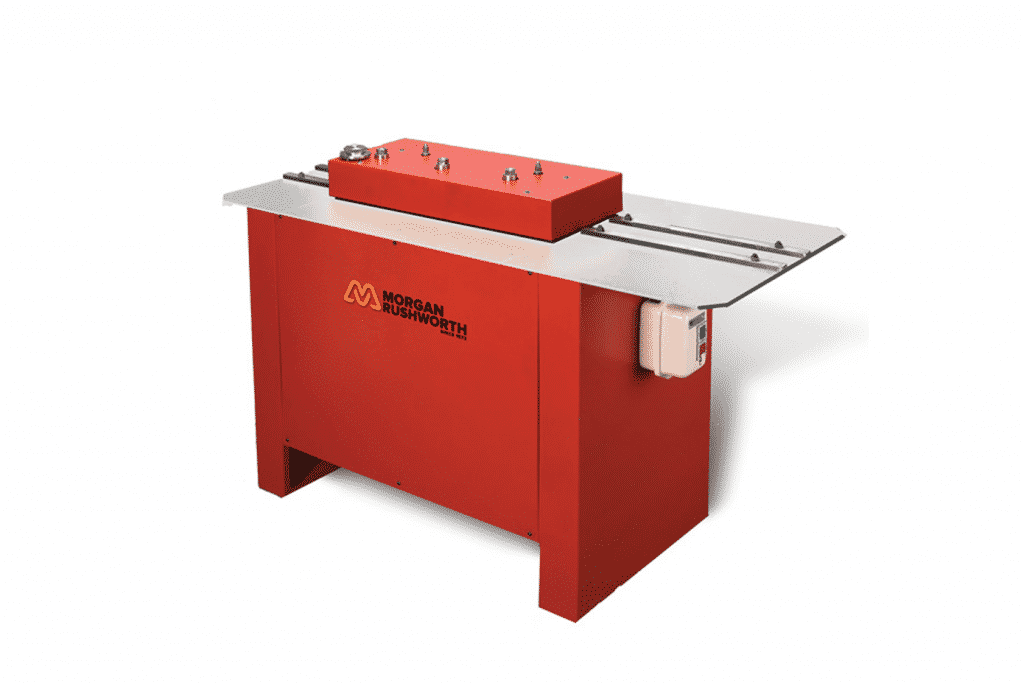

The Morgan Rushworth RF5/1.0 and RF7/1.6 are heavy duty roll forming machines designed to join straight sheet metal material. Equipped with auxiliary drive shafts to accept optional tools.
Request a Quote
| MODEL | RF 5/1.0 | RF 7/1.6 | |
| No. of stations | 5 | 7 | |
| Forming speed | m/min | 6 | 5 |
| Motor | kw | 0.75 | 1.5 |
| Length | mm | 1065 | 1460 |
| Width | mm | 510 | 620 |
| Height | mm | 940 | 990 |
| Weight | kg | 105 | 250 |
- Type A Pittsburgh rolls fitted as standard
- Fast straight forming in one pass
- Available in 1.0mm and 1.6mm capacities
- Auxiliary drive shafts fitted to accept optional rolls
