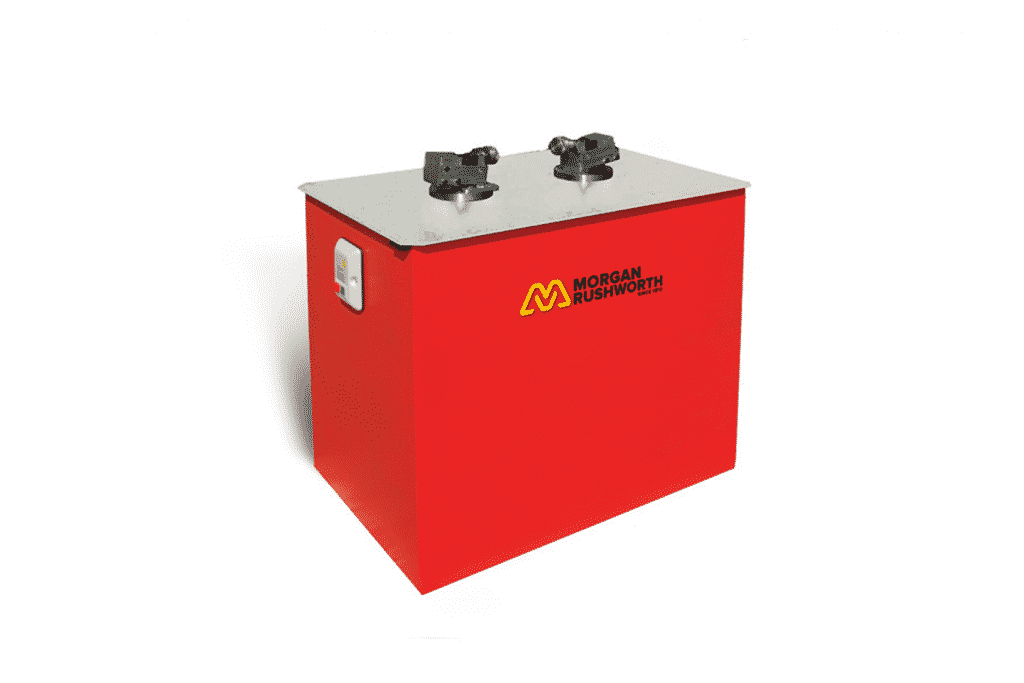

Morgan Rushworth RFLS 1.0 Flanger & Snap Lock 415V
The Morgan Rushworth RFLS 1.0 heavy duty twin station flanging machine is designed to produce type J, K & G angle flanges on curved material.
Request a Quote
| MODEL | RFLS 1.0 | |
| No. of stations | – | |
| Forming speed | m/min | 3 |
| Motor | kw | 0.75 |
| Length | mm | 1000 |
| Width | mm | 660 |
| Height | mm | 1020 |
| Weight | kg | 130 |
- Twin station flanging capability
- First station produces type J right angle flange for curved material
- Second station produce type K crimp to the flange, to allow the material to snap into type G profile for curved applications
